Emerson KJ3243X1-BB2 Spare for DeltaV Automation

Emerson KJ3243X1-BB2 Spare for DeltaV Automation: Profibus DP Interface Replacement & Downtime Risk Control

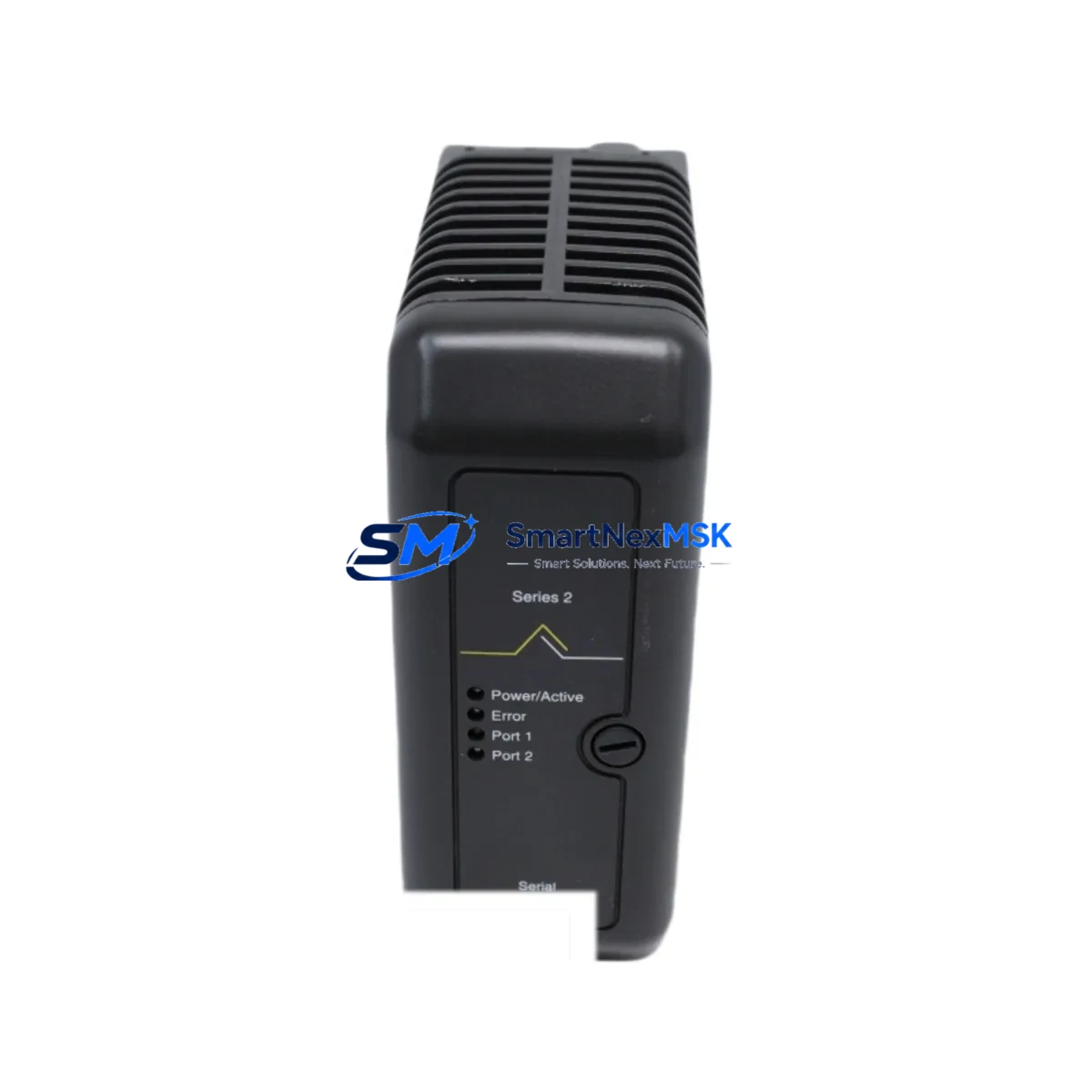

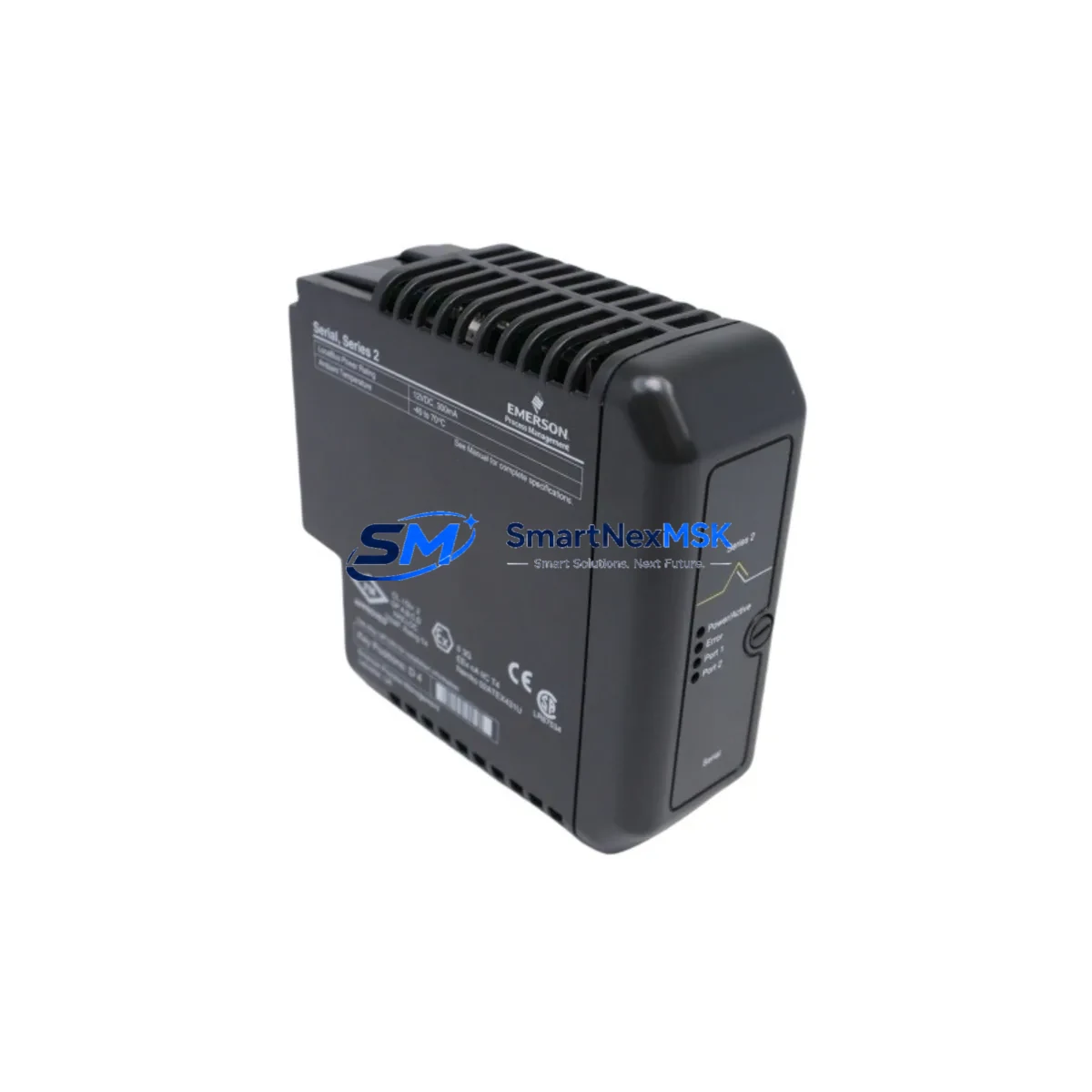

The Emerson KJ3243X1-BB2 is an original Profibus DP interface card designed for use within the DeltaV Distributed Control System (DCS) platform. In process industries — including oil & gas, chemical, power generation, and pharmaceuticals — this communication module serves as a critical bridge between the DeltaV controller network and field devices operating on the Profibus DP protocol. When this card fails or degrades, the consequences can include complete loss of field device communication, unplanned process shutdowns, and extended downtime that directly impacts production output and safety compliance.

Maintaining a verified, tested spare of the KJ3243X1-BB2 in your site inventory is one of the most cost-effective strategies for minimizing mean time to repair (MTTR) in DeltaV-based control systems. This listing provides an original Emerson KJ3243X1-BB2 unit — not a clone or third-party substitute — sourced, inspected, and dispatched with a 12-month warranty to support your maintenance and procurement teams with confidence.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a KJ3243X1-BB2 Profibus DP card is flagged for replacement during a planned shutdown or emergency callout, experienced maintenance engineers know that the card itself is rarely the only component requiring attention. A systematic inspection of the surrounding electrical environment is essential to prevent repeat failures and ensure the replacement card operates reliably from day one.

Begin by verifying the integrity of the DeltaV controller carrier (such as the KJ2003X1-BA1 or equivalent S-series carrier) into which the KJ3243X1-BB2 is seated. Backplane connector pins can suffer oxidation or mechanical wear over years of service, causing intermittent communication faults that are often misdiagnosed as card failures. Inspect the carrier’s power rails and confirm that the DeltaV power supply module (e.g., KJ1501X1-BG2 or site-equivalent) is delivering stable voltage within specification — an under-voltage condition on the backplane bus is a common root cause of Profibus interface card degradation.

On the field side of the Profibus DP segment, check the bus termination resistors at both ends of the DP cable run. Incorrect or missing termination is one of the leading causes of Profibus communication instability and can cause a newly installed KJ3243X1-BB2 to report faults immediately after commissioning. Inspect the Profibus DP cable (shielded twisted pair, typically Belden 3079A or equivalent) for physical damage, shield continuity, and correct grounding at a single point to avoid ground loops.

Review the Profibus DP repeaters if the segment spans long distances or passes through areas of high electromagnetic interference — repeater degradation can cause sporadic device dropouts that are difficult to distinguish from card-level faults. If the DeltaV system includes HART multiplexers or signal isolators on analog I/O channels adjacent to the Profibus segment, verify that these are functioning correctly, as cross-channel interference in dense marshalling panels can affect communication module performance.

For sites running older DeltaV hardware, also inspect the DeltaV I/O subsystem — including AI, AO, DI, and DO cards such as the KJ3221X1-BA1 (AI) or KJ3222X1-BA1 (AO) — for signs of aging or firmware incompatibility that may surface after a Profibus card replacement triggers a system re-scan. Confirm that the DeltaV workstation running DeltaV Operate or DeltaV Diagnostics has the correct driver version to recognize the replacement KJ3243X1-BB2 without requiring a full system download.

Finally, if the control cabinet houses a DeltaV SIS (Safety Instrumented System) logic solver or associated SIS I/O modules, ensure that the Profibus replacement work is coordinated with the site safety plan and that any bypass or inhibit states are properly documented and restored after commissioning.

Site Replacement Workflow

Step 1 — Pre-replacement preparation: Download the current DeltaV configuration and note the Profibus DP node addresses assigned to the KJ3243X1-BB2 segment. Confirm the replacement card’s firmware revision is compatible with the installed DeltaV version. Place the process in manual or safe state as required by site procedures.

Step 2 — Safe removal: De-energize the controller carrier slot following DeltaV hot-swap procedures if supported, or perform a controlled shutdown of the affected controller. Disconnect the Profibus DP cable connector from the card. Remove the KJ3243X1-BB2 from the carrier slot using the card ejector handles — avoid touching the PCB edge connectors.

Step 3 — Installation of replacement card: Insert the new KJ3243X1-BB2 into the carrier slot until the ejector handles click into the locked position. Reconnect the Profibus DP cable. Power up the carrier and observe the card’s LED status indicators — a solid green RUN LED confirms successful initialization. If the card enters fault state, verify the DP address configuration in DeltaV Explorer matches the previous assignment.

Step 4 — Commissioning and verification: From the DeltaV Diagnostics workstation, confirm that all Profibus DP slave devices on the segment are communicating correctly. Check device status in DeltaV Operate and verify that process values are updating as expected. Document the replacement in the site maintenance management system (CMMS) with the new card’s serial number and installation date.

Step 5 — Spare stock replenishment: After a successful replacement, initiate a purchase order for a new KJ3243X1-BB2 spare to restore your site’s buffer stock. Industry best practice for critical DCS communication modules recommends maintaining a minimum of one verified spare per active Profibus segment, with a review cycle aligned to the plant’s annual turnaround schedule.

Spare Parts Support FAQ

Q1: Is this KJ3243X1-BB2 an original Emerson part or a compatible substitute?
This is an original Emerson KJ3243X1-BB2 unit — not a third-party clone or remanufactured substitute. Each unit is inspected and function-tested prior to dispatch to confirm it meets Emerson’s original performance specifications for use in DeltaV DCS environments.

Q2: What is the warranty coverage and what does it include?
All KJ3243X1-BB2 units supplied by SMARTNEXMSK carry a 12-month warranty from the date of shipment. The warranty covers manufacturing defects and functional failures under normal operating conditions. Units that fail within the warranty period will be replaced or refunded subject to inspection. The warranty does not cover damage resulting from incorrect installation, overvoltage, or physical mishandling.

Q3: How do I verify compatibility with my installed DeltaV system version?
The KJ3243X1-BB2 is compatible with DeltaV v10.3 and later releases. For sites running earlier DeltaV versions or using legacy S-series hardware, please provide your DeltaV system version and controller type when placing your order so our technical team can confirm compatibility and advise on any firmware considerations before shipment.

Q4: Can you support emergency or urgent spare requirements?
Yes. For unplanned shutdowns and emergency maintenance situations, SMARTNEXMSK maintains in-stock inventory of the KJ3243X1-BB2 and can arrange priority dispatch within 24 hours of order confirmation. Contact our sales team directly at sales@smartnexmsk.com or +86 18259474341 to discuss urgent requirements and shipping options to your site.
