Emerson KJ4001X1-BA3 Spare for DeltaV Series Automation: Spare Replacement & Industrial Downtime Risk Control

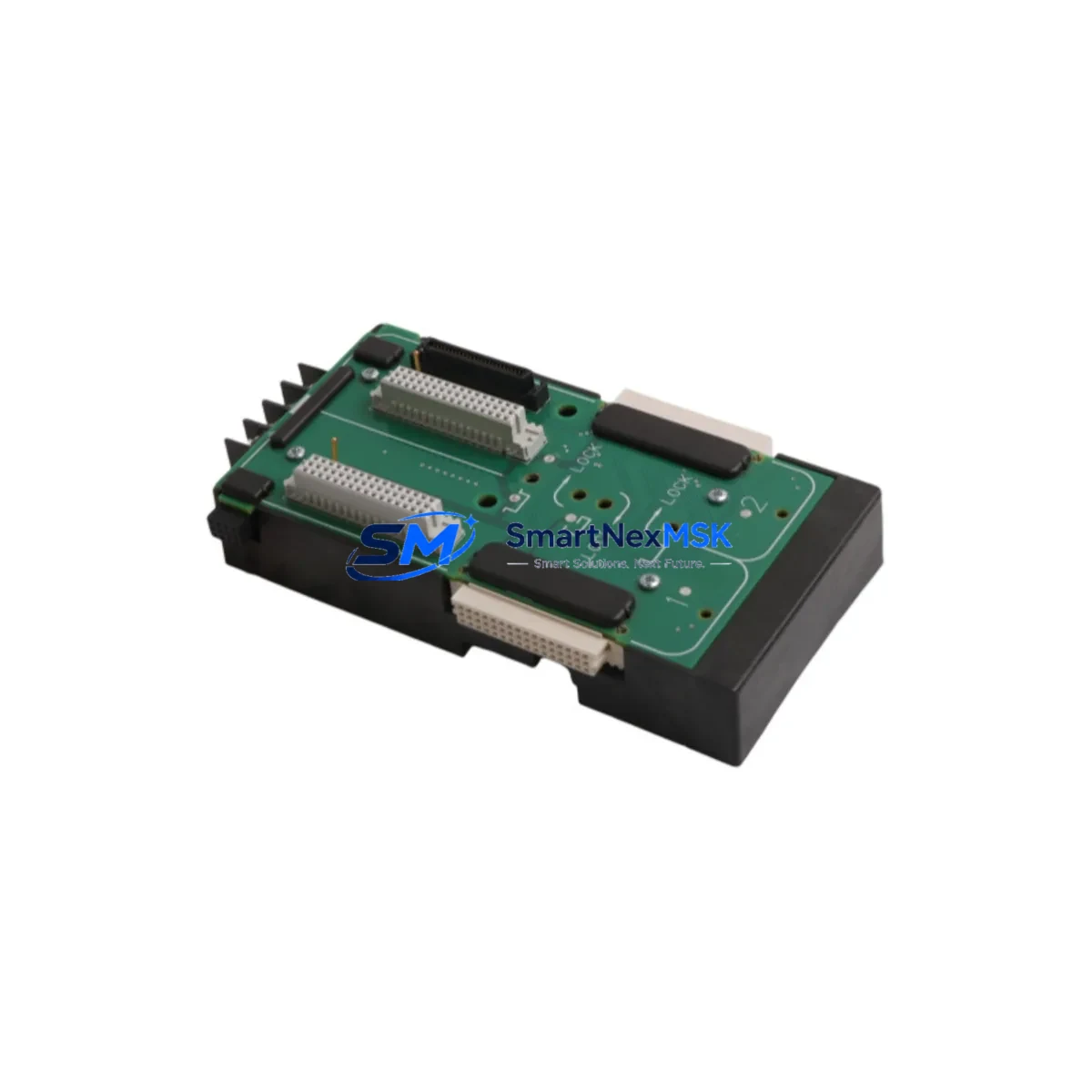

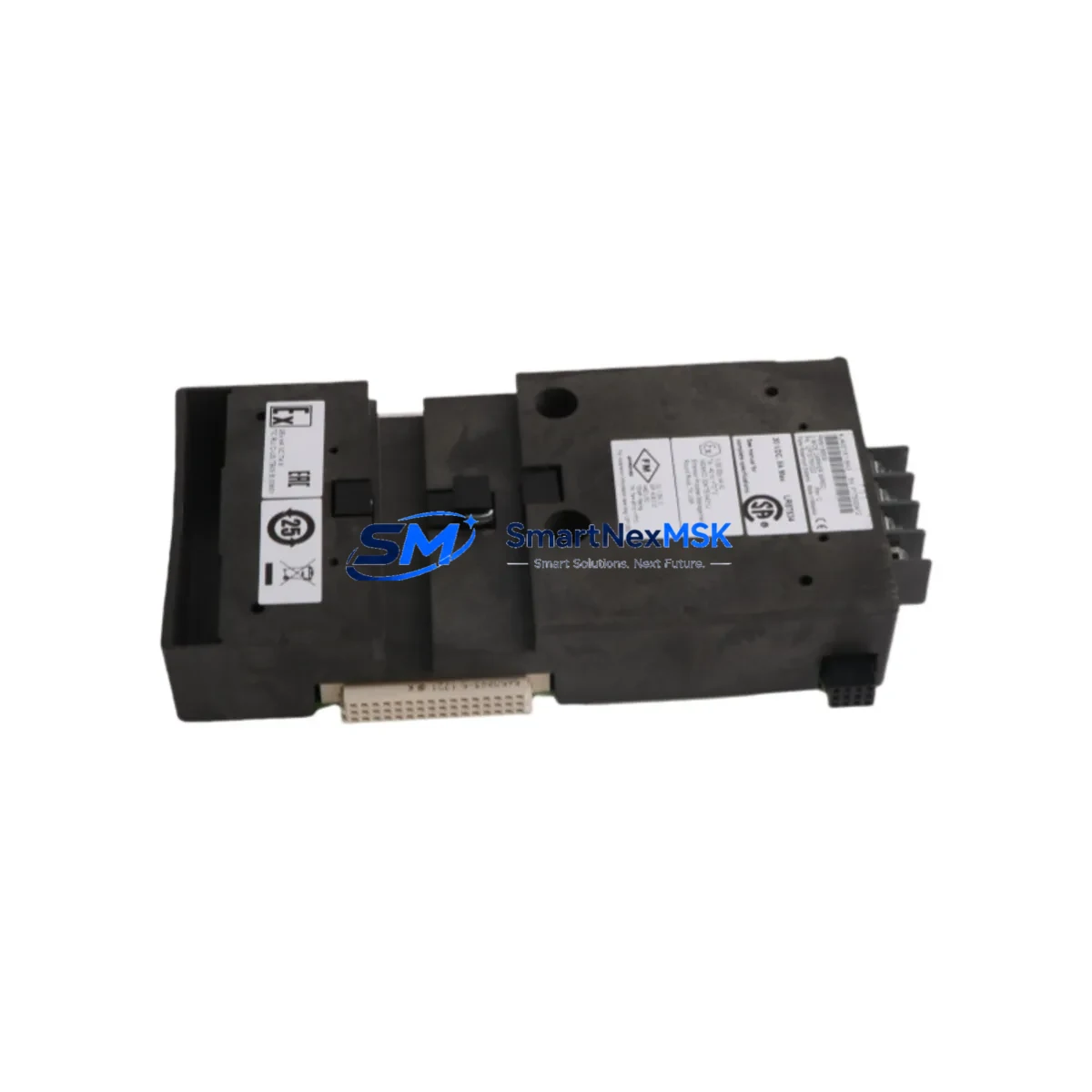

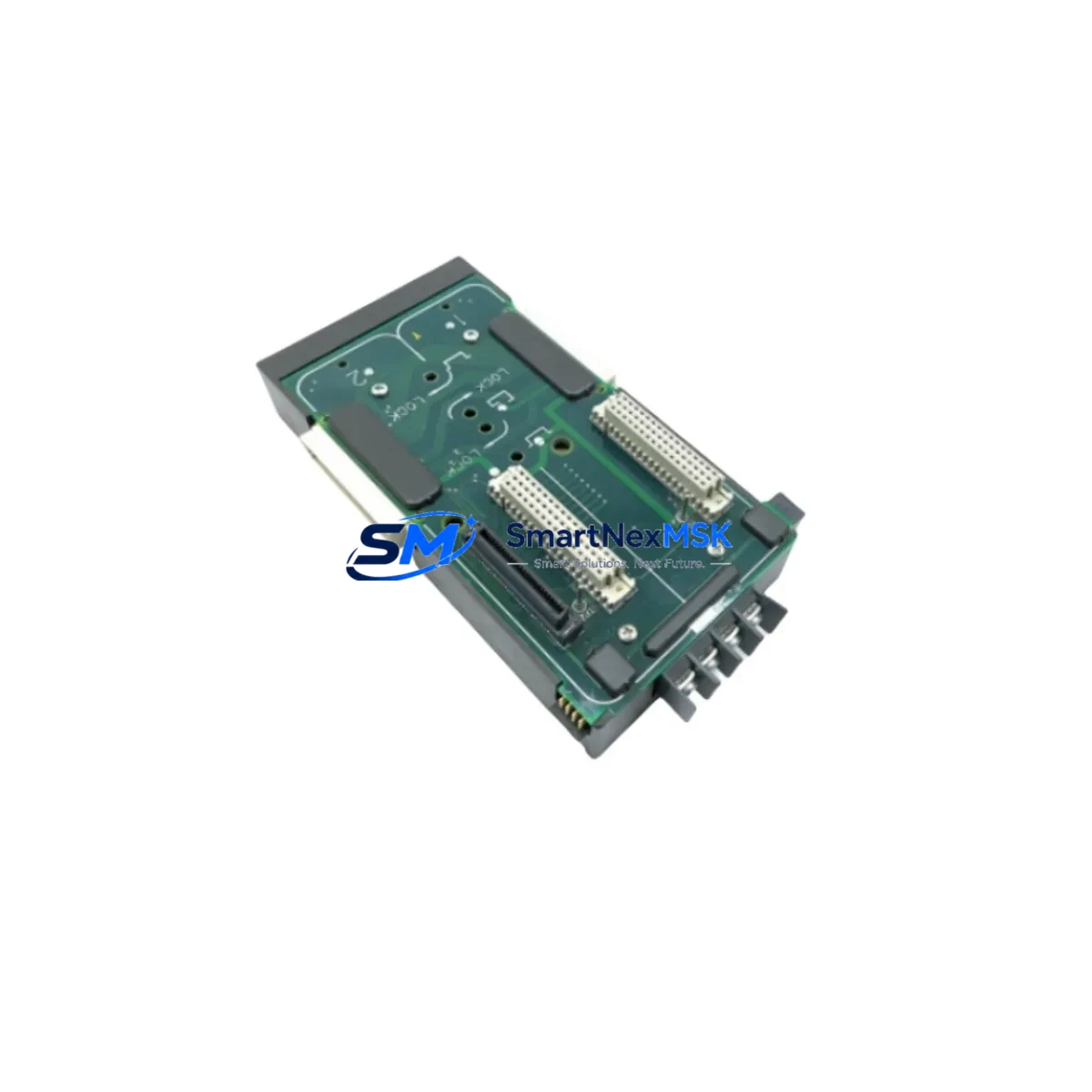

The Emerson KJ4001X1-BA3 is an original wide carrier base module designed for the DeltaV distributed control system platform. As a critical mechanical and electrical mounting interface, this carrier base provides the physical and signal backbone for DeltaV I/O subsystem expansion. In process industries — including oil & gas, chemical, power generation, and pharmaceutical manufacturing — the KJ4001X1-BA3 supports continuous operation by housing I/O modules, maintaining bus connectivity, and enabling structured field wiring termination. When this component fails or degrades, the entire I/O node it supports may go offline, triggering unplanned shutdowns and costly production losses. Maintaining a verified spare in your parts inventory is a fundamental risk-mitigation strategy for any DeltaV-based control architecture.
At SMARTNEXMSK, every KJ4001X1-BA3 unit is sourced as an original Emerson component, individually inspected, and tested prior to shipment. We support maintenance engineers and procurement teams with fast order processing, reliable documentation, and a 12-month warranty on all spare parts supplied.
Spare Maintenance Table
| Parameter | Specification / Detail |
|---|---|
| Part Number | KJ4001X1-BA3 |
| Brand | Emerson (Fisher-Rosemount / DeltaV) |
| Series | DeltaV S-Series / M-Series I/O Subsystem |
| Module Type | Wide Carrier Base (8-slot I/O carrier) |
| Bus Interface | DeltaV I/O Bus (proprietary backplane) |
| Mounting | DIN rail or panel mount, standard DeltaV enclosure |
| Power Input | 24 VDC (supplied via DeltaV power bus) |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Relative Humidity | 5% to 95% non-condensing |
| Compatibility | DeltaV S-Series controllers, M-Series I/O, KJ3001X1 / KJ2201X1 / KJ3221X1 I/O modules |
| Application Environment | Process control cabinets, DCS marshalling panels, field junction enclosures |
| Condition | Original, new or refurbished-to-spec; tested before shipment |
| Warranty | 12 Months from date of shipment |
| Origin | USA (Emerson Process Management) |
| Maintenance Recommendation | Inspect bus connectors and locking tabs annually; replace if corrosion or mechanical wear is detected |
Maintenance Planning for Continuous Operation
When a DeltaV I/O node experiences intermittent faults, communication dropouts, or complete loss of field signal visibility, the KJ4001X1-BA3 carrier base is a primary suspect alongside the I/O modules it hosts. A structured maintenance approach requires evaluating the entire I/O subsystem as an integrated assembly rather than isolating a single component.
During planned inspections or fault isolation, maintenance engineers should simultaneously assess the KJ3001X1-BA1 analog input module and KJ2201X1-BA1 discrete output module seated in the carrier, as worn or oxidized module connectors can cause intermittent signal loss that mimics carrier base failure. The KJ1501X1-BA1 DeltaV power supply module feeding the carrier rail should be load-tested; a sagging 24 VDC bus is a common root cause of unexplained I/O faults. Inspect the KJ4002X1-BA1 narrow carrier base units in adjacent node positions — if one carrier shows mechanical fatigue, others in the same cabinet vintage are likely candidates for proactive replacement.
Field wiring integrity is equally critical. Verify that terminal block assemblies (such as Emerson KJ4003X1 series marshalling terminals) show no signs of loose terminations, insulation degradation, or moisture ingress. For nodes handling analog signals, check associated signal isolators or signal conditioners in the marshalling cabinet — a failed isolator can inject noise that appears as I/O module or carrier faults in DeltaV diagnostics. If the node includes HART-enabled I/O modules (e.g., KJ3221X1-BA1 HART analog input), confirm that the HART multiplexer or pass-through wiring remains intact.
Communication health should be verified at the DeltaV controller module level (e.g., MD Plus or MD Controller) — a degraded controller-to-I/O bus connection can cause false carrier alarms. For cabinets with redundant I/O, inspect the redundancy module and its inter-carrier cabling. Finally, review the 24 VDC bulk power supply and associated fuse blocks feeding the DeltaV cabinet; a blown fuse or failing PSU is frequently misdiagnosed as a carrier or module fault until power rail measurements are taken.
Maintaining a minimum stock of one KJ4001X1-BA3 wide carrier base per DeltaV cabinet, alongside a matched set of the most-used I/O module types, reduces mean time to repair (MTTR) from days to hours in emergency scenarios.
Site Replacement Workflow
Replacing the KJ4001X1-BA3 in a live DeltaV system requires careful sequencing to minimize disruption. Begin by placing the affected I/O node in out-of-service mode within DeltaV Explorer, which suppresses alarms and prevents false trips to downstream control logic. Document all module slot assignments and field wiring termination labels before disconnecting any cables — a photograph of the marshalling panel and carrier assembly is strongly recommended.
Power down the affected carrier segment using the dedicated circuit breaker or fuse block for that node. Remove each I/O module from the carrier in sequence, storing them in anti-static bags. Disconnect field wiring from the terminal blocks, labeling each conductor. Release the carrier base from the DIN rail and remove it from the cabinet.
Install the replacement KJ4001X1-BA3 by reversing the removal sequence. Verify that the bus connector seats fully and the DIN rail locking tabs engage positively. Re-terminate field wiring per the original documentation, then re-seat I/O modules in their original slot positions. Power up the node and confirm that DeltaV Explorer shows all modules online with no hardware faults. Perform a loop check on a representative sample of I/O channels before returning the node to in-service status.
This workflow is compatible with both legacy DeltaV S-Series and current M-Series architectures, making the KJ4001X1-BA3 a reliable long-term spare for aging system extensions without requiring controller or software upgrades.
Spare Parts Support FAQ
Q1: Is the KJ4001X1-BA3 compatible with both DeltaV S-Series and M-Series I/O subsystems?
Yes. The KJ4001X1-BA3 wide carrier base is designed for the DeltaV I/O bus architecture shared across S-Series and M-Series platforms. It accepts standard DeltaV I/O modules including analog input, analog output, discrete input, discrete output, and HART-enabled variants. Always verify the specific DeltaV system revision and I/O module generation against Emerson’s compatibility matrix before installation.
Q2: How is each unit tested before shipment?
Every KJ4001X1-BA3 supplied by SMARTNEXMSK undergoes visual inspection for mechanical integrity (connector pins, locking tabs, PCB condition), continuity testing of the backplane bus traces, and functional verification where test equipment is available. Units are packed in anti-static and moisture-barrier packaging to prevent transit damage. A test report or inspection certificate can be provided upon request.
Q3: What is the recommended spare parts stocking strategy for DeltaV carrier bases?
For facilities with 5 or more DeltaV I/O cabinets, we recommend stocking a minimum of one KJ4001X1-BA3 wide carrier base and one KJ4002X1-BA1 narrow carrier base per 10 installed units. Carrier bases have a typical service life of 10–15 years under normal operating conditions, but mechanical stress from repeated module insertions, vibration, or thermal cycling can accelerate wear. Annual visual inspection during planned shutdowns is best practice.
Q4: What warranty and after-sales support does SMARTNEXMSK provide?
All spare parts supplied by SMARTNEXMSK carry a 12-month warranty from the date of shipment, covering manufacturing defects and functional failures under normal operating conditions. In the event of a warranty claim, we provide rapid replacement dispatch to minimize system downtime. Our technical team is available to assist with compatibility verification, installation guidance, and spare parts planning for DeltaV and other major DCS/PLC platforms.
