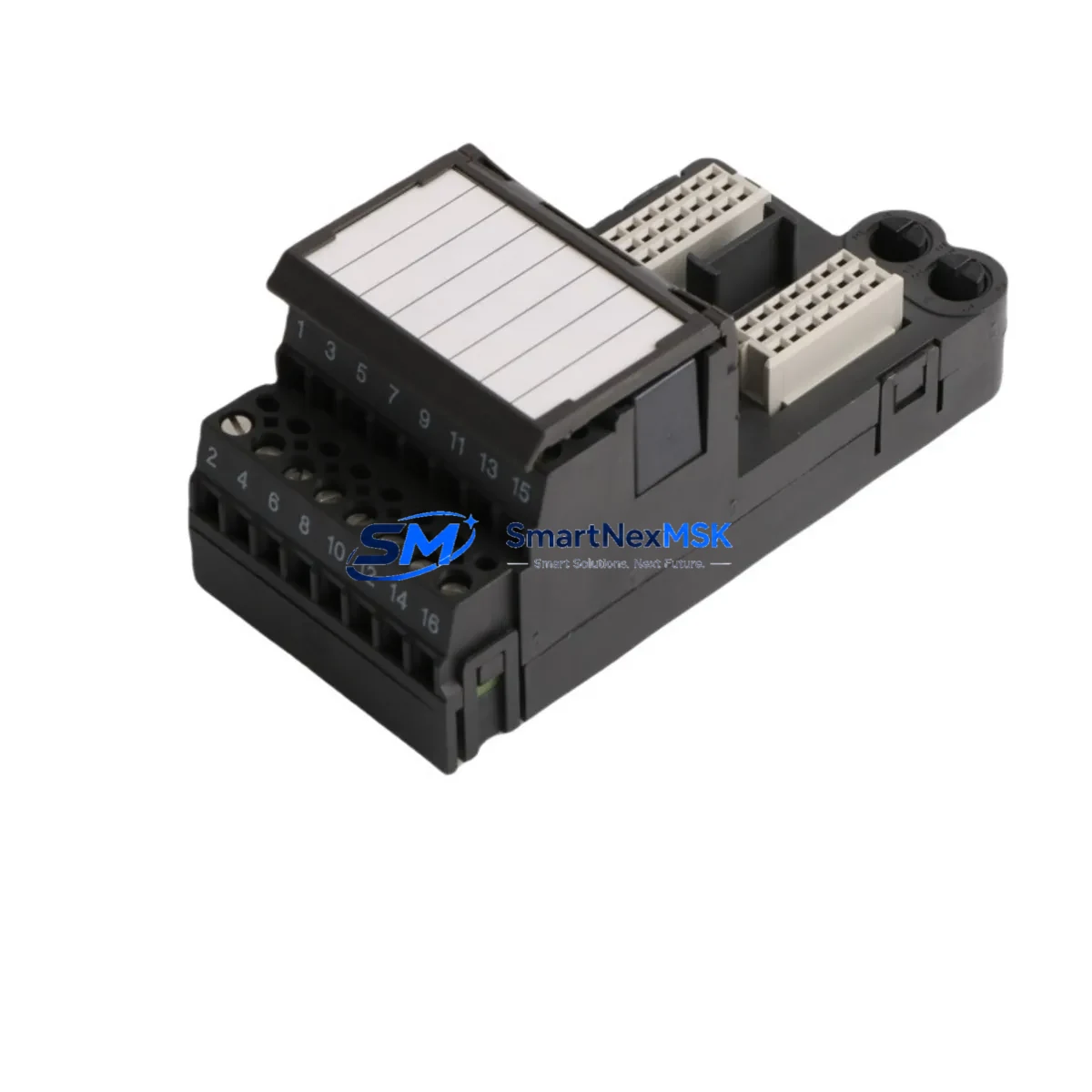

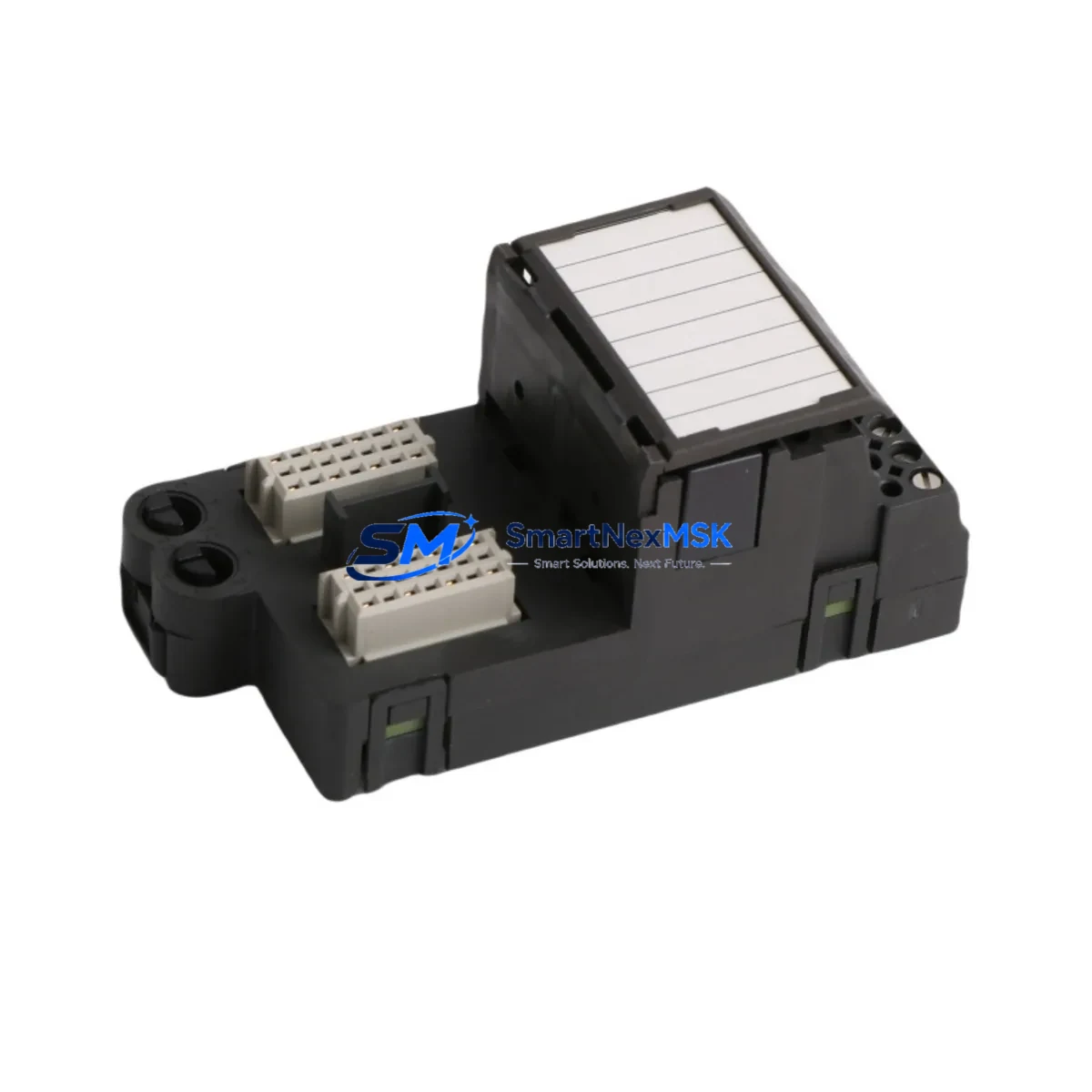

EMERSON KJ4001X1-CA1 12P0623X082 Safety I/O Terminal Block

EMERSON KJ4001X1-CA1 12P0623X082 Safety I/O Terminal Block: Reliable Control in Harsh Industrial Sites

The EMERSON KJ4001X1-CA1 12P0623X082 is a ruggedized I/O terminal block engineered for the DeltaV S-Series distributed control system. Designed to operate reliably in high-load, high-interference, and continuous-production environments, this module serves as a critical interface between field instruments and the DeltaV controller infrastructure. Whether deployed in petrochemical processing units, power generation facilities, metallurgical plants, or water treatment stations, the KJ4001X1-CA1 12P0623X082 delivers the signal integrity and mechanical durability that safety-critical control loops demand.

In modern industrial control cabinets, the I/O terminal block is the first line of defense against signal degradation. The KJ4001X1-CA1 12P0623X082 is built to resist electromagnetic interference (EMI), ground loops, and voltage transients that are common in heavy industrial environments. Its robust terminal design ensures secure wire termination, minimizing the risk of intermittent connections that can trigger spurious trips or undetected faults in safety instrumented systems (SIS). When paired with the EMERSON KJ1501X1-BA2 DeltaV S-Series I/O carrier and the KJ2201X1-BA1 analog input module, the terminal block forms a tightly integrated signal chain that maintains measurement accuracy even under sustained electrical noise from variable frequency drives (VFDs), large motor starters, and high-current bus bars operating in the same cabinet.

Power supply stability is equally critical in continuous-process environments. The KJ4001X1-CA1 12P0623X082 is compatible with the EMERSON KJ4001X1-HA1 redundant power supply module, which provides seamless switchover in the event of a primary supply failure. This redundancy eliminates single points of failure in the 24 VDC distribution rail that feeds the I/O subsystem. Surge protection at the terminal block level further shields downstream electronics from transient overvoltages caused by lightning strikes, capacitor bank switching, or motor back-EMF events — hazards that are particularly prevalent in outdoor substations and mining extraction sites.

For communication-intensive architectures, the terminal block integrates cleanly with the EMERSON CIOC/EIOC Electronic Marshalling infrastructure, supporting the CHARM (Characterization Module) concept that allows field signal characterization at the cabinet level without rewiring. This flexibility is essential during plant expansions or safety system upgrades where minimizing downtime is a contractual requirement. The KJ4001X1-CA1 12P0623X082 also supports hot-swap replacement procedures when used within a properly configured DeltaV redundant I/O architecture, allowing maintenance teams to replace terminal blocks during live production without initiating a controlled shutdown — a capability that directly reduces mean time to repair (MTTR) in critical interlock loops.

In safety instrumented function (SIF) applications, the terminal block must maintain galvanic isolation and signal fidelity across the full operating temperature range. The KJ4001X1-CA1 12P0623X082 meets these requirements, making it suitable for use in SIL-rated loops where the EMERSON DeltaV SIS Logic Solver and associated KJ3221X1-BA1 discrete input modules are deployed. Proper termination at this level prevents common-cause failures that could simultaneously affect multiple safety functions — a scenario that process hazard analyses (PHAs) consistently identify as a top-tier risk in refinery and chemical plant operations.

Field replacement and spare parts management are simplified by the module’s standardized form factor, which is consistent across the DeltaV S-Series I/O family. Maintenance engineers can stock the KJ4001X1-CA1 12P0623X082 alongside the KJ4001X1-CA2 and KJ4001X1-HA2 variants to cover a broad range of I/O configurations without maintaining an excessively large spare parts inventory. Each unit shipped by SMARTNEXMSK undergoes pre-shipment functional testing, including terminal continuity verification, insulation resistance checks, and visual inspection for mechanical damage — ensuring that replacement modules are field-ready upon arrival.

Safety Reliability Table

Control Cabinet Protection Strategy

A robust DeltaV control cabinet deployment relies on the coordinated performance of multiple hardware layers. The KJ4001X1-CA1 12P0623X082 terminal block anchors the field-side wiring interface, but its effectiveness is multiplied when the cabinet is also equipped with properly rated surge protection devices on all incoming field cables, particularly in outdoor or exposed installations. The EMERSON KJ1501X1-BA2 I/O carrier provides the backplane connectivity that links the terminal block to the active I/O modules, while the KJ2201X1-BA1 analog input card processes the 4–20 mA signals from pressure transmitters, flow meters, and temperature sensors in the process loop.

Power distribution within the cabinet should be managed through a redundant 24 VDC supply arrangement using the EMERSON KJ4001X1-HA1 or equivalent redundant power module, with individual fusing on each I/O segment to contain fault propagation. The DeltaV MD Plus Controller or MD Controller at the head of the I/O network should be configured with watchdog timers and diagnostic alarms that flag terminal block communication anomalies before they escalate into process upsets. For cabinets installed in classified hazardous areas (Zone 1 or Zone 2), Zener barriers or galvanic isolators — such as the EMERSON MTL5000 series — should be installed between the terminal block and intrinsically safe field devices to maintain the integrity of the Ex protection concept.

Communication health between the I/O subsystem and the DeltaV workstation network should be monitored continuously using the built-in diagnostics of the EMERSON DeltaV Operate HMI platform, which can surface terminal block status, module health, and channel-level fault codes in real time. This visibility is essential for predictive maintenance programs in facilities that operate on 24/7 continuous production schedules, where unplanned I/O failures can trigger emergency shutdowns with significant safety and financial consequences.

Critical Industrial Safety Applications

The KJ4001X1-CA1 12P0623X082 is deployed across a wide range of safety-critical industrial sectors. In petrochemical and refinery operations, it serves as the termination point for field signals feeding emergency shutdown (ESD) systems and high-integrity pressure protection systems (HIPPS), where signal reliability is a regulatory requirement under IEC 61511. In power generation facilities — including thermal, hydro, and combined-cycle plants — the terminal block supports turbine control and boiler management systems where millisecond-level response to process deviations is essential for equipment protection.

In mining and mineral processing environments, the module’s ruggedized construction withstands the vibration, dust ingress, and wide temperature swings characteristic of crusher control rooms and conveyor management systems. Water and wastewater treatment plants rely on DeltaV I/O infrastructure for dosing control, pump sequencing, and effluent monitoring — applications where I/O terminal integrity directly affects regulatory compliance and public safety. In metallurgical and steel production facilities, the terminal block operates in close proximity to high-power induction furnaces and rolling mill drives, environments that generate extreme levels of conducted and radiated EMI that can corrupt analog signals if termination quality is compromised.

Port and bulk material handling operations use DeltaV-based control systems for ship loader sequencing, conveyor interlocking, and dust suppression control — all applications where the KJ4001X1-CA1 12P0623X082 provides the reliable field interface needed to maintain safe and efficient material flow. Across all these sectors, the module’s compatibility with the broader DeltaV S-Series ecosystem ensures that spare parts sourced from SMARTNEXMSK integrate seamlessly into existing control architectures without requiring system reconfiguration or software changes.

Safety and Quality FAQ

Q1: What warranty coverage is provided for the KJ4001X1-CA1 12P0623X082?
All units supplied by SMARTNEXMSK carry a 12-month warranty covering functional defects identified under normal operating conditions. Warranty claims are processed promptly, with replacement units dispatched from stock to minimize control system downtime.

Q2: What pre-shipment testing is performed on each unit?
Every KJ4001X1-CA1 12P0623X082 undergoes terminal continuity verification, insulation resistance testing, and a full visual inspection for mechanical damage, corrosion, and connector integrity before shipment. Units that do not meet acceptance criteria are quarantined and not dispatched.

Q3: Is this terminal block compatible with all DeltaV S-Series I/O carriers and modules?
Yes. The KJ4001X1-CA1 12P0623X082 is designed for use within the EMERSON DeltaV S-Series I/O architecture and is compatible with the standard range of S-Series carriers, analog input/output modules, and discrete I/O modules. Customers are advised to verify the specific carrier and module combination against their DeltaV system configuration documentation.

Q4: Can SMARTNEXMSK support long-term supply for ongoing maintenance programs?
Yes. SMARTNEXMSK maintains stock of the KJ4001X1-CA1 12P0623X082 and related DeltaV S-Series components to support planned maintenance shutdowns, emergency replacements, and multi-year spare parts agreements. Customers with critical infrastructure requirements are encouraged to contact our team to discuss dedicated inventory reservation arrangements.
