EMERSON KJ4001X1-CA1 12P0623X093 Retrofit-Ready I/O Terminal for DeltaV S-Series Control Systems

EMERSON KJ4001X1-CA1 12P0623X093 Retrofit-Ready I/O Terminal for DeltaV S-Series Control Systems

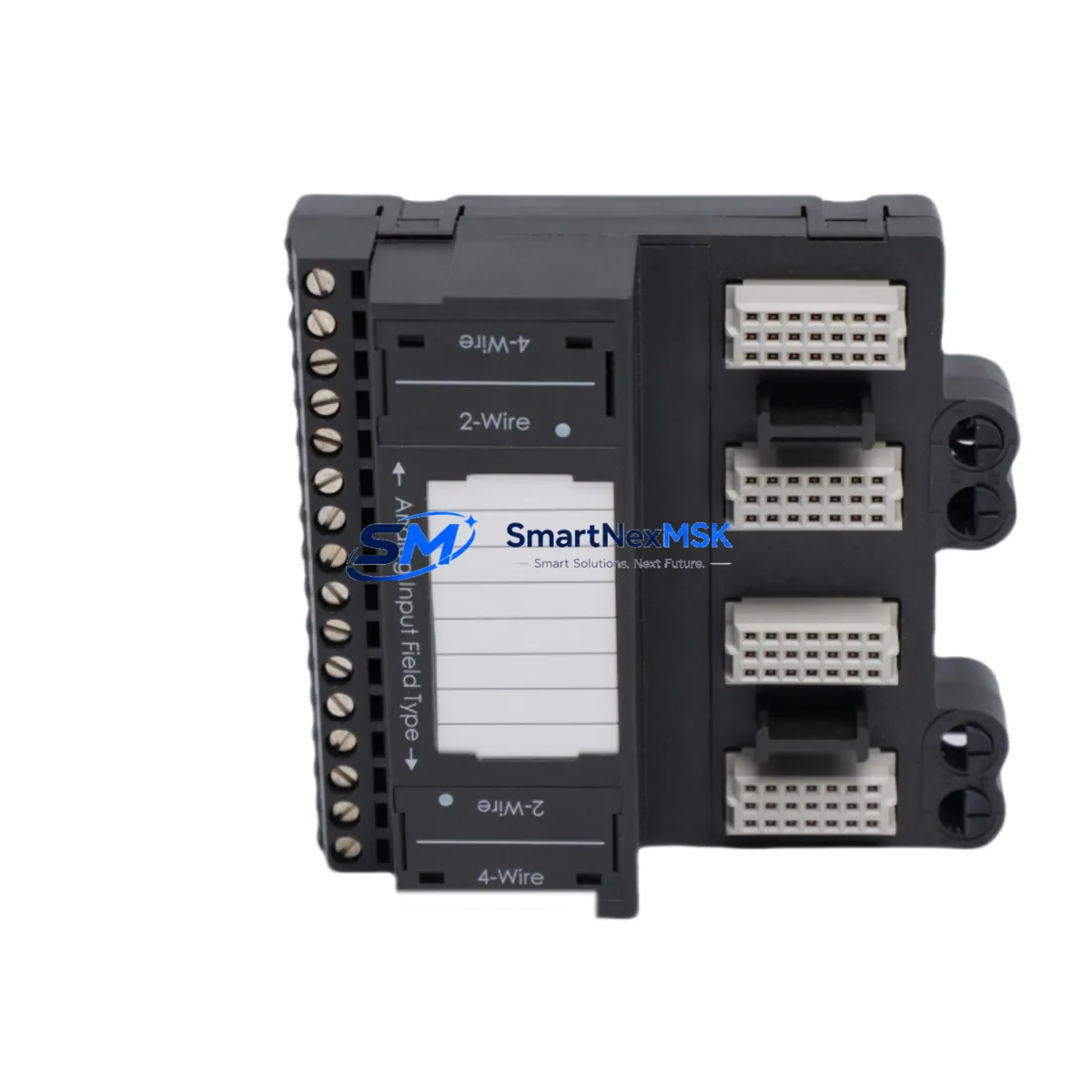

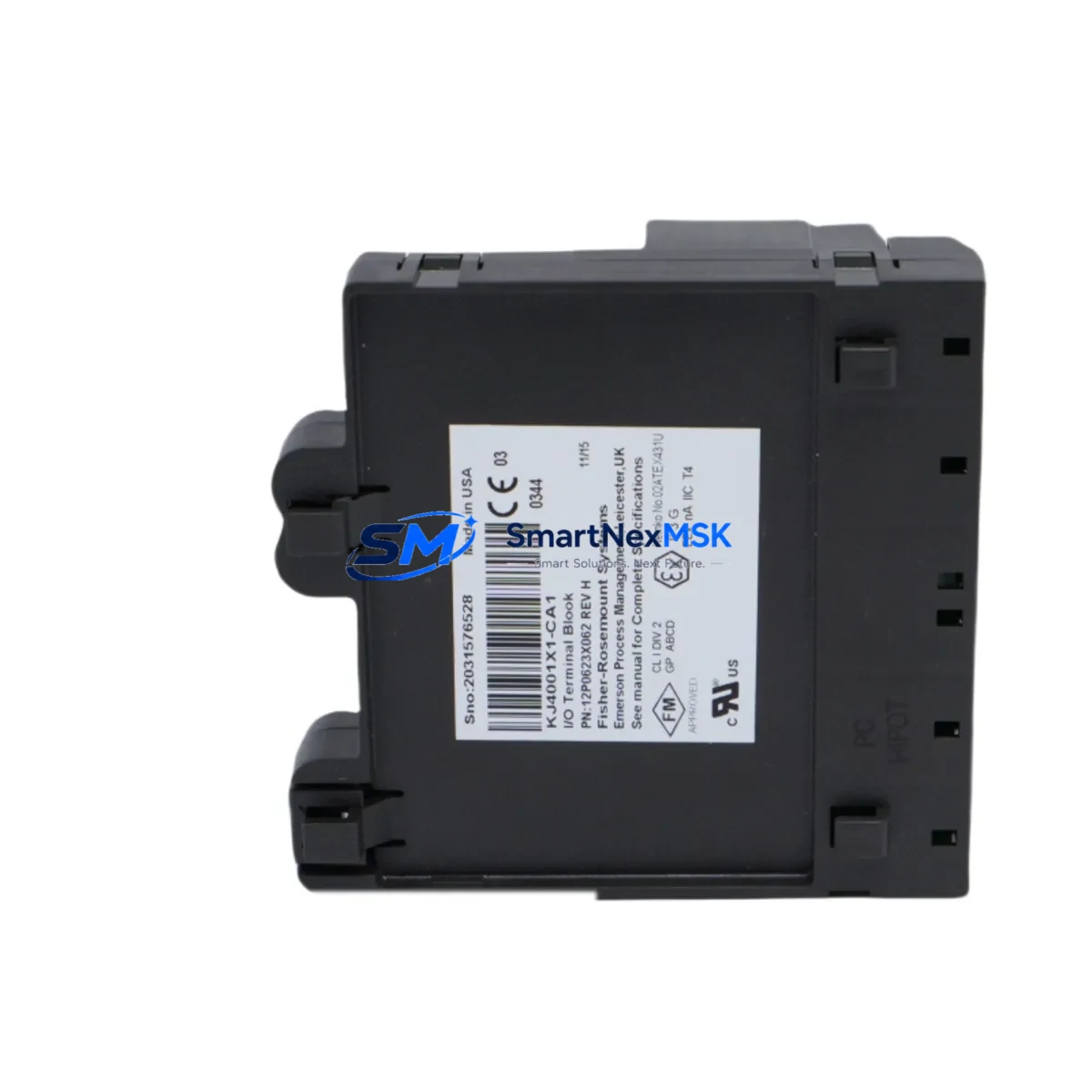

The EMERSON KJ4001X1-CA1 (part number 12P0623X093) is a field-proven I/O terminal block engineered for the DeltaV S-Series distributed control system platform. As legacy DeltaV S-Series installations approach end-of-life or face discontinued spare parts availability, this module serves as a direct retrofit solution — enabling control engineers and maintenance teams to restore full I/O functionality without redesigning the control cabinet or rewriting the application program.

This terminal block interfaces directly with DeltaV S-Series I/O subsystem cards, providing the physical wiring termination layer between field instruments and the controller backplane. Its screw-terminal design accommodates standard 0.5–2.5 mm² field wiring, and the module’s mechanical footprint matches the original DeltaV S-Series carrier dimensions, allowing drop-in installation on existing DIN-rail or panel-mount assemblies without modification to the enclosure layout.

For sites running mixed DeltaV generations — including legacy M-Series or older S-Series nodes alongside newer DeltaV S+ or DeltaV Live environments — the KJ4001X1-CA1 provides a stable termination point that preserves existing field wiring while the control strategy is migrated or upgraded. Engineers performing I/O marshalling consolidation projects will find this module compatible with standard HART-enabled analog input cards such as the KJ3002X1-BA1, as well as discrete I/O subsystem cards commonly paired in the same I/O enclosure.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit of the KJ4001X1-CA1 into an aging DeltaV S-Series control system requires systematic pre-installation planning. Before removing the legacy terminal block, the site engineer should document all existing field wiring terminations using the as-built loop drawings, and photograph the terminal strip labeling to ensure accurate re-termination after the swap.

Power budget verification is a critical first step. The DeltaV S-Series I/O power supply — typically a PS2 or PS6 redundant power module — must have sufficient headroom to support the I/O subsystem card and the new terminal block simultaneously. If the existing power supply is operating near capacity, a parallel upgrade to a higher-capacity PS6 unit should be scheduled as part of the same maintenance window.

For sites where the DeltaV S-Series controller (such as the MD or MD Plus controller module) communicates with field devices over a FOUNDATION Fieldbus H1 segment or PROFIBUS DP network, the terminal block replacement must not interrupt the bus segment. Isolating the affected I/O card from the fieldbus segment — using the DeltaV Diagnostics tool to place the card in bypass mode — allows the terminal block to be swapped without triggering a process alarm cascade.

In control cabinets where the KJ4001X1-CA1 is installed alongside a KJ1501X1-BA2 analog output card or a KJ2201X1-GA1 discrete output card, the wiring harness routing must be re-checked after installation to ensure no cross-termination has occurred. The use of a DeltaV-compatible loop calibrator during re-commissioning is strongly recommended to verify 4–20 mA signal integrity at each channel before returning the loop to automatic control.

For HMI continuity, operators using DeltaV Operate or a third-party SCADA system connected via OPC DA/UA should confirm that the faceplate displays and alarm setpoints remain intact after the I/O card is brought back online. In most cases, the DeltaV database retains all module parameters, but a configuration backup using DeltaV Bulk Edit or the DeltaV Explorer export function is recommended before beginning any hardware swap.

Sites upgrading from older DeltaV S-Series nodes to a DeltaV S+ or DeltaV Live architecture may also need to evaluate the compatibility of their existing KJ3222X1-BA1 CHARM I/O modules or CIOC cards, as the marshalling philosophy differs between generations. The KJ4001X1-CA1 terminal block is compatible with the traditional S-Series marshalling approach and does not require re-marshalling if the I/O card type is preserved.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary concern for any brownfield retrofit involving a DeltaV S-Series I/O terminal block. The recommended approach is to perform the swap during a scheduled maintenance window, with the affected process loop placed in manual mode at the DeltaV Operate workstation before any hardware is disconnected.

To protect the original control logic, a full DeltaV database backup should be exported to a secure network location before the maintenance window begins. This ensures that if the I/O card or controller module requires a cold restart after the terminal block replacement, the application program — including PID tuning parameters, interlock logic, and alarm limits — can be restored without manual re-entry.

For multi-loop control cabinets where several KJ4001X1-CA1 terminal blocks are being replaced in a single outage, a phased approach is recommended: replace and re-commission one I/O card at a time, verifying signal integrity and control response before proceeding to the next. This limits the blast radius of any wiring error and allows the process to be partially returned to automatic control while remaining work is completed.

Field technicians should use a DeltaV-compatible handheld communicator or HART modem connected to the laptop running AMS Device Manager to verify that all HART-enabled field instruments — including transmitters, control valves, and positioners — are communicating correctly after the terminal block is re-seated. A final loop check, including a simulated 4–20 mA signal injection at the terminal block, confirms end-to-end signal continuity before the loop is returned to automatic.

Retrofit Support FAQ

Q1: Is the KJ4001X1-CA1 12P0623X093 a direct drop-in replacement for the original Emerson part?
Yes. The KJ4001X1-CA1 with part number 12P0623X093 is mechanically and electrically equivalent to the original Emerson factory part. It installs directly onto the DeltaV S-Series I/O subsystem card connector without any modification to the backplane, carrier, or field wiring. No firmware update is required on the associated I/O card.

Q2: What wiring checks are required before installation?
Before installing the replacement terminal block, verify that all field wiring terminations are documented against the as-built loop drawings. Check that wire ferrules are in good condition and that no conductors are corroded or undersized. After re-termination, use a loop calibrator to inject a 4 mA and 20 mA signal at each channel and confirm the DeltaV controller reads the correct engineering unit value at the I/O card.

Q3: Will the DeltaV application program need to be modified after the swap?
In most cases, no. The DeltaV S-Series database stores I/O configuration at the module and channel level, not at the terminal block level. As long as the replacement terminal block is installed on the same I/O card in the same slot position, the module address and channel assignments are preserved. A DeltaV database backup before the swap is still strongly recommended as a precaution.

Q4: What does the 12-month warranty cover?
All units are tested for electrical continuity, terminal torque specification, and connector seating before shipment. The 12-month warranty covers manufacturing defects, terminal failure, and connector interface issues under normal operating conditions. Warranty claims are supported by SMARTNEXMSK with a replacement unit dispatched within 5 business days of confirmed fault diagnosis. Contact sales@smartnexmsk.com for warranty registration and RMA processing.
