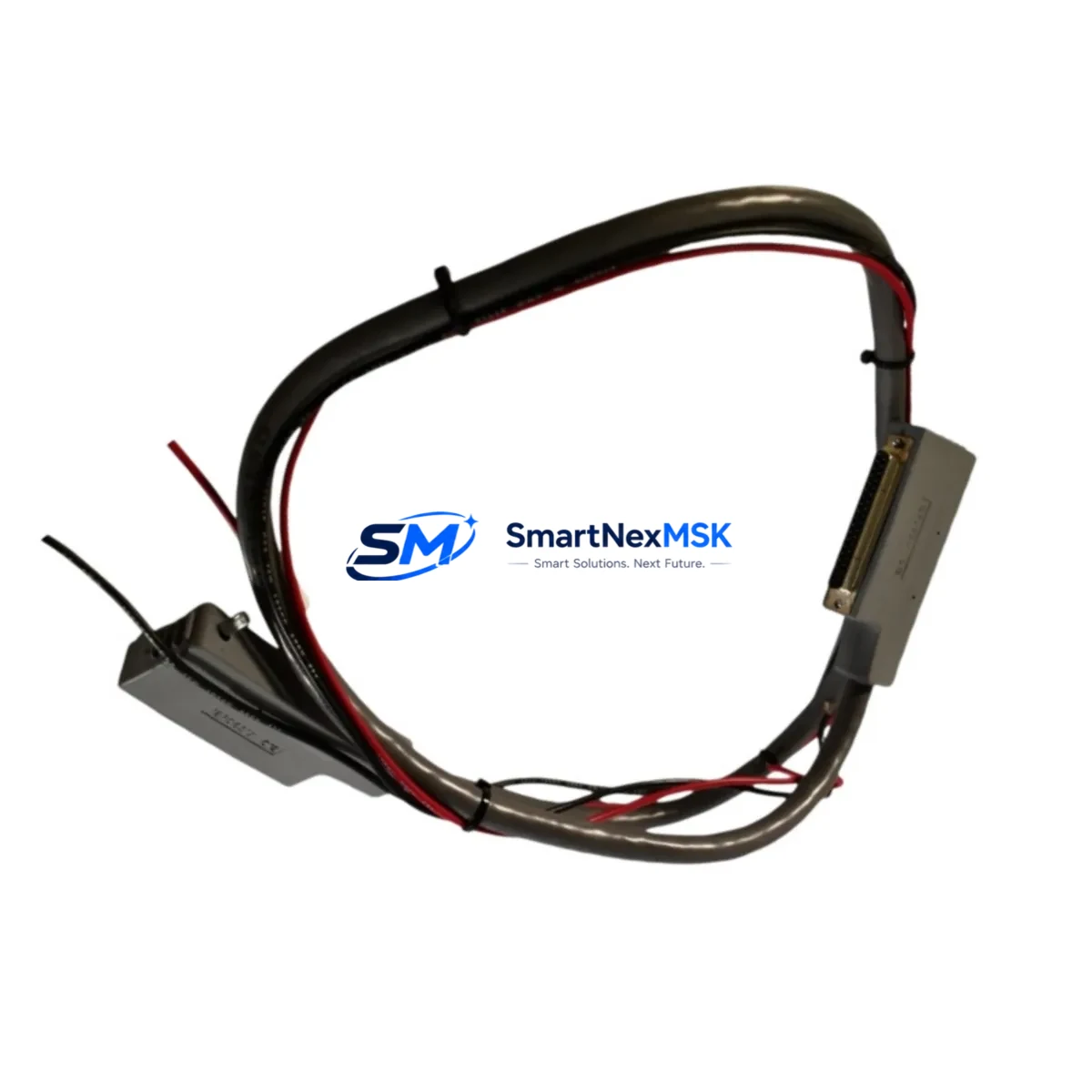

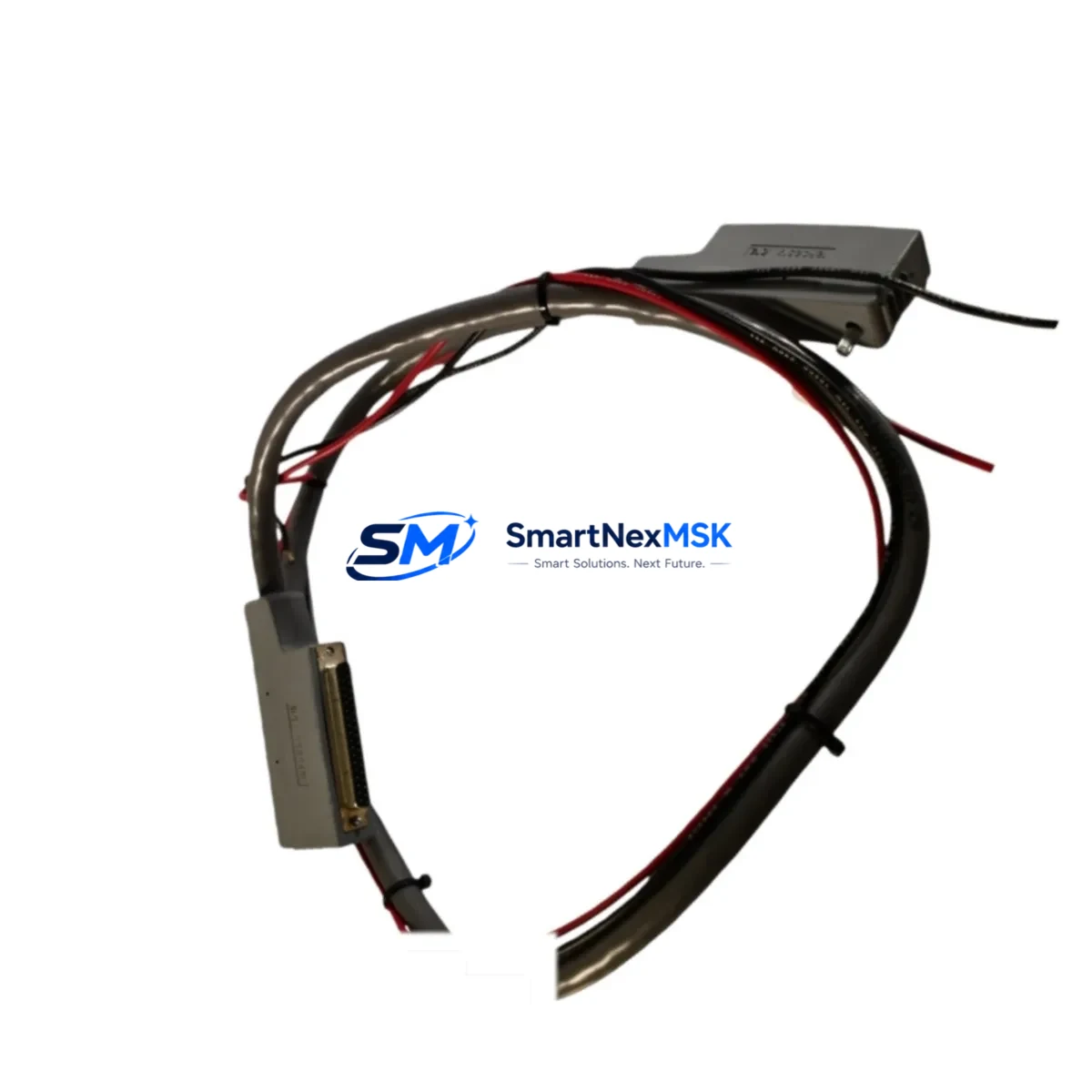

Emerson KJ4001X1-HA1-12P0949X042 Safety-Enhanced LocalBus Cable

Emerson KJ4001X1-HA1-12P0949X042 Safety-Enhanced LocalBus Cable for Harsh Industrial Sites

In demanding industrial environments where control continuity is non-negotiable, the Emerson KJ4001X1-HA1-12P0949X042 DeltaV LocalBus Cable Extender delivers the physical-layer reliability that safety-critical automation systems require. Designed for use within Emerson’s DeltaV distributed control system architecture, this ruggedized cable extender maintains stable, low-latency communication between DeltaV I/O subsystems and controller nodes — even under conditions of high electromagnetic interference, mechanical vibration, thermal cycling, and continuous 24/7 production loads.

The KJ4001X1-HA1-12P0949X042 is engineered to serve as the backbone of LocalBus signal integrity in control cabinets deployed across petrochemical plants, power generation facilities, mining operations, water treatment stations, metallurgical processing lines, and port logistics automation. In these environments, a degraded or intermittent LocalBus connection can cascade into I/O scan failures, controller faults, or unplanned shutdowns — outcomes that carry significant safety and financial consequences. This cable extender eliminates that risk by providing a shielded, mechanically robust interconnect that resists signal drift, surge transients, and connector fatigue over extended service cycles.

When integrated into a DeltaV control cabinet alongside the KJ2201X1-BA1 DeltaV Controller, the KJ1501X1-BA1 Power Supply, and the KJ3001X1-BA1 I/O Carrier, the KJ4001X1-HA1-12P0949X042 ensures that the LocalBus backbone remains stable under full I/O load. Engineers commissioning new cabinets or replacing aging cable assemblies will find that this extender maintains pin-compatible connectivity with standard DeltaV LocalBus backplane connectors, eliminating the need for adapter hardware or wiring modifications. The cable’s shielding architecture is specifically rated to suppress common-mode noise generated by variable frequency drives, high-current motor starters, and adjacent power distribution equipment — all of which are standard fixtures in heavy industrial control rooms.

For facilities operating DeltaV S-series or M-series controllers with CHARM I/O modules or traditional 8-channel analog and discrete I/O cards, the LocalBus cable is the critical link that sustains deterministic scan cycles. Any degradation in this link — whether from connector oxidation, cable jacket damage, or EMI-induced signal corruption — directly impacts the reliability of safety interlock logic, PID control loops, and alarm management systems. Replacing a worn or suspect cable assembly with a tested KJ4001X1-HA1-12P0949X042 unit is one of the most cost-effective preventive maintenance actions available to DeltaV system owners.

Field engineers replacing this cable in live or recently shut-down systems should verify connector seating on both the controller backplane and the I/O carrier before restoring power. The LocalBus interface uses a keyed connector that prevents incorrect orientation, but technicians should confirm that no bent pins or debris are present in the receptacle. After reconnection, the DeltaV Diagnostics workspace — accessible via DeltaV Explorer or the DeltaV Operate HMI — will confirm LocalBus communication status within seconds of controller restart. In redundant controller configurations using the KJ2201X1-BA1 paired with a secondary controller module, the LocalBus cable replacement can often be performed during a controlled switchover, minimizing process impact.

Safety Reliability Table

Control Cabinet Protection Strategy

A robust DeltaV control cabinet protection strategy begins at the physical layer. The KJ4001X1-HA1-12P0949X042 LocalBus Cable Extender anchors the communication path between the controller and I/O subsystem, but its effectiveness is amplified when paired with complementary protection components. The KJ1501X1-BA1 DeltaV Power Supply provides regulated, filtered DC power to the I/O bus, preventing voltage sag or ripple from propagating into the LocalBus signal domain. Upstream, a Emerson KJ4001X1-HA1 series surge protection module or equivalent transient voltage suppressor should be installed on incoming power feeds to the cabinet to absorb lightning-induced or switching transients before they reach sensitive controller hardware.

For cabinets housing CHARM I/O modules or traditional analog input cards such as the KJ3222X1-BA1 8-channel AI module, maintaining clean LocalBus communication is essential for accurate 4–20 mA signal acquisition. Signal errors introduced by a degraded cable can manifest as spurious alarms, incorrect PV readings, or failed control loop execution — all of which carry safety implications in processes involving pressure, temperature, or flow control. Similarly, discrete output modules like the KJ3242X1-BA1 DO card rely on stable LocalBus polling to execute interlock commands without latency.

In cabinets with redundant controller configurations, the LocalBus cable must support seamless switchover between primary and secondary controller nodes. Engineers should inspect both cable assemblies during planned maintenance windows and replace any unit showing connector wear, jacket cracking, or shield continuity loss. Alongside the cable, the DeltaV CIOC (Controller I/O Card) and the associated backplane should be inspected for corrosion or mechanical stress, particularly in coastal, high-humidity, or chemically aggressive environments such as those found in chlor-alkali plants or offshore platforms.

Grounding discipline within the control cabinet is equally critical. The cable’s shield drain wire must be terminated at a single point — typically the cabinet’s central ground bus — to prevent ground loops that can introduce 50/60 Hz noise into the LocalBus. This practice, combined with proper cable routing away from high-voltage conductors and VFD output cables, ensures that the KJ4001X1-HA1-12P0949X042 delivers its rated signal integrity throughout its service life.

Critical Industrial Safety Applications

The KJ4001X1-HA1-12P0949X042 is deployed across a wide range of safety-critical industrial sectors where DeltaV systems serve as the primary process control and safety instrumented system (SIS) platform. In petrochemical refineries, DeltaV controllers manage distillation column pressure control, fired heater fuel gas regulation, and emergency shutdown (ESD) logic — all of which depend on uninterrupted LocalBus communication to execute correctly. A cable failure in this context can trigger a spurious shutdown or, more critically, delay a legitimate safety response.

In power generation facilities — including coal-fired, gas turbine, and combined-cycle plants — DeltaV systems control boiler drum level, turbine speed governing, and generator excitation. The LocalBus cable extender in these applications must withstand the high-vibration, high-temperature environment of the turbine hall while maintaining deterministic I/O scan performance. Mining operations present similar challenges, with DeltaV systems controlling conveyor drives, crusher motors, and ventilation fans in environments characterized by dust ingress, mechanical shock, and wide temperature swings.

Water and wastewater treatment facilities rely on DeltaV for dosing pump control, clarifier drive management, and effluent quality monitoring. In these applications, the LocalBus cable must perform reliably in high-humidity enclosures where condensation and corrosive chemical vapors can accelerate connector degradation. Metallurgical plants — including steel mills and aluminum smelters — subject control cabinet hardware to radiated heat, electromagnetic interference from arc furnaces, and mechanical vibration from rolling mills, all of which stress cable assemblies beyond typical office-environment ratings.

Port and terminal automation systems using DeltaV for crane control, conveyor sequencing, and vessel loading management require LocalBus cables that can withstand salt-air corrosion and the mechanical stress of mobile equipment installations. In all of these applications, maintaining a stock of tested KJ4001X1-HA1-12P0949X042 replacement units ensures that maintenance teams can restore control system integrity within minutes rather than waiting days for emergency procurement.

Safety and Quality FAQ

Q1: What warranty coverage is provided with the KJ4001X1-HA1-12P0949X042?
Every unit ships with a 12-month warranty covering manufacturing defects and functional failure under normal operating conditions. If the cable fails to perform as specified within the warranty period, we provide a replacement or full refund. Our warranty process is straightforward — contact our team with the order reference and a brief description of the fault, and we will arrange resolution within 48 hours.

Q2: How is each unit tested before shipment?
Each KJ4001X1-HA1-12P0949X042 cable extender undergoes pre-shipment functional testing that includes connector continuity verification, shield integrity check, and visual inspection for jacket damage or connector pin deformation. Units that do not pass all test criteria are quarantined and not shipped. Test records are retained and can be provided upon request for quality-critical procurement processes.

Q3: Is this cable compatible with all DeltaV controller generations?
The KJ4001X1-HA1-12P0949X042 is designed for compatibility with DeltaV S-series and M-series controller platforms using standard LocalBus backplane connectors. It is compatible with the KJ2201X1-BA1 controller module and associated I/O carriers. For legacy DeltaV systems or non-standard cabinet configurations, we recommend confirming the backplane connector type before ordering. Our technical team can assist with compatibility verification based on your system’s hardware revision.

Q4: Can you support long-term or recurring supply requirements?
Yes. We maintain standing inventory of the KJ4001X1-HA1-12P0949X042 and can support scheduled procurement programs for maintenance, repair, and operations (MRO) customers. For facilities with multiple DeltaV cabinets or multi-site operations, we offer volume pricing and priority allocation to ensure supply continuity. Contact our sales team to discuss a supply agreement tailored to your maintenance cycle and inventory policy.
