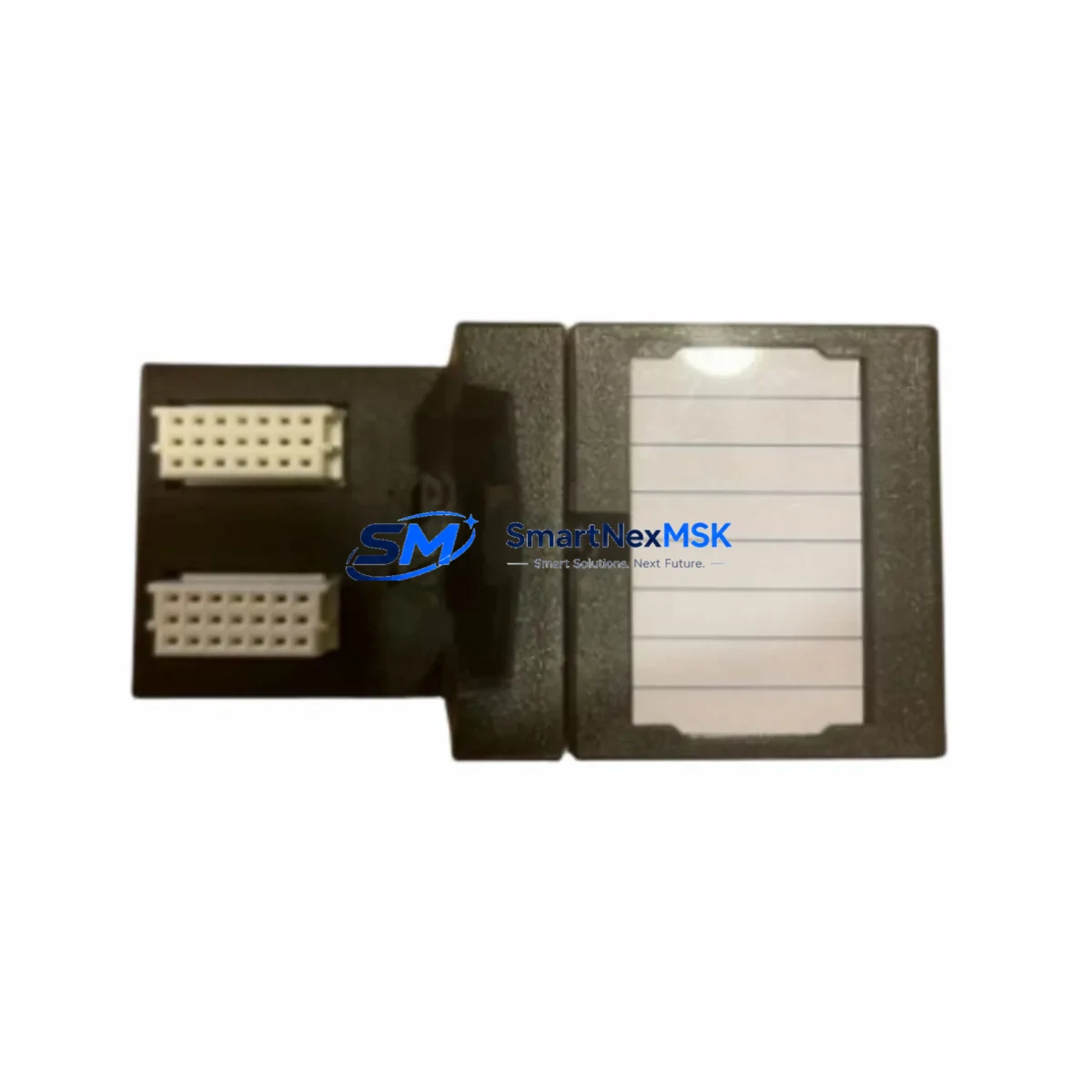

The EMERSON KJ4006X1-BP1 is an original field wiring terminal block engineered for the DeltaV Distributed Control System (DCS) platform. In process-critical facilities — refineries, chemical plants, power generation stations, and pharmaceutical manufacturing lines — the KJ4006X1-BP1 serves as the primary interface between field instrumentation and the DeltaV I/O subsystem. Signal loss, erratic process readings, or complete I/O channel dropout caused by a degraded terminal block translate directly into unplanned downtime and production loss. Sourced as an original EMERSON spare, each KJ4006X1-BP1 unit is fully tested prior to shipment, covered by a 12-month warranty, and available for fast worldwide dispatch. Whether you are executing a planned turnaround, responding to an emergency fault, or building out your site spare parts inventory, this terminal block is ready to ship.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Experienced maintenance and procurement engineers know that a terminal block failure rarely occurs in isolation. When the KJ4006X1-BP1 is flagged during a fault investigation or routine I/O card inspection, surrounding system components must be evaluated simultaneously to prevent repeat failures and reduce the risk of a second unplanned shutdown.

Begin by inspecting the DeltaV I/O module seated above the terminal block — typically an analog input card such as the KJ3002X1-BA1 or a discrete I/O module like the KJ1501X1-BA1. A degraded terminal block can cause intermittent contact that mimics I/O card failure; replacing the terminal block without verifying the I/O card leaves a latent fault in the system. Next, check the DeltaV I/O carrier or marshalling cabinet backplane for signs of oxidation, loose bus connectors, or mechanical damage to the card guides.

Field wiring connected to the KJ4006X1-BP1 should be inspected for insulation breakdown, moisture ingress, and correct torque on all screw terminals. In wet or corrosive environments, replace the associated shielded field cable assemblies at the same time. If the affected channel carries a 4–20 mA analog signal, verify the loop power supply — typically a 24 VDC field power distribution module — is within specification and free of ripple or voltage sag.

For systems using HART-enabled I/O, confirm that the HART multiplexer or HART interface module connected to this terminal block is communicating correctly after replacement. Galvanic isolation barriers and signal isolators installed in the loop should also be tested, as a failing isolator can produce symptoms identical to a faulty terminal block. In marshalling cabinets, inspect adjacent DIN rail-mounted fuse holders, terminal strips, and surge protection devices (SPDs) for heat damage or corrosion.

If this replacement is part of a broader control cabinet refurbishment or life-extension project on an aging DeltaV system, audit the DeltaV controller module (MD or MD Plus), the redundant power supply modules, and the managed network switches in the same cabinet. Proactive replacement of aging terminal blocks across an entire I/O carrier — rather than single-point replacement — significantly reduces the probability of repeat maintenance calls within the same turnaround cycle.

Site Replacement Workflow

Replacing the KJ4006X1-BP1 on a live DeltaV system requires a structured approach to minimize process impact and maintain system compatibility.

Step 1 — Safe State: Place the affected I/O channel in manual mode or out-of-service state within DeltaV Operate or DeltaV Diagnostics. Ensure the process loop is held at a safe output before any wiring is disturbed.

Step 2 — Documentation: Photograph all field wiring terminations and record the wiring schedule. Label each wire clearly before disconnecting. This step is critical for multi-core cable runs in dense marshalling cabinets.

Step 3 — Removal: Release the I/O module latch and slide the terminal block free from the carrier. Inspect the carrier connector pins for damage, contamination, or bent contacts before installing the replacement unit.

Step 4 — Installation: Seat the new KJ4006X1-BP1 onto the carrier, reconnect field wiring to the correct terminals per the original loop drawing, and torque all screw terminals to specification. Re-seat the I/O module and confirm the latch is fully engaged.

Step 5 — Verification: Restore the channel to service in DeltaV and verify signal integrity using DeltaV Diagnostics — confirm the channel reads correctly against a known field reference such as a calibrated HART communicator or loop calibrator. This workflow is compatible with both hot-standby redundant I/O configurations and standard simplex I/O carriers, requiring no firmware changes or system reconfiguration.

For sites maintaining a minimum equipment list (MEL) or critical spare parts register, the KJ4006X1-BP1 is recommended as a stocked item at a ratio of at least one spare per eight installed units, or per site risk assessment. Long-term supply continuity is supported — contact our team for blanket order arrangements and consignment stock programs.

Spare Parts Support FAQ

Q1: Is the KJ4006X1-BP1 available as a new original spare, or only as a refurbished part?
All KJ4006X1-BP1 units we supply are original EMERSON spare parts sourced through authorized industrial distribution channels. Each unit undergoes pre-shipment electrical testing covering continuity and terminal integrity. We do not supply refurbished or remanufactured units unless explicitly requested and agreed upon in writing.

Q2: How do I confirm compatibility with my specific DeltaV I/O carrier and module revision?
The KJ4006X1-BP1 is designed for use with standard DeltaV Series I/O carriers. To confirm compatibility with your specific carrier revision and I/O module type, provide your existing module part number and carrier assembly number when placing your inquiry. Our technical team will cross-reference against EMERSON’s compatibility matrix before shipment.

Q3: What does the 12-month warranty cover, and what is the replacement process if a fault is found after installation?
The 12-month warranty covers manufacturing defects and electrical failure under normal operating conditions. If a fault is identified after installation, contact us with the order reference, a description of the fault, and photographic evidence. We will arrange a replacement unit or credit note within 5 business days of fault confirmation. Warranty does not cover damage caused by incorrect installation, overvoltage, or physical mishandling.

Q4: Can you support ongoing spare parts supply for a multi-year maintenance contract or plant turnaround schedule?
Yes. We support long-term supply agreements, blanket purchase orders, and scheduled delivery programs for maintenance teams managing multi-year turnaround cycles. Contact our sales team to discuss volume pricing, lead time guarantees, and consignment stock options tailored to your plant’s maintenance schedule.
