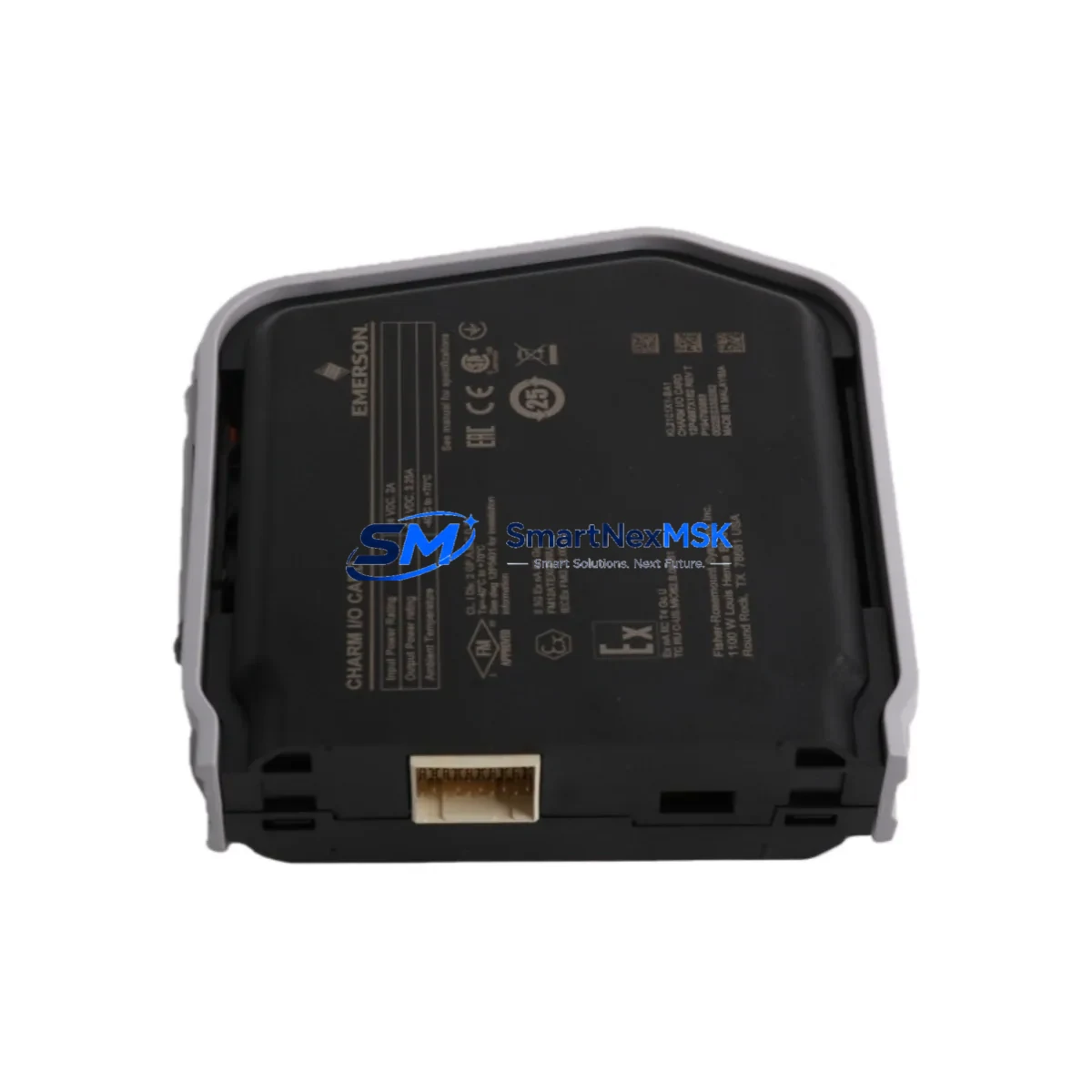

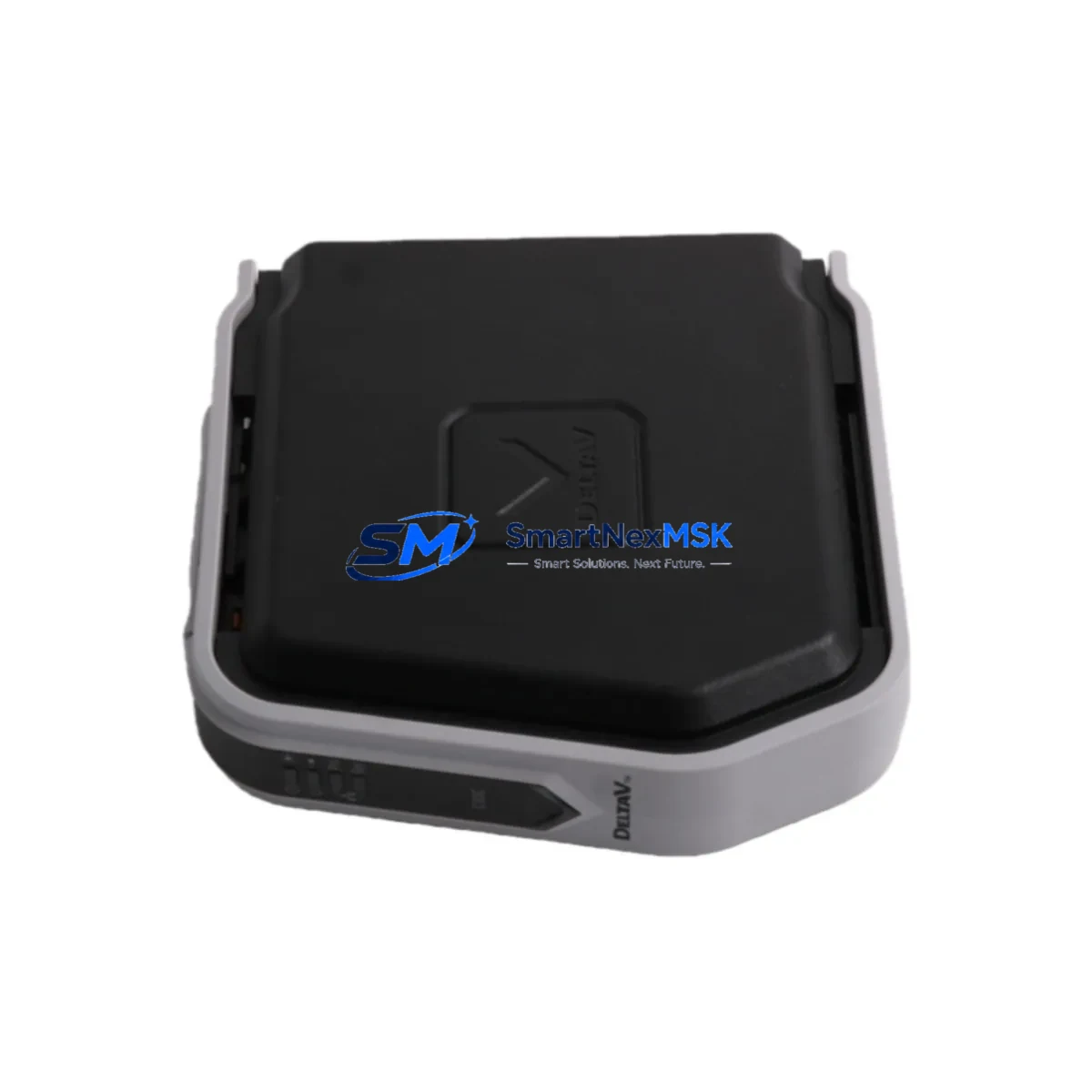

Emerson KL2101X1-BA1-SE6501T01 Retrofit-Ready CHARM I/O for DeltaV

Emerson KL2101X1-BA1-SE6501T01 Retrofit-Ready CHARM I/O for DeltaV Control Systems

The Emerson KL2101X1-BA1-SE6501T01 is a S-Series CHARM (Characterization Module) I/O card designed for the Emerson DeltaV distributed control system platform. As legacy DeltaV installations age and original spare parts become increasingly difficult to source, this module serves as a verified retrofit-ready replacement for facilities managing end-of-life control hardware. Whether you are upgrading a refinery control loop, replacing a failed card in a pharmaceutical batch system, or modernizing a power generation facility’s DCS cabinet, the KL2101X1-BA1-SE6501T01 delivers the signal characterization and field interface performance required for continuous, reliable operation.

This CHARM module integrates directly into the DeltaV S-Series I/O subsystem, mounting onto a CHARM I/O Card (CIOC) carrier such as the KJ3221X1-BA1 or compatible CIOC variants. Each CHARM slot is individually addressable, allowing engineers to replace a single failed channel without disturbing adjacent loops — a critical advantage when minimizing downtime during live production. The module supports standard field wiring terminations and is compatible with the DeltaV Electronic Marshalling architecture, eliminating the need for traditional hardwired marshalling panels during retrofit projects.

When planning a retrofit or spare parts replacement using the KL2101X1-BA1-SE6501T01, engineers should verify the following before installation: power budget on the CIOC carrier, terminal block wiring polarity and signal type (AI, AO, DI, DO), backplane slot addressing in the DeltaV configuration database, module firmware revision compatibility with the installed DeltaV controller version, and any associated HMI faceplate or alarm configuration tied to the original channel tag. For sites running DeltaV v11 through v14, configuration import and channel re-commissioning typically requires DeltaV Operate and DeltaV Diagnostics tools.

SMARTNEXMSK maintains verified stock of the KL2101X1-BA1-SE6501T01 and related DeltaV S-Series components, with outgoing functional testing, original or equivalent packaging, and a 12-month warranty on every unit shipped.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful DeltaV retrofit involving the KL2101X1-BA1-SE6501T01 requires a structured approach to hardware, software, and field wiring verification. Begin by auditing the existing CIOC carrier — confirm that the KJ3221X1-BA1 or equivalent carrier has available slot capacity and that the power supply module (such as the KJ4001X1-BA1 CHARM Power Supply) can support the additional load. In multi-CIOC cabinets, verify that the DeltaV controller — typically a MD Plus Controller or MQ Controller — has sufficient I/O capacity allocated in the system configuration.

Field wiring should be mapped against the original loop drawings before any terminal block changes are made. The CHARM architecture uses individual terminal blocks per channel, so replacing a single KL2101X1-BA1-SE6501T01 does not require disturbing adjacent field cables. However, engineers should confirm signal type compatibility: analog input CHARMs, analog output CHARMs, discrete input CHARMs, and discrete output CHARMs are not interchangeable, and the replacement module must match the original channel characterization.

For sites migrating from traditional hardwired marshalling to Electronic Marshalling, the KL2101X1-BA1-SE6501T01 is a key component in the transition. Paired with a CHARM Baseline I/O Card and the appropriate CHARM terminal blocks, this module allows field signals to be re-terminated without redesigning the entire cabinet layout. Communication links between the CIOC and the DeltaV controller are maintained over the standard DeltaV I/O network, and no additional communication modules are required for standard configurations. Where FOUNDATION Fieldbus or HART pass-through is required, confirm that the CHARM variant selected supports the appropriate protocol layer.

HMI integration should be validated after module replacement. DeltaV Operate graphics tied to the original channel tag will continue to function provided the module address and tag assignment are preserved in the DeltaV database. If the original module was removed from the configuration, re-import the module definition and perform a full download to the controller before returning the loop to service. Retain a backup of the DeltaV configuration database before any hardware change.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary concern when replacing a CHARM module in a live DeltaV system. The KL2101X1-BA1-SE6501T01 supports hot-swap replacement at the CHARM slot level, meaning the affected channel can be taken out of service, the module replaced, and the channel returned to automatic control without shutting down the CIOC carrier or adjacent loops. This is a significant operational advantage over traditional I/O card replacement, where an entire I/O card — and all channels on it — must be taken offline.

Before initiating the swap, place the affected control loop in manual mode at the DeltaV Operate workstation. Confirm that the field device is in a safe state and that any interlock logic associated with the channel has been bypassed or acknowledged per site MOC (Management of Change) procedures. Remove the failed CHARM module, insert the replacement KL2101X1-BA1-SE6501T01, and allow the DeltaV system to auto-detect and commission the new module. In most DeltaV v12 and later installations, the system will automatically download the channel configuration to the new module within seconds of insertion.

After commissioning, verify the channel reading against a known reference — a calibrated HART communicator or a process simulator connected to the field terminals is recommended. Confirm that the DeltaV Diagnostics panel shows the channel as healthy, that the HMI faceplate reflects the correct process value, and that any associated alarms are functioning correctly before returning the loop to automatic control. Document the replacement in the site maintenance management system and retain the 12-month warranty certificate for the installed module.

Retrofit Support FAQ

Q: Is the KL2101X1-BA1-SE6501T01 a direct drop-in replacement for the original Emerson CHARM module?
A: Yes. The KL2101X1-BA1-SE6501T01 is designed as a direct channel-level replacement for compatible DeltaV S-Series CHARM slots. No rewiring of adjacent channels or modification of the CIOC carrier is required. Verify that the signal type (AI/AO/DI/DO) and firmware revision match your installed DeltaV version before installation.

Q: What wiring checks are required before installing the replacement module?
A: Confirm field wiring polarity, signal type, and loop power requirements at the CHARM terminal block. For analog input loops, verify that the transmitter is powered and that the 4–20 mA signal is within range before inserting the new module. For discrete channels, confirm that the field device voltage matches the CHARM input specification.

Q: Can this module be used in a DeltaV system running an older firmware version?
A: Compatibility depends on the DeltaV controller firmware and the CIOC carrier revision. SMARTNEXMSK recommends providing your DeltaV system version and controller model when ordering, so our technical team can confirm compatibility before shipment. Modules are tested against common DeltaV v11–v14 configurations.

Q: What does the 12-month warranty cover?
A: The 12-month warranty covers functional failure of the module under normal operating conditions, including signal characterization errors, communication faults, and hardware defects identified during commissioning or operation. Warranty claims are supported by SMARTNEXMSK’s technical team. Contact sales@smartnexmsk.com with your order reference and fault description to initiate a warranty claim.
