EMERSON PR6423/001-121 CON041 Spare for PR6423 Automation

EMERSON PR6423/001-121 CON041 Spare for PR6423 Automation: Spare Replacement & Industrial Downtime Risk Control

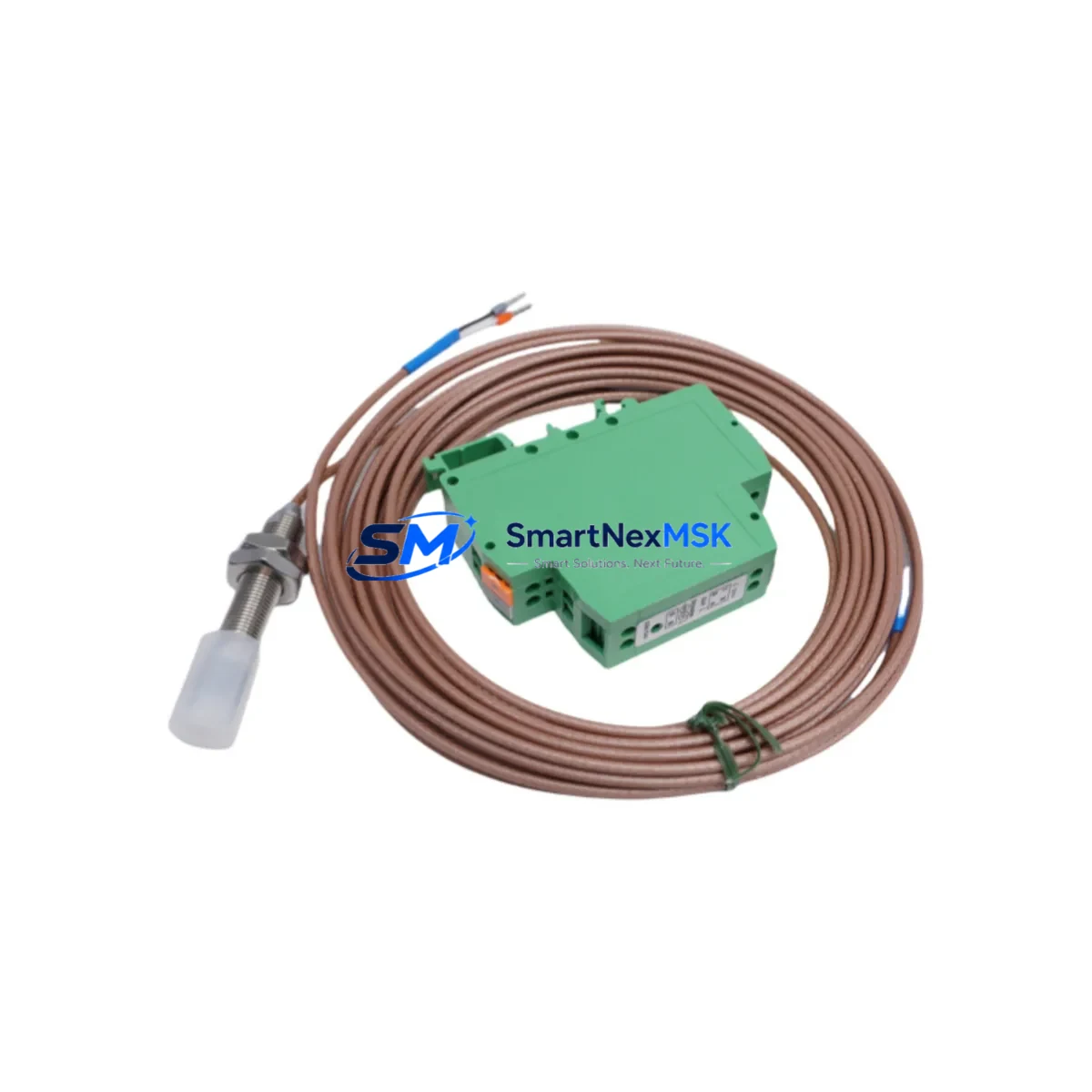

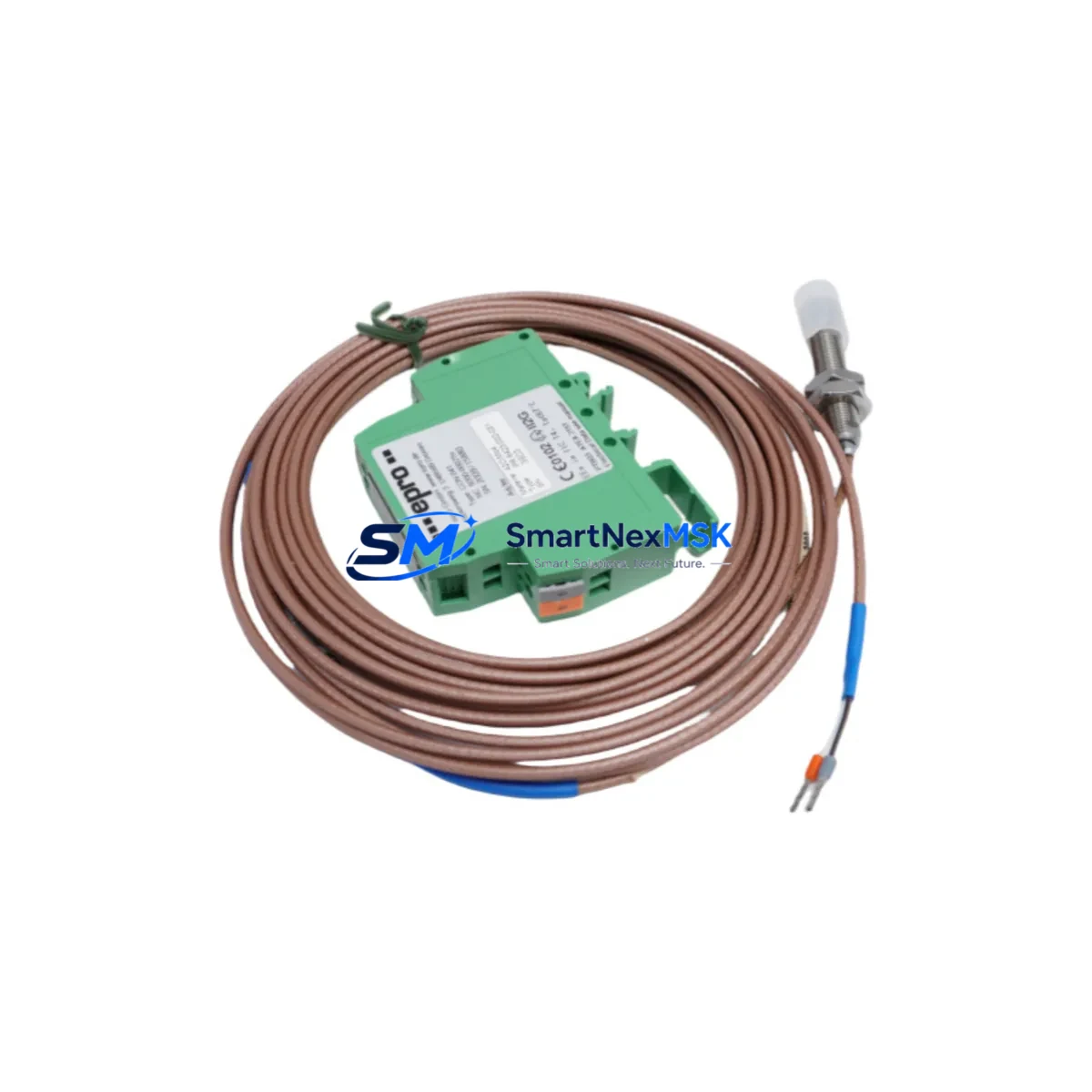

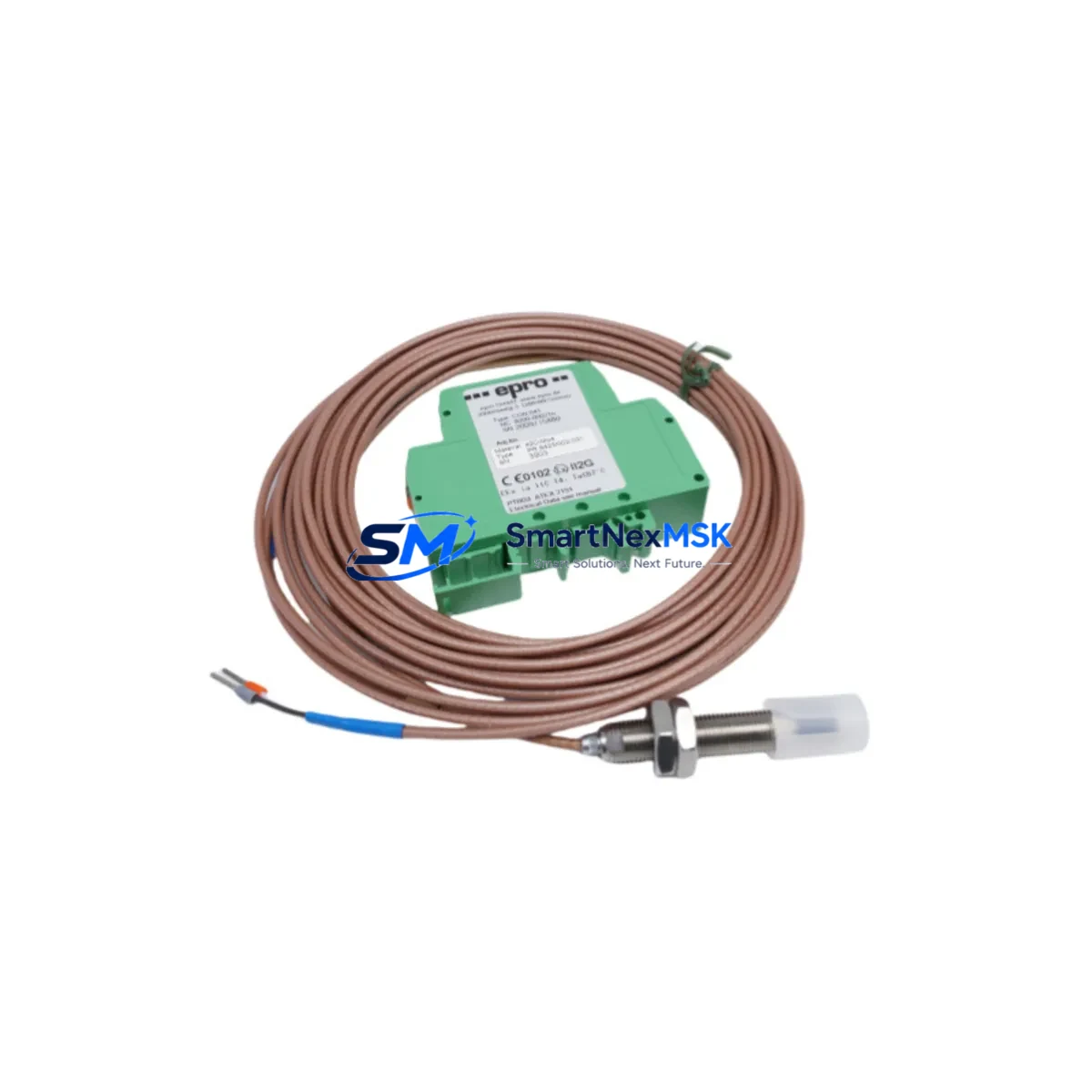

The EMERSON PR6423/001-121 CON041 is an original eddy current proximity sensor designed for the PR6423 Series vibration monitoring and machinery protection systems. Widely deployed in turbines, compressors, pumps, and rotating machinery across oil & gas, power generation, petrochemical, and heavy manufacturing facilities, this sensor is a critical component in continuous condition monitoring loops. When this part fails or degrades, the entire vibration measurement chain is compromised — triggering false alarms, masking real faults, or causing unplanned shutdowns. Maintaining a verified spare on the shelf is the single most effective strategy to minimize mean time to repair (MTTR) and protect production continuity.

Each unit supplied by SMARTNEXMSK is sourced as an original EMERSON spare, individually inspected, and shipped with full documentation. Our 12-month warranty covers manufacturing defects and functional performance, giving maintenance engineers and procurement teams confidence in every order.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the PR6423/001-121 CON041 sensor is rarely an isolated task. In a well-structured preventive maintenance program, the sensor swap is the trigger point for a broader inspection of the entire vibration monitoring loop and the surrounding control cabinet. Maintenance engineers should treat this replacement as an opportunity to audit all interconnected components before returning the machine to service.

Start with the PR6423/001-121 extension cable and the CON041 connector assembly — cable insulation degradation and connector corrosion are the leading causes of signal drift that is often misattributed to sensor failure. Inspect the full cable run from probe tip to the proximitor driver for pinch points, abrasion, and moisture ingress. Next, verify the PR6423 proximitor/driver module (such as the PR6424 or compatible 3300 Series driver) output voltage at the monitor input terminals; a worn driver will cause the replacement sensor to read incorrectly even when the sensor itself is healthy.

At the monitoring system level, check the 3300/16 or 3500/42 vibration monitor card for alarm setpoint integrity and channel calibration. Confirm that the power supply module feeding the monitoring rack — typically a –24 VDC regulated supply — is within tolerance; voltage sag will shift the sensor’s linear operating range and produce false readings. If the cabinet houses a terminal block or marshalling panel, inspect all screw terminals on the sensor signal circuit for oxidation and torque compliance.

For facilities running integrated machinery protection systems, also inspect the Keyphasor module and its associated probe if the PR6423 sensor is part of a phase-referenced vibration measurement loop. A degraded Keyphasor signal will corrupt phase angle data even when the displacement sensor is functioning correctly. Similarly, if the system feeds data to a DCS historian or safety instrumented system (SIS) via a 4–20 mA or HART signal conditioner, verify the signal isolator or barrier integrity to prevent ground loops from contaminating the measurement.

Finally, update the site’s spare parts register to reflect the consumed unit and trigger a replenishment order. Best practice for critical rotating machinery is to maintain a minimum of one verified spare PR6423/001-121 CON041 sensor and one matched extension cable on-site at all times, reducing emergency procurement lead times from weeks to zero.

Site Replacement Workflow

Step 1 — Isolation & Permit: Obtain a work permit and isolate the monitoring channel at the 3300/3500 Series monitor. Do not de-energize the entire monitoring rack unless required by site procedure — most PR6423 sensors can be replaced channel-by-channel while adjacent channels remain in service.

Step 2 — Gap Measurement: Before removing the old sensor, record the installed gap voltage (typically –10 VDC at nominal gap). This value is your baseline for setting the replacement sensor gap. Use a calibrated gap-setting tool or feeler gauge to achieve the target air gap specified on the machine’s vibration probe data sheet.

Step 3 — Sensor Removal: Loosen the locknut and unthread the probe body carefully. Inspect the probe tip for impact damage or contamination. Clean the probe boss in the bearing housing before installing the replacement.

Step 4 — Installation & Gap Setting: Thread the new PR6423/001-121 CON041 into the probe boss. Adjust the gap to achieve the target output voltage (±0.1 VDC of baseline). Tighten the locknut to the specified torque. Reconnect the CON041 extension cable and verify connector seating.

Step 5 — Functional Verification: Restore the monitoring channel and confirm the output voltage, alarm thresholds, and trend data are consistent with pre-replacement baseline. Document the replacement in the maintenance management system (CMMS) and update the spare parts inventory record.

This workflow is compatible with legacy PR6423 installations and modern 3500 Series machinery protection systems, ensuring backward compatibility without requiring system reconfiguration or software changes.

Spare Parts Support FAQ

Q1: What is the shelf life and storage requirement for the PR6423/001-121 CON041 spare?
When stored in original packaging in a dry, temperature-controlled environment (10°C–30°C, <70% RH), the PR6423/001-121 CON041 sensor maintains full functional integrity for a minimum of 5 years. SMARTNEXMSK stores all inventory in climate-controlled facilities and ships with desiccant packaging for long-haul destinations. Each unit is tested before dispatch to confirm output linearity and connector integrity.

Q2: How do I verify compatibility before installation?
Confirm the existing probe’s part number from the machine’s vibration probe data sheet or the nameplate on the installed sensor. The PR6423/001-121 CON041 is compatible with PR6423 Series proximitor drivers and 3300/3500 Series Bently Nevada-compatible monitoring systems. If your system uses a different driver model, contact our technical team at sales@smartnexmsk.com with your monitor card part number for a compatibility confirmation before ordering.

Q3: What pre-shipment testing is performed on each unit?
Every PR6423/001-121 CON041 unit undergoes output voltage linearity verification, connector continuity check, insulation resistance test, and visual inspection for probe tip and cable integrity before dispatch. A test report is available upon request. Units that do not meet EMERSON’s original specification are quarantined and not shipped.

Q4: What does the 12-month warranty cover and how is a claim processed?
The 12-month warranty covers manufacturing defects, functional failure under normal operating conditions, and connector/cable assembly integrity. It does not cover damage from incorrect installation, mechanical impact, or operation outside the specified voltage and temperature range. To initiate a warranty claim, contact sales@smartnexmsk.com with your order number, site installation photos, and a description of the failure mode. Replacement units are dispatched within 5 business days of claim approval.
