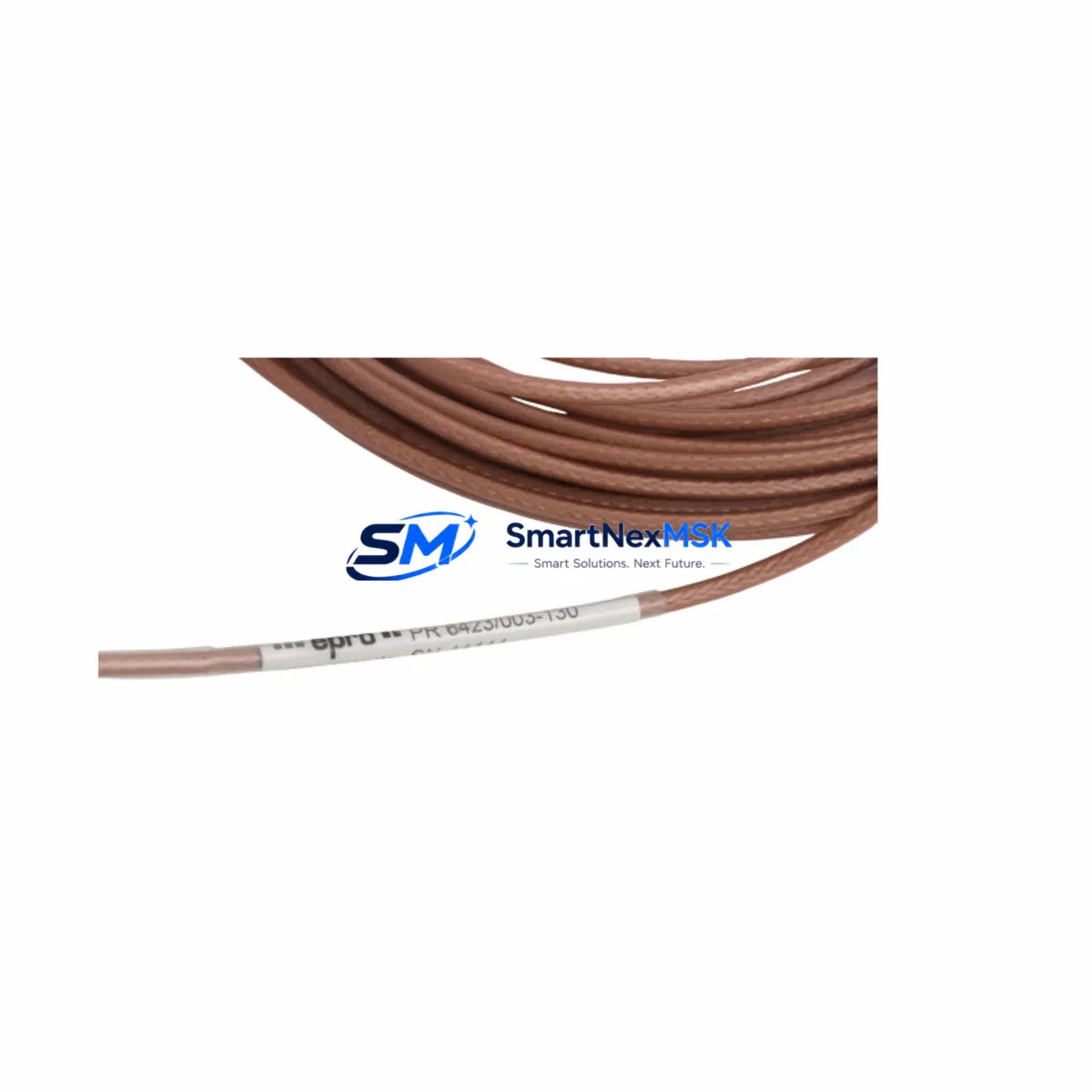

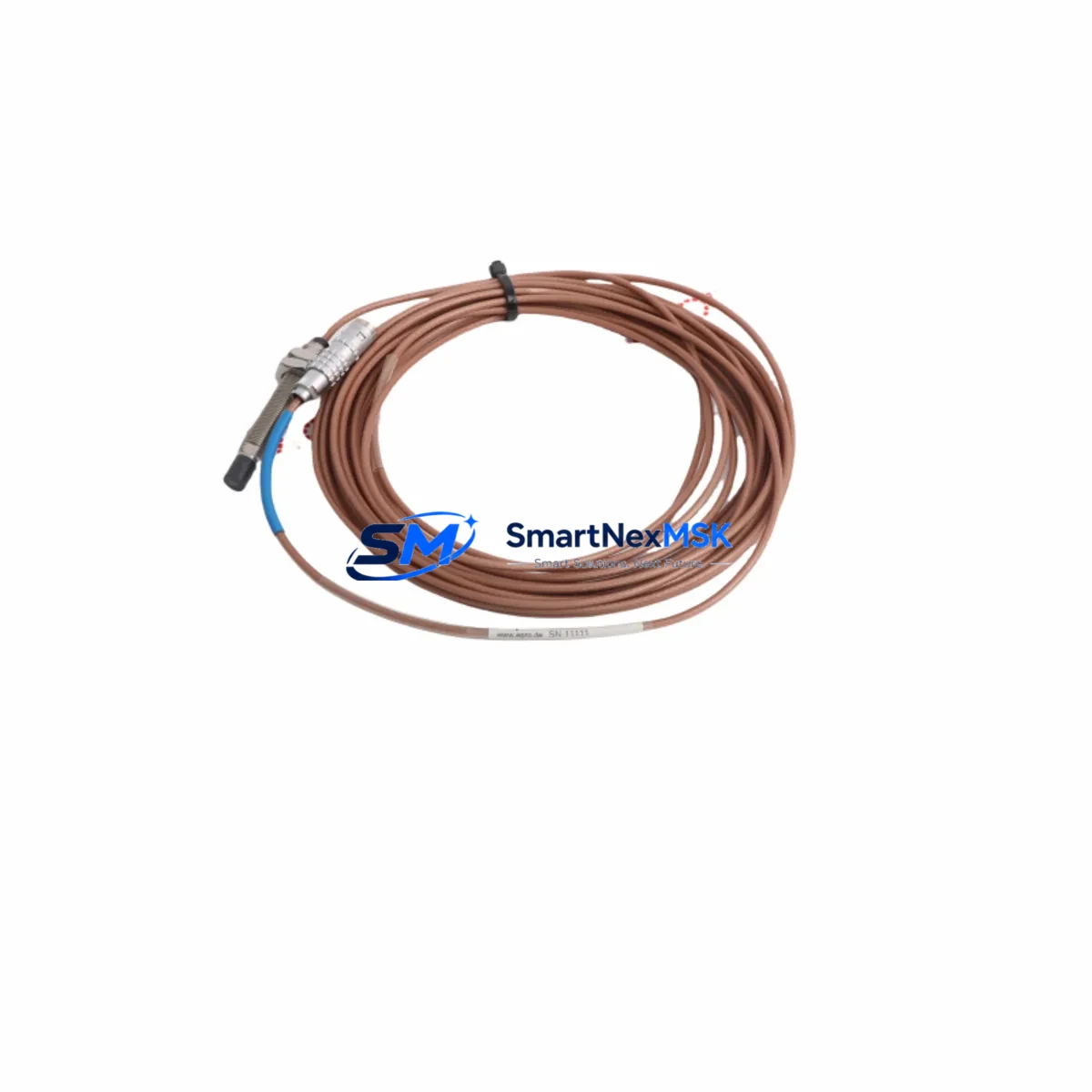

EMERSON PR6423/003-130 Retrofit Proximity Transducer

EMERSON PR6423/003-130 Retrofit-Ready Proximity Transducer for Bently Nevada 3300 XL Control Systems

The EMERSON PR6423/003-130 is a high-precision eddy current proximity transducer engineered for seamless retrofit integration into legacy Bently Nevada 3300 XL vibration monitoring systems. As industrial facilities face increasing pressure to modernize aging machinery protection infrastructure without full system overhauls, the PR6423/003-130 delivers a validated, drop-in compatible upgrade path that preserves existing wiring topology, signal conditioning architecture, and field calibration parameters.

Designed to meet the demanding requirements of rotating machinery protection in power generation, oil & gas, petrochemical, and heavy manufacturing environments, this transducer supports continuous shaft displacement monitoring with sub-micron resolution. Its compatibility with the Bently Nevada 3300 XL monitor series makes it the preferred choice for maintenance engineers executing planned or emergency replacements on turbines, compressors, pumps, and gearboxes where downtime must be minimized and measurement continuity is non-negotiable.

Whether you are replacing a failed sensor mid-campaign, upgrading a control cabinet as part of a broader DCS migration, or building a spare-parts inventory for critical rotating assets, the PR6423/003-130 provides the reliability, traceability, and technical documentation required for industrial-grade procurement decisions.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the PR6423/003-130 into a legacy control architecture requires a structured pre-replacement assessment. Before removing the failed or end-of-life transducer, maintenance teams should document the existing gap voltage reading from the Bently Nevada 3300 XL monitor channel display, record the current alarm and danger setpoints, and photograph the terminal wiring at the junction box. This baseline data is critical for post-installation verification and for satisfying plant change-management documentation requirements.

In most 3300 XL installations, the transducer connects to a 330130-series extension cable and a 330180 proximitor/driver mounted in the field junction box. Both components are typically reusable when replacing only the transducer tip, which significantly reduces material cost and installation time. If the proximitor shows signs of drift or the OK voltage is outside the –10.5 VDC to –18 VDC window, consider replacing the proximitor simultaneously to avoid a repeat outage.

For facilities running a broader machinery protection upgrade, the PR6423/003-130 is commonly deployed alongside Bently Nevada 3300/16-24-00-01-00-00-00 monitor cards, 3300/55 power supplies, and 3500/42M position monitor modules in the same control cabinet. When the upgrade scope extends to the monitoring rack itself, engineers often migrate from the 3300 XL platform to the Bently Nevada 3500 series, which requires verifying that the new proximitor model (typically the 330185-91-05) is compatible with the selected transducer and cable combination.

I/O expansion during a control cabinet upgrade may also involve adding EMERSON DeltaV SIS logic solver modules or integrating with a Triconex TRICON safety controller for SIL-rated machinery protection loops. In these scenarios, the analog output of the PR6423/003-130 feeds directly into the AI module of the safety system without requiring signal conversion, provided the input impedance and voltage range specifications are matched at the engineering design stage.

HMI screen updates are a frequently overlooked step in transducer replacement projects. If the plant SCADA or Wonderware InTouch / GE iFIX HMI displays shaft position or vibration trend graphics tied to the replaced channel, verify that the engineering unit scaling and alarm thresholds on the HMI faceplate match the new sensor’s output characteristics. This is particularly important when replacing a transducer that had been field-trimmed to compensate for a worn shaft or non-standard target material.

Communication link integrity between the 3300 XL rack and the plant DCS — typically via Modbus RTU, FOUNDATION Fieldbus, or Profibus DP — should be confirmed after replacement by checking that the monitor’s communication card (e.g., 3300/20 communication gateway) is still reporting valid data to the historian. A simple trend comparison between pre- and post-replacement readings over a 15-minute baseline period is sufficient to confirm signal continuity before returning the machine to service.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary operational constraint in any rotating machinery protection upgrade. For the PR6423/003-130, the physical replacement procedure — from isolation to recommissioning — can typically be completed within 45 to 90 minutes by a qualified instrumentation technician, provided the replacement unit is on-site and pre-tested before the maintenance window begins.

To protect original program logic during the replacement, ensure that the 3300 XL monitor is placed in bypass mode for the affected channel before disconnecting the transducer. This prevents a spurious trip signal from propagating to the turbine control system or ESD (Emergency Shutdown) logic. If the plant uses a Triconex or Rockwell ControlLogix safety PLC as the final element driver, confirm with the control room that the bypass is acknowledged in the safety system before proceeding.

For sites where hot-swap capability is not available and the machine must remain online during the replacement, a temporary portable vibration analyzer — such as a CSI 2140 or SKF Microlog — can be connected to the shaft to provide continuous monitoring during the brief period when the permanent sensor is disconnected. This approach is particularly valuable for critical compressors or turbines where even a momentary loss of protection monitoring is not acceptable under the plant’s machinery protection philosophy.

After reinstallation, the recommissioning sequence should follow the standard Bently Nevada gap-setting procedure: power the proximitor, measure the DC gap voltage at the monitor terminal, adjust the transducer axial position until the voltage falls within the linear range center (typically –10.5 VDC ± 0.5 VDC for a 1.0 mm gap on steel targets), lock the jam nut, and perform a channel function test by simulating a high-vibration condition using a calibrated shim or signal injector. Log all readings in the plant maintenance management system (CMMS) before closing the work order.

Retrofit Support FAQ

Q1: Is the PR6423/003-130 a direct drop-in replacement for the original Bently Nevada 3300 XL transducer without any wiring changes?
Yes. The PR6423/003-130 uses the same M8 × 1.0 thread, coaxial connector, and output scale factor as the original 3300 XL transducer. In the vast majority of installations, the existing extension cable and proximitor can be retained, and no wiring modifications are required at the junction box or monitor terminal strip. Always verify the OK voltage after installation to confirm the replacement is functioning within specification.

Q2: What commissioning steps are required after installing the PR6423/003-130?
The essential commissioning steps are: (1) set the transducer gap to the target value specified in the machine’s vibration monitoring datasheet (typically 1.0–1.27 mm for steel targets); (2) verify the DC gap voltage at the monitor terminal falls within the linear range (–10.5 VDC to –18 VDC); (3) confirm the OK LED on the 3300 XL monitor card is illuminated; (4) perform an alarm and danger setpoint function test; and (5) record the baseline vibration reading and log it in the CMMS. No special software or programming tools are required.

Q3: Can this transducer be used with the Bently Nevada 3500 series monitors as part of a platform upgrade?
The PR6423/003-130 is natively compatible with the 3300 XL platform. For use with the 3500 series, compatibility depends on the proximitor model selected for the 3500 rack. The 330185-series proximitors are generally compatible with PR6423-series transducers, but the specific cable length and target material must be verified against the 3500 system’s transducer qualification matrix. Contact our technical team with your machine datasheet for a confirmed compatibility assessment before ordering.

Q4: What does the 12-month warranty cover, and what documentation is provided with the unit?
Every PR6423/003-130 unit dispatched by SMARTNEXMSK is covered by a 12-month warranty from the date of shipment, covering manufacturing defects and functional failures under normal operating conditions. Each unit is supplied with a functional test certificate confirming output voltage linearity and OK threshold performance. Traceability documentation is available upon request for sites operating under ISO 55000 asset management or IEC 61511 functional safety frameworks. Warranty claims are processed via sales@smartnexmsk.com with reference to the original dispatch record.
