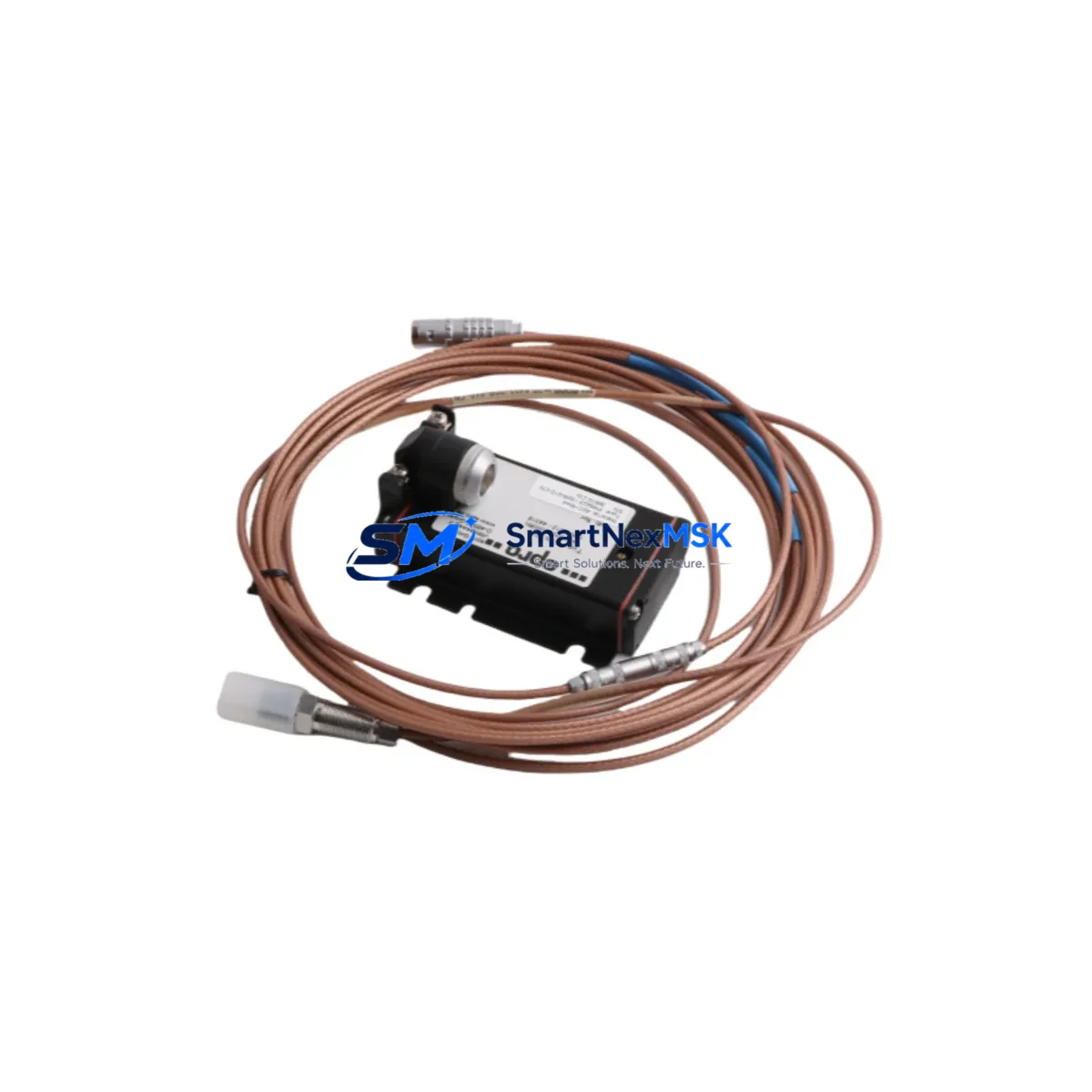

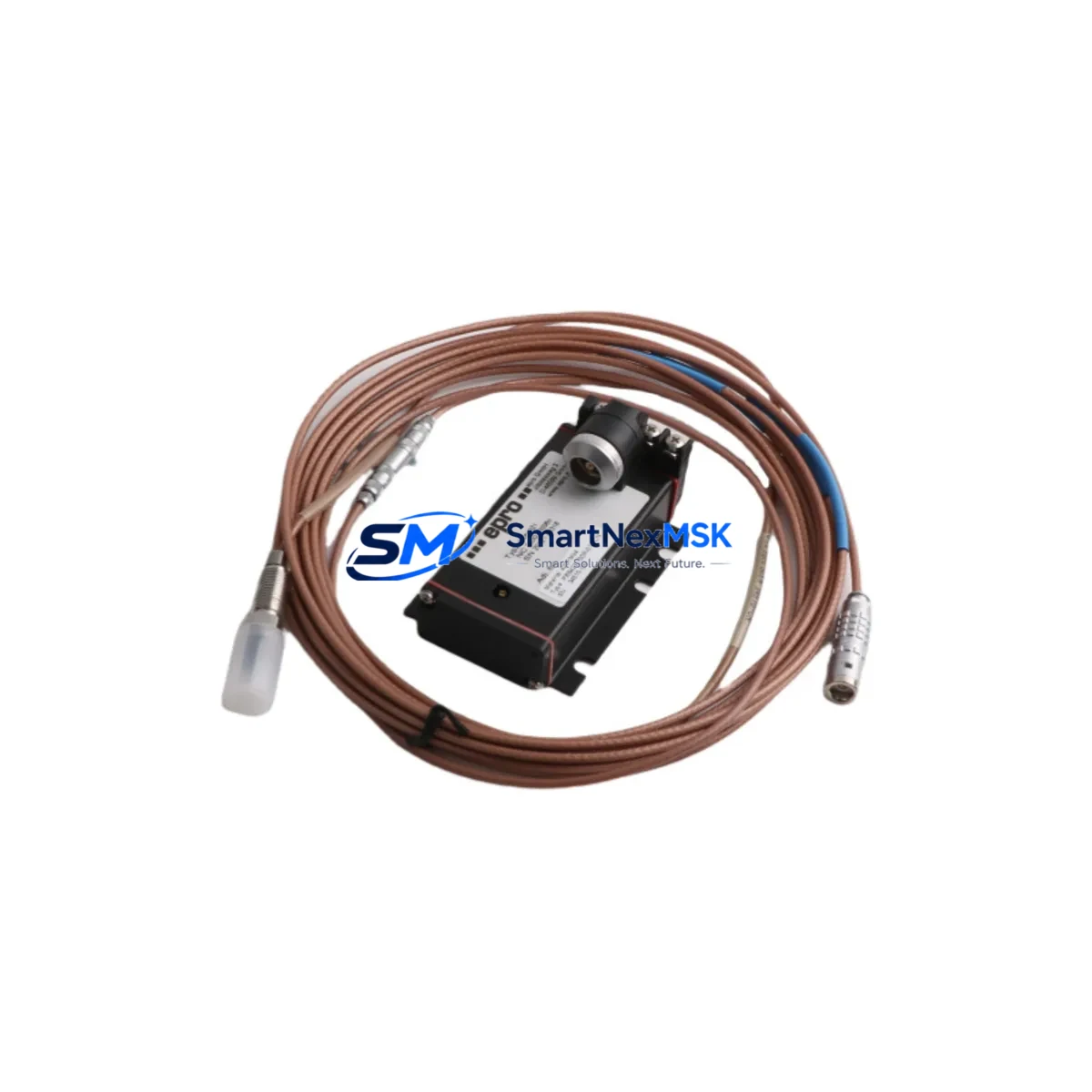

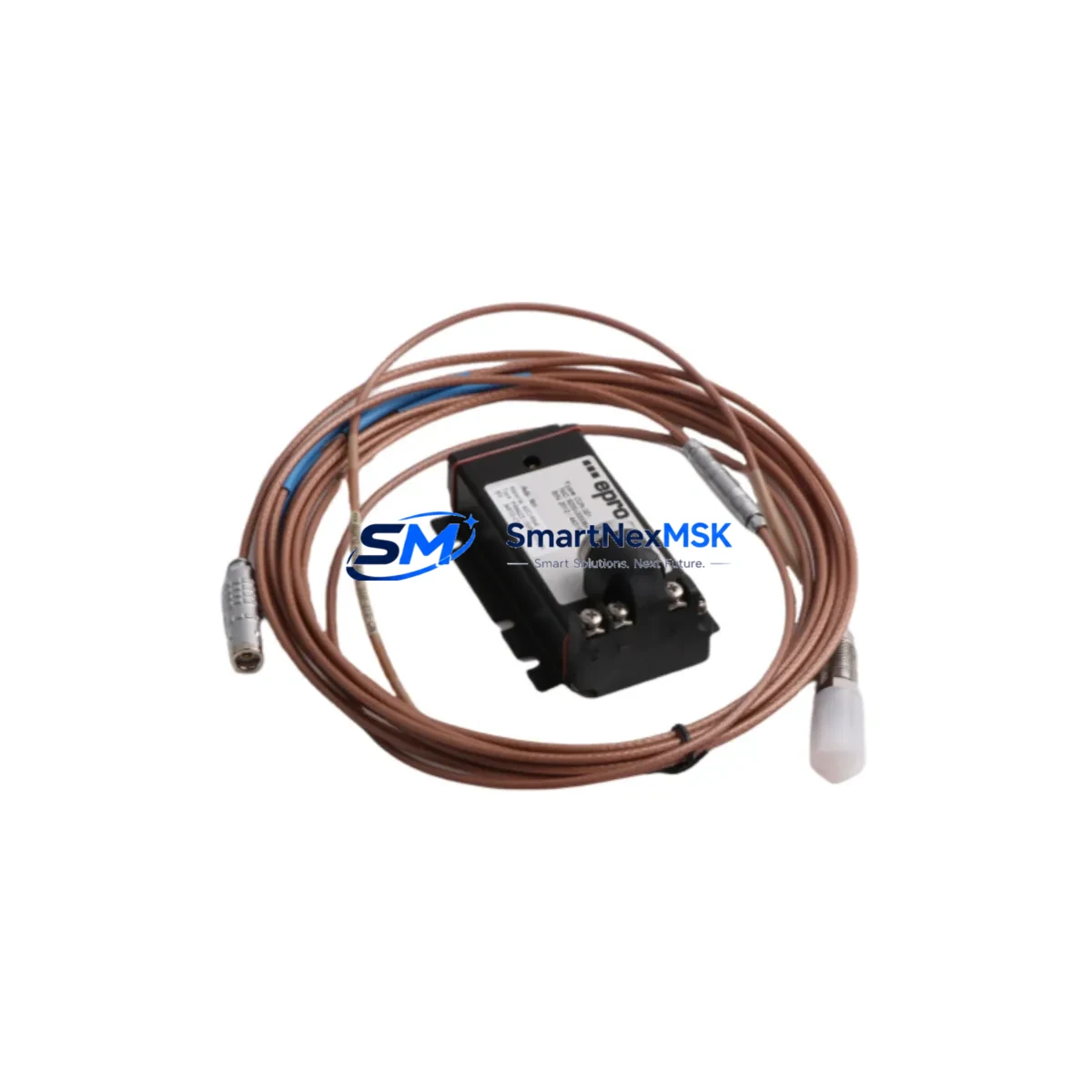

EMERSON PR6423/00R-010-CN Retrofit-Ready Proximity Probe

EMERSON PR6423/00R-010-CN Retrofit-Ready Proximity Probe for PR6423 Series Control Systems

The EMERSON PR6423/00R-010-CN is a high-precision eddy-current proximity probe engineered for seamless integration into Bently Nevada PR6423 Series vibration monitoring systems. Designed as a direct retrofit replacement for aging or discontinued proximity probes in legacy turbomachinery protection and condition monitoring applications, this unit delivers verified electrical and mechanical compatibility with existing field installations — minimizing engineering risk and reducing planned downtime during system modernization projects.

Whether you are replacing a failed probe in a critical steam turbine protection loop, upgrading a compressor train monitoring rack, or migrating from an obsolete Bently Nevada 3300 Series system to a current-generation 3500 Series platform, the PR6423/00R-010-CN provides the dimensional accuracy, output sensitivity, and cable termination geometry required for a drop-in swap without rewiring the junction box or recalibrating the proximitor driver.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the PR6423/00R-010-CN into a running plant begins well before the probe reaches the field. During the pre-outage engineering review, technicians should pull the original loop drawing and confirm the proximitor driver model installed in the monitoring rack — typically a Bently Nevada 3300 XL 8mm Proximitor or a 3500/42M Proximitor Monitor — and verify that the driver’s sensitivity switch is set to match the –200 mV/mil output of the PR6423 series. If the existing rack card is a legacy Bently Nevada 7200 Series proximitor, a driver swap to the 3300 or 3500 platform is recommended as part of the same outage window to avoid a second planned shutdown.

Terminal wiring at the field junction box should be documented before disconnecting the old probe. The PR6423/00R-010-CN uses a standard coaxial center-conductor / shield arrangement; confirm that the existing PR6423 extension cable (typically 5 m or 9 m) is undamaged and that the coaxial connectors show no corrosion or mechanical deformation. A damaged extension cable is the most common cause of post-replacement calibration drift and should be replaced with a matched-length Bently Nevada TK-CN extension cable to maintain system sensitivity accuracy.

At the rack level, confirm that the 3500 Series I/O module assigned to this channel has not been reconfigured for a different transducer type since the last outage. If the rack also hosts 3500/15 Power Supply modules or 3500/20 Rack Interface Modules, verify that the backplane bus voltage is within specification before powering the new probe loop — low bus voltage is a known cause of false OK relay dropout during commissioning. For systems running System 1 Optimization and Diagnostic Software, update the channel configuration database to reflect the new probe serial number and recalibrate the gap voltage reference point in the software before returning the machine to service.

Where the retrofit is part of a broader migration from a Bently Nevada 3300 Series rack to a 3500 Series rack, the I/O termination block pinout changes and all field wiring must be re-landed on the new 3500/42M I/O module terminal block. Allow additional commissioning time for this scenario and schedule a full vibration vector check against the pre-outage baseline before releasing the machine.

Downtime Control During System Migration

Minimizing unplanned downtime during a proximity probe replacement requires a structured hot-swap protocol. Before breaking the probe connection, place the affected channel in Bypass mode within the 3500 Rack Configuration Software to suppress spurious trip signals to the DCS or safety PLC during the swap interval. This preserves the original program logic in the Ovation DCS or DeltaV SIS controller without requiring a logic download or forcing outputs at the safety layer.

With the channel bypassed, remove the old PR6423 probe from the probe holder, install the PR6423/00R-010-CN, and torque to the manufacturer’s specification. Reconnect the extension cable, verify the gap voltage at the proximitor front panel test point (target: –10.0 ± 0.5 VDC for a standard 1.0 mm air gap), and confirm the OK LED is illuminated before removing the bypass. The entire field swap can typically be completed within 30–45 minutes by a qualified instrumentation technician, keeping the machine online and the control loop active throughout the procedure.

For sites where the monitoring rack does not support channel bypass, coordinate with the control room to temporarily mask the affected vibration trip in the safety instrumented system under a formal management-of-change permit. Restore the trip mask immediately after the gap voltage is confirmed in range. All steps should be documented in the site’s maintenance management system with the new probe serial number, installation date, and as-found / as-left gap voltage readings to support future predictive maintenance trending.

Retrofit Support FAQ

Q1: Is the PR6423/00R-010-CN a direct drop-in replacement for my existing PR6423 probe without rewiring?
Yes. The PR6423/00R-010-CN is dimensionally and electrically identical to standard PR6423/00R-010 variants. The M10 × 1.0 mm thread, coaxial connector, and –200 mV/mil sensitivity are unchanged, so no bracket modification or field wiring change is required. Confirm the extension cable length matches the original to preserve system sensitivity calibration.

Q2: What commissioning checks are required after installation?
After installation, verify the gap voltage at the proximitor test point (–10.0 ± 0.5 VDC at the nominal air gap), confirm the OK relay is energized, and check the vibration vector reading against the pre-outage baseline in your condition monitoring software. If the reading deviates by more than 5%, re-check the gap setting and extension cable continuity before returning the machine to service.

Q3: Does the probe ship pre-tested, and what does the 12-month warranty cover?
Yes. Every PR6423/00R-010-CN unit is bench-tested for output sensitivity, insulation resistance, and connector integrity before shipment. The 12-month warranty covers manufacturing defects and verified electrical performance failures under normal operating conditions. It does not cover damage resulting from incorrect gap setting, mechanical impact, or installation in a non-compatible proximitor system.

Q4: Can this probe be used with a Bently Nevada 3300 XL rack as well as a 3500 Series rack?
Yes. The PR6423/00R-010-CN is compatible with both the Bently Nevada 3300 XL 8mm Proximitor and the 3500/42M Proximitor Monitor, provided the driver sensitivity is set to –200 mV/mil. No hardware modification to the rack is required; only the channel configuration in the rack software needs to be updated to reflect the new probe serial number.
