Emerson PR6423/00R-030 CON021 Spare for PR6423 Automation

Emerson PR6423/00R-030 CON021 Spare for PR6423 Automation: Spare Replacement & Industrial Downtime Risk Control

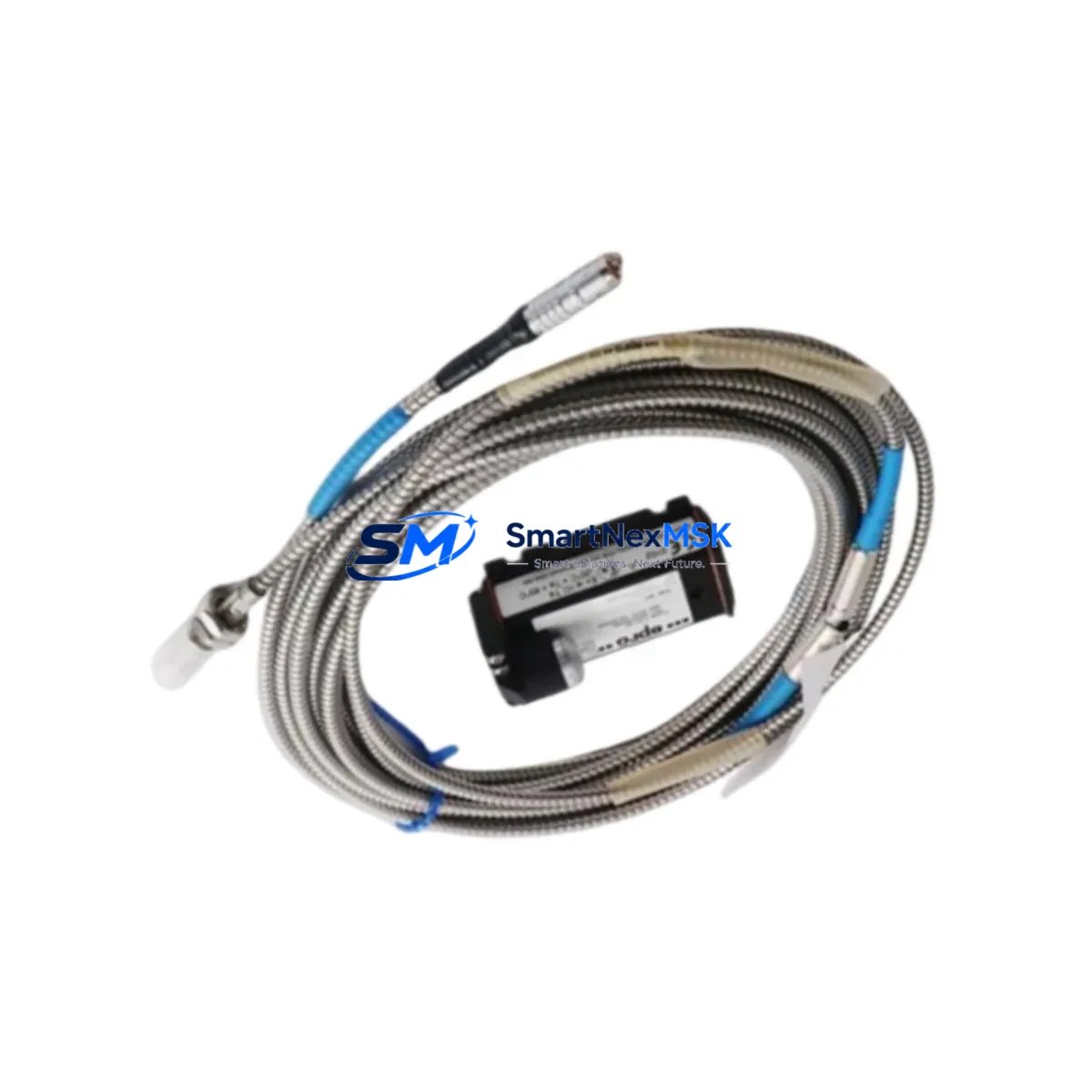

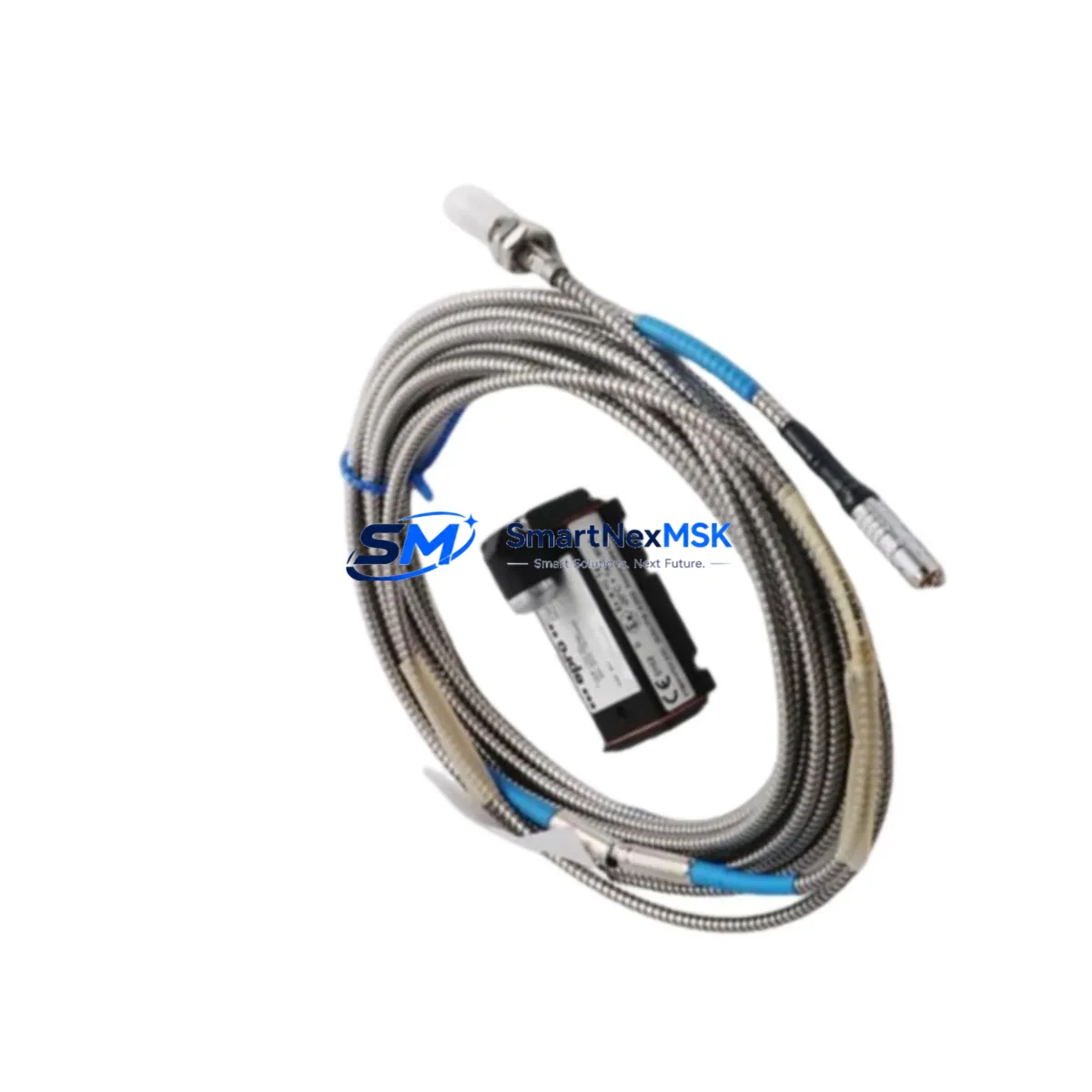

The Emerson PR6423/00R-030 CON021 is an original eddy current proximity sensor from Emerson’s PR6423 series, widely deployed in turbomachinery protection systems, rotating equipment monitoring, and process automation control cabinets. As a maintenance-ready spare, this unit supports rapid field replacement to minimize unplanned downtime and restore system continuity in critical industrial environments. Whether you are managing a planned shutdown, responding to a sensor fault alarm, or building a strategic spare parts inventory, the PR6423/00R-030 CON021 delivers the dimensional accuracy, signal integrity, and environmental resilience required for continuous operation in demanding plant conditions.

Maintenance engineers and procurement engineers working with Emerson Bently Nevada-compatible systems or Emerson process automation platforms will recognize the PR6423 series as a cornerstone of vibration and position sensing in rotating machinery. The CON021 extension cable assembly is integral to the complete measurement chain, and its condition directly affects signal quality at the monitoring system input. Replacing a worn or damaged sensor without inspecting the full signal path — including the extension cable, proximitor driver, and field junction box — risks recurring faults and extended troubleshooting cycles.

This spare is sourced as an original Emerson component, inspected and tested prior to shipment, and backed by a 12-month warranty covering manufacturing defects and functional performance. Long-term supply availability is maintained to support legacy system life extension programs and multi-year maintenance contracts.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the PR6423/00R-030 CON021 in the field, a thorough inspection of the surrounding measurement chain and control cabinet components is essential to prevent repeat failures and ensure signal accuracy. Maintenance teams should treat this replacement as an opportunity to audit the full sensor loop.

Begin by verifying the condition of the PR6423 series proximitor driver module (such as the PR6424 or equivalent driver), which conditions the raw sensor signal before it reaches the monitoring system. A degraded driver can mask sensor faults or introduce signal drift even after a new sensor is installed. Simultaneously, inspect the CON011 or CON021 junction box and all field wiring terminations for corrosion, moisture ingress, or loose connections — these are common root causes of intermittent proximity alarms.

Check the 24 VDC or ±24 VDC power supply module feeding the proximitor circuit. Voltage ripple or supply instability directly degrades sensor output linearity. If the control cabinet houses a Emerson DeltaV I/O module or a third-party 4–20 mA signal isolator on the sensor input channel, verify that the isolator’s input impedance and loop power specifications remain within the PR6423 sensor’s rated load range.

For systems integrated with a Bently Nevada 3500 series rack or equivalent machinery protection system, confirm that the 3500/42M or 3500/40M proximitor I/O module channel configuration matches the replacement sensor’s gap voltage and sensitivity settings. Recalibration of the gap voltage at installation is mandatory — do not assume the previous sensor’s gap setting is transferable without verification.

During cabinet inspection, also assess the condition of terminal blocks and DIN rail assemblies in the sensor wiring zone, cable shielding and grounding continuity along the extension cable run, and any surge protection or transient voltage suppression devices on the sensor input. In high-vibration environments, cable clamps and strain relief fittings should be checked for fatigue cracking. Where the sensor feeds into a safety instrumented system (SIS) or emergency shutdown (ESD) logic solver, coordinate replacement with the SIS engineer to maintain functional safety integrity during the maintenance window.

Site Replacement Workflow

Step 1 — Pre-replacement verification: Confirm the replacement PR6423/00R-030 CON021 part number, cable length suffix (030), and connector code (CON021) match the installed unit exactly. Cross-reference with the equipment OEM spare parts list and the plant’s maintenance management system (CMMS) record.

Step 2 — Safe isolation: De-energize the proximitor driver circuit following the plant’s lockout/tagout (LOTO) procedure. Do not disconnect the sensor under live power — this can damage the driver module input stage.

Step 3 — Physical removal and inspection: Remove the sensor from the mounting bracket, noting the installed gap distance (typically 1.0–2.5 mm for PR6423 series, application-dependent). Inspect the sensor tip for mechanical damage, contamination, or thread wear. Inspect the extension cable for kinking, abrasion, or connector pin damage.

Step 4 — Installation and gap setting: Install the replacement sensor, set the gap to the OEM-specified distance using a non-ferrous feeler gauge, and torque the locknut to specification. Reconnect the CON021 extension cable, ensuring the connector is fully seated and the locking ring is engaged.

Step 5 — Functional verification: Re-energize the circuit and measure the gap voltage at the proximitor output using a calibrated multimeter. Confirm the reading falls within the OEM-specified linear range (typically -10 to -18 VDC for PR6423 series at nominal gap). Log the as-found and as-left gap voltage values in the CMMS.

Step 6 — System restoration: Clear any latched alarms in the monitoring system, confirm normal operation across all channels, and update the spare parts inventory record to reflect consumption of the replaced unit.

Spare Parts Support FAQ

Q1: What is the expected service life of the PR6423/00R-030 CON021, and when should it be scheduled for replacement?
Under normal operating conditions in a clean, vibration-controlled environment, PR6423 series sensors typically achieve 5–10 years of service life. In high-temperature, high-vibration, or chemically aggressive environments, proactive replacement at 3–5 year intervals is recommended. Include this part in your annual rotating equipment spare parts review cycle.

Q2: How is compatibility with my existing monitoring system confirmed before installation?
Compatibility is confirmed by matching the sensor series (PR6423), cable length suffix (030 = 3.0 m), and connector code (CON021) to the OEM equipment documentation. Additionally, verify that the proximitor driver module’s input specification accepts the PR6423 sensor’s output characteristics. Our team can assist with cross-referencing your system documentation prior to order confirmation.

Q3: What pre-shipment testing is performed on this spare?
Each unit undergoes functional output verification, connector integrity inspection, and cable continuity testing before shipment. Units are packaged in anti-static, moisture-resistant packaging with individual test records available upon request. Shipment is accompanied by a certificate of conformance.

Q4: What does the 12-month warranty cover, and what is the claims process?
The 12-month warranty covers manufacturing defects and functional performance failures under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage, mechanical impact, or use outside the rated environmental specifications. To initiate a warranty claim, contact our support team with the order reference, installation date, and a description of the observed fault. Replacement units are dispatched upon fault confirmation.
