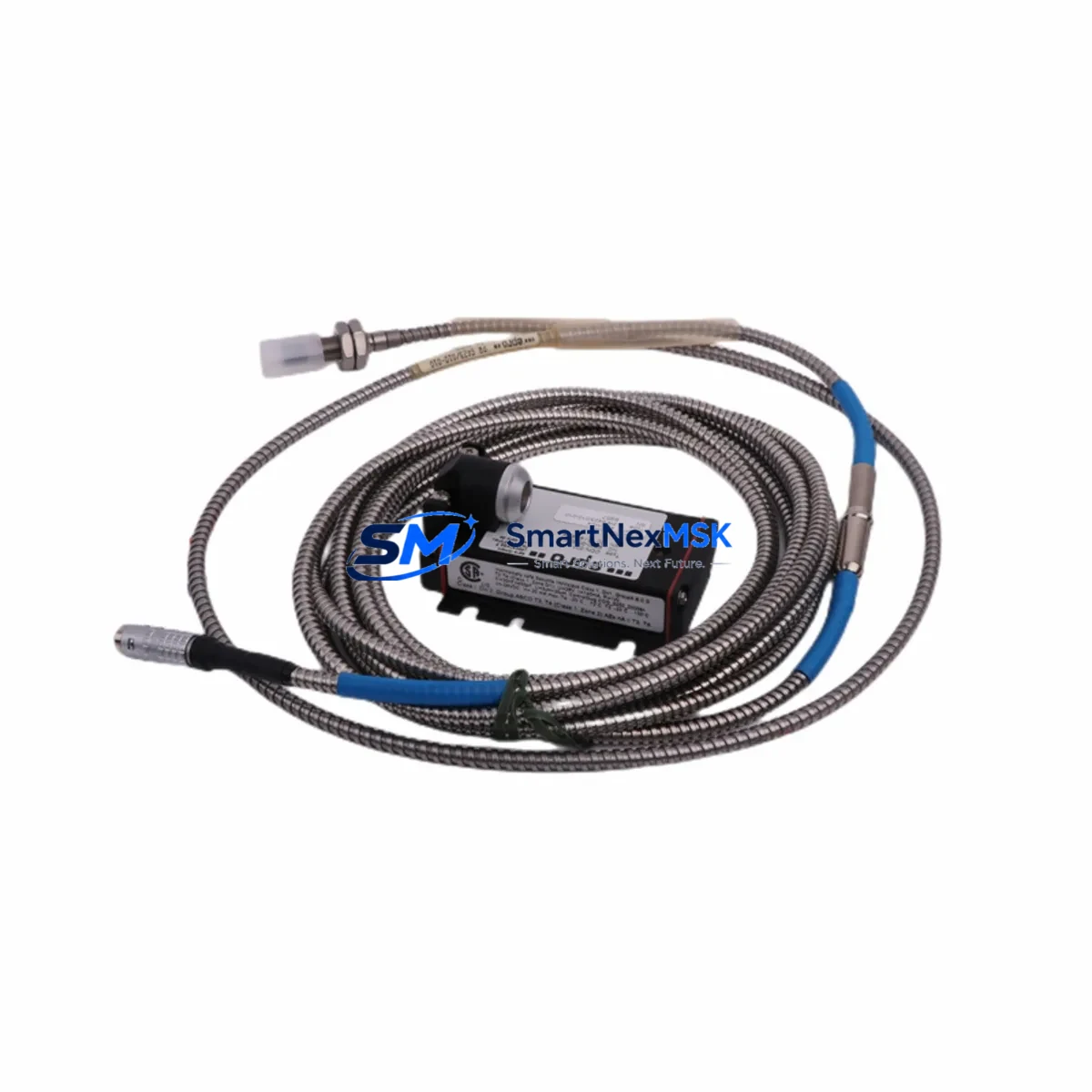

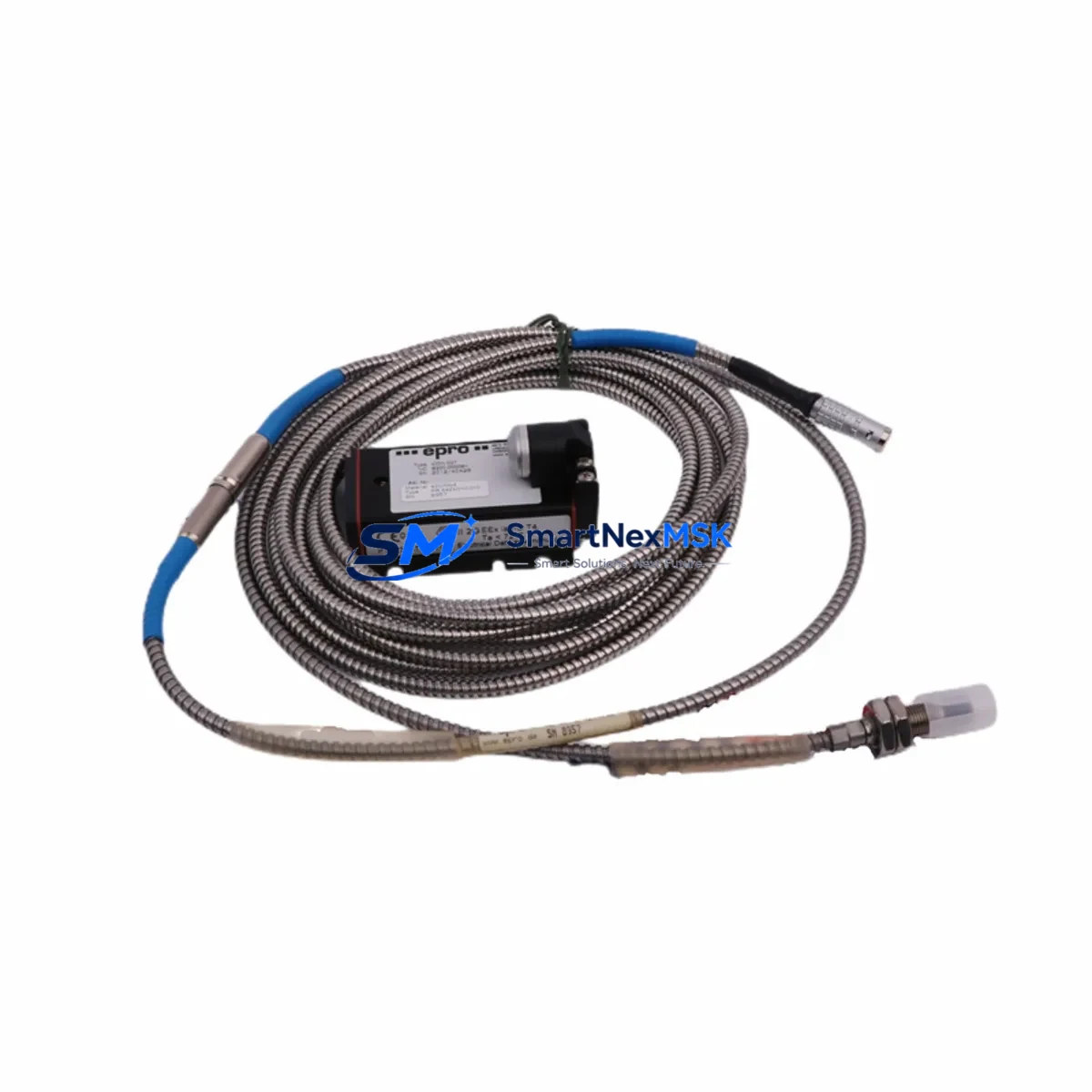

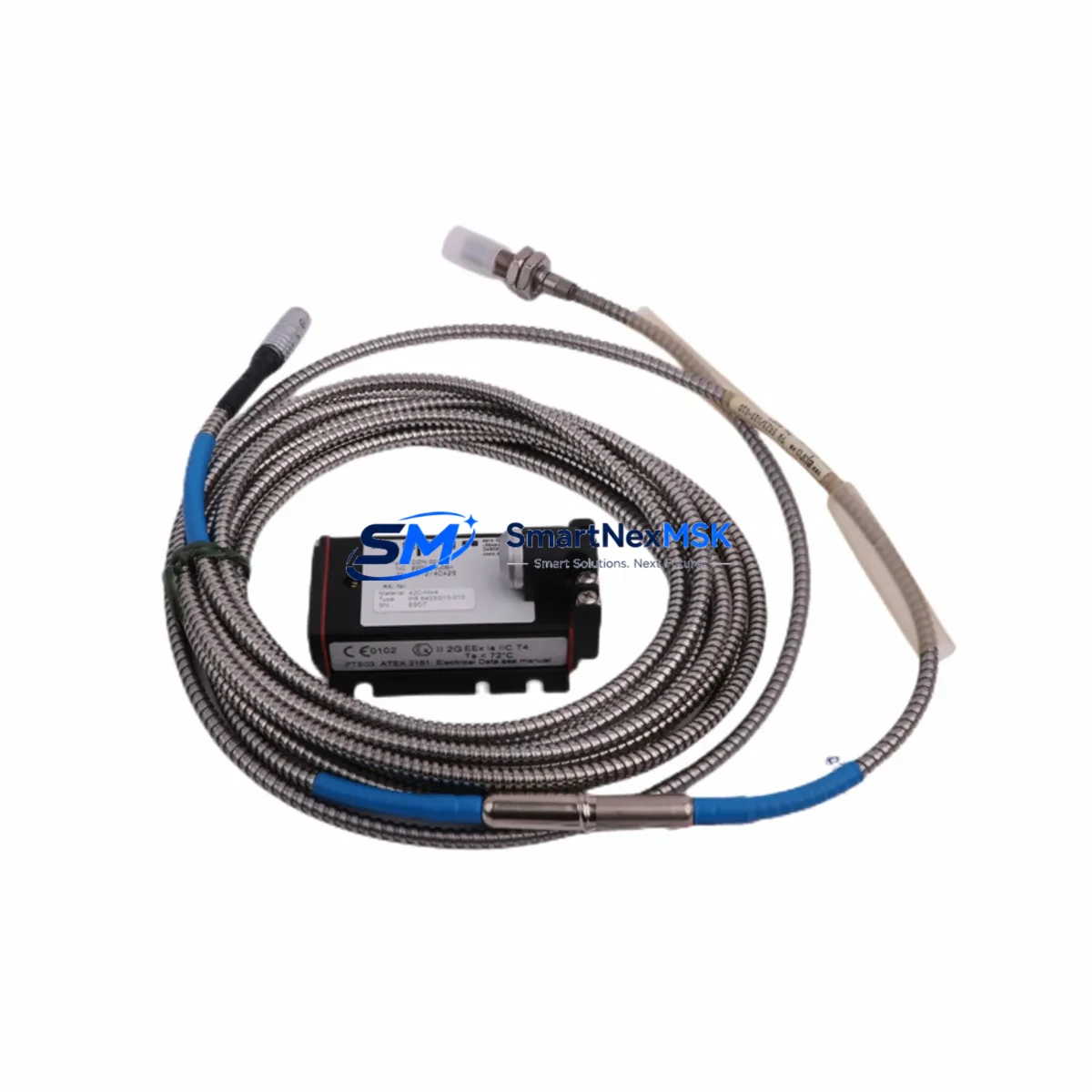

Emerson PR6423/010-010 CON021 Retrofit-Ready Proximity Sensor

Emerson PR6423/010-010 CON021 Retrofit-Ready Proximity Sensor for Legacy Control Systems

The Emerson PR6423/010-010 CON021 is an eddy current proximity sensor engineered for precision vibration and position measurement in rotating machinery protection systems. As a direct retrofit replacement for legacy Bently Nevada 3300 series installations, this sensor delivers full signal compatibility with existing Proximitor® conditioners, junction boxes, and monitoring racks — enabling smooth system modernization without requiring full platform replacement.

Industrial facilities operating aging turbomachinery protection systems frequently encounter the challenge of sourcing discontinued or long-lead-time proximity sensors. The PR6423/010-010 CON021 addresses this directly: it maintains the same 8 mm tip diameter, -24 VDC bias voltage output, and standard 5 mm nominal gap specification as the original Bently Nevada 3300 XL 8mm series probes, making it a validated drop-in replacement for shaft radial vibration, axial position, and differential expansion measurement loops.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing a proximity sensor in an operating turbomachinery protection system requires careful pre-outage planning. Before removing the existing probe, engineers should document the current gap voltage reading at the Proximitor® output — typically measured at the junction box terminal strip or at the 3500 rack I/O module input card. This baseline reading confirms the shaft-to-probe gap and serves as the reference for re-gapping the PR6423/010-010 CON021 after installation.

In systems using the Bently Nevada 3500/42M four-channel position monitor or the 3500/40M proximitor I/O module, the replacement probe integrates without firmware changes — the monitor reads the same analog voltage range and applies the same alarm and danger setpoints already configured in the rack. For installations using the older 3300/16 or 3300/20 series monitors, verify that the Proximitor® excitation voltage and OK relay thresholds are compatible with the PR6423 series scale factor before energizing.

Wiring adaptation is straightforward: the CON021 connector mates directly with standard Bently Nevada junction box field wiring. In retrofit projects where the existing field cable is being reused, inspect the coaxial extension cable — typically a 330130 series extension cable — for insulation degradation, connector corrosion, or impedance mismatch before reconnecting. A damaged extension cable is a common source of erratic gap readings and false OK relay trips after sensor replacement.

For control cabinets integrating the proximity measurement loop with a DCS I/O card or a safety instrumented system (SIS) input module, confirm that the analog input channel is configured for the correct voltage range (-24 VDC bias, linear measurement range typically -2 VDC to -18 VDC). In modernization projects migrating from legacy DCS platforms to current-generation controllers, the signal conditioning remains unchanged — the PR6423/010-010 CON021 outputs a standard analog voltage that is compatible with any 4–20 mA transmitter interface or direct voltage input card.

Where the retrofit scope includes upgrading the monitoring rack alongside the sensor — for example, migrating from a 3300 series rack to a 3500 series rack with a 3500/22M transient data interface — the PR6423/010-010 CON021 remains fully compatible with the new rack’s Proximitor® input requirements. This allows a phased upgrade strategy: replace sensors first, validate signal integrity, then upgrade the monitoring rack during a subsequent planned outage, minimizing total downtime exposure.

In I/O expansion projects where additional measurement points are being added to an existing protection system, the PR6423/010-010 CON021 can be deployed alongside existing probes on the same rack without signal interference, provided each channel’s Proximitor® is independently powered and the field wiring is properly shielded and grounded at a single point.

Downtime Control During System Migration

Minimizing unplanned downtime during proximity sensor replacement begins with pre-staging. Before the maintenance window opens, verify that the replacement PR6423/010-010 CON021 has been bench-tested against a reference target material (typically AISI 4140 steel) to confirm the scale factor and OK relay output are within specification. This pre-shipment functional test is included with every unit supplied by SMARTNEXMSK and documented in the accompanying test certificate.

During the replacement window, the recommended sequence is: (1) bypass the affected channel at the 3500 rack or 3300 monitor to suppress nuisance alarms at the DCS or SIS, (2) remove the existing probe and extension cable assembly, (3) install the PR6423/010-010 CON021 and re-gap to the nominal 5 mm specification using a calibrated gap tool, (4) verify the Proximitor® output voltage at the junction box, (5) confirm the OK relay has energized, and (6) remove the bypass and restore the channel to normal monitoring. This sequence typically completes within 30–45 minutes per measurement point, keeping total outage exposure well within a planned maintenance window.

For critical machinery where continuous monitoring is required, a hot-swap strategy using a portable SCOUT 100 or equivalent handheld vibration analyzer can maintain real-time shaft vibration data during the brief period when the permanent monitoring channel is bypassed. This approach is particularly valuable on compressor trains, steam turbines, and boiler feed pumps where protection system bypass requires formal management-of-change authorization.

Original program logic in the DCS or SIS does not require modification when replacing a like-for-like proximity sensor. Alarm setpoints, danger setpoints, and voting logic configured in the 3500 rack or the safety controller remain valid after sensor replacement, provided the new probe’s scale factor matches the original. Document the post-installation gap voltage and OK relay status in the maintenance record to support future audits and reliability reviews.

Retrofit Support FAQ

Q1: Is the PR6423/010-010 CON021 a direct replacement for Bently Nevada 3300 XL 8mm probes?
Yes. The PR6423/010-010 CON021 is dimensionally and electrically compatible with Bently Nevada 3300 XL 8mm proximity probes. It uses the same CON021 connector, the same -24 VDC bias voltage, and the same 7.87 V/mm scale factor. After installation, re-gap to 5 mm nominal and verify the Proximitor® output voltage before restoring the channel to service.

Q2: What commissioning checks are required after installation?
After installing the PR6423/010-010 CON021, perform the following: (1) measure the Proximitor® output voltage at the nominal gap — it should read approximately -10.5 VDC to -12 VDC for a 5 mm gap on a steel target; (2) confirm the OK relay has energized (LED indicator on the Proximitor® is lit); (3) verify that the DCS or 3500 rack channel is reading within the expected vibration baseline for the machine at rest; (4) check that no alarm or danger conditions are active before removing any bypasses.

Q3: Can this sensor be used with the Bently Nevada 3500/42M position monitor?
Yes. The PR6423/010-010 CON021 is compatible with the 3500/42M four-channel position monitor and the 3500/40M proximitor I/O module. No firmware or configuration changes are required in the rack. Confirm that the channel’s OK relay thresholds and alarm setpoints are appropriate for the specific machine application after installation.

Q4: What warranty and quality assurance does SMARTNEXMSK provide?
Every PR6423/010-010 CON021 supplied by SMARTNEXMSK is covered by a 12-month warranty against manufacturing defects. Each unit is functionally tested prior to shipment, and a test certificate is included with the delivery. Units are shipped in original or equivalent protective packaging to prevent transit damage. For warranty claims or technical support, contact sales@smartnexmsk.com or call +86 18259474341.
