EMERSON PR6423/014-110 CON021 Retrofit Sensor for Epro Systems

EMERSON PR6423/014-110 CON021 Retrofit Sensor for Epro Systems: Compatible Upgrade for Legacy Control Systems

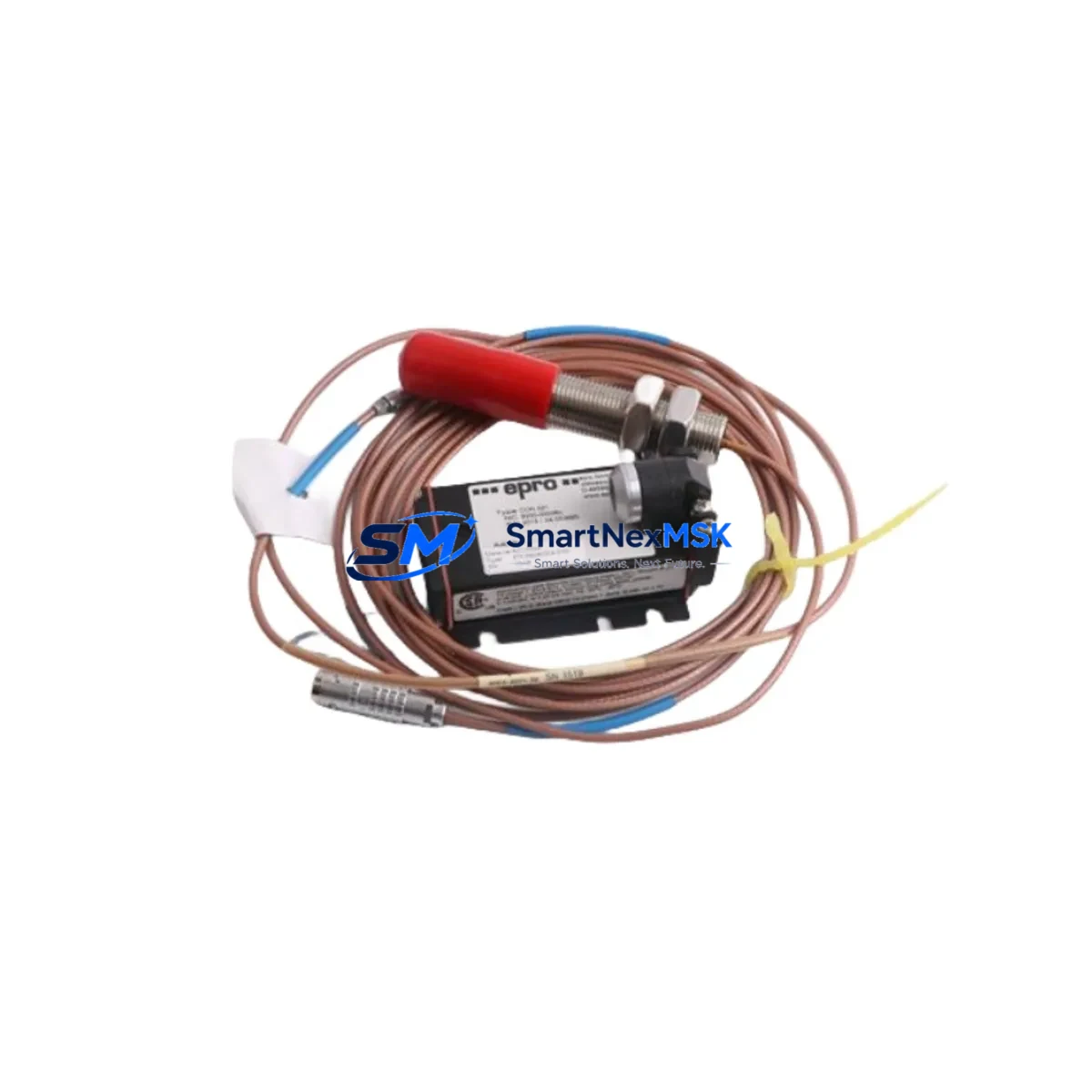

The EMERSON PR6423/014-110 CON021 is a high-precision eddy current proximity sensor engineered for the Epro vibration monitoring platform. As industrial facilities face increasing pressure to extend the operational life of legacy rotating machinery protection systems, this sensor serves as a verified retrofit-ready replacement for discontinued or end-of-life Epro series components. Whether you are upgrading a turbine protection panel, replacing a failed sensor in a compressor monitoring rack, or migrating from an older Bently Nevada 3300 series installation to the Epro platform, the PR6423/014-110 CON021 delivers dimensional and electrical compatibility that minimizes engineering rework and reduces commissioning time on the plant floor.

This sensor operates on the standard eddy current measurement principle, generating a linear output signal proportional to the gap between the probe tip and the conductive target surface. It is designed to work in conjunction with the Epro CON021 signal conditioning module, which provides the necessary oscillator drive and demodulation circuitry. The matched probe-and-extension-cable assembly ensures that the system sensitivity and scale factor remain within the factory-calibrated specification, a critical requirement when the sensor is being installed as a direct replacement in an existing vibration monitoring loop without recalibrating the entire channel.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the PR6423/014-110 CON021 into an existing plant begins well before the sensor arrives on site. The first step is a thorough audit of the current monitoring architecture. Most legacy installations built around the Epro MMS3000 or MMS6000 rack systems will have the conditioner module, typically the CON021 or an earlier CON011 variant, mounted in a dedicated monitoring chassis alongside channel cards such as the MMS6110 displacement monitor or the MMS6120 velocity monitor. Engineers should confirm which conditioner version is installed, because the PR6423 probe family is calibrated specifically for the CON021 and substituting a different conditioner will shift the system scale factor and invalidate the existing alarm and trip setpoints.

Power supply integrity is the next critical checkpoint. The Epro rack draws its sensor excitation voltage from the internal power supply module, often a PSU6000 series unit. Before pulling the old probe, verify that the supply rail is within specification under load, because a marginal power supply can cause intermittent sensor faults that are easily misdiagnosed as probe failures. If the PSU6000 is approaching end of life, it is advisable to replace it during the same maintenance window to avoid a repeat outage.

Terminal wiring at the conditioner input must be documented before disconnection. The PR6423 uses a coaxial signal path from probe tip through the extension cable to the BNC or push-pull connector at the conditioner front panel. Any damage to the extension cable shield or connector body will introduce noise into the measurement chain. Inspect the Epro extension cable assembly carefully; if the cable jacket shows cracking or the connector shows corrosion, replace the extension cable at the same time as the probe. The Epro MMS6000 rack also accommodates I/O interface modules that route the conditioned analog signal to the plant DCS or safety PLC. Confirm that the analog input card on the receiving controller, whether it is a Siemens S7-400 AI module, an ABB AC800M analog input, or a Yokogawa CENTUM VP field control station input card, is configured for the correct input range before the new sensor is energized.

For facilities migrating from a Bently Nevada 3300 XL series proximity system to the Epro platform, the physical probe dimensions and thread form are often compatible, but the electrical characteristics differ. The Bently Nevada 3300 system uses its own driver electronics and the output scale factor is not interchangeable with the Epro CON021. A full channel recalibration is mandatory in this scenario, and the DCS historian tag scaling must be updated to reflect the new mV/mm sensitivity. HMI faceplate displays that show shaft position or vibration trend data will also need their engineering unit conversion factors revised to prevent false alarm conditions during the first weeks of operation after the retrofit.

Where the control system includes a programmable logic controller handling permissive logic or machinery protection interlocks, the program logic should be reviewed to confirm that the analog input scaling blocks, filter time constants, and alarm deadband values are consistent with the new sensor’s output characteristics. This is particularly important in applications where the vibration signal feeds a high-speed trip relay through a safety PLC, because an incorrectly scaled input can cause nuisance trips or, more dangerously, a failure to trip under genuine high-vibration conditions.

Downtime Control During System Migration

Minimizing unplanned downtime during a proximity sensor retrofit requires a structured hot-swap or planned-outage strategy. For non-critical monitoring points where the machinery protection system allows a channel bypass, the PR6423/014-110 CON021 can be installed during a short maintenance window without a full machine shutdown. The Epro MMS6000 rack supports individual channel bypass through the front-panel bypass switch or through a software command from the connected condition monitoring workstation, allowing the faulty channel to be isolated while the remaining channels continue to protect the machine.

Before bypassing any channel, document the current vibration baseline readings from all active channels and save the current program logic and HMI configuration to a backup file. This ensures that if the retrofit introduces unexpected behavior, the system can be restored to its pre-maintenance state quickly. The Epro system configuration, including channel sensitivity, alarm setpoints, and communication parameters to the plant DCS, should be exported from the MMS6000 configuration software and stored on a secure engineering workstation before any hardware is disturbed.

Once the new PR6423/014-110 CON021 is installed and the gap is set to the Epro-specified nominal value, energize the channel and verify the DC output voltage at the conditioner test point before releasing the bypass. Compare the measured output against the expected value for the installed gap distance using the system calibration curve. If the output is within the acceptable tolerance band, the channel can be released from bypass and the machine returned to normal monitored operation. The entire swap, from isolation to release, can typically be completed within a two-hour maintenance window on a well-prepared site, keeping production impact to a minimum.

Retrofit Support FAQ

Q1: Is the PR6423/014-110 CON021 a direct drop-in replacement for my existing Epro proximity probe?
In most cases, yes. The PR6423/014-110 CON021 is dimensionally and electrically compatible with the standard Epro probe mounting arrangement and CON021 conditioner. You should confirm the probe tip diameter, thread size, and total cable length against your installation drawing before ordering. If your existing installation uses a non-standard probe holder or a modified cable assembly, contact our technical team with your drawing number for confirmation.

Q2: What commissioning steps are required after installation?
After mechanical installation, set the probe air gap to the value specified in your Epro system documentation, typically between 1.0 mm and 2.0 mm for standard shaft applications. Measure the DC output voltage at the CON021 test point and verify it falls within the calibrated linear range. Check the alarm and trip setpoints in the MMS6000 channel configuration and confirm that the DCS or PLC analog input scaling matches the conditioner output range. Record all as-found and as-left values in your maintenance management system.

Q3: Can this sensor be used with a Bently Nevada or other third-party conditioner?
No. The PR6423/014-110 CON021 is calibrated as a matched system with the Epro CON021 conditioner. Using it with a Bently Nevada 3300 driver, a Metrix ST5484E, or any other third-party conditioner will produce an incorrect scale factor and unreliable output. If you need to interface with a non-Epro monitoring system, a full system recalibration with the target conditioner is required and the probe suffix code may need to change.

Q4: What does the 12-month warranty cover, and is a test report included?
The 12-month warranty covers manufacturing defects in materials and workmanship from the date of shipment. Every unit undergoes a pre-shipment functional test verifying output linearity, insulation resistance, and connector integrity. A test report is available upon request and can be included with the shipment documentation. Warranty claims are processed through our technical support team at sales@smartnexmsk.com with the original order reference and a description of the observed fault.
