Emerson PR6423/015-040 Spare for Bently Nevada Automation

Emerson PR6423/015-040 Spare for Bently Nevada Automation: Spare Replacement & Industrial Downtime Risk Control

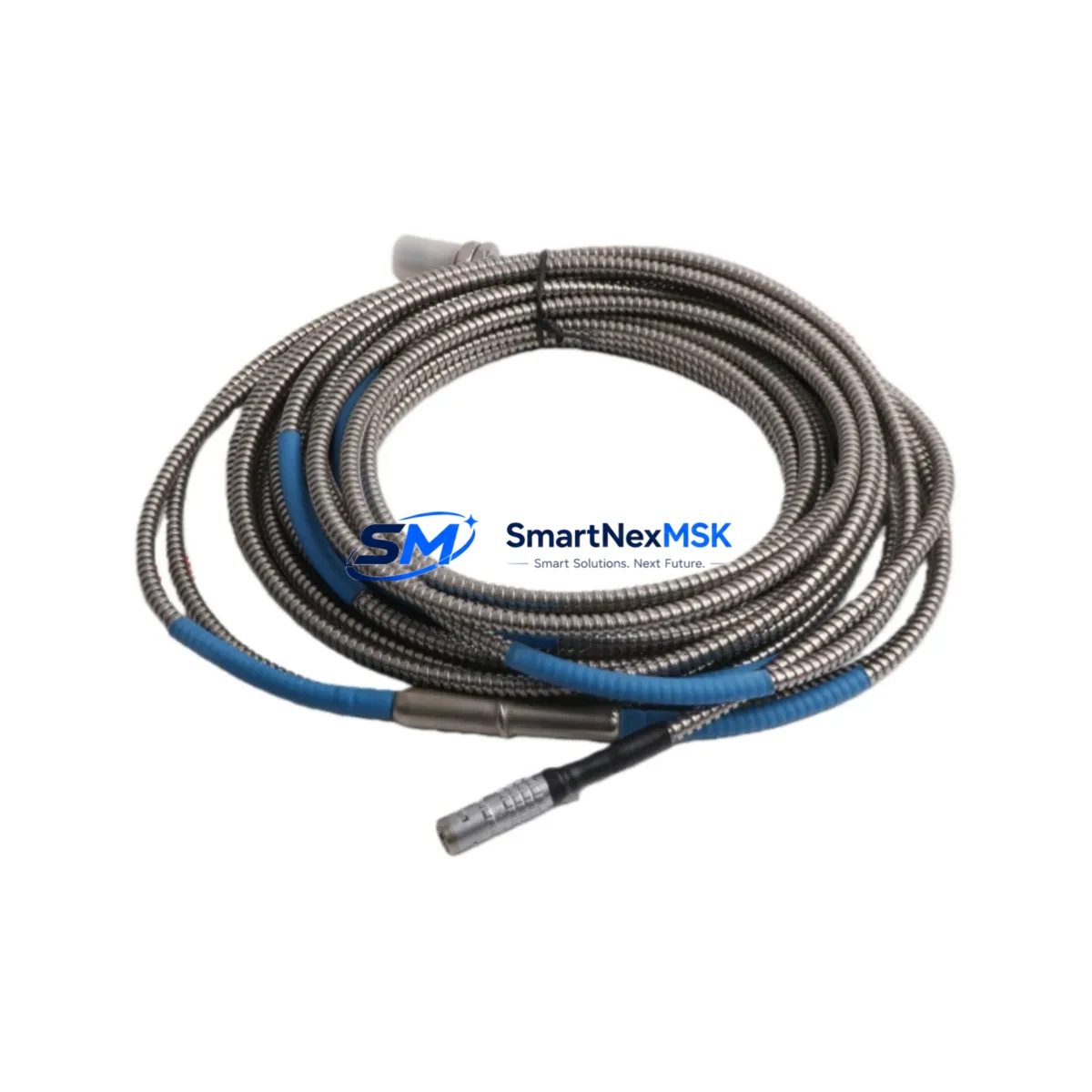

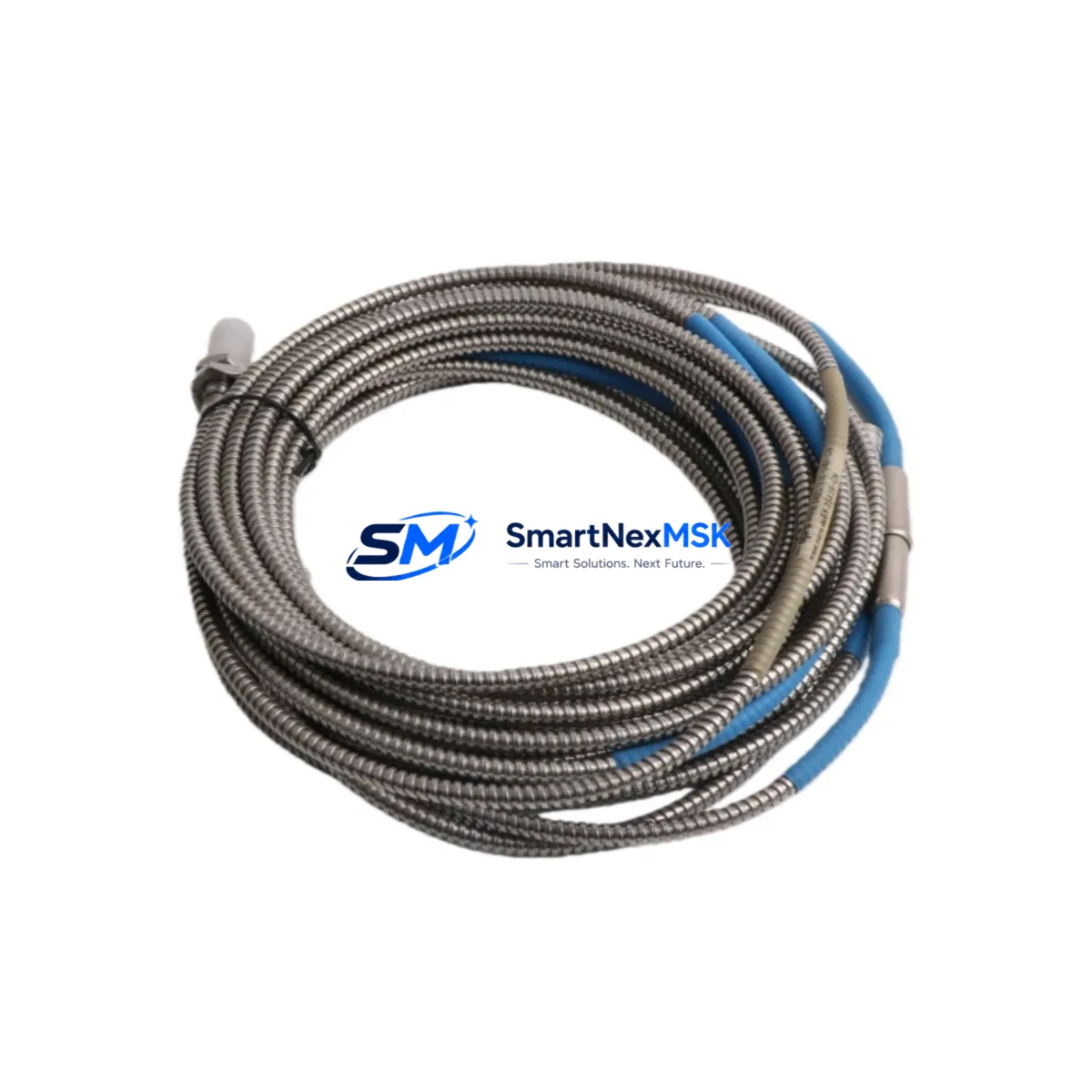

The Emerson PR6423/015-040 is an original Bently Nevada 8mm eddy current proximity sensor designed for continuous shaft vibration and position monitoring in rotating machinery protection systems. As a maintenance-ready spare, this unit supports rapid field replacement in turbine control panels, compressor protection racks, and critical DCS-integrated monitoring loops. Sourced as an original component, each unit is tested before shipment and backed by a 12-month warranty, ensuring your maintenance team can restore system integrity with confidence and minimal downtime.

For maintenance engineers managing aging Bently Nevada 3300 or 3500 series monitoring systems, the PR6423/015-040 is a direct-fit replacement that eliminates the need for recalibration of the full channel. Its 8mm sensing range and standard Bently Nevada connector interface allow drop-in installation during planned shutdowns or emergency corrective maintenance windows. Procurement engineers can rely on long-term supply continuity from verified stock, reducing lead-time risk for critical rotating equipment spares.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the PR6423/015-040 in a Bently Nevada machinery protection rack, a thorough inspection of the surrounding signal chain is essential to prevent repeat failures and ensure measurement accuracy. Maintenance engineers should simultaneously verify the condition of the associated Bently Nevada proximitor/driver module (such as the 3300 XL 8mm proximitor), which conditions the raw sensor signal before it reaches the monitor card. A degraded driver will produce erroneous gap voltage readings even with a new sensor installed.

The 3500/42M Proximitor/Seismic Monitor or equivalent channel card should be inspected for alarm setpoint integrity and relay output continuity. Check the 3500/20 Rack Interface Module (RIM) for communication health if the rack is integrated into a DCS or safety system via Modbus or Ethernet. Coaxial extension cables — particularly the 330130 series armored extension cable — are a common wear item and should be replaced proactively when the sensor is swapped, as cable impedance drift can introduce measurement offset.

For the power supply side, confirm that the 3500/15 Power Supply Module is delivering stable ±24 VDC to the rack. Voltage sag under load is a frequent root cause of intermittent proximity channel faults. Terminal blocks and field wiring connections within the control cabinet should be torque-checked and inspected for corrosion, especially in humid or offshore environments.

If the PR6423/015-040 is part of a redundant monitoring loop, verify that the redundant sensor channel and its associated proximitor are also within calibration tolerance. For systems feeding a Bently Nevada 3500/22M Transient Data Interface, confirm that the transient capture configuration remains valid after sensor replacement. Where signal isolation is required between the monitoring rack and the DCS historian, inspect any installed signal isolator or galvanic separator modules for drift or ground loop issues.

Procurement teams building a resilient spare parts inventory for Bently Nevada-based protection systems should consider stocking the PR6423/015-040 alongside complementary items such as proximitor driver modules, rack power supplies, and coaxial extension cables to enable complete channel restoration without waiting on multiple lead times.

Site Replacement Workflow

Step 1 — Pre-replacement verification: Confirm the existing sensor SKU is PR6423/015-040 and note the installed cable length and connector orientation. Cross-reference with the Bently Nevada system drawing to confirm the 8mm gap target and proximitor model.

Step 2 — Safe isolation: Inhibit the monitoring channel at the 3500 rack to prevent spurious trips during replacement. Do not power down the full rack unless required by site safety procedures, as other channels must remain active for continuous protection.

Step 3 — Sensor removal and inspection: Remove the PR6423/015-040 and inspect the mounting bracket, target area, and extension cable connector for wear, corrosion, or mechanical damage. Replace the extension cable if any impedance anomaly is suspected.

Step 4 — New sensor installation: Install the replacement PR6423/015-040, set the gap to the specified nominal distance using a feeler gauge or gap voltage reference, and verify the static gap voltage at the proximitor output matches the system specification (typically –10 VDC at nominal gap for 8mm sensors).

Step 5 — Channel re-enable and functional test: Re-enable the monitoring channel, confirm alarm and danger setpoints are active, and verify the live vibration reading is within expected baseline range. Document the replacement in the equipment maintenance log.

This workflow minimizes downtime to a single channel inhibit window, preserving protection on all other monitored shafts and maintaining system compatibility with the existing Bently Nevada 3300 or 3500 series architecture.

Spare Parts Support FAQ

Q1: Is the PR6423/015-040 a direct replacement for older Bently Nevada 8mm proximity sensors?
Yes. The PR6423/015-040 is compatible with standard Bently Nevada 8mm eddy current monitoring systems including the 3300 and 3500 series. It uses the same coaxial connector interface and gap voltage characteristics, allowing direct substitution without system reconfiguration in most installations. Always verify the proximitor model and cable length specification before ordering.

Q2: What does the 12-month warranty cover?
The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. Each unit is tested before shipment to verify electrical continuity, output signal integrity, and connector condition. Warranty claims are supported with documented test records upon request.

Q3: How should I manage PR6423/015-040 inventory for critical rotating equipment?
For facilities operating turbines, compressors, or other critical rotating machinery on Bently Nevada protection systems, we recommend maintaining a minimum of one spare PR6423/015-040 per monitored shaft position. For high-criticality assets with redundant monitoring, stock one spare per redundant channel pair. Sensors stored in original packaging in a dry, temperature-controlled environment maintain full specification for extended periods.

Q4: Can compatibility be verified before shipment?
Yes. Provide your existing sensor part number, proximitor model, and system series (3300 or 3500) when placing your order. Our technical team will confirm compatibility and, where required, can provide gap voltage test data and dimensional verification before dispatch.
