Emerson PR6423/01R-111 CON031 Retrofit-Ready Proximity Sensor for EPRO

Emerson PR6423/01R-111 CON031 Retrofit-Ready Proximity Sensor for EPRO Control Systems

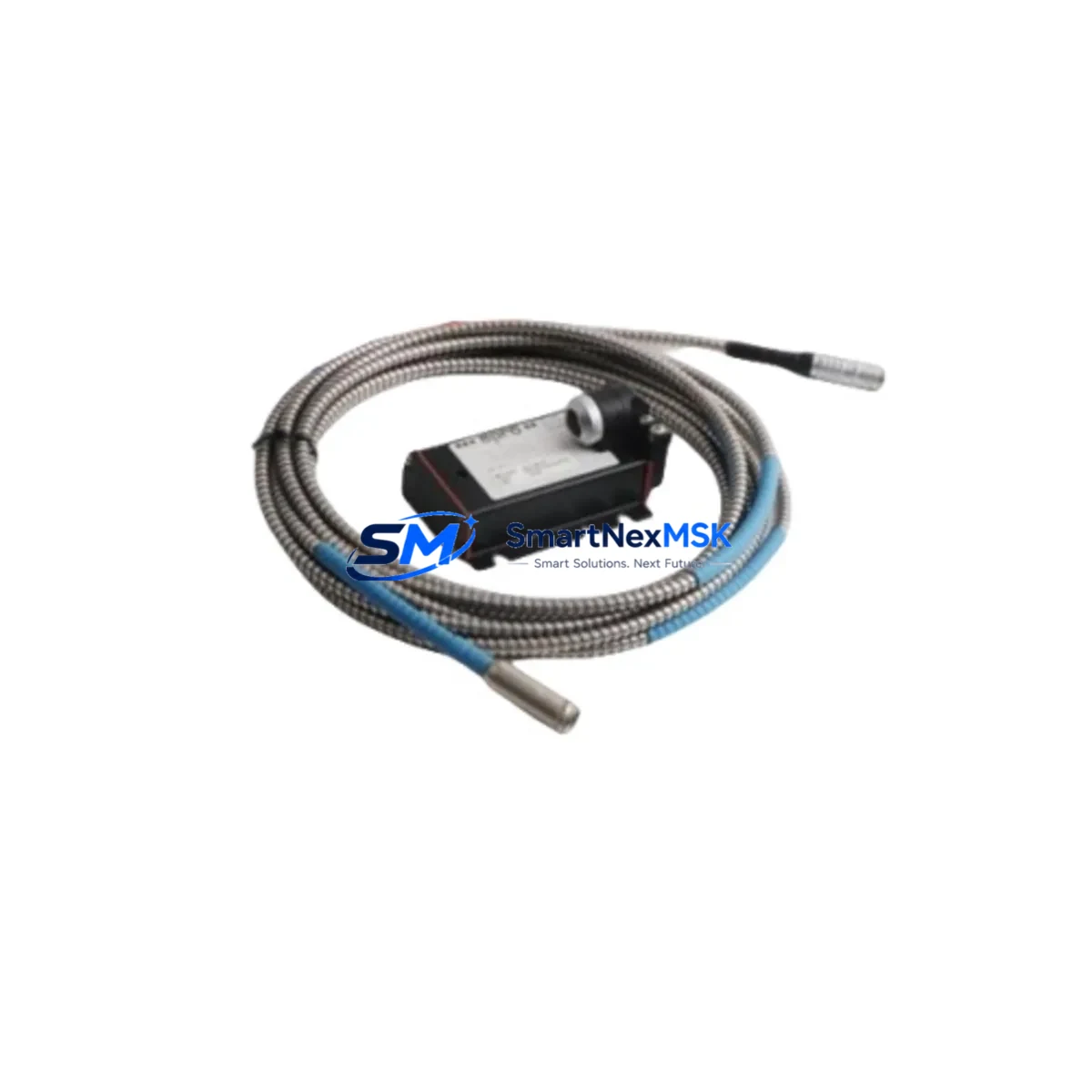

The Emerson PR6423/01R-111 CON031 is a high-precision eddy current proximity sensor engineered for seamless integration into EPRO series vibration monitoring and machinery protection systems. Designed as a retrofit-ready replacement for aging or discontinued sensor assemblies, this unit supports direct substitution in existing control cabinets without requiring backplane redesign or firmware reconfiguration. Whether you are modernizing a legacy turbine protection rack, replacing a failed sensor in a compressor train, or upgrading a critical monitoring loop, the PR6423/01R-111 CON031 delivers the dimensional accuracy, signal linearity, and environmental resilience demanded by continuous industrial operation.

This sensor is fully compatible with the Emerson EPRO CON series signal conditioners, including the CON021 and CON041 variants, and integrates directly with the PR9268 extension cable assemblies used in most field installations. The 8 mm probe diameter and standard M10 thread pitch allow direct mechanical substitution in existing probe mounts, eliminating the need for bracket modification or housing rework. Output signal characteristics conform to the EPRO standard of −24 VDC supply with a sensitivity of 7.87 V/mm, ensuring compatibility with downstream monitoring modules such as the Emerson EPRO MMS6110 and MMS6120 vibration measurement cards.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the PR6423/01R-111 CON031 into an existing machinery protection system begins with a thorough review of the current rack configuration. Most EPRO-based installations use a modular backplane architecture where the Emerson EPRO MMS6000 series rack houses multiple monitoring cards alongside dedicated power supply modules. Before removing the legacy sensor, engineers should document the existing gap voltage reading at the CON031 conditioner output — typically between −10 V and −18 V for a properly gapped probe — and record this as the baseline for post-installation verification.

Terminal wiring for the PR6423/01R-111 follows the standard three-wire EPRO convention: supply (−24 VDC), common (0 V), and signal output. When replacing a sensor in a live cabinet, confirm that the EPRO MMS6820 power supply module or equivalent is delivering stable voltage within tolerance before connecting the new probe. Loose or corroded terminal blocks on the conditioner input card are a common source of intermittent faults during retrofit and should be inspected and re-torqued as part of the changeover procedure.

For installations where the original PR9268 extension cable has been routed through conduit or cable trays, it is advisable to retain the existing cable run and replace only the probe and conditioner assembly. This approach minimizes disruption to cable management and preserves the calibrated total system length — a critical parameter because eddy current sensitivity is a function of the combined probe-cable-conditioner system, not the probe alone. If the cable must be replaced, use a factory-matched PR9268 extension of identical length and verify gap calibration after installation using a calibrated gap tool or oscilloscope.

In systems where the EPRO rack also hosts Emerson EPRO MMS6210 speed and phase reference cards or MMS6350 temperature monitoring modules, the retrofit window should be coordinated to allow simultaneous inspection of adjacent modules. This reduces total downtime by consolidating access to the control cabinet and avoids the need for a second planned outage. Similarly, if the installation includes a Bently Nevada 3500 series rack operating in parallel for redundancy, the switchover sequence should be planned to maintain at least one active monitoring channel throughout the sensor replacement.

Downtime Control During System Migration

Minimizing unplanned downtime during a proximity sensor retrofit requires a structured pre-outage preparation protocol. Begin by staging all replacement components — including the PR6423/01R-111 CON031 assembly, a spare PR9268 extension cable, and a calibrated gap-setting tool — at the work site before the maintenance window opens. Pre-verify the new sensor against a reference target to confirm output linearity and confirm the conditioner is correctly matched to the probe serial number.

During the outage, follow a defined sequence: isolate the monitoring channel at the EPRO MMS6000 rack using the channel inhibit function (where available) to suppress spurious alarms during the changeover, remove the legacy probe and conditioner, install the PR6423/01R-111 CON031, set the air gap to the manufacturer-specified nominal value (typically 1.0 mm for 8 mm probes), and restore the channel. Record the new gap voltage and compare it against the baseline documented before the outage. If the reading falls within ±5% of the original value, the installation is confirmed and the inhibit can be cleared.

For critical machinery where continuous monitoring is mandatory, consider deploying a portable vibration analyzer connected to the probe output during the changeover interval. This allows real-time observation of shaft vibration data even while the permanent monitoring card is temporarily isolated, preserving situational awareness for the operations team and reducing the risk of an undetected fault during the transition period. All pre-shipment functional tests are completed before dispatch, and each unit ships with a 12-month warranty covering manufacturing defects.

Retrofit Support FAQ

Q1: Is the PR6423/01R-111 CON031 a direct drop-in replacement for the original Emerson EPRO probe assembly?
Yes. The PR6423/01R-111 CON031 is dimensionally and electrically equivalent to the original EPRO 8 mm proximity probe system. It uses the same M10 thread, the same −24 VDC supply, and the same 7.87 V/mm sensitivity, allowing direct substitution without modification to the probe mount, terminal wiring, or monitoring card configuration.

Q2: What wiring checks should be performed before connecting the new sensor?
Verify that the supply voltage at the conditioner input terminals is within the −24 VDC ±10% specification. Inspect all terminal screws for correct torque and check for corrosion or contamination on the connector pins. Confirm that the PR9268 extension cable shield is grounded at one end only (typically at the conditioner) to avoid ground loop interference on the signal output.

Q3: How is gap calibration verified after installation?
With the machine at rest, measure the DC output voltage at the CON031 signal output terminal. For a nominal 1.0 mm air gap, the expected output is approximately −7.87 V. Adjust the probe axial position until the measured voltage matches the target value, then lock the probe in position using the locknut. Record the final gap voltage in the maintenance log for future reference.

Q4: What does the 12-month warranty cover, and is pre-shipment testing performed?
Every PR6423/01R-111 CON031 unit undergoes a functional pre-shipment test verifying output linearity, supply current draw, and conditioner matching before dispatch. The 12-month warranty covers manufacturing defects in materials and workmanship from the date of shipment. It does not cover damage resulting from incorrect installation, overvoltage, or mechanical impact. Warranty claims are processed through our sales team at [email protected].
