EMERSON PR9268/617-100-CNS Maintenance-Ready Spare for PR9268 Automation

EMERSON PR9268/617-100-CNS Maintenance-Ready Spare for PR9268 Automation

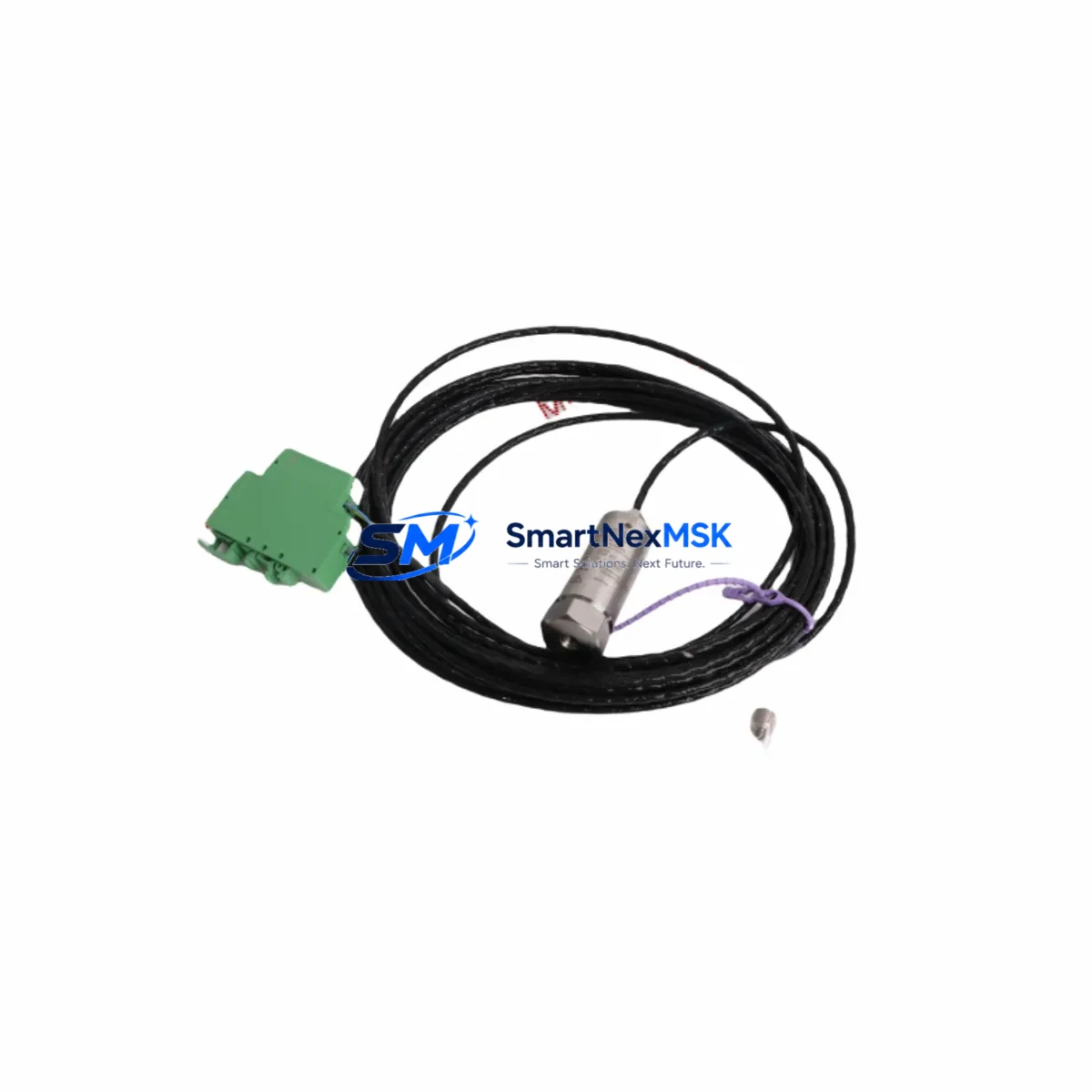

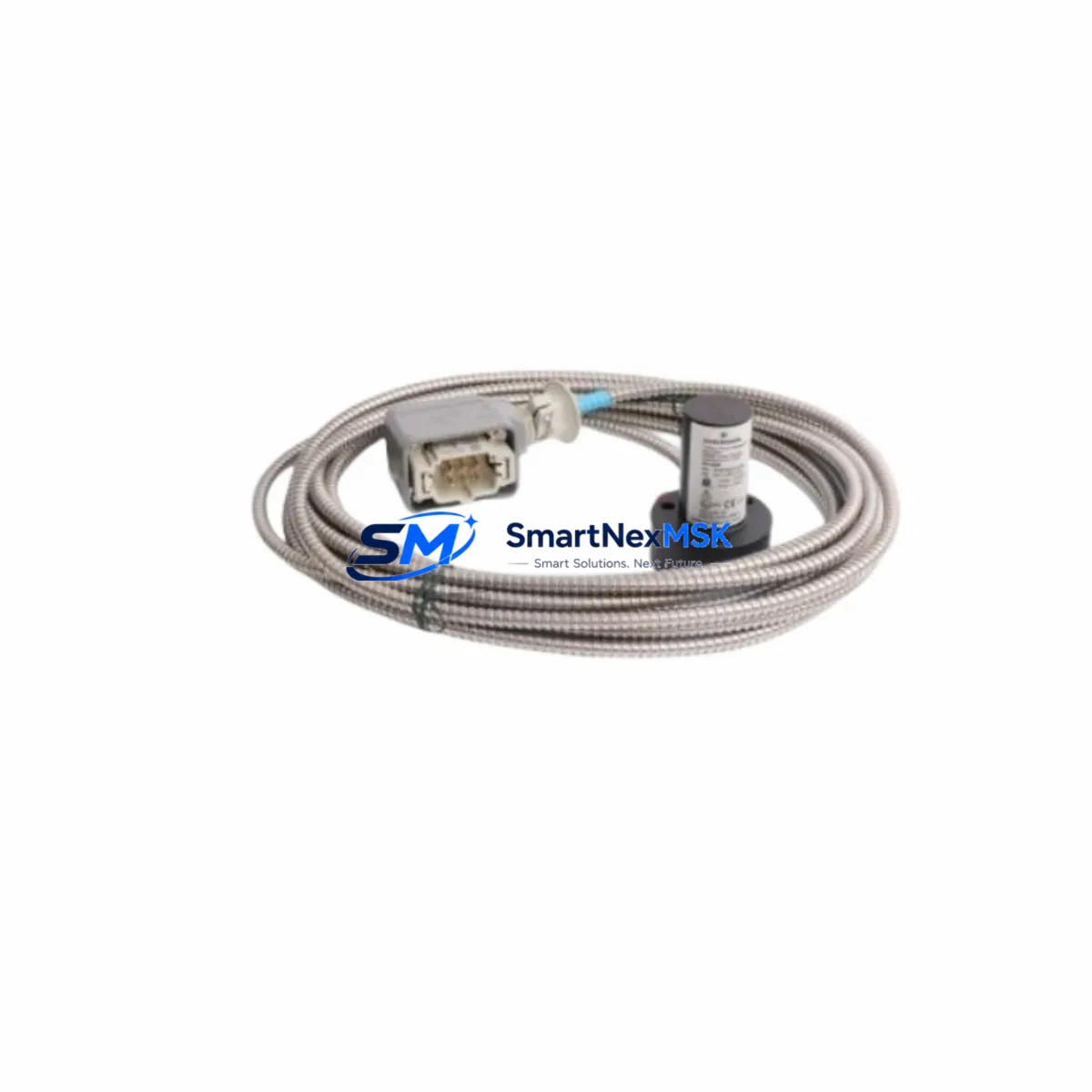

The EMERSON PR9268/617-100-CNS is an original velocity sensor engineered for continuous rotating machinery protection in industrial automation environments. Designed as a direct maintenance-ready spare for the PR9268 series, this unit supports rapid field replacement to minimize unplanned downtime and restore control system integrity. Whether deployed in turbine protection panels, compressor monitoring racks, or general-purpose vibration monitoring cabinets, the PR9268/617-100-CNS delivers reliable seismic velocity measurement with the signal quality and mechanical durability demanded by maintenance engineers managing aging or mission-critical assets.

For maintenance and procurement engineers, sourcing a verified original spare before failure occurs is the single most effective strategy for reducing mean time to repair (MTTR). The PR9268/617-100-CNS is stocked and tested prior to shipment, with full functional verification against EMERSON PR9268 series specifications. Each unit ships with a 12-month warranty covering manufacturing defects and performance conformance, giving your maintenance team confidence in both the part and the supply chain.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a PR9268/617-100-CNS velocity sensor is flagged for replacement during a scheduled inspection or after a fault alarm, experienced maintenance engineers know that the sensor itself is rarely the only component requiring attention. A thorough site assessment should accompany every sensor swap to prevent repeat failures and ensure the restored monitoring loop performs to specification.

Begin by inspecting the signal conditioning module associated with the PR9268 channel — units such as the EMERSON PR9376 or equivalent series signal conditioners can degrade over time, introducing offset errors that mimic sensor failure. Verify the power supply module feeding the monitoring rack: a drifting 24 VDC rail or a failing EMERSON PR6423 power supply can stress sensors and shorten service life. Check all terminal blocks and field wiring at the junction box and marshalling cabinet; corroded or loose terminals on DIN-rail terminal strips are a common root cause of intermittent velocity signal faults.

If the PR9268/617-100-CNS is part of a turbine or compressor protection system, also inspect the proximity probe and driver on the same shaft — for example, EMERSON PR6424 eddy-current probes and their paired PR9376 drivers should be checked for gap voltage and sensitivity drift. Review the I/O module in the associated PLC or DCS rack that receives the velocity signal; a faulty analog input card can misread a perfectly functional sensor. Where the monitoring system interfaces with a communication module (Modbus RTU, PROFIBUS, or HART gateway), confirm that the module firmware and address configuration remain intact after the sensor replacement.

For control cabinets housing the PR9268 monitoring system, a complete巡检 should include: fuse integrity checks on all protection circuits, inspection of signal isolators between the field sensor loop and the control system input, verification of relay output modules used for alarm and trip functions, and a functional test of any HMI display panels showing real-time velocity trends. Documenting baseline readings after replacement establishes the reference for future predictive maintenance intervals.

Maintaining a minimum buffer stock of one PR9268/617-100-CNS per monitored machine train — alongside matched signal conditioners, spare fuses, and terminal block connectors — is a proven strategy for reducing emergency procurement lead times and keeping aging rotating machinery systems operational well beyond their original design life.

Site Replacement Workflow

Step 1 — Isolation and Lockout: Follow site LOTO procedures. Isolate the sensor loop at the marshalling cabinet and confirm the monitoring channel is in bypass or inhibit mode at the DCS/PLC to prevent spurious trip signals during replacement.

Step 2 — Physical Removal: Disconnect the field cable at the sensor junction box, noting wire labeling and polarity. Remove the PR9268/617-100-CNS from its mounting stud, taking care not to damage the machine casing thread.

Step 3 — Inspection of Mounting Surface: Clean the mounting surface, inspect for corrosion or thread damage, and verify the replacement unit’s mechanical interface matches the original. The PR9268/617-100-CNS is a direct form-fit-function replacement for earlier PR9268 series variants, eliminating the need for bracket modifications or cable re-routing in most installations.

Step 4 — Installation and Wiring: Mount the new sensor to the specified torque. Reconnect field wiring per the original termination schedule. Confirm cable shielding is grounded at one end only to prevent ground loops that can corrupt velocity signal integrity.

Step 5 — Loop Verification: Remove the bypass/inhibit, apply power, and verify the output signal at the signal conditioner and DCS/PLC input. Compare the live velocity reading against historical baseline values. Confirm alarm and trip setpoints are active and correctly configured.

Step 6 — Documentation: Record the replacement in the maintenance management system (CMMS), including the new unit’s serial number, installation date, and post-replacement baseline readings. Update the spare parts inventory to trigger reorder of the consumed PR9268/617-100-CNS unit.

Spare Parts Support FAQ

Q1: Is the PR9268/617-100-CNS compatible with all PR9268 series monitoring systems?
The PR9268/617-100-CNS is designed as a direct replacement within the EMERSON PR9268 series. It maintains the same mechanical interface, output signal characteristics, and electrical ratings as the standard PR9268 series velocity sensors. For installations with customized signal conditioning or non-standard cable assemblies, confirm the output range and connector type against your site documentation before installation.

Q2: How is each unit tested before shipment?
Every PR9268/617-100-CNS undergoes full functional verification prior to dispatch, including output signal check, insulation resistance test, and mechanical inspection. A test report is available upon request. Units are packaged in anti-static, shock-protected packaging to maintain condition during international transit.

Q3: What does the 12-month warranty cover?
The 12-month warranty covers manufacturing defects, performance non-conformance to PR9268 series specifications, and premature failure under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage, mechanical impact, or operation outside the specified environmental range. Warranty claims are processed with return merchandise authorization (RMA) and include replacement or full refund.

Q4: Can you support long-term or blanket orders for ongoing spare parts programs?
Yes. For maintenance programs requiring scheduled replenishment of PR9268/617-100-CNS units — or broader EMERSON PR9268 series spare kits — we support blanket purchase orders, consignment stock arrangements, and priority allocation agreements. Contact our technical sales team to discuss inventory reservation, lead time guarantees, and volume pricing for multi-site maintenance contracts.
