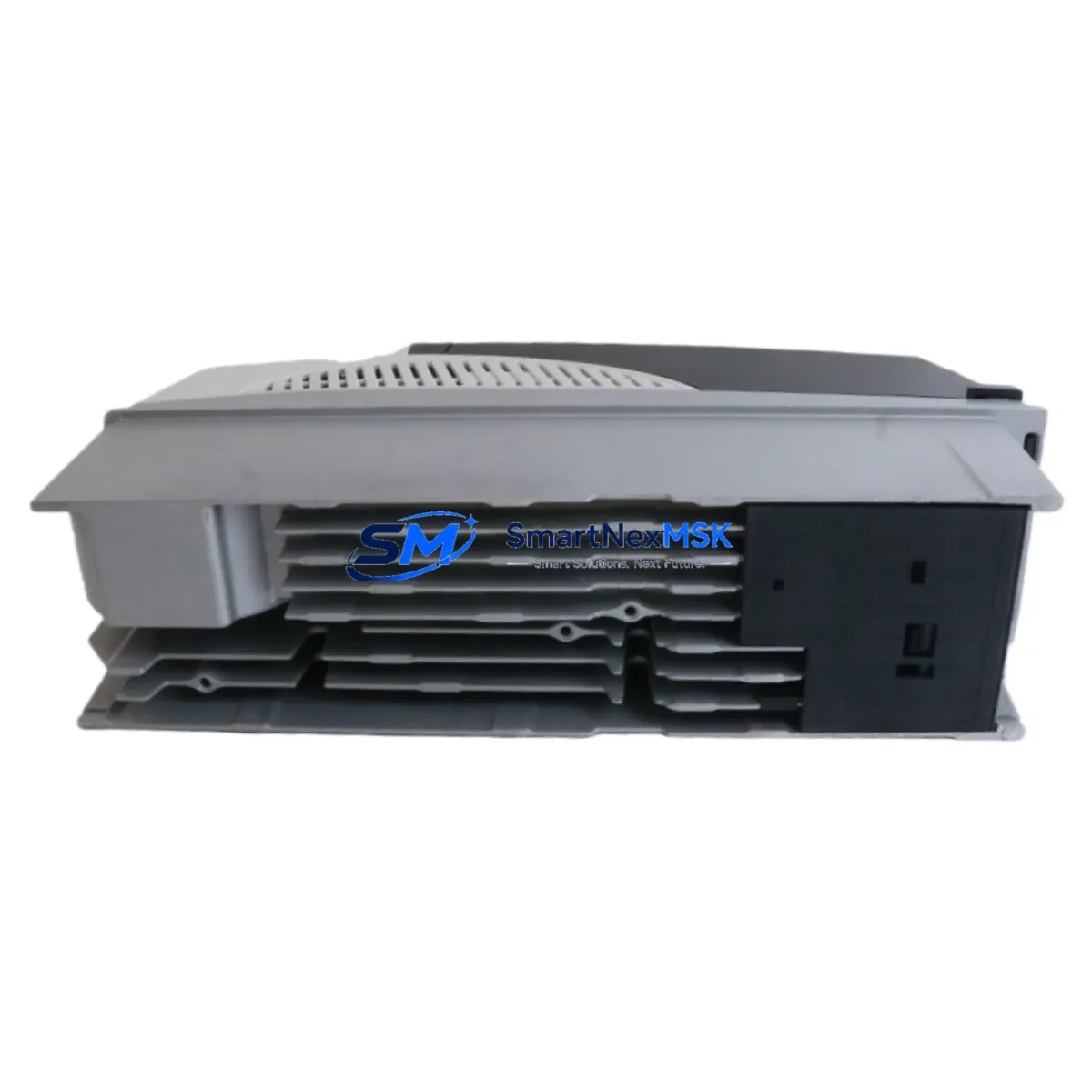

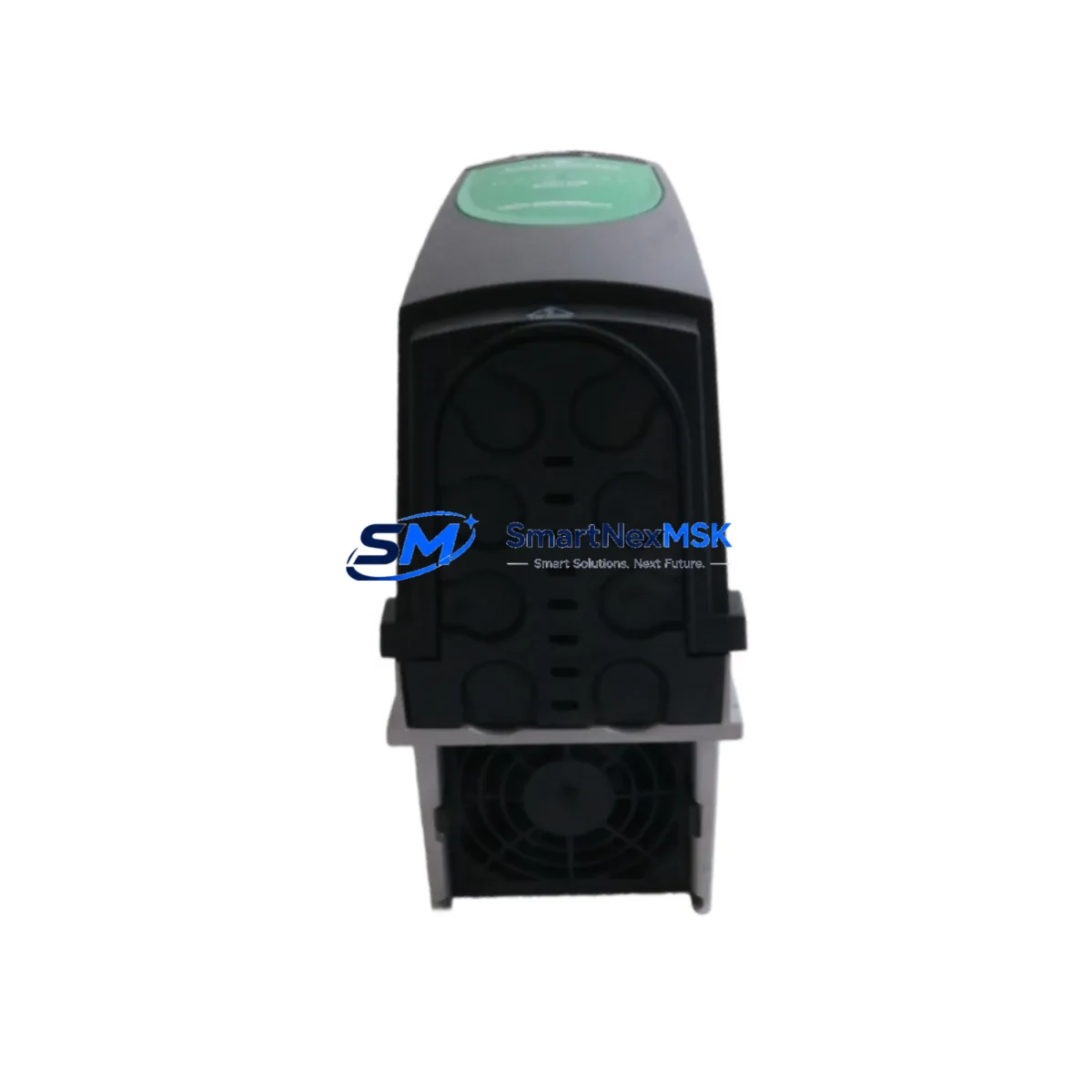

Emerson SP1406 Safety-Enhanced VFD for Harsh Industrial Sites

Emerson SP1406 Safety-Enhanced VFD for Harsh Industrial Sites

The Emerson SP1406 is a ruggedized variable frequency drive from the Emerson SP Series, engineered to deliver uninterrupted motor control in the most demanding industrial environments. Designed for continuous-duty operation in high-load, high-interference, and hazardous-area applications, the SP1406 addresses the full spectrum of field reliability risks — from control loop interruption and signal drift to power fluctuation, surge impact, and communication anomalies — that can trigger unplanned shutdowns in critical production systems.

In heavy industrial control cabinets where uptime is non-negotiable, the SP1406 integrates seamlessly into safety interlock circuits, motor protection schemes, and distributed control architectures. Its robust EMC shielding and wide input voltage tolerance make it a dependable choice for petrochemical pump stations, power plant auxiliary drives, mining conveyor systems, water treatment blower controls, metallurgical rolling mill auxiliaries, and port crane hoisting applications. Whether deployed as a primary drive or a hot-standby replacement unit, the SP1406 delivers the field-proven stability that B2B industrial buyers require.

Safety Reliability Table

Control Cabinet Protection Strategy

A reliable control cabinet in a continuous-process plant is only as strong as its weakest component. The Emerson SP1406 is designed to anchor the drive layer of a multi-tier protection architecture. In a typical heavy-industry MCC (Motor Control Center) or standalone control panel, the SP1406 works in concert with upstream and downstream protective devices to eliminate single points of failure.

On the power input side, the SP1406 benefits from pairing with a properly rated AC line reactor or input EMC filter module to suppress harmonic distortion and voltage spikes originating from the plant grid — a common cause of drive nuisance trips in arc furnace or large-motor environments. A surge protection device (SPD) installed at the cabinet entry point provides the first line of defense against lightning-induced transients and switching surges that can damage the drive’s rectifier stage.

Within the cabinet, the SP1406 is typically coordinated with a motor circuit breaker (MCB) or molded case circuit breaker (MCCB) on the input side, and a motor protection relay — such as an Emerson or third-party overload relay — on the output side to protect the driven motor from thermal overload and phase-loss conditions. For applications requiring emergency stop or safety interlock compliance, the SP1406’s STO (Safe Torque Off) input can be wired directly to a safety relay module or a safety PLC output card, enabling IEC 62061 / ISO 13849 compliant machine safety without additional contactors.

Communication integrity is equally critical. In DCS-integrated or SCADA-monitored systems, the SP1406’s RS-485 Modbus RTU port connects to a communication gateway or directly to a PLC communication module (such as an Emerson DeltaV I/O card or a third-party Modbus master). Proper cable shielding, termination resistors, and a signal isolator between the drive and the control network prevent ground loops and EMI-induced communication errors that can cause false fault trips or loss of speed reference.

For installations in dusty, humid, or corrosive atmospheres — common in cement plants, chemical processing, and coastal port facilities — the SP1406 should be housed in a NEMA 12 or IP54-rated enclosure with filtered ventilation. A thermostat-controlled cabinet fan and anti-condensation heater maintain the internal environment within the drive’s rated operating range, preventing moisture ingress and thermal cycling damage that are leading causes of premature VFD failure in harsh-site deployments.

Critical Industrial Safety Applications

Petrochemical & Refinery: The SP1406 controls pump and compressor drives in hazardous-area control rooms where process continuity is directly linked to plant safety. Its STO function enables rapid, safe de-energization of motor drives during emergency shutdown (ESD) sequences without requiring a main contactor, reducing arc flash risk and response time in critical interlock loops.

Power Generation & Utilities: In power plant auxiliary systems — cooling water pumps, induced draft fans, and boiler feed auxiliaries — the SP1406 provides stable speed control under fluctuating grid conditions. Its wide input voltage tolerance and built-in surge suppression protect against the voltage transients common in generator-backed or weak-grid power systems.

Mining & Mineral Processing: Conveyor drives, crusher auxiliaries, and slurry pump systems in underground and open-pit mining environments demand drives that can withstand heavy vibration, dust ingress, and frequent load cycling. The SP1406’s robust construction and configurable motor protection parameters make it a reliable choice for these high-abuse applications.

Water & Wastewater Treatment: Municipal and industrial water treatment plants rely on variable-speed blowers, mixers, and dosing pumps for process efficiency and regulatory compliance. The SP1406’s precise speed control and PID feedback capability enable energy-efficient operation while its fault logging and Modbus connectivity support remote SCADA monitoring and predictive maintenance programs.

Metallurgy & Steel: Rolling mill auxiliary drives, cooling bed conveyors, and fume extraction fans in steel plants operate in extreme thermal and electromagnetic environments. The SP1406’s EMC-hardened design and high overload capacity support the demanding duty cycles of metallurgical process equipment.

Port & Heavy Lifting: Crane hoisting, gantry travel, and grab bucket drives in port terminals require drives with fast dynamic response, reliable braking control, and robust fault protection. The SP1406’s built-in braking transistor and configurable deceleration ramps support safe load handling in these safety-critical lifting applications.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover for the Emerson SP1406?
The 12-month warranty covers all manufacturing defects and functional failures under normal operating conditions from the date of shipment. It includes free repair or replacement of the unit. Damage caused by incorrect installation, overvoltage beyond rated limits, or unauthorized modification is excluded. Our technical team provides remote diagnostic support to help determine warranty eligibility quickly.

Q2: What pre-shipment testing is performed on each SP1406 unit?
Every Emerson SP1406 unit undergoes a 100% functional test before dispatch. This includes power-on verification, output voltage and frequency accuracy check, communication port validation, and fault input/output response testing. Units that do not pass all test criteria are quarantined and not shipped. A test record is available upon request.

Q3: Is the SP1406 compatible with existing Emerson SP Series control systems and third-party PLCs?
Yes. The SP1406 is fully compatible with the Emerson SP Series drive ecosystem and supports standard Modbus RTU communication for integration with third-party PLCs, DCS platforms, and SCADA systems. Parameter sets from other SP Series drives can be transferred via the keypad or PC tool, simplifying replacement and commissioning in existing installations.

Q4: Can long-term supply and spare parts support be guaranteed for the SP1406?
We maintain dedicated stock of the Emerson SP1406 and key SP Series accessories to support ongoing spare parts programs and emergency replacement requirements. For customers with planned maintenance schedules or multi-unit installations, we offer reserved stock arrangements and priority dispatch. Contact our sales team to discuss long-term supply agreements tailored to your site’s operational requirements.
