Emerson UNI4403 Spare for Unidrive Classic Automation

Emerson UNI4403 Spare for Unidrive Classic Automation: Spare Replacement & Downtime Risk Control

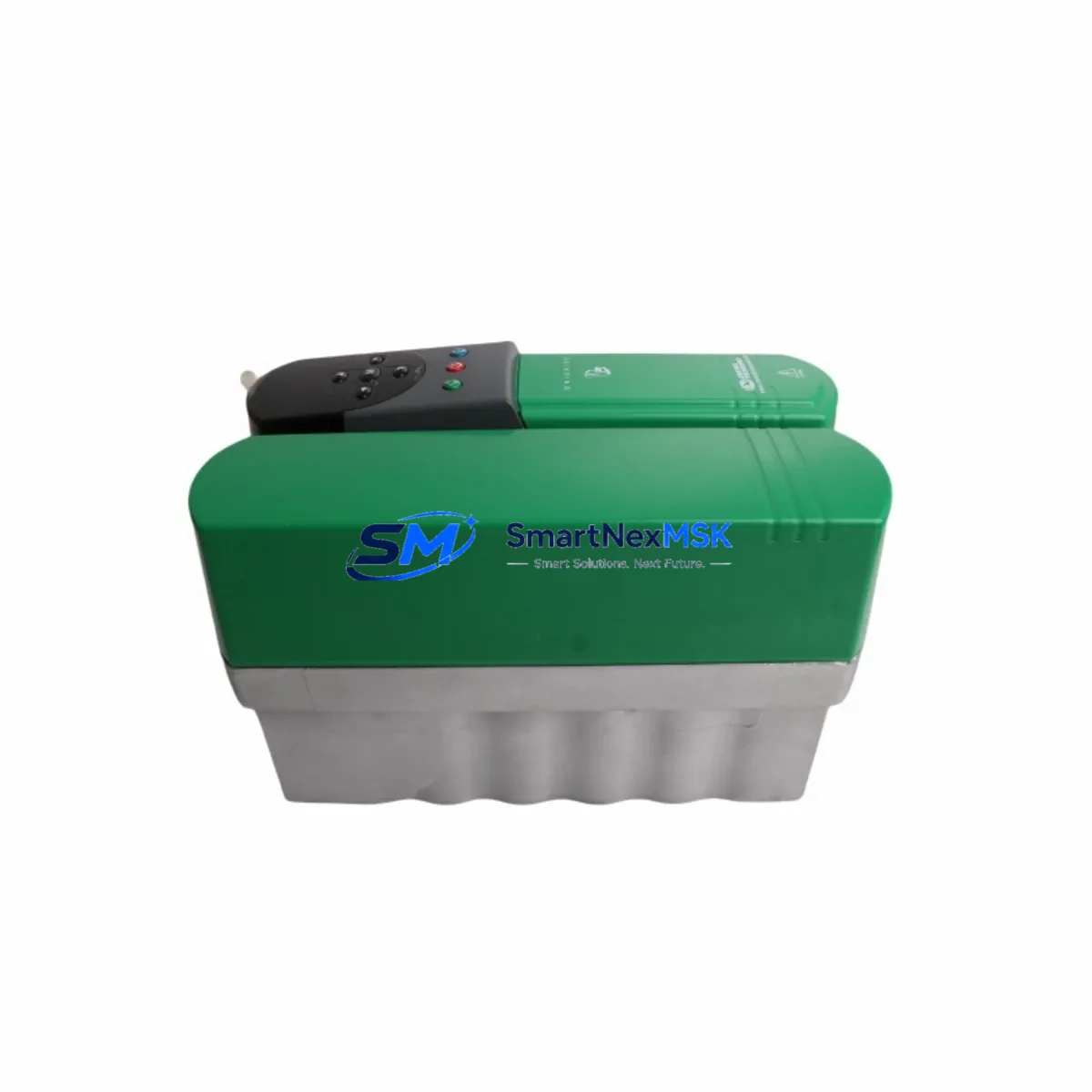

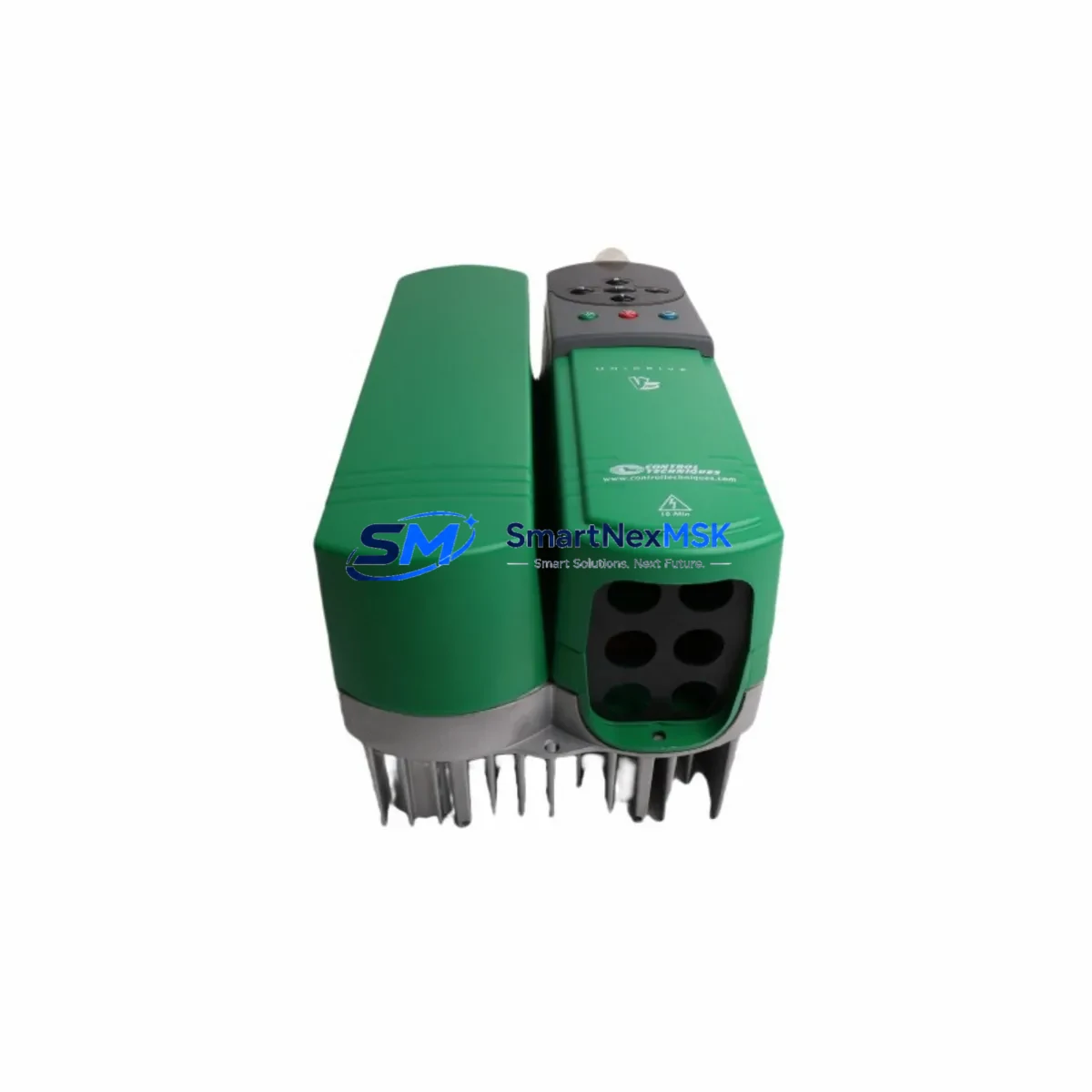

The Emerson UNI4403 is a 45kW AC variable speed drive from the Unidrive Classic series, manufactured by Control Techniques (Emerson Industrial Automation). As a maintenance-ready original spare, the UNI4403 is engineered to deliver direct drop-in replacement capability for aging or failed drives in continuous industrial processes — from conveyor systems and pump stations to compressor control and HVAC plant rooms. For maintenance engineers managing legacy Unidrive Classic installations, holding a verified UNI4403 spare in stock is a proven strategy to eliminate unplanned downtime and protect production continuity.

Every UNI4403 unit dispatched by SMARTNEXMSK undergoes pre-shipment functional verification, including power-on testing, parameter recall check, and terminal integrity inspection. Units are shipped with protective packaging suitable for long-distance freight and are covered by a 12-month warranty from the date of delivery. Whether you are executing a planned overhaul, responding to an emergency drive failure, or building a strategic spare parts inventory for a multi-drive installation, the UNI4403 is available for immediate dispatch with full traceability documentation.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing a UNI4403 in a live control cabinet, a disciplined maintenance engineer will not limit the inspection to the drive itself. The UNI4403 operates within an interconnected electrical system, and a root-cause failure analysis should always extend to adjacent components before the replacement unit is commissioned.

Begin with the input power supply: verify that the incoming 380–480V three-phase supply is within tolerance and that the line reactor or EMC filter upstream of the drive has not degraded — a failed input filter is a common cause of recurring drive faults. Check the DC bus fuses and any pre-charge resistors for signs of thermal stress. If the cabinet uses a Unidrive SM-PROFIBUS or SM-DeviceNet communication module, inspect the module seating and fieldbus wiring integrity, as communication faults can trigger spurious drive trips that are misdiagnosed as drive failures.

On the output side, inspect the motor cable and terminal connections for insulation breakdown, particularly in high-cycle or high-vibration environments. Verify the encoder feedback cable (if closed-loop vector mode is used) for continuity and shielding integrity. The braking resistor and braking chopper circuit should be tested if the application involves regenerative loads such as hoists or centrifuges — a failed braking resistor will cause DC bus overvoltage faults that can destroy a replacement drive within minutes of commissioning.

For cabinet-level inspection, check the 24VDC control power supply that feeds the drive’s control terminals and any associated I/O expansion modules. Inspect terminal blocks and DIN rail connections for corrosion or loose terminations. If the system uses a Unidrive UD70 or UD73 applications module, verify that the module firmware and parameter set are backed up before the drive swap. Finally, review the cooling fan condition inside the UNI4403 frame — fan failure is the leading cause of thermal shutdown in high-ambient industrial environments, and a replacement drive installed in a poorly ventilated cabinet will fail prematurely.

Maintaining a paired spare of the UNI4403 alongside a Unidrive SM-I/O Plus module and a set of pre-terminated control wiring looms can reduce mean time to repair (MTTR) from several hours to under 30 minutes on a well-documented installation.

Site Replacement Workflow

Step 1 — Isolation and documentation: Isolate the drive from mains supply and allow the DC bus to discharge fully (minimum 5 minutes after isolation). Photograph all wiring connections and record the existing parameter set using a laptop with Control Techniques’ CTSoft or Unidrive SP / Classic parameter backup tool before disconnecting any terminals.

Step 2 — Removal: Disconnect power terminals (L1/L2/L3 input, U/V/W output), control terminals, and any SM option modules. Remove the drive from the cabinet mounting rails. Note the torque settings for terminal screws — over-tightening on the replacement unit is a common installation error.

Step 3 — Inspection and root cause: Before installing the UNI4403 replacement, inspect the cabinet for the failure root cause as described above. Do not install a new drive into an unresolved fault condition.

Step 4 — Installation: Mount the replacement UNI4403, reconnect all terminals per the documented wiring photograph, and re-seat any SM option modules. Restore the parameter set from backup. Verify that the motor nameplate data (voltage, current, frequency, speed) matches the drive parameter settings.

Step 5 — Commissioning and handover: Perform a no-load run test, then a loaded run at reduced speed before returning to full production speed. Log the replacement in the site maintenance record with the new unit’s serial number and the date of installation. The 12-month warranty period begins from the delivery date confirmed by SMARTNEXMSK dispatch documentation.

This workflow is applicable whether the UNI4403 is replacing a like-for-like failed unit or substituting an obsolete predecessor model. The Unidrive Classic platform maintains strong backward parameter compatibility across the UNI series frame range, minimizing re-commissioning time on legacy installations.

Spare Parts Support FAQ

Q1: Is the UNI4403 a new original unit or a refurbished spare?
All UNI4403 units supplied by SMARTNEXMSK are original Emerson / Control Techniques manufactured components. Units may be new-old-stock (NOS) or professionally tested original spares, each subject to pre-shipment functional verification. Full condition disclosure is provided with every order confirmation.

Q2: What is the compatibility scope of the UNI4403 within the Unidrive Classic range?
The UNI4403 is dimensionally and electrically compatible with the Unidrive Classic 45kW frame. It accepts the full range of SM option modules (PROFIBUS, DeviceNet, CANopen, Encoder, I/O expansion) and is parameter-compatible with adjacent frame sizes in the UNI44xx series. Always verify the input voltage variant (200V / 400V / 575V / 690V) against your site supply before ordering.

Q3: How does SMARTNEXMSK support long-term spare parts availability for discontinued Unidrive Classic models?
SMARTNEXMSK maintains a dedicated inventory of Unidrive Classic series spares to support customers operating legacy installations beyond the manufacturer’s standard product lifecycle. Long-term supply agreements and reserved stock arrangements are available for customers managing multi-site or multi-drive installations. Contact our technical sales team to discuss your specific inventory requirements.

Q4: What documentation is provided with each UNI4403 shipment?
Each shipment includes a pre-shipment test report, packing list with serial number traceability, and a 12-month warranty certificate. On request, SMARTNEXMSK can provide a certificate of conformity and country-of-origin declaration for customs and compliance purposes. All documentation is available in digital format for integration into your site maintenance management system (CMMS).
