Emerson VE4003S2B6 Safety-Enhanced Analog Input Module

Emerson VE4003S2B6 Safety-Enhanced Analog Input Module: Reliable Control in Harsh Industrial Sites

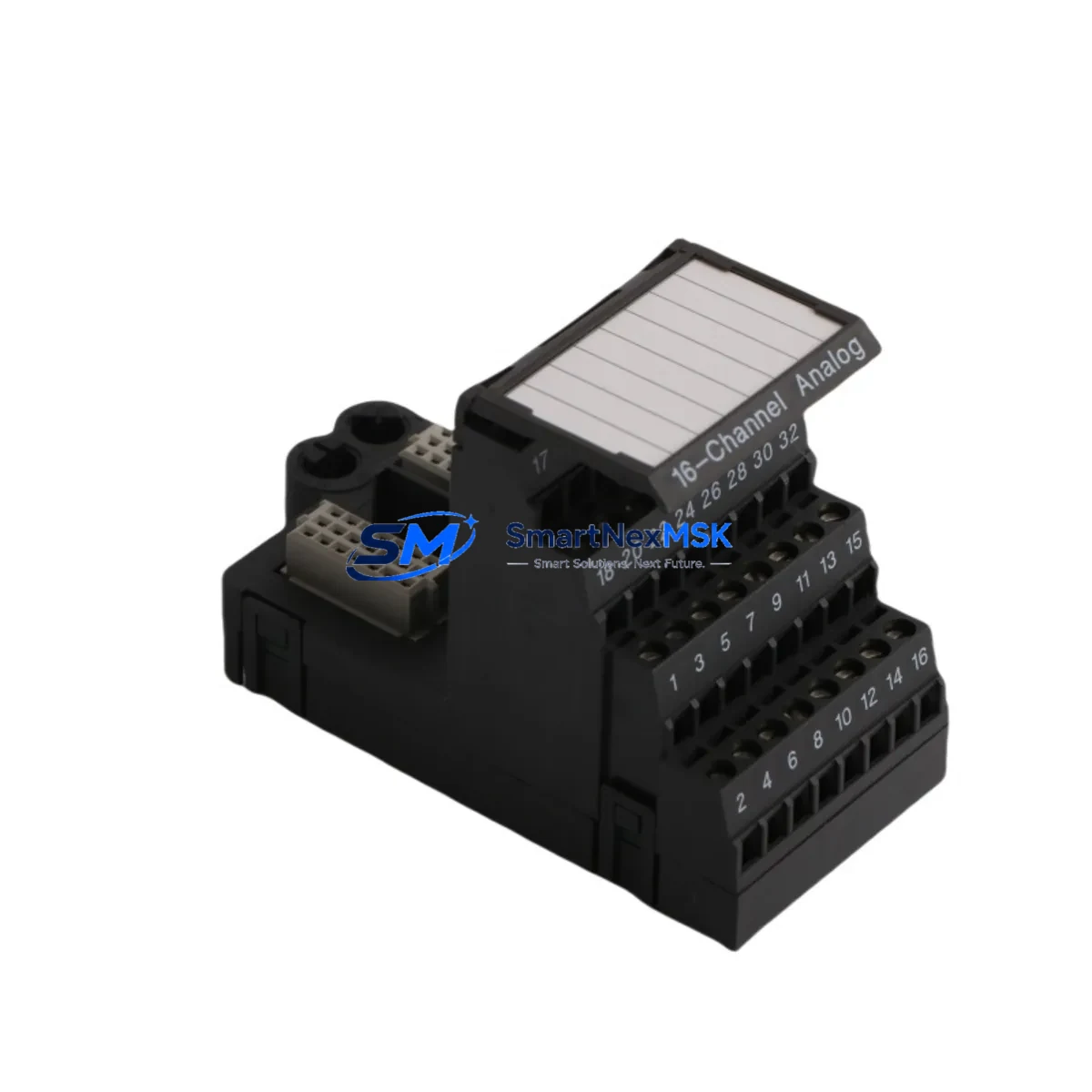

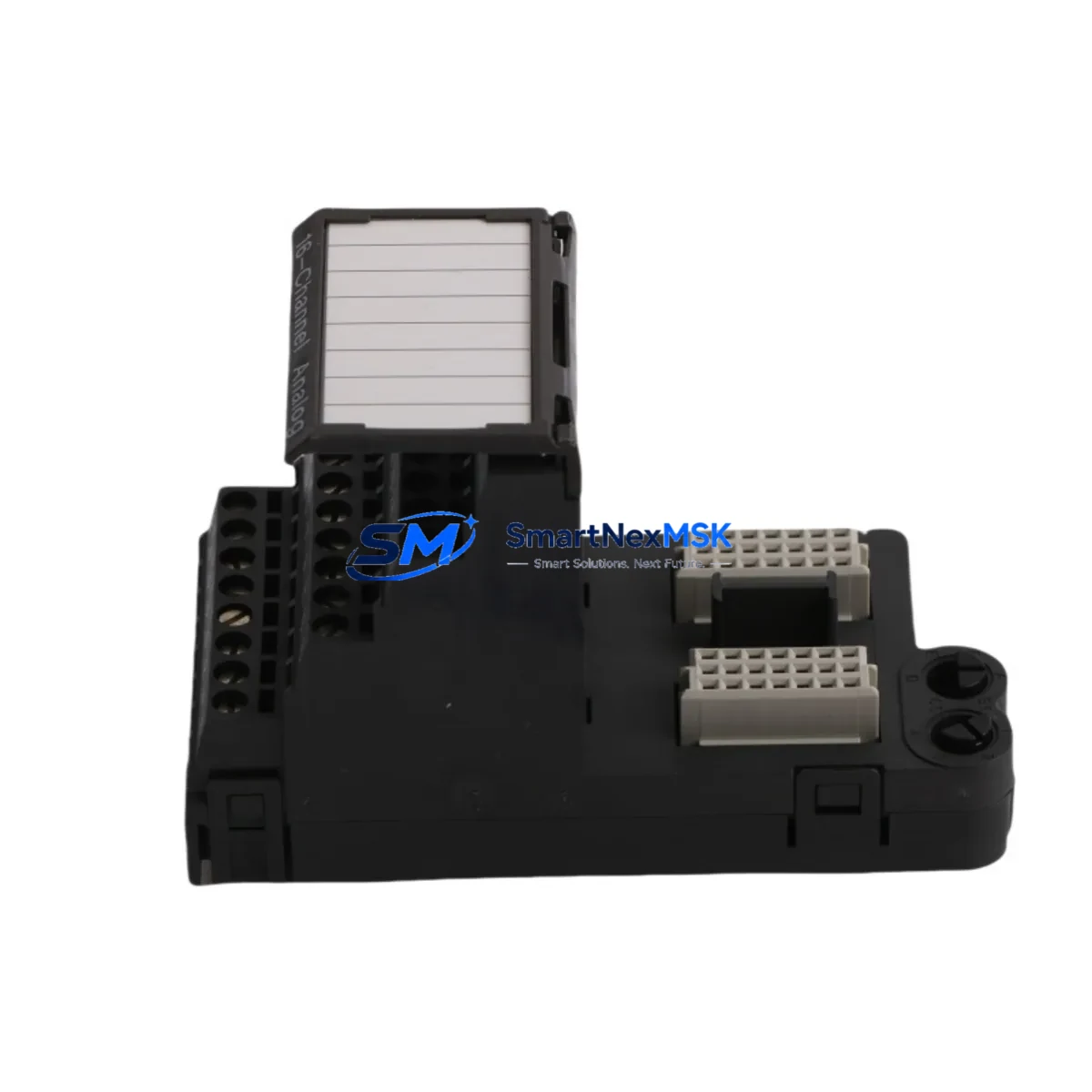

The Emerson VE4003S2B6 (also known as KJ3223X1-BA1, part number 12P2871X042) is a 16-channel, 4–20 mA HART Analog Input Module engineered for the Emerson DeltaV distributed control system platform. Designed to operate continuously in high-load, high-interference industrial environments, this module delivers the signal integrity, diagnostic transparency, and fault tolerance demanded by safety-critical control loops in petrochemical plants, power generation facilities, mineral processing operations, water treatment systems, metallurgical complexes, port logistics automation, and continuous manufacturing lines.

In modern industrial control cabinets, analog input accuracy is the foundation of every process safety decision. The VE4003S2B6 supports HART protocol communication on all 16 channels simultaneously, enabling real-time field device diagnostics without interrupting the primary 4–20 mA signal path. This dual-layer communication architecture significantly reduces the risk of undetected sensor drift, signal loss, or transmitter failure — conditions that, left unaddressed, can escalate into unplanned shutdowns or safety incidents in critical process units.

The module integrates seamlessly within the DeltaV S-series I/O subsystem, working alongside components such as the Emerson VE4001S2T1B2 Analog Input Module, VE4024S2B1 Analog Output Module, and VE3008 Digital Input Module to form a complete, redundancy-capable I/O tier. When paired with the Emerson KJ2003X1-BA1 DeltaV Controller and VE4046S2B5 Power Supply Module, the VE4003S2B6 participates in a fully coordinated control architecture where power anomalies, communication faults, and I/O errors are detected, logged, and alarmed before they propagate to the process layer.

Safety Reliability Table

Control Cabinet Protection Strategy

Deploying the VE4003S2B6 within a DeltaV control cabinet requires a layered protection strategy to ensure continuous, interference-free operation. In high-load environments such as steel mills, offshore platforms, or chemical reactor control rooms, the module should be installed in cabinets equipped with dedicated Emerson VE4046S2B5 Power Supply Modules to maintain stable backplane voltage under fluctuating plant power conditions. Voltage sags and micro-interruptions — common near large motor drives and arc furnaces — can cause analog signal distortion or module resets if power conditioning is inadequate.

For signal integrity in electrically noisy environments, field wiring connected to the VE4003S2B6 should be routed through shielded twisted-pair cables and terminated at dedicated marshalling panels using Emerson CSLS00 or equivalent signal conditioner barriers. In hazardous area installations (Zone 1 / Zone 2 or Class I Div 1 / Div 2), intrinsic safety barriers or galvanic isolators — such as the MTL 787S+ or P+F KFD2-STC4-Ex1 series — must be interposed between field transmitters and the VE4003S2B6 input terminals to prevent ignition risk and protect the module from fault currents.

Within the DeltaV architecture, the VE4003S2B6 communicates upstream to the Emerson KJ2003X1-BA1 MD Plus Controller via the DeltaV backplane bus. Controller redundancy — achieved by pairing primary and secondary controllers — ensures that a controller failover does not interrupt analog input scanning or HART pass-through communication. Alongside the VE4003S2B6, cabinets in continuous process plants typically include VE4024S2B1 Analog Output Modules for control valve positioner signals, VE3008 Digital Input Modules for discrete safety interlock inputs, and VE3016 Digital Output Modules for solenoid valve and relay actuation — forming a complete, coordinated I/O strategy within a single DeltaV node.

For applications requiring functional safety compliance (IEC 61511 / IEC 61508), the VE4003S2B6 can be integrated into safety instrumented system (SIS) architectures alongside Emerson DeltaV SIS Logic Solvers and SZ Series Safety I/O Modules. In these configurations, the module’s online diagnostic capability — including open-wire detection, out-of-range alarming, and HART device status monitoring — contributes to the overall diagnostic coverage required for SIL 2 or SIL 3 loop certification.

Critical Industrial Safety Applications

Petrochemical & Refinery: In crude distillation units, catalytic crackers, and hydrocracker control systems, the VE4003S2B6 monitors temperature, pressure, and flow transmitters across critical process streams. Its HART diagnostic capability allows operators to verify transmitter health during live operation, reducing the need for intrusive field inspections in hazardous areas and supporting proof-test interval extension under IEC 61511 SIS management programs.

Power Generation: In coal-fired, gas turbine, and combined-cycle power plants, analog input modules must tolerate high levels of conducted and radiated EMI from generator excitation systems, large transformers, and switchgear. The VE4003S2B6’s optical isolation and IEC 61000-4 compliant EMC design ensure that boiler drum level, turbine exhaust temperature, and generator cooling flow signals remain accurate and stable even in the most electromagnetically demanding plant environments.

Mining & Mineral Processing: Ore processing plants, flotation circuits, and conveyor control systems subject control hardware to vibration, dust ingress, and wide ambient temperature swings. The VE4003S2B6’s robust mechanical design and wide operating temperature range make it suitable for control rooms adjacent to crushing, grinding, and thickening operations where environmental conditions challenge standard industrial electronics.

Water & Wastewater Treatment: Municipal and industrial water treatment facilities rely on continuous, uninterrupted monitoring of pH, dissolved oxygen, turbidity, and flow. The VE4003S2B6 supports long-term, maintenance-reduced operation in these applications through its HART-enabled remote diagnostics, allowing plant operators to detect sensor fouling or calibration drift from the control room without dispatching field technicians to remote pump stations or chemical dosing points.

Metallurgy & Steel: Electric arc furnace control, continuous casting, and rolling mill automation generate extreme electrical noise and power transients. The VE4003S2B6’s surge suppression and channel isolation protect the DeltaV system from damage caused by ground loops, induced voltages, and fault currents — ensuring that melt temperature, ladle weight, and cooling water flow signals remain reliable throughout the heat cycle.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover for the VE4003S2B6?
The 12-month warranty covers all manufacturing defects and functional failures under normal operating conditions. If the module fails to perform to Emerson DeltaV specifications within the warranty period, we provide free replacement or repair. Warranty claims are processed within 5 business days of receipt of the returned unit, and a replacement is dispatched from stock to minimize your downtime.

Q2: What pre-shipment testing is performed on each VE4003S2B6 unit?
Every VE4003S2B6 unit undergoes functional verification prior to shipment, including power-on self-test, channel-by-channel signal integrity check, HART communication validation, and visual inspection for physical damage. New and surplus-new units are tested against Emerson factory acceptance criteria. Refurbished units additionally undergo full calibration verification and burn-in testing to confirm long-term stability before dispatch.

Q3: Is the VE4003S2B6 compatible with all DeltaV system versions and I/O carriers?
The VE4003S2B6 (KJ3223X1-BA1) is designed for the Emerson DeltaV S-Series I/O subsystem and is compatible with DeltaV system versions 10.3 and above. It mounts on standard S-Series 2-wide and 8-wide I/O carriers. Compatibility with specific DeltaV controller generations (MD, MD Plus, MX, M5 Plus) should be confirmed against your system’s hardware compatibility matrix. Our technical team can assist with compatibility verification before purchase.

Q4: Can you guarantee long-term supply and replacement support for the VE4003S2B6?
Yes. We maintain dedicated stock of the VE4003S2B6 and its equivalent part numbers (KJ3223X1-BA1, 12P2871X042) to support both planned maintenance programs and emergency replacement needs. For customers running DeltaV systems in continuous production environments, we recommend establishing a consignment or reserved-stock arrangement to ensure immediate availability during unplanned outages. Contact our sales team to discuss long-term supply agreements tailored to your plant’s maintenance schedule.
