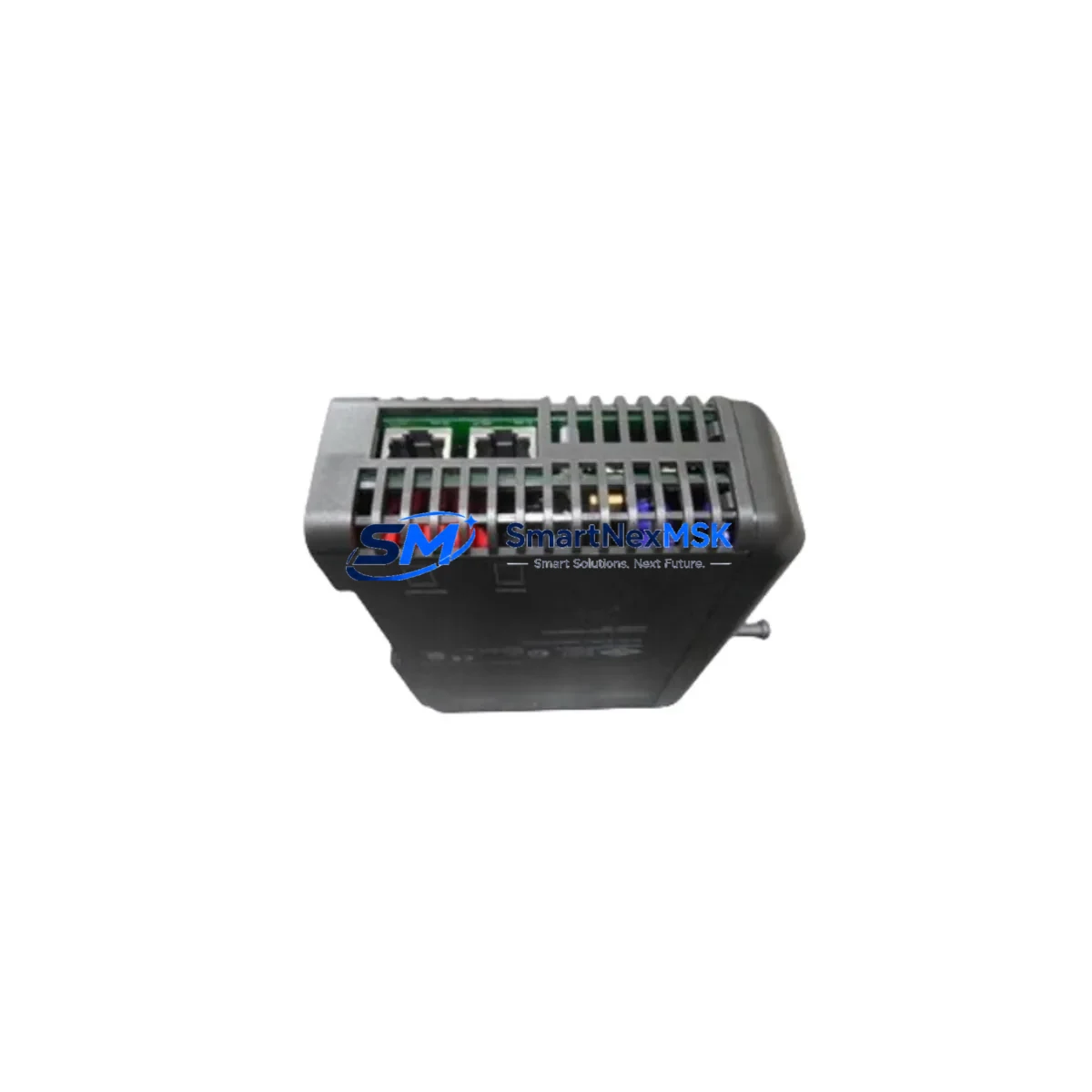

Emerson VS3202 KJ2201X1-BA1 Retrofit-Ready Controller for DeltaV MD Control Systems
The Emerson VS3202 KJ2201X1-BA1 (12P3162X162) is a proven DeltaV MD Series controller module widely deployed in process automation, oil & gas, chemical, and power generation facilities. As legacy DeltaV MD systems approach end-of-life or face discontinued spare parts availability, this module serves as the critical backbone for both direct replacement and structured system modernization programs. Whether your facility is managing an emergency breakdown replacement or executing a planned control system upgrade, the VS3202 KJ2201X1-BA1 delivers the compatibility, reliability, and field-verified performance that industrial engineers demand.
SMARTNEXMSK maintains verified stock of the VS3202 KJ2201X1-BA1 with full functional testing, 12-month warranty coverage, and rapid global dispatch — minimizing unplanned downtime and protecting your production continuity.
Upgrade Compatibility Table
| Parameter | VS3202 KJ2201X1-BA1 (12P3162X162) |
|---|---|
| Series Compatibility | Emerson DeltaV MD / MD Plus |
| Backplane Interface | DeltaV MD Carrier / Controller Carrier |
| Communication Protocol | DeltaV Fieldbus, HART, FOUNDATION Fieldbus |
| Power Supply Requirement | 24 VDC (via carrier backplane) |
| Terminal Wiring | Compatible with existing MD carrier terminal blocks |
| Module Address | Configured via DeltaV Explorer (node address retained) |
| Program Compatibility | Supports existing DeltaV control modules without re-engineering |
| HMI Integration | DeltaV Operate / DeltaV Live — no screen rebuild required |
| Replacement Recommendation | Direct drop-in for VS3202 / KJ2201X1-BA1 variants |
| Commissioning Note | Node download required after physical swap; verify redundancy pairing |
| Warranty | 12-Month Warranty — functional test report available on request |
Retrofit Planning for Existing Automation Systems
Retrofitting a DeltaV MD system requires careful coordination across multiple hardware layers. The VS3202 KJ2201X1-BA1 controller module interfaces directly with the DeltaV MD Controller Carrier, which must be inspected for backplane connector integrity before module insertion. In systems where the carrier has been in service for more than a decade, it is advisable to simultaneously evaluate the KJ3221X1-BA1 Power Supply Module to ensure stable 24 VDC delivery to the controller and I/O subsystems.
On the I/O side, the VS3202 typically operates alongside KJ3002X1-BA1 Analog Input modules and KJ3222X1-BA1 Analog Output modules, both of which share the same DeltaV MD carrier architecture. If your retrofit scope includes expanding I/O capacity, the KJ3001X1-BA1 Digital Input and KJ3003X1-BA1 Digital Output modules are fully compatible with the same carrier and controller node, allowing I/O expansion without additional engineering overhead.
For facilities migrating from older PROVOX or RS3 platforms to DeltaV MD, the VS3202 KJ2201X1-BA1 serves as the target controller in the migration architecture. Communication continuity during migration is typically maintained through the DeltaV Serial Interface Module (DSIM) or HART Multiplexer configurations, preserving field device communication while the controller layer is upgraded. Where FOUNDATION Fieldbus segments are involved, the KJ3243X1-BA1 Fieldbus H1 Card should be verified for firmware compatibility with the replacement controller.
HMI integration is a critical checkpoint in any DeltaV MD retrofit. The VS3202 KJ2201X1-BA1 is fully recognized by DeltaV Operate and the newer DeltaV Live HMI environments. Existing faceplates, trend displays, and alarm configurations are preserved without modification, provided the node name and controller tag assignments are maintained during the swap procedure. Programming cables such as the KJ1501X1-BA1 USB-to-DeltaV interface are used for node downloads and post-swap verification in the field.
Before finalizing the retrofit bill of materials, engineers should audit the existing DeltaV MD Rack (8-slot or 12-slot configurations) for available slot capacity, particularly if the upgrade scope includes adding redundant controller pairs or expanding with additional I/O modules. Rack slot mapping, module addressing, and power budget calculations should be completed prior to procurement to avoid on-site delays.
Downtime Control During System Migration
Minimizing production downtime during a DeltaV MD controller replacement is achievable with disciplined pre-migration preparation. The VS3202 KJ2201X1-BA1 supports hot-standby redundancy configurations when paired with a redundant controller module on the same carrier, allowing the standby unit to assume control seamlessly during the physical swap of the primary controller.
Prior to the maintenance window, engineers should export the full DeltaV control module database from DeltaV Explorer and archive the current node configuration, including module assignments, I/O channel mappings, and alarm setpoints. This backup ensures that if the node download encounters an error post-swap, the original configuration can be restored within minutes rather than hours.
For non-redundant installations, the recommended approach is to pre-stage the replacement VS3202 KJ2201X1-BA1 with the correct firmware version, perform a bench-level node download using the offline DeltaV database, and verify all I/O channel assignments before bringing the module to the field. This pre-commissioning step reduces the live maintenance window to a physical swap and online verification sequence, typically achievable within a two-hour planned shutdown.
Field teams should also verify communication link continuity on HART and FOUNDATION Fieldbus segments immediately after controller restoration, as fieldbus segment re-initialization can occasionally require manual re-establishment of device descriptors in DeltaV Explorer. Maintaining a commissioning checklist that covers power-up sequence, node recognition, I/O scan verification, HMI faceplate confirmation, and alarm system restoration ensures a structured and auditable migration process.
Retrofit Support FAQ
Q1: Is the VS3202 KJ2201X1-BA1 a direct replacement for my existing DeltaV MD controller without program re-engineering?
Yes. The VS3202 KJ2201X1-BA1 (12P3162X162) is a direct hardware replacement for the same model in DeltaV MD systems. Existing control module logic, I/O assignments, and HMI configurations are retained. A node download from the DeltaV database is required after physical installation to restore the controller’s operational configuration.
Q2: What wiring changes are required when installing the VS3202 KJ2201X1-BA1?
No field wiring changes are required. The VS3202 installs into the existing DeltaV MD Controller Carrier, which retains all terminal block connections. Only the controller module itself is replaced. Verify that the carrier backplane connectors are clean and undamaged before insertion.
Q3: How do I verify compatibility before ordering?
Confirm your existing controller part number matches VS3202 or KJ2201X1-BA1 (alternate part: 12P3162X162). Check your DeltaV system version in DeltaV Explorer to ensure firmware compatibility. SMARTNEXMSK provides pre-shipment functional testing and can supply a test report upon request. Contact [email protected] with your system version details for compatibility confirmation.
Q4: What warranty and post-installation support is provided?
All VS3202 KJ2201X1-BA1 units supplied by SMARTNEXMSK carry a 12-month warranty covering functional defects under normal operating conditions. Each unit undergoes pre-shipment functional testing. Post-installation technical support for commissioning, node download procedures, and compatibility verification is available via [email protected] or +86 18259474341.
