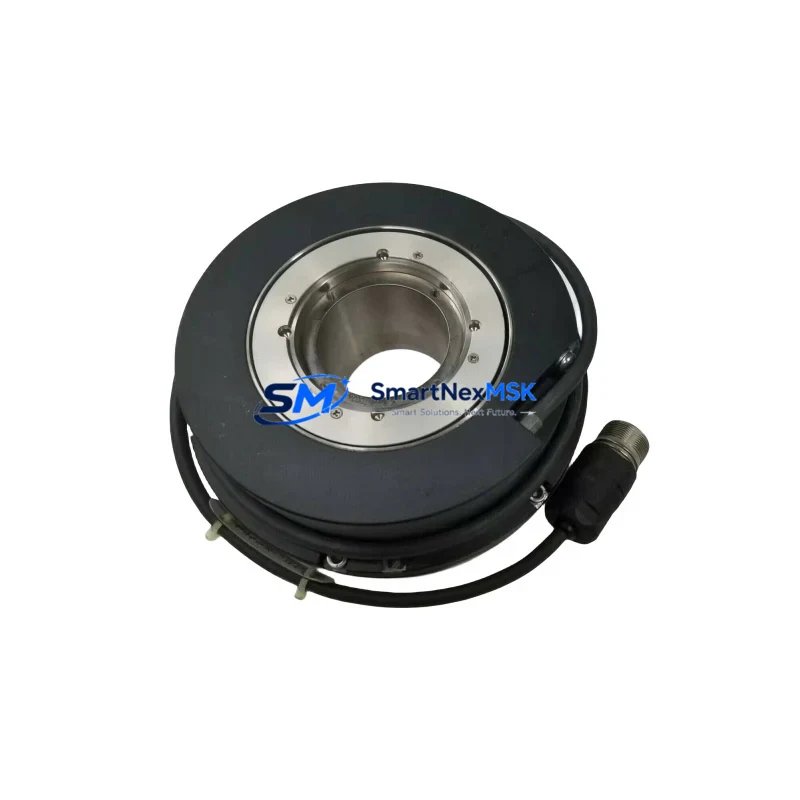

Encoder Ron 785C.0003-18000 Retrofit-Ready Incremental Encoder for 785C Series Control Systems
The Encoder Ron 785C.0003-18000 (also referenced as part number 311262-01) is an 18,000 PPR TTL incremental encoder engineered for seamless drop-in replacement and retrofit integration within 785C Series servo and motion control systems. Whether you are modernizing an aging production line, recovering from a failed encoder on a legacy servo axis, or executing a planned control cabinet upgrade, this unit delivers verified electrical and mechanical compatibility with minimal commissioning effort. With in-stock availability, pre-shipment functional testing, and a 12-month warranty, it is the preferred choice for maintenance engineers and system integrators managing retrofit timelines under production pressure.
Upgrade Compatibility Table
| Parameter | 785C.0003-18000 Specification | Retrofit Notes |
|---|---|---|
| Resolution | 18,000 PPR | Verify drive parameter P-resolution matches; update if migrating from lower-PPR legacy unit |
| Output Signal | TTL Incremental (A, B, Z) | Compatible with standard differential line receiver inputs on 785C Series drives |
| Supply Voltage | 5 VDC ±5% | Confirm encoder power rail on control cabinet; use regulated 5 V supply — do not share with PLC I/O rail |
| Connector / Interface | M23 / Flying Lead (confirm per variant) | Match existing cable assembly; adapter harness may be required for older M12 installations |
| Shaft / Bore | 10 mm solid shaft (standard) | Verify coupling bore and keyway; re-use existing flexible coupling where possible |
| Mounting Flange | 58 mm servo flange | Direct bolt-on for 785C Series motor end-bell; no adapter plate required in standard configurations |
| Communication Compatibility | TTL differential (RS-422 compatible) | Compatible with SERCOS, EtherCAT, and Profibus servo drives accepting TTL encoder feedback |
| Replacement Recommendation | Direct replacement for 311262-01 | Cross-reference OEM part number before ordering; confirm with drive manufacturer if unsure |
| Commissioning Focus | Zero-pulse alignment, PPR parameter, cable shielding | Re-home axis after installation; verify Z-pulse position with oscilloscope if precision homing is required |
| Warranty | 12 Months | Covers manufacturing defects; functional test report available on request |
Retrofit Planning for Existing Automation Systems
Integrating the 785C.0003-18000 into an existing control architecture requires a structured pre-installation review. Begin by auditing the servo drive — typically a unit in the 785C Series drive family — to confirm the encoder feedback channel accepts TTL incremental signals at 18,000 PPR. If the existing installation used a lower-resolution encoder such as a 2,500 PPR or 8,192 PPR unit, the drive’s electronic gear ratio and position loop gain parameters must be recalculated before commissioning.
On the mechanical side, inspect the existing flexible coupling and shaft adapter. In many 785C Series installations, the motor and encoder share a common end-bell mounting, and the coupling can be reused directly. However, if the legacy encoder used a hollow-bore design, a solid-shaft adapter sleeve will be required. Check the control cabinet layout: the encoder cable should be routed away from high-voltage servo power cables and VFD output lines to prevent signal interference. Use shielded twisted-pair cable with the shield grounded at the drive end only.
For systems that also include a 785C Series servo motor, a 785C-compatible servo amplifier, or a 785C rack-mount power supply module, the encoder replacement can typically be completed without modifying the PLC program or HMI screens — provided the PPR value is updated in the drive parameters. In multi-axis systems where the 785C encoder feeds position data to a motion controller or CNC kernel, verify that the axis scaling factor in the motion program reflects the new resolution. Systems using a Profibus DP communication module or EtherCAT master card for real-time position broadcasting will require a brief network re-synchronization after the encoder swap.
If the retrofit also involves upgrading adjacent I/O — for example, replacing a legacy digital input/output terminal block assembly or adding a high-speed counter input module to capture encoder pulses directly at the PLC — plan these changes in the same maintenance window to minimize total downtime. Similarly, if the HMI displays axis position derived from encoder feedback, verify the scaling tag in the HMI project after commissioning to ensure the position readout remains accurate.
Downtime Control During System Migration
Minimizing unplanned downtime is the primary concern in any encoder retrofit. Before removing the failed or obsolete unit, document the current axis position, homing offset, and any cam or registration marks stored in the motion controller. Export the PLC program and drive parameter file as a backup — most 785C Series drives support parameter upload via a handheld programmer or PC-based commissioning tool such as a 785C Series programming cable connected to the drive’s RS-232 or USB service port.
During the physical swap, label all encoder cable conductors before disconnecting. The A, B, Z, and their complements (/A, /B, /Z) must be reconnected in the correct polarity; reversing the B channel will invert the direction of position counting and cause the axis to run away on the first move command. After mechanical installation and cable reconnection, power up the drive in a safe, inhibited state before enabling the servo loop. Use the drive’s diagnostic screen or a connected servo commissioning software to verify encoder signal quality — check for clean square waves on A and B channels and a single clean Z pulse per revolution.
Re-home the axis using the original homing routine stored in the PLC. If the system uses a proximity sensor or mechanical home switch as the homing reference, the homing sequence should reproduce the original home position within the encoder’s resolution tolerance. For high-precision applications, use an oscilloscope to verify Z-pulse alignment before releasing the machine to production. Total installation time for a prepared technician is typically 2–4 hours, including parameter restore and functional verification.
Retrofit Support FAQ
Q1: Is the 785C.0003-18000 a direct drop-in replacement for part number 311262-01?
Yes. The 785C.0003-18000 is the current active replacement for the 311262-01 reference. Mechanical mounting dimensions, shaft diameter, and TTL output pinout are identical. Confirm the PPR parameter in your servo drive is set to 18,000 before enabling the axis.
Q2: What wiring changes are required when replacing a lower-PPR encoder with this unit?
No wiring changes are required if the existing cable assembly uses a standard M23 or flying-lead TTL encoder connector. The only required change is updating the encoder resolution parameter in the servo drive from the legacy PPR value to 18,000. If your drive uses an electronic gear ratio, recalculate the ratio to maintain the correct commanded velocity and position scaling.
Q3: Has this unit been tested before shipment, and what does the 12-month warranty cover?
Yes. Every 785C.0003-18000 unit undergoes a pre-shipment functional test verifying signal output on all channels (A, B, Z and complements) at rated speed. The 12-month warranty covers manufacturing defects in materials and workmanship. A functional test report is available on request. Warranty does not cover damage resulting from incorrect wiring, overvoltage, or mechanical impact.
Q4: Can this encoder be used in a system that has been upgraded from a 785C Series drive to a newer EtherCAT-based servo platform?
Yes, provided the new servo drive includes a TTL incremental encoder feedback input. Many modern EtherCAT servo drives accept TTL encoder feedback on a dedicated feedback connector alongside their primary EtherCAT communication port. Verify the new drive’s encoder input specification and confirm 18,000 PPR is within the drive’s supported resolution range before installation.
