EPCOS B43586-S9418-Q1 Maintenance Spare B43586 Automation

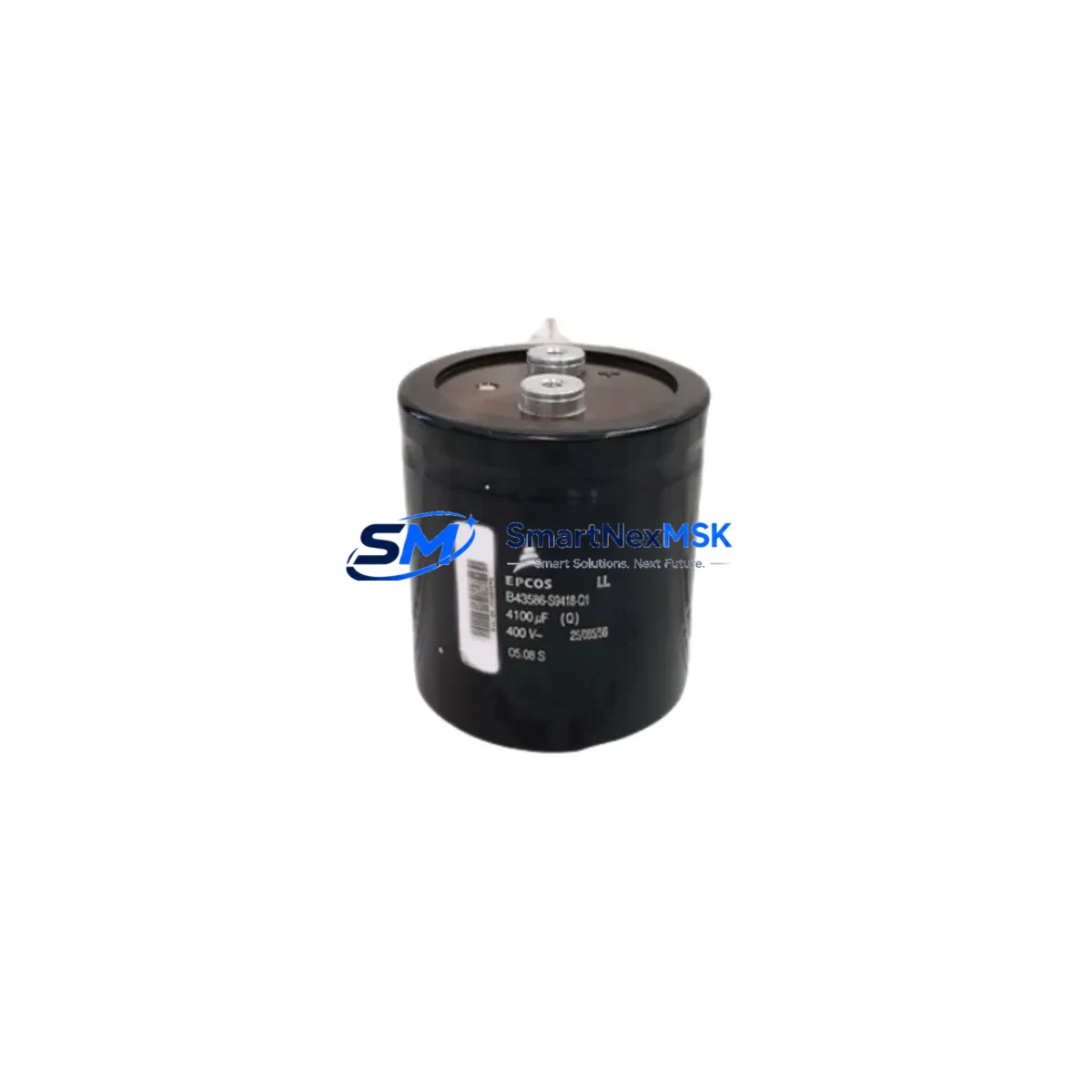

The EPCOS B43586-S9418-Q1 is an original snap-in aluminum electrolytic capacitor from TDK Group’s B43586 series, rated at 400V DC and 1800µF capacitance. Designed for high-ripple-current industrial environments, this component is a critical spare in variable-frequency drives (VFDs), servo drive DC bus circuits, UPS systems, and industrial power supply units. When a DC bus capacitor fails, the result is immediate drive shutdown, production line stoppage, and potential damage to downstream inverter modules. Maintaining a verified stock of B43586-S9418-Q1 units is a proven strategy for minimizing unplanned downtime and accelerating fault recovery in continuous-process manufacturing environments.
Sourced directly from authorized supply chains, each unit shipped by SMARTNEXMSK undergoes pre-shipment electrical verification covering capacitance value, ESR (equivalent series resistance), leakage current, and dimensional conformance to the B43586 series datasheet. The snap-in terminal configuration ensures drop-in compatibility with standard PCB footprints used across Siemens SINAMICS, ABB ACS, Schneider Altivar, and Yaskawa drive platforms that specify B43586-series capacitors in their BOM.
Spare Maintenance Table
| Parameter | Specification |
|---|---|
| Part Number / SKU | B43586-S9418-Q1 |
| Brand / Manufacturer | EPCOS (TDK Group), Germany |
| Series | B43586 |
| Type | Snap-in Aluminum Electrolytic Capacitor |
| Rated Voltage (DC) | 400 V |
| Capacitance | 1800 µF |
| Capacitance Tolerance | -10% / +30% (standard industrial grade) |
| Ripple Current (max) | Per B43586 series datasheet (105°C rated) |
| Operating Temperature | -25°C to +85°C (continuous); +105°C peak |
| Terminal Style | Snap-in (4-pin) |
| Mounting | PCB snap-in, vertical |
| Country of Origin | Germany (DE) |
| Typical Applications | VFD DC bus, UPS bulk storage, servo drive power stage, industrial SMPS |
| Compatibility | Siemens SINAMICS, ABB ACS series, Schneider Altivar, Yaskawa drives (B43586 BOM reference) |
| Maintenance Interval | Inspect every 3–5 years; replace at ESR drift >20% or capacitance loss >20% |
| Warranty | 12 Months — covers manufacturing defects, electrical parameter conformance |
| Pre-shipment Test | Capacitance, ESR, leakage current, dimensional check |
| Lead Time | In-stock; same-day or next-business-day dispatch available |
Maintenance Planning for Continuous Operation
Electrolytic capacitors are among the highest-failure-rate passive components in industrial power electronics, and the B43586-S9418-Q1 is no exception. When planning a scheduled overhaul of a VFD cabinet or UPS rack, maintenance engineers should treat this capacitor as part of a broader inspection scope rather than an isolated replacement. A thorough cabinet inspection alongside the B43586-S9418-Q1 swap should include the following associated components:
DC bus pre-charge resistors and inrush limiters — these components absorb the initial charging surge each time the drive powers up. Degraded pre-charge resistors accelerate capacitor stress and shorten service life. Inspect and replace as a set where possible.
Gate driver boards and IGBT modules — a failed DC bus capacitor often causes voltage spikes that stress or damage the IGBT bridge. After replacing the B43586-S9418-Q1, verify IGBT gate threshold voltages and check for signs of thermal damage on the power module heatsink.
Input rectifier bridge (diode bridge module) — asymmetric rectifier degradation produces DC ripple that accelerates capacitor aging. Measure ripple voltage at the DC bus before commissioning the new capacitor.
EMC input filter capacitors and X/Y capacitors — these are often located on the same PCB or in the same cabinet section. Their failure modes are similar and their replacement cost is low relative to the downtime risk they represent.
Cooling fans and thermal interface materials — elevated ambient temperature is the primary accelerant of electrolytic capacitor aging. Confirm that cabinet cooling fans (often 24VDC or 48VDC brushless types) are operating within spec and that heatsink thermal paste has not dried out.
Control power supply modules (24VDC SMPS) — the logic and I/O sections of a drive or PLC rack depend on stable 24VDC rail voltage. A failing SMPS output capacitor can cause intermittent I/O faults that are misdiagnosed as PLC or fieldbus errors. Inspect output bulk capacitors in the control SMPS during the same maintenance window.
Terminal blocks and bus bar connections — high-ripple environments cause micro-vibration that loosens screw terminals over time. Torque-check all DC bus connections and I/O terminal strips during the capacitor replacement procedure.
Fieldbus communication modules (PROFIBUS, PROFINET, EtherCAT) — communication faults are sometimes the first symptom of a degraded DC bus. After capacitor replacement, verify that the drive’s fieldbus node responds correctly and that no communication timeout errors are logged in the PLC diagnostic buffer.
Surge protection devices (SPDs) and varistors — MOV-based surge suppressors on the AC input side have a finite energy absorption capacity. Inspect for discoloration or physical damage, particularly in installations subject to frequent lightning or grid transients.
Stocking the B43586-S9418-Q1 alongside these associated components in a dedicated spare parts cabinet — organized by drive model and cabinet ID — is the most effective way to reduce mean time to repair (MTTR) when a DC bus fault occurs during production hours.
Site Replacement Workflow
Step 1 — Isolation and discharge: Isolate the drive from mains supply and engage the local lockout/tagout (LOTO) procedure. Wait a minimum of 10 minutes after power-off before opening the cabinet. Measure DC bus voltage with a calibrated meter — do not proceed until voltage is below 50V DC. The B43586-S9418-Q1 stores significant charge at 400V and must be treated as a live hazard until confirmed discharged.
Step 2 — Document and photograph: Photograph the existing capacitor orientation, terminal polarity markings, and PCB reference designators before removal. Snap-in capacitors are polarity-sensitive; incorrect reinstallation causes immediate catastrophic failure.
Step 3 — Remove and inspect: Carefully extract the old B43586-S9418-Q1 unit. Inspect the PCB pads for lifted traces, heat discoloration, or electrolyte residue. Clean the mounting area with isopropyl alcohol before installing the replacement.
Step 4 — Install replacement: Align the snap-in terminals with the PCB footprint, confirm polarity, and press firmly until the retention clips engage. The B43586-S9418-Q1’s snap-in terminal pitch is standardized to the B43586 series footprint — no PCB modification is required for direct replacement of the same series.
Step 5 — Pre-power verification: Before restoring mains power, verify that no tools or foreign objects remain in the cabinet. Confirm that all terminal block connections are torqued to specification and that the drive’s control wiring is intact.
Step 6 — Controlled power-up and commissioning: Restore power and monitor the DC bus voltage rise on the drive’s diagnostic display or via a clamp meter. A healthy B43586-S9418-Q1 will charge smoothly through the pre-charge circuit without triggering overcurrent or pre-charge timeout faults. Log the replacement date, unit serial number, and post-installation test results in the equipment maintenance record.
This workflow applies equally to legacy drive models where the original B43586-S9418-Q1 has been in service for 8–15 years. SMARTNEXMSK supplies original EPCOS B43586-series capacitors with full traceability, enabling direct like-for-like replacement without re-engineering the power stage or modifying drive parameters.
Spare Parts Support FAQ
Q1: What is the expected service life of the B43586-S9418-Q1 in a VFD application, and when should I plan replacement?
EPCOS rates the B43586 series for a design life of 5,000 hours at maximum rated temperature (105°C) and full ripple current. In typical industrial VFD applications operating at 40–60°C ambient with moderate ripple loading, real-world service life commonly reaches 10–15 years. Proactive replacement is recommended at the 8–10 year mark or when ESR measurements show a drift exceeding 20% from the initial datasheet value, whichever comes first. Maintaining one or two B43586-S9418-Q1 units in your on-site spare parts inventory eliminates the lead-time risk associated with emergency procurement.
Q2: How do I confirm compatibility before installing the B43586-S9418-Q1 in my specific drive model?
Compatibility verification requires three checks: (1) confirm the PCB footprint matches the B43586 snap-in terminal pitch and can diameter; (2) verify that the drive’s DC bus operating voltage does not exceed 400V DC under any load condition; and (3) confirm that the required capacitance (1800µF) matches the original BOM specification for your drive model. SMARTNEXMSK’s technical team can assist with cross-referencing your drive’s service manual or BOM if you provide the drive model number and original capacitor reference designator.
Q3: What pre-shipment testing does SMARTNEXMSK perform on the B43586-S9418-Q1?
Every B43586-S9418-Q1 unit dispatched by SMARTNEXMSK is tested for capacitance value (within ±5% of nominal 1800µF), ESR at 100Hz, DC leakage current at rated voltage, and physical dimensional conformance to the B43586 series datasheet. Units that fail any parameter are quarantined and not shipped. A test report is available upon request for quality-critical procurement.
Q4: What does the 12-month warranty cover, and what is the claims process?
The 12-month warranty covers manufacturing defects, out-of-specification electrical parameters, and premature failure under normal operating conditions as defined by the EPCOS B43586 series datasheet. It does not cover damage resulting from incorrect installation, polarity reversal, overvoltage, or operation outside the rated temperature range. To initiate a warranty claim, contact SMARTNEXMSK at sales@smartnexmsk.com with the order number, installation date, failure description, and photographs of the failed unit. Replacement units are dispatched within 3 business days of claim approval.
