Erhardt+Leimer DC5501 Maintenance-Ready Spare DC Series Auto

Erhardt+Leimer DC5501 Maintenance-Ready Spare DC Series Auto

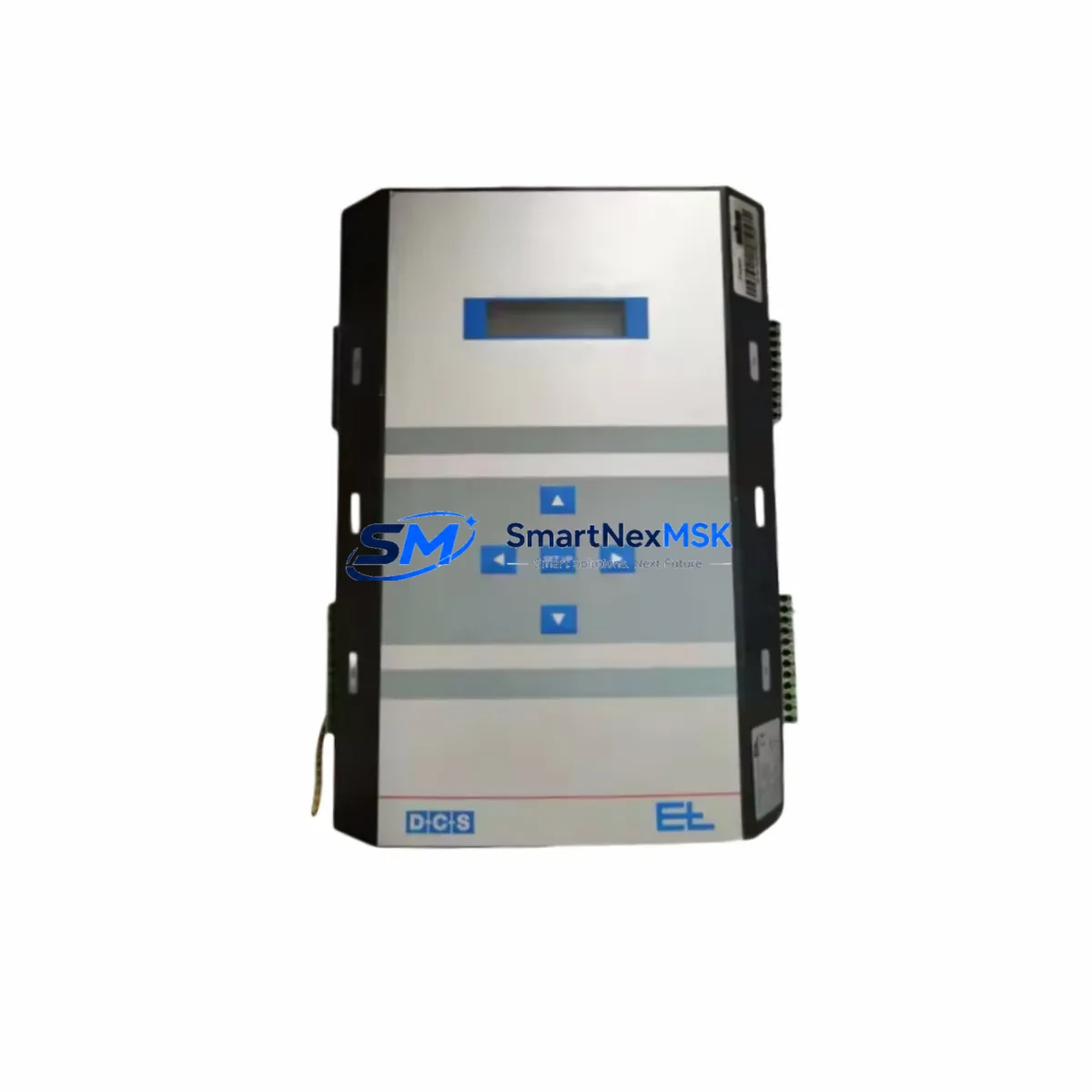

The Erhardt+Leimer DC5501 is a precision web guide controller from the DC Series, engineered for continuous-loop edge and center guiding in demanding industrial converting, printing, paper, film, and textile production lines. When this controller fails or degrades, the entire web guiding loop is broken — resulting in material misalignment, scrap accumulation, and unplanned line stoppages that can cascade across downstream processes. Sourcing a verified, maintenance-ready spare unit of the DC5501 is the single most effective action a maintenance or procurement engineer can take to protect uptime and reduce mean time to repair (MTTR).

This listing supplies an original Erhardt+Leimer DC5501 spare — not a clone or reverse-engineered substitute — fully compatible with the DC Series web guide system architecture. Each unit undergoes functional verification and signal-path testing prior to shipment. A 12-month warranty is included from the date of delivery, covering manufacturing defects and operational failures under normal industrial use conditions.

For maintenance engineers managing aging E+L installations, the DC5501 is frequently the first component to exhibit drift, output instability, or communication faults as system hours accumulate. Proactive spare stocking of this controller — alongside complementary DC Series components — is the foundation of any credible predictive maintenance strategy for web guiding infrastructure.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

A DC5501 replacement should never be treated as an isolated swap. The web guide control loop is an integrated system, and a controller fault is frequently symptomatic of — or accompanied by — stress on adjacent components. Maintenance engineers should use a DC5501 replacement event as a structured opportunity to inspect and, where appropriate, pre-stage spares for the following:

Sensor assemblies (SE Series): The DC5501 relies on clean, calibrated sensor signals. E+L SE series ultrasonic or optical edge sensors should be inspected for contamination, misalignment, and cable integrity. A degraded sensor will cause the replacement controller to exhibit the same apparent fault as the failed unit — leading to misdiagnosis and repeat downtime.

Actuator and servo drive units (RA/RK Series): The actuator receives positioning commands from the DC5501. Worn actuator bearings, binding guide frames, or degraded servo amplifier cards in the RA or RK series will mask the improvement from a controller replacement. Verify actuator response time and mechanical travel limits during the replacement window.

24 V DC power supply module: The DC5501 and its associated sensor and actuator circuits share a common 24 V DC bus in most DC Series cabinets. A power supply with marginal output voltage or excessive ripple will cause intermittent controller resets and sensor signal noise. Replace or load-test the cabinet power supply during any planned DC5501 maintenance window.

Terminal blocks and field wiring: Vibration-induced terminal loosening is a leading cause of intermittent web guide faults in high-cycle converting environments. Inspect and re-torque all terminal connections on the sensor input, actuator output, and power feed circuits. Phoenix Contact or Weidmüller-compatible terminal blocks used in DC Series panels should be checked for corrosion and mechanical integrity.

Signal cables and shielded wiring harnesses: The analog signal paths between the DC5501, SE sensors, and RA actuators are susceptible to EMI-induced noise in environments with variable-frequency drives or high-current motor circuits nearby. Inspect cable shielding continuity and grounding at both ends. Replace any cables showing jacket damage, kinking, or connector corrosion.

Relay output and interlock circuits: Many DC Series installations use relay outputs from the DC5501 for alarm, enable, and interlock signaling to the line PLC or safety relay. Inspect relay contacts for wear and verify interlock logic continuity. Stale relay contacts can cause the replacement controller to appear non-functional during commissioning.

Communication interface cards (if fitted): Where the DC5501 is integrated into a broader automation network via PROFIBUS, DeviceNet, or serial RS-485, the communication interface card or gateway module should be inspected for firmware currency and connector integrity. A communication fault can prevent remote parameter upload and complicate post-replacement commissioning.

HMI operator panel: If the DC Series installation includes an E+L operator panel or touchscreen HMI for guide mode selection and parameter adjustment, verify that the HMI communication link to the DC5501 is restored and functional after replacement. HMI parameter files should be backed up before any controller swap.

Stocking the DC5501 alongside one spare SE series sensor, a replacement 24 V power supply module, and a set of pre-terminated signal cables gives a maintenance team the ability to resolve the majority of web guide faults within a single shift — without waiting for emergency procurement.

Site Replacement Workflow

Step 1 — Isolation and documentation: De-energize the web guide cabinet following local LOTO procedures. Photograph or sketch the existing DC5501 wiring before disconnection, noting terminal numbers, cable labels, and DIP switch or parameter settings visible on the unit.

Step 2 — Parameter backup: Where the existing DC5501 is still partially functional, use the E+L operator panel or PC software to export stored guide parameters (sensitivity, deadband, speed compensation, operating mode) before removal. This eliminates re-commissioning time on the replacement unit.

Step 3 — Physical replacement: Remove the failed DC5501 from its DIN rail or panel mounting. Install the replacement unit, reconnect all terminals per the documented wiring, and verify DIP switch settings match the original configuration. Do not power up until all connections are confirmed.

Step 4 — Power-up and functional test: Restore 24 V DC supply and verify controller status indicators. Confirm sensor signal reception and actuator response with a manual guide command before returning the line to automatic mode. Check for alarm outputs and communication link status if network-integrated.

Step 5 — Return to production and documentation: Run the line at reduced speed through a full web threading cycle before resuming full production speed. Document the replacement in the equipment maintenance log, record the new unit serial number, and update the spare parts inventory to trigger reorder of the consumed DC5501 spare.

This workflow is designed to minimize total downtime from fault detection to production resumption, typically achievable within 2–4 hours for a prepared maintenance team with the spare unit on hand.

Spare Parts Support FAQ

Q1: What is the warranty coverage for the DC5501 spare?
Every DC5501 unit supplied carries a 12-month warranty from the date of delivery. Coverage includes manufacturing defects and operational failures under normal industrial operating conditions. Units that fail within the warranty period are replaced or repaired at no additional cost. Warranty claims require the original invoice and a brief fault description.

Q2: How do I confirm compatibility before ordering?
The DC5501 is designed for use within the Erhardt+Leimer DC Series web guide system. Compatibility is confirmed by matching the SKU (DC5501) against your existing unit’s nameplate and the DC Series system documentation. If your installation uses a variant suffix or a regional specification, contact us with your existing unit’s full nameplate data and we will verify compatibility before shipment.

Q3: Is the DC5501 tested before shipment?
Yes. Every unit undergoes functional verification and signal-path testing prior to dispatch. Test records are available on request. This pre-shipment testing protocol ensures that the replacement unit performs correctly from first power-up, reducing commissioning risk and eliminating the possibility of receiving a latent-defective spare.

Q4: What is the recommended spare stocking strategy for DC Series web guide systems?
For production lines where web guide availability is critical, we recommend maintaining at minimum one DC5501 controller spare on-site at all times. For high-utilization lines running multiple shifts, a two-unit buffer is advisable. Pair the DC5501 spare with a compatible SE series sensor spare and a 24 V DC power supply module to cover the most common failure modes without requiring emergency procurement. Long-term supply agreements are available for customers requiring guaranteed stock allocation across multi-year maintenance contracts.
