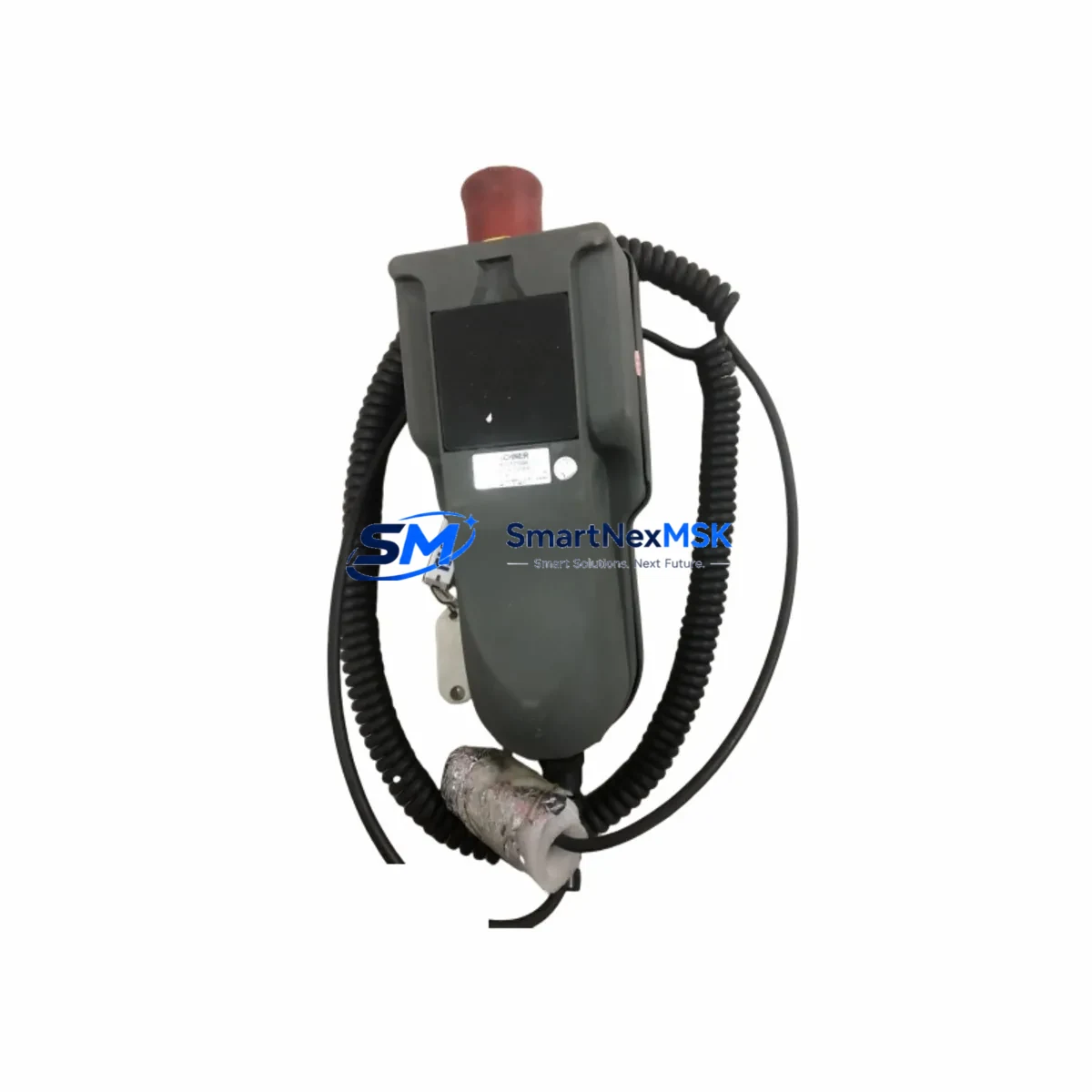

EUCHNER HBLC121964 Spare for HBLC Series Automation: Spare Replacement & Industrial Downtime Risk Control
The EUCHNER HBLC121964 is an original safety module from EUCHNER’s HBLC series, engineered for industrial automation environments where machine safety, reliable interlocking, and rapid fault recovery are non-negotiable. For maintenance engineers managing aging control systems or executing planned shutdowns, having a verified, ready-to-ship HBLC121964 spare on hand is a critical element of any downtime reduction strategy. This unit is sourced as an original component, fully tested prior to shipment, and backed by a 12-month warranty — ensuring your replacement cycle is both predictable and auditable.
Whether you are responding to an unplanned safety circuit fault, executing a scheduled overhaul of a guarding or interlocking system, or building out your site’s critical spare inventory, the HBLC121964 delivers the compatibility and performance consistency that EUCHNER’s HBLC platform is known for across European and global industrial installations.
Spare Maintenance Table
| Parameter | Specification / Detail |
|---|---|
| Part Number / SKU | HBLC121964 |
| Brand | EUCHNER |
| Series | HBLC |
| Product Type | Safety Module / Safety Interlock Component |
| Origin | Germany (DE) |
| Compatibility | EUCHNER HBLC series safety systems; compatible with standard 24 VDC safety circuit architectures |
| Application Environment | Industrial automation, machine guarding, safety interlocking, control cabinet integration |
| Installation | DIN rail or panel mount; refer to EUCHNER HBLC series installation documentation |
| Condition | Original, new stock |
| Pre-shipment Testing | Functional and electrical verification performed before dispatch |
| Warranty | 12 Months |
| Maintenance Recommendation | Inspect during scheduled safety circuit audits; replace immediately upon safety relay fault or interlock failure indication |
| Lead Time | In-stock units ship within 1–3 business days |
Maintenance Planning for Continuous Operation
When the HBLC121964 is identified as a fault point during a safety circuit inspection or machine stop event, experienced maintenance engineers know that a single component replacement rarely tells the whole story. A thorough site replacement protocol for this EUCHNER HBLC series safety module should include a systematic review of the surrounding electrical environment to prevent repeat failures and ensure the restored system meets its original safety integrity level.
Begin by verifying the 24 VDC power supply feeding the safety circuit — a degraded or noisy power supply module is a common root cause of premature safety relay and interlock failures. Next, inspect the associated terminal blocks and wiring harnesses connected to the HBLC121964’s input and output channels; loose or corroded terminations can cause intermittent faults that are difficult to diagnose without physical inspection. If the HBLC121964 is part of a larger safety PLC or safety controller architecture, check the corresponding I/O modules for any latched fault states or diagnostic error codes that may have been triggered by the original failure event.
For systems using EUCHNER’s broader HBLC or CES series components — such as the CES-A-BBA or MGB series access control units — confirm that the communication interface between the safety module and the door monitoring or guard locking device is functioning correctly after replacement. In installations where the HBLC121964 interfaces with a Siemens S7 or similar PLC safety CPU via a safety fieldbus, verify the F-address assignment and safety signature after reinstallation to avoid nuisance trips.
Procurement engineers building or refreshing a critical spare inventory for EUCHNER-equipped lines should also consider stocking the associated safety relay output modules, feedback loop monitoring relays, and any fuse or circuit protection elements in the same cabinet section. Surge protection devices on the 24 VDC rail, signal isolators on long cable runs, and the HMI panel’s safety acknowledgment circuit should all be inspected as part of the same maintenance window. Documenting the as-found and as-left condition of each component supports both regulatory compliance and future predictive maintenance scheduling.
For older installations where the HBLC121964 may be part of a legacy safety system approaching end-of-life, this replacement is also an opportunity to assess whether adjacent components — including the safety controller backplane, expansion I/O racks, and communication gateway modules — are still within their rated service life. Proactive replacement of borderline components during a planned outage is far less costly than an unplanned shutdown caused by a secondary failure weeks later.
Site Replacement Workflow
Step 1 — Isolate and Lock Out: Follow your site’s LOTO procedure. De-energize the safety circuit and confirm zero energy state before opening the control cabinet.
Step 2 — Document As-Found State: Photograph the existing HBLC121964 installation, including wiring, terminal assignments, DIP switch or parameter settings, and any diagnostic LED states. This record is essential for restoring the replacement unit to the correct configuration.
Step 3 — Remove the Faulty Unit: Disconnect all wiring in sequence, label each conductor if not already marked, and remove the module from its mounting position. Retain the faulty unit for failure analysis if required by your maintenance management system.
Step 4 — Install the HBLC121964 Replacement: Mount the new unit, reconnect all wiring per the as-found documentation, and verify that any configurable parameters (address settings, operating mode switches) match the original unit’s configuration.
Step 5 — Functional Verification: Re-energize the circuit and perform a full safety function test per the machine’s safety validation plan. Confirm that all guard monitoring, emergency stop, and interlock functions operate correctly before releasing the machine to production.
Step 6 — Update Maintenance Records: Log the replacement in your CMMS, update the spare parts inventory, and schedule the next inspection interval based on the manufacturer’s recommended service life for the HBLC series.
Spare Parts Support FAQ
Q1: Is the HBLC121964 a direct drop-in replacement for the existing unit in my EUCHNER HBLC series installation?
Yes. The HBLC121964 is an original EUCHNER component designed for the HBLC series. It is a direct replacement for the same part number. Always verify DIP switch settings and wiring assignments against your as-found documentation before commissioning the replacement unit to ensure the safety function configuration is preserved.
Q2: How is the HBLC121964 tested before shipment?
Every unit undergoes functional and electrical verification prior to dispatch. This includes power-on testing and output channel confirmation. A test report is available upon request for quality-critical applications. The unit ships with a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions.
Q3: What is the recommended spare inventory strategy for the HBLC121964?
For production lines with a single EUCHNER HBLC safety module, we recommend maintaining at least one on-site spare to support immediate replacement without waiting for procurement lead times. For multi-line facilities or critical 24/7 operations, a minimum of two units per safety system type is a common industry practice. Long-term supply continuity is supported through our stocking program.
Q4: Can you supply the HBLC121964 for a system that has been discontinued or is no longer in active production?
Yes. We specialize in long-term supply of original spare parts for legacy and end-of-life industrial automation systems. The HBLC121964 is available from our inventory to support system life extension strategies, allowing facilities to defer costly full-system upgrades while maintaining safety compliance and operational continuity.
—
