FANUC A06B-6096-H105 Retrofit-Ready Servo Amplifier for Alpha

FANUC A06B-6096-H105 Retrofit-Ready Servo Amplifier for Alpha Control Systems

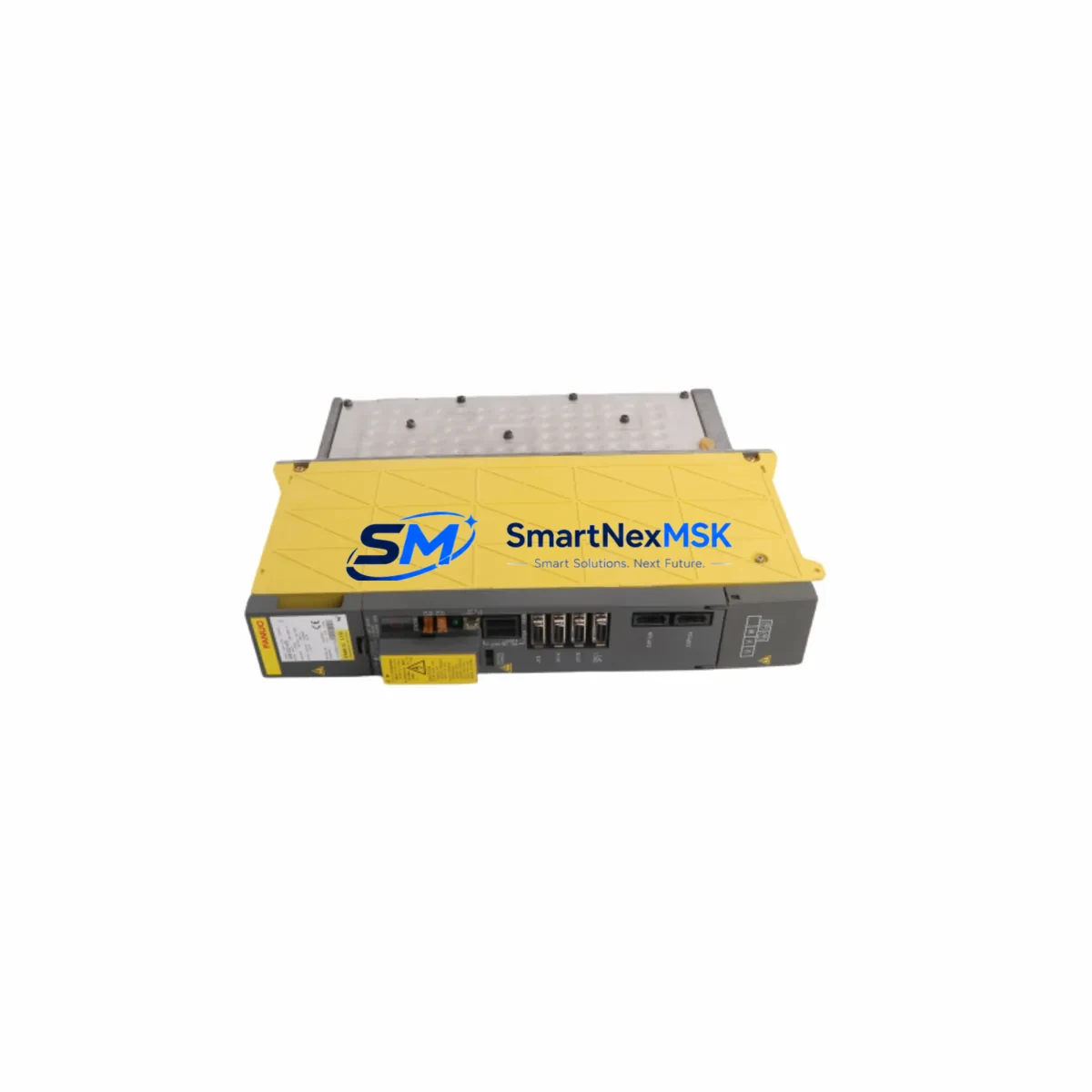

The FANUC A06B-6096-H105 is a single-axis AC servo amplifier from the FANUC Alpha Series (αi Series), engineered for high-precision motion control in CNC machining centers, turning centers, and industrial automation systems. As legacy FANUC Series 0, Series 15, Series 16, and Series 18 control platforms approach end-of-life, the A06B-6096-H105 has become one of the most sought-after retrofit and replacement components for system integrators and maintenance engineers managing aging production lines.

Whether you are replacing a failed unit on an emergency basis, upgrading a control cabinet from an older Alpha amplifier generation, or executing a planned modernization of a multi-axis CNC cell, the A06B-6096-H105 provides a reliable, drop-in-compatible solution backed by a 12-month warranty and pre-shipment functional testing.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit involving the A06B-6096-H105 requires careful pre-installation planning across multiple system layers. Before removing the failed or obsolete amplifier, engineers should document the existing axis parameter table from the FANUC CNC controller — particularly servo loop gain, motor series code, encoder pulse count, and current limit settings. These parameters are stored in the CNC’s non-volatile memory and must be restored after the new amplifier is initialized.

On the power supply side, confirm that the A06B-6110-H011 or A06B-6114-H011 PSM (Power Supply Module) in the servo cabinet is rated to support the combined axis load after the replacement. If the existing PSM is undersized or showing signs of capacitor aging, it is advisable to replace it concurrently to avoid a secondary failure shortly after commissioning. The DC bus link between the PSM and the A06B-6096-H105 should be inspected for loose terminal connections and correct bus bar torque values.

The FSSB fiber optic cable connecting the CNC controller to the servo amplifier must be re-seated and verified for continuity. In multi-axis configurations, the FSSB chain typically runs through the A06B-6096-H105 and continues to downstream amplifiers such as the A06B-6096-H206 (dual-axis amplifier) or additional single-axis units. Any break or contamination in the fiber link will prevent FSSB initialization and generate a 9001 or 9002 alarm on the CNC panel.

Motor-side wiring should be verified against the original A06B-series servo motor nameplate — particularly the encoder connector (A860-2000 or A860-2005 series pulsecoder cable) and the power cable phase sequence. Incorrect phase wiring will cause the axis to run away or generate an overcurrent alarm immediately upon servo-on. Terminal block adapters may be required if migrating from an older Alpha amplifier with a different connector layout.

For systems that include an A02B-series CNC operator panel or a FANUC Series 0i-D/F CNC unit, the HMI screen axis display and alarm message pages should be verified post-commissioning to confirm that the axis name, unit, and travel limit parameters are correctly reflected. In some retrofit scenarios involving a controller upgrade from Series 16i to Series 30i, the PMC ladder program stored on the A20B-series main CPU board may require partial revision to accommodate changes in the I/O address map.

I/O expansion modules such as the A03B-0819-C001 (I/O Module) or the FANUC I/O Link β unit should also be audited during the retrofit window. These modules handle machine-side signals including door interlock, spindle orientation, and coolant control — all of which interact with the servo amplifier’s enable and ready signals. Verifying the I/O link chain integrity before powering up the new amplifier prevents nuisance alarms and reduces commissioning time.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary concern for any production facility undertaking a servo amplifier replacement. The recommended approach is to prepare a complete spare kit before the maintenance window begins. This kit should include the A06B-6096-H105 amplifier (pre-tested), the corresponding FSSB fiber cable, a set of terminal ferrules and torque-rated screwdrivers, and a laptop loaded with FANUC SERVO GUIDE or the applicable CNC parameter backup file.

Before powering down the machine, perform a full CNC parameter backup using a CF card, USB memory, or RS-232C connection to a PC running FANUC LADDER-III or a compatible backup utility. This backup captures all axis parameters, PMC data, macro variables, and tool offset tables — ensuring that the machine can be restored to its exact pre-failure state after the new amplifier is installed.

During the physical swap, label all connectors before disconnection. The A06B-6096-H105 uses a standardized connector layout, but in older cabinets where previous technicians may have modified wiring, photographic documentation of the original state is invaluable. After installation, restore parameters from backup, perform a servo initialization sequence, and execute a low-speed dry run on each axis before returning the machine to production. This structured approach typically allows a single-axis amplifier replacement to be completed within a 2–4 hour maintenance window, preserving the original program logic and HMI configuration without modification.

For facilities managing multiple machines with the same control platform, maintaining a small buffer stock of the A06B-6096-H105 and related components — including the A06B-6093-H103 spindle amplifier and the A06B-6114-H011 power supply module — significantly reduces mean time to repair (MTTR) and protects against supply chain delays for discontinued or long-lead-time parts.

Retrofit Support FAQ

Q1: Is the A06B-6096-H105 a direct drop-in replacement for the A06B-6079-H105?
In most cases, yes. Both are single-axis Alpha Series servo amplifiers with compatible FSSB interfaces and similar motor output ratings. However, you should verify the motor series code and encoder type in the CNC parameter table (parameters 2020 and 2024) to confirm compatibility before powering up. Some older A06B-6079 units used a different connector pinout for the motor power cable — check the wiring diagram before finalizing the swap.

Q2: What commissioning steps are required after installing the A06B-6096-H105?
After physical installation, restore the axis parameter backup to the CNC controller, perform an FSSB re-initialization (set parameter 1902 bit 0 to 1 and cycle power), clear any servo alarms, and execute a reference point return on the affected axis. Verify servo loop gain and following error at low feedrate before running the machine at full speed. A test cut or dry run cycle is recommended before returning the machine to production.

Q3: Can the A06B-6096-H105 be used with a FANUC Series 0i-MF or 0i-TF controller?
Yes. The A06B-6096-H105 is compatible with FANUC Series 0i-D, 0i-F, 16i, 18i, and 21i controllers via the FSSB fiber optic servo bus. Ensure that the FSSB amplifier setting screen (parameter 1023 and related) correctly maps the amplifier slot to the intended axis. No hardware modification is required for this controller family.

Q4: What does the 12-month warranty cover, and is pre-shipment testing performed?
Every A06B-6096-H105 unit is functionally tested prior to shipment to verify power stage integrity, FSSB communication readiness, and alarm-free initialization. The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage events, or physical impact. Warranty claims are processed with a replacement-first policy to minimize your downtime.
