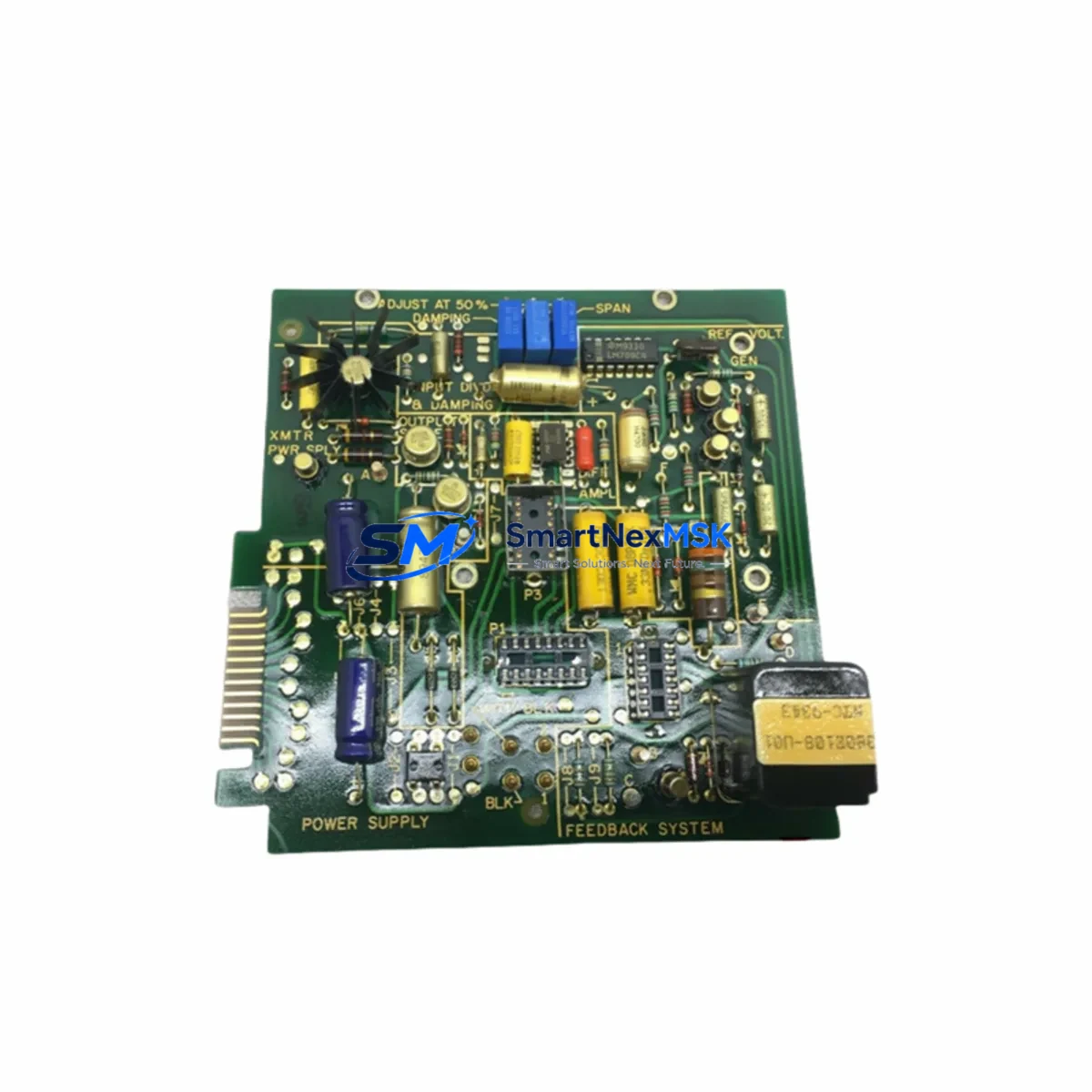

FISCHER PORTER 686B167U05 Retrofit-Ready Amplifier for 686B Control Systems
The FISCHER PORTER 686B167U05 is a PC Controller Amplifier Board engineered for seamless integration into legacy 686B Series control systems. As industrial facilities face increasing pressure to modernize aging automation infrastructure without full system overhauls, this module delivers a cost-effective, wiring-compatible retrofit path that preserves existing control logic, minimizes downtime, and extends the operational life of installed 686B Series panels. Whether you are replacing a failed unit, upgrading a deteriorating control cabinet, or migrating from an end-of-life configuration, the 686B167U05 is a proven drop-in solution backed by 12-month warranty coverage and pre-shipment functional testing.
Sourced directly from authorized supply channels, each 686B167U05 unit undergoes outgoing inspection to verify amplifier gain calibration, terminal continuity, and backplane interface integrity before dispatch. Global shipping is available with lead times confirmed at order placement, supporting both emergency breakdown replacements and planned maintenance schedules.
Upgrade Compatibility Table
| Parameter | Details |
|---|---|
| SKU / Part Number | 686B167U05 |
| Brand | FISCHER PORTER |
| Series Compatibility | 686B Series Control Systems |
| Module Type | PC Controller Amplifier Board |
| Country of Origin | Germany (DE) |
| Installation Interface | 686B Series backplane slot — direct board replacement |
| Terminal Wiring | Compatible with existing 686B Series field wiring harness |
| Communication Compatibility | Maintains native 686B Series signal and control protocol |
| Replacement Recommendation | Direct drop-in for failed or degraded 686B167U05 units |
| Commissioning Notes | Verify amplifier address jumpers and gain settings match original configuration before power-up |
| Pre-Shipment Testing | Functional test performed on every unit prior to dispatch |
| Warranty | 12-Month Warranty — covers manufacturing defects and functional failure |
Retrofit Planning for Existing Automation Systems
Successful integration of the 686B167U05 into an existing control system requires a structured pre-installation review. Before removing the failed board, engineers should document the current amplifier address configuration, record all terminal wiring assignments from the existing 686B Series field wiring harness, and photograph the backplane slot orientation. Power supply capacity must be confirmed — the 686B Series power supply module feeding the rack should be verified to deliver stable regulated voltage within the amplifier board’s rated input range, as marginal power conditions are a common root cause of premature amplifier failure.
In multi-rack installations, the 686B Series rack and backplane assembly should be inspected for corrosion, connector wear, and slot damage before the replacement board is seated. If the control cabinet also houses a 686B Series I/O expansion module or a dedicated analog input/output card, those modules should be individually tested to confirm they are not contributing to the fault condition. Facilities running HART-enabled field instruments through the 686B platform should verify that the communication link between the amplifier board and the HART multiplexer or modem remains intact after board replacement.
Where the 686B167U05 is part of a broader migration from legacy Fischer & Porter instrumentation to a modern DCS or PLC platform, the replacement sequence typically begins with stabilizing the existing 686B Series controller module, followed by mapping all analog signal ranges and engineering unit conversions. HMI screens tied to the 686B Series operator interface should be reviewed to confirm that tag addresses and display scaling remain valid after the amplifier board swap. If the facility is transitioning to a Modbus RTU or PROFIBUS DP communication backbone, a protocol converter or gateway module will be required to bridge the legacy 686B signal architecture to the new network. Programming cables and configuration software for the 686B Series should be retained on-site throughout the retrofit period to support any required parameter re-entry or calibration adjustment.
For control cabinets undergoing a phased upgrade, the 686B167U05 can be installed alongside newer analog input modules and terminal block assemblies without requiring a full panel redesign, provided that the shared power rail and grounding scheme are validated before energization. Facilities that have already migrated portions of their loop control to a modern PLC platform should confirm that any shared I/O signals between the legacy 686B system and the new controller are properly isolated to prevent ground loops or signal interference during the transition period.
Downtime Control During System Migration
Minimizing unplanned downtime during a 686B167U05 replacement begins with advance preparation. A spare board held in inventory eliminates procurement lead time from the critical path — when a failure occurs, the replacement can be installed within a single maintenance window rather than waiting days or weeks for sourcing. Before the maintenance window opens, the site team should prepare a written swap procedure that covers power isolation steps, terminal labeling, board extraction sequence, replacement seating and locking, and power restoration checks.
Where process continuity is critical, facilities should consider placing the affected control loop in manual mode at the operator station before beginning the board replacement. This preserves the last known output signal to the final control element and prevents uncontrolled process excursions during the swap. Once the 686B167U05 is seated and the rack is re-energized, the amplifier should be allowed a brief warm-up period before the loop is returned to automatic control. Signal output should be verified at the field instrument and at the control system display before the operator releases the loop.
For sites with redundant control architectures, the switchover to the standby control path should be executed and confirmed before the primary 686B amplifier board is removed. This approach reduces the effective downtime to the switchover and switchback operations, with the board replacement occurring while the standby path carries the process load. All steps should be logged in the site maintenance management system to support future reliability analysis and spare parts planning.
Retrofit Support FAQ
Q: Is the 686B167U05 a direct replacement for the original FISCHER PORTER board in my 686B Series system?
A: Yes. The 686B167U05 is designed as a direct drop-in replacement for the original board of the same part number within the 686B Series platform. No mechanical modification to the backplane or rack is required. Verify that address jumpers and gain settings on the replacement board match the configuration of the unit being removed before installation.
Q: What wiring checks should I perform before installing the replacement board?
A: Inspect all field wiring terminals connected to the 686B Series wiring harness for corrosion, loose terminations, and correct labeling. Confirm that the power supply module feeding the rack is within specification. Check that the backplane connector pins in the slot are clean and undamaged. Document all terminal assignments before disconnecting any wiring from the failed board.
Q: How do I confirm the replacement board is functioning correctly after installation?
A: After seating the 686B167U05 and restoring power, verify that the amplifier status indicators (if present) show normal operation. Confirm that the output signal at the control system matches the expected value for the current process condition. If the loop was placed in manual mode prior to replacement, compare the manual output value to the process variable reading before returning to automatic control. Any deviation should be investigated before releasing the loop.
Q: What does the 12-month warranty cover, and how is it supported?
A: The 12-month warranty covers manufacturing defects and functional failure under normal operating conditions. Each unit is functionally tested prior to shipment. In the event of a warranty claim, contact our sales team with the order reference and a description of the fault. We will arrange for evaluation and replacement or repair as appropriate. Warranty does not cover damage resulting from incorrect installation, overvoltage, or physical mishandling.
