Fluke 1630-2FC Retrofit-Ready Earth Ground Clamp for 1630 Series

Fluke 1630-2FC Retrofit-Ready Earth Ground Clamp: Compatible Modernization & Smooth System Upgrade

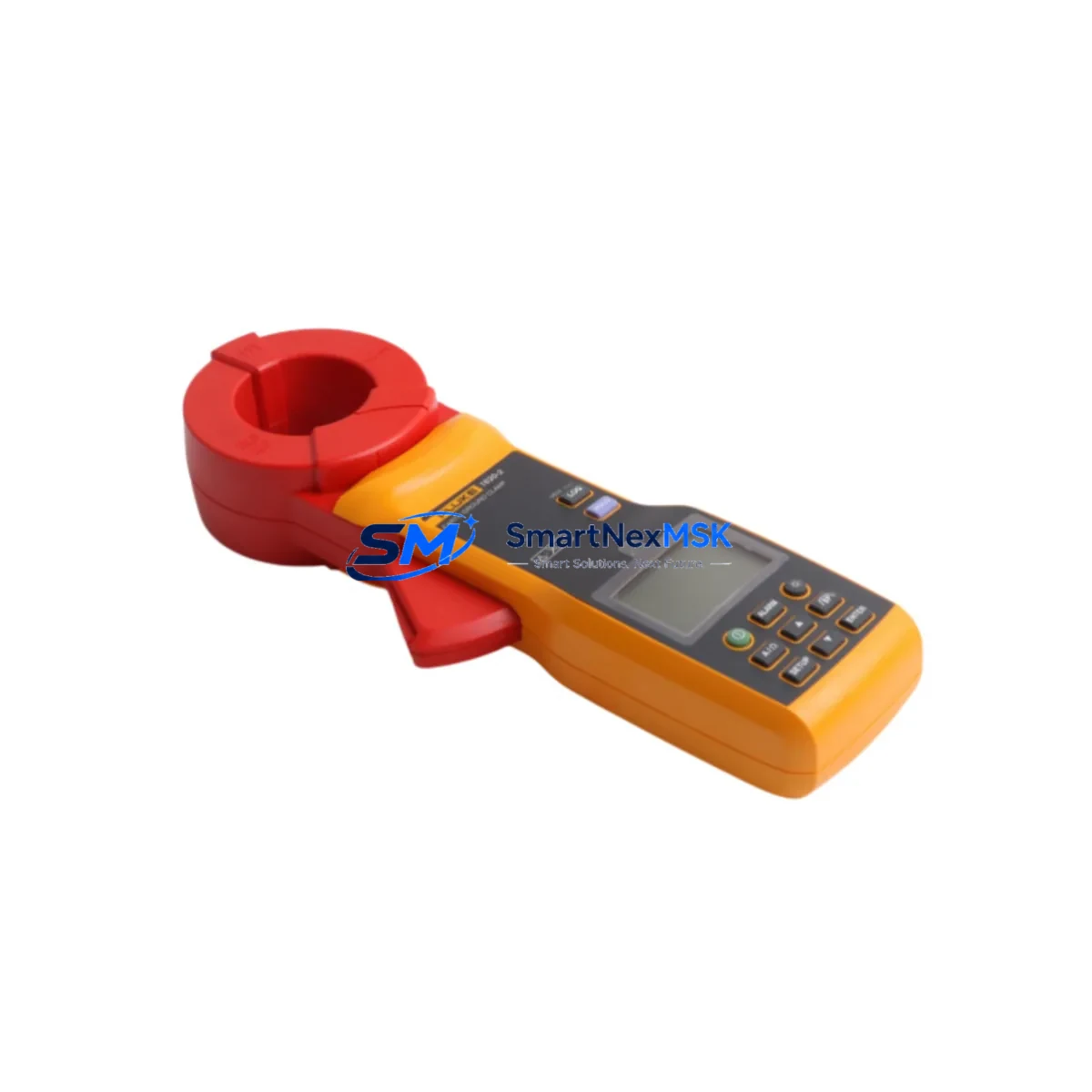

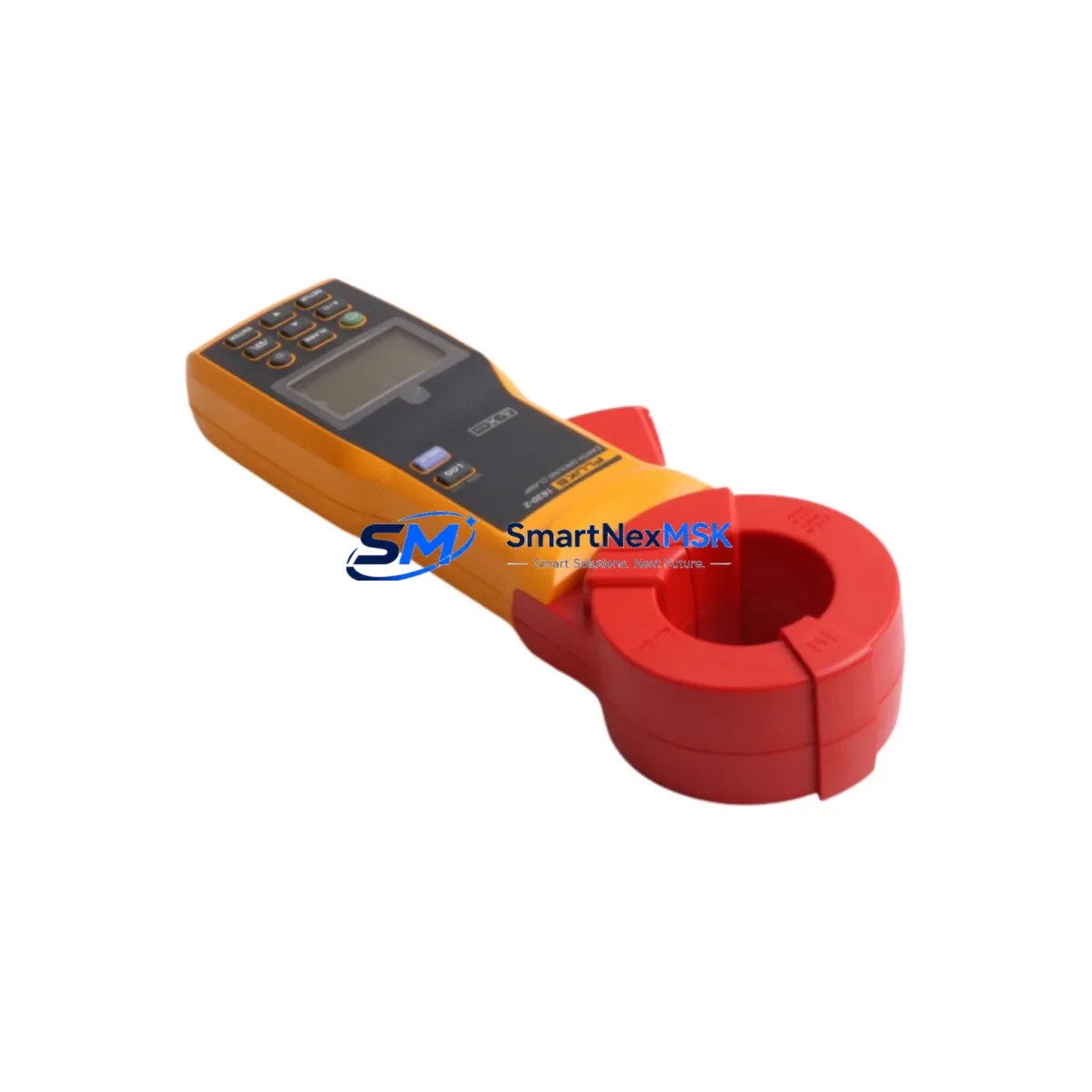

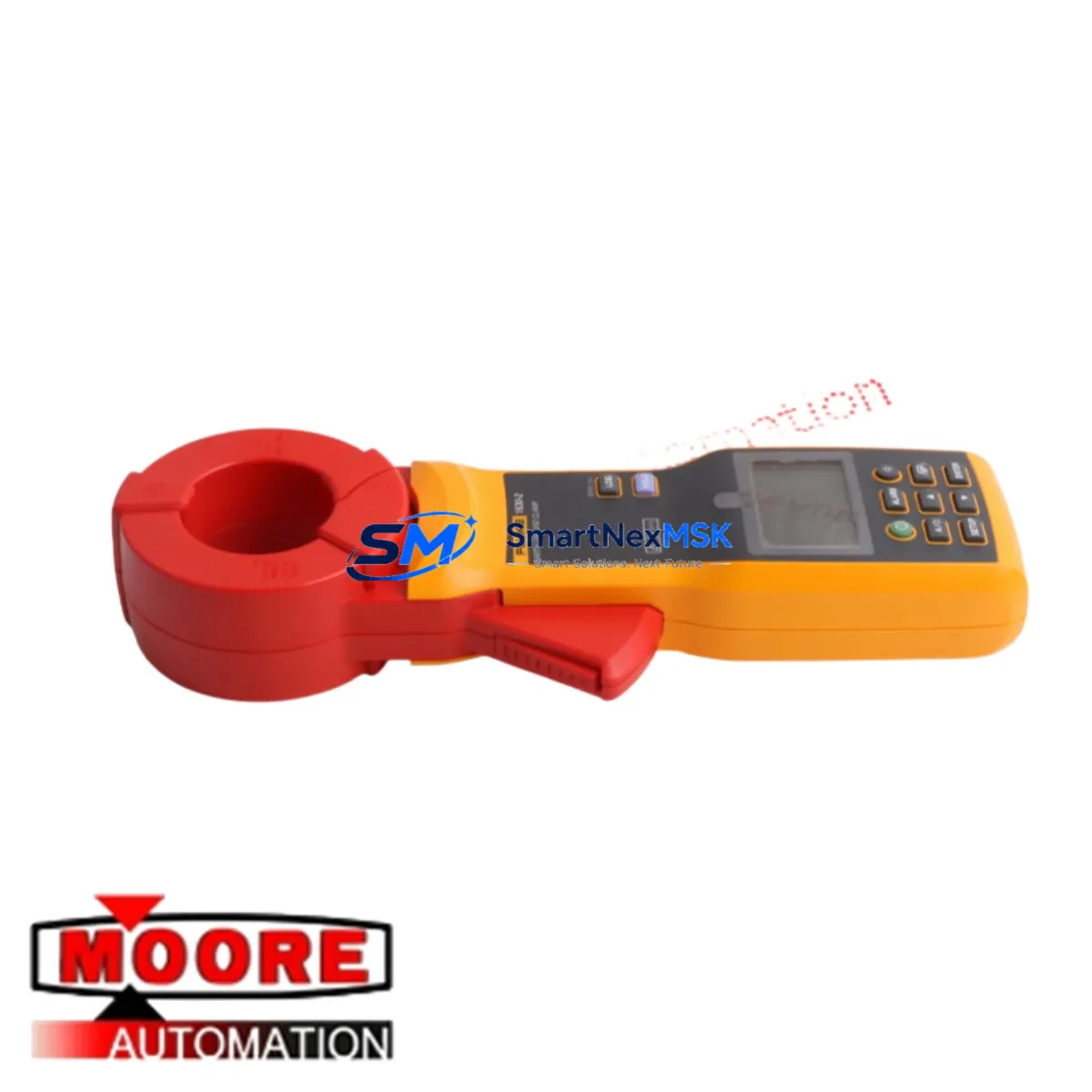

The Fluke 1630-2FC is a professional-grade earth ground resistance and ground current clamp meter engineered for seamless integration into existing grounding verification systems. As a direct retrofit replacement for legacy Fluke 1630 Series instruments — including the discontinued Fluke 1630 and Fluke 1625 ground testers — the 1630-2FC delivers enhanced measurement accuracy, integrated Fluke Connect® (FC) wireless data transmission, and full backward compatibility with established grounding test procedures used across industrial, utility, and telecommunications installations.

For engineers and maintenance teams managing aging test equipment fleets, the 1630-2FC eliminates the need for disruptive re-qualification of grounding test protocols. Its clamp-on, no-disconnect measurement method allows technicians to verify ground electrode resistance on live systems without interrupting bonded conductors — a critical advantage when upgrading instrumentation in energized substations, data centers, or manufacturing facilities where downtime carries significant operational cost.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

When integrating the Fluke 1630-2FC into an established grounding test program, the retrofit scope typically extends beyond the instrument itself. In industrial facilities running legacy test equipment alongside Fluke 1625-2 soil resistivity testers or Fluke 1623-2 GEO earth ground testers, the transition to the 1630-2FC should be coordinated with a review of the full grounding verification toolkit.

Technicians should confirm that existing Fluke C1600 carrying cases and Fluke 1630 jaw assemblies are compatible with the 1630-2FC form factor before retiring legacy units. In sites where the Fluke CNX 3000 wireless multimeter system is already deployed, the 1630-2FC integrates directly into the same FC ecosystem, enabling simultaneous multi-point ground measurements with centralized data capture — eliminating the need for separate data loggers or manual field notebooks.

For facilities that previously relied on the Fluke 1630 in conjunction with Fluke 1507 or Fluke 1587 FC insulation resistance testers for comprehensive electrical safety audits, the 1630-2FC maintains workflow continuity. The FC wireless module on the 1630-2FC communicates on the same ISM 2.4 GHz band used by other FC-enabled instruments, so no additional wireless infrastructure is required.

In telecommunications tower and utility grounding applications where Fluke 1760 power quality recorders or Fluke 435-II energy analyzers are part of the site instrumentation package, the 1630-2FC complements the measurement chain by providing verified ground electrode resistance data that feeds directly into site safety compliance documentation. Technicians should cross-reference 1630-2FC readings against existing ground resistance records to establish a post-retrofit baseline before closing out the upgrade work order.

Where grounding systems interface with Fluke Ti series thermal imagers used for hotspot detection on bonding conductors, the 1630-2FC’s no-disconnect clamp method allows simultaneous thermal and resistance verification without disturbing the bonded connection — a significant advantage in live panel environments.

Downtime Control During System Migration

One of the primary concerns during any instrumentation retrofit is maintaining continuity of the grounding verification program without creating gaps in safety compliance records. The Fluke 1630-2FC’s clamp-on measurement architecture means that the instrument changeover from a legacy Fluke 1630 or Fluke 1625 unit can be executed during a scheduled maintenance window without requiring the disconnection of grounding conductors or the de-energization of bonded equipment.

To minimize migration risk, the recommended approach is a parallel verification period: run the 1630-2FC alongside the outgoing instrument on the same ground electrodes for a minimum of one test cycle, comparing resistance readings to confirm measurement continuity. Any deviation greater than 5% should be investigated before the legacy unit is retired. This parallel validation step protects the integrity of historical ground resistance trend data and ensures that the post-retrofit baseline is directly comparable to pre-retrofit records.

For sites with large numbers of ground electrodes — such as substation grounding grids or multi-tower telecommunications sites — a phased rollout is advisable: replace instrumentation in one zone at a time, complete the FC wireless pairing and baseline verification for that zone, then advance to the next. This approach limits the scope of any single commissioning session and allows maintenance teams to maintain full situational awareness of grounding system status throughout the migration.

All units are pre-tested prior to shipment and include a factory calibration certificate. The 12-month warranty covers instrument defects from the date of shipment, providing a defined support window that aligns with most annual grounding inspection cycles.

Retrofit Support FAQ

Q1: Is the Fluke 1630-2FC a direct replacement for the discontinued Fluke 1630?
Yes. The 1630-2FC is the current production successor to the original Fluke 1630. It uses the same clamp-on, no-disconnect measurement method, covers the same resistance and current ranges, and requires no changes to existing grounding test procedures. The addition of Fluke Connect® FC wireless is an enhancement, not a requirement — the instrument operates fully in standalone mode if wireless connectivity is not needed.

Q2: What wiring or terminal changes are required during the retrofit?
None. The 1630-2FC is a handheld clamp meter with no hardwired terminal connections. It clamps around the grounding conductor without disconnection. No panel wiring, terminal block modifications, or conductor re-termination is required at any point during the instrument changeover.

Q3: How is FC wireless pairing commissioned on-site?
FC wireless pairing is performed via the Fluke Connect mobile app (available for iOS and Android) or through a Fluke CNX 3000 wireless display unit. Power on the 1630-2FC, enable FC mode via the instrument menu, and initiate pairing from the app or CNX 3000. Pairing is typically completed in under 60 seconds. No additional software licenses, network infrastructure, or IT involvement is required for field commissioning.

Q4: What does the 12-month warranty cover, and how is a warranty claim initiated?
The 12-month warranty covers manufacturing defects in materials and workmanship from the date of shipment. It does not cover damage resulting from misuse, unauthorized modification, or use outside the instrument’s rated specifications. To initiate a warranty claim, contact sales@smartnexmsk.com with your order reference and a description of the defect. Replacement or repair will be coordinated within the warranty period at no additional cost.
