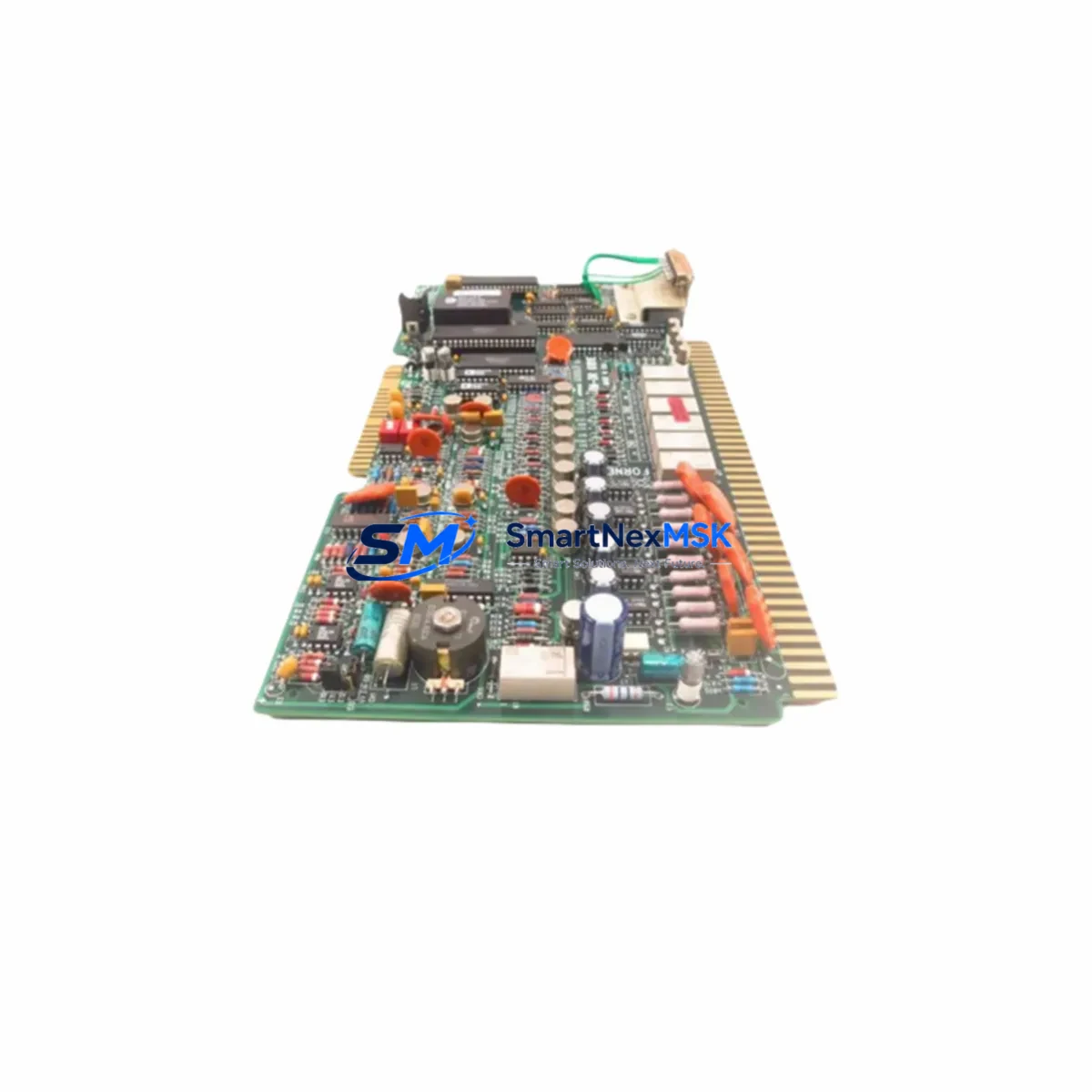

FORNEY RM DR6101E Retrofit-Ready Amplifier Card for RM Series: Compatible Modernization and Smooth System Upgrade
The FORNEY RM DR6101E is a Dual Range Amplifier Card engineered for direct retrofit into legacy FORNEY RM Series industrial control systems. As original RM Series components reach end-of-life and OEM spare parts become increasingly scarce, the RM DR6101E provides a verified, drop-in replacement path that preserves existing wiring infrastructure, terminal layouts, and backplane interface assignments — minimizing engineering rework and unplanned downtime during system modernization projects.
Industrial facilities operating aging FORNEY RM Series control cabinets face mounting pressure to source reliable spare parts before critical failures occur. The RM DR6101E addresses this challenge directly: it maintains full signal conditioning compatibility with the RM Series backplane, supports the dual-range analog input architecture that legacy process loops depend on, and ships pre-tested against factory acceptance criteria. Each unit undergoes functional verification prior to dispatch, with a 12-month warranty covering manufacturing defects and operational failures under normal industrial service conditions.
Upgrade Compatibility Table
| Parameter | Detail |
|---|---|
| Compatible Platform | FORNEY RM Series Control Systems |
| Module Type | Dual Range Amplifier Card |
| Backplane Interface | RM Series standard card-edge connector; direct slot insertion, no adapter required |
| Terminal Wiring | Compatible with existing RM Series field wiring; no re-termination required under standard replacement conditions |
| Communication Compatibility | Analog signal conditioning; compatible with legacy 4–20 mA and millivolt input loops used in RM Series architectures |
| Installation Requirement | Power-down rack before card removal/insertion; verify module address jumper settings match original configuration |
| Replacement Recommendation | Direct replacement for discontinued RM DR6101E OEM units; verify revision level compatibility with system integrator if mixing card revisions |
| Commissioning Focus | Confirm range selection jumpers, verify signal scaling in host controller, perform loop calibration check post-installation |
| Warranty | 12 Months — covers manufacturing defects and operational failure under normal industrial service conditions |
Retrofit Planning for Existing Automation Systems
A successful RM DR6101E retrofit begins well before the card is physically installed. Engineers should start by auditing the existing RM Series rack assembly to document the current slot assignments, power budget, and field wiring schedule. The RM Series rack typically hosts a mix of analog input cards, digital I/O modules, and power supply units — all of which must be accounted for when planning a partial or full cabinet upgrade.
When replacing the RM DR6101E in a live production environment, the first step is to confirm that the rack’s power supply module can sustain the load after card substitution. FORNEY RM Series power supply units are rated for specific card populations; adding or swapping amplifier cards without verifying the power budget can cause intermittent faults or supply trips. If the existing power supply is already operating near capacity, a parallel upgrade of the power supply module should be scheduled concurrently.
Terminal block wiring should be photographed and documented before disconnection. In many RM Series installations, field cables are landed on dedicated terminal modules mounted adjacent to the card rack. These terminal modules interface directly with the amplifier card’s input channels, and any wiring transposition during reconnection will result in incorrect signal mapping at the host controller. Cross-referencing the original loop drawings against the physical wiring before and after card swap is a mandatory step in any responsible retrofit procedure.
For facilities migrating from the RM Series platform toward a modern distributed control system or PLC-based architecture, the RM DR6101E can serve as a bridging component — maintaining analog signal integrity during a phased migration while new I/O modules, communication gateways, and controller hardware are staged and commissioned in parallel. In such projects, engineers frequently work alongside FORNEY RM Series analog output cards, digital input modules, and communication interface boards that handle protocol translation between legacy field devices and modern Ethernet-based control networks.
HMI screens tied to RM Series process variables must also be reviewed during any amplifier card replacement. If the host system uses a legacy operator interface panel or a SCADA workstation with hardcoded tag addresses, changes to module slot assignments or signal scaling will require corresponding updates to the HMI configuration. Coordinating HMI tag verification with the card swap — rather than treating it as a post-commissioning afterthought — significantly reduces the risk of process alarms or operator confusion during startup.
Communication links between the RM Series rack and upstream supervisory systems should be tested under live signal conditions after card installation. In installations where the RM Series interfaces with a DCS via serial communication modules or analog multiplexers, the amplifier card’s output must be verified at the receiving end of the signal chain — not just at the card terminals. This end-to-end signal verification step is particularly important in multi-drop analog loop configurations where a single wiring fault can affect multiple process variables simultaneously.
Downtime Control During System Migration
Minimizing production downtime during an RM DR6101E replacement requires a structured pre-outage preparation protocol. Before scheduling the maintenance window, the engineering team should prepare a complete card swap checklist that includes: current jumper configuration documentation, loop calibration baseline readings, controller program backup, and HMI snapshot of all affected process displays.
Where process conditions permit, a hot-standby approach can be used: staging the replacement RM DR6101E card in an offline test rack, applying the correct jumper settings, and performing a bench-level signal injection test before the production outage begins. This pre-verification step confirms that the replacement card is fully functional and correctly configured, reducing the active outage window to the minimum time required for physical card swap and loop verification.
Controller program logic should not be modified during the card replacement unless a known compatibility issue requires it. Preserving the original program structure — including PID loop parameters, alarm setpoints, and interlock logic — ensures that the process returns to its pre-outage operating state immediately after the replacement card is commissioned. Any program changes required for the upgrade should be developed, simulated, and approved in a separate engineering change order prior to the maintenance window.
Post-installation, a structured commissioning sequence should be followed: power up the rack, verify the amplifier card’s status indicators, confirm signal presence at the controller input channel, check loop calibration against the baseline readings taken before the outage, and release the process to automatic control only after all verification steps are complete. Documenting the as-found and as-left conditions for each step provides a defensible maintenance record and supports future troubleshooting if process anomalies are observed after the card replacement.
Retrofit Support FAQ
Q1: Is the RM DR6101E a direct drop-in replacement for the original FORNEY RM Series amplifier card?
Yes. The RM DR6101E is designed as a direct replacement for the original OEM unit. It uses the same card-edge backplane connector, maintains the same terminal wiring interface, and supports the same dual-range analog input configuration. Verify that the replacement card’s revision level is compatible with your specific rack assembly if your installation mixes multiple card revisions.
Q2: What commissioning steps are required after installing the RM DR6101E?
After physical installation, confirm that all range selection jumpers match the original card’s configuration. Power up the rack and verify the card’s status indicators. Perform a loop calibration check by injecting a known reference signal at the field terminals and confirming the correct engineering unit value at the host controller. Update HMI displays if any tag scaling changes were made during the replacement.
Q3: Can the RM DR6101E be used in a system that is being migrated to a new control platform?
Yes. The RM DR6101E is well-suited for phased migration projects where the RM Series rack must remain operational while new controller hardware, I/O modules, and communication gateways are staged in parallel. It maintains analog signal integrity throughout the transition period, allowing the migration to proceed without forcing a full system cutover in a single maintenance window.
Q4: What does the 12-month warranty cover?
The 12-month warranty covers manufacturing defects and operational failures under normal industrial service conditions from the date of shipment. Each RM DR6101E unit is functionally tested prior to dispatch. Warranty claims require documentation of the failure mode and confirmation that the unit was installed and operated within its specified environmental and electrical ratings. Contact our technical support team to initiate a warranty assessment.
