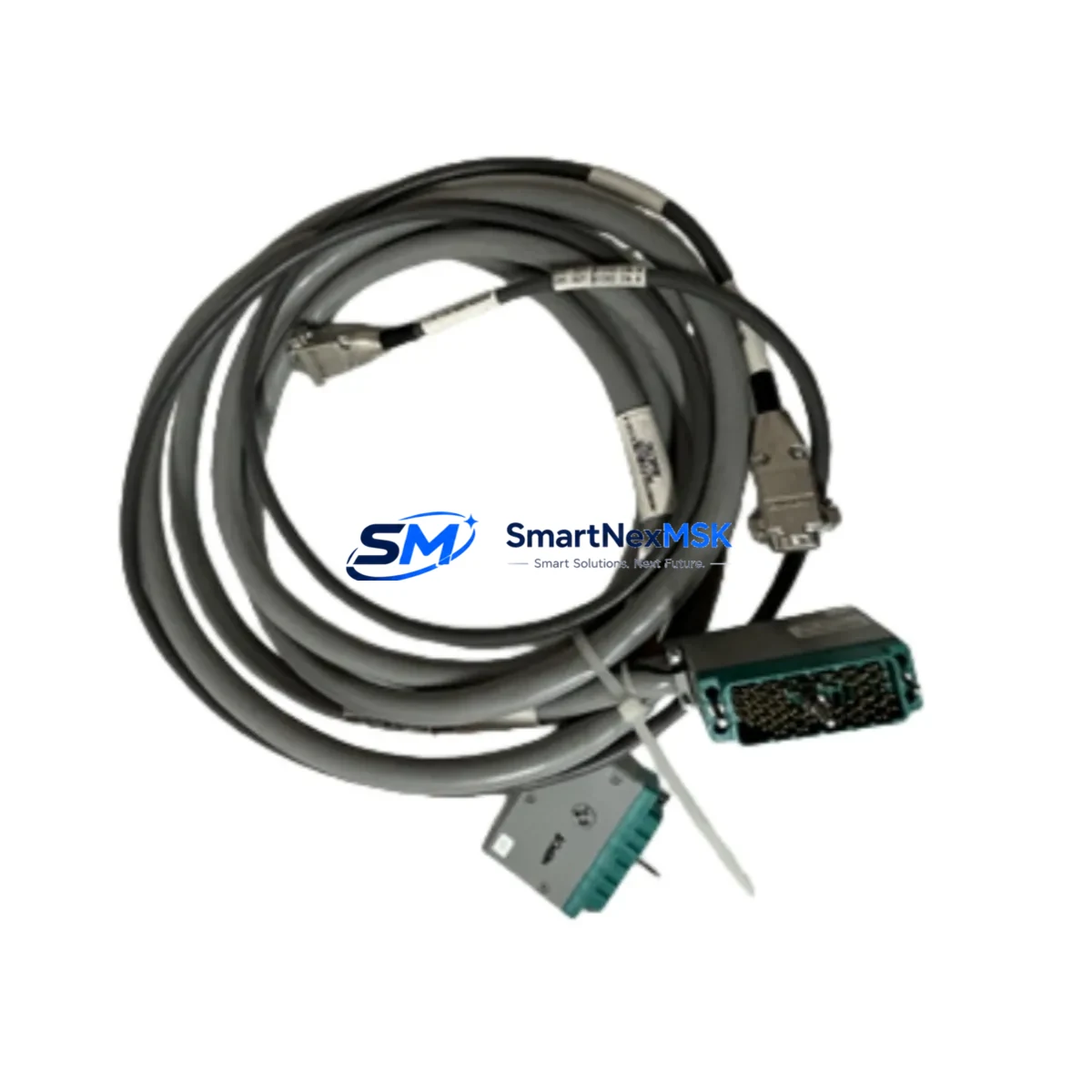

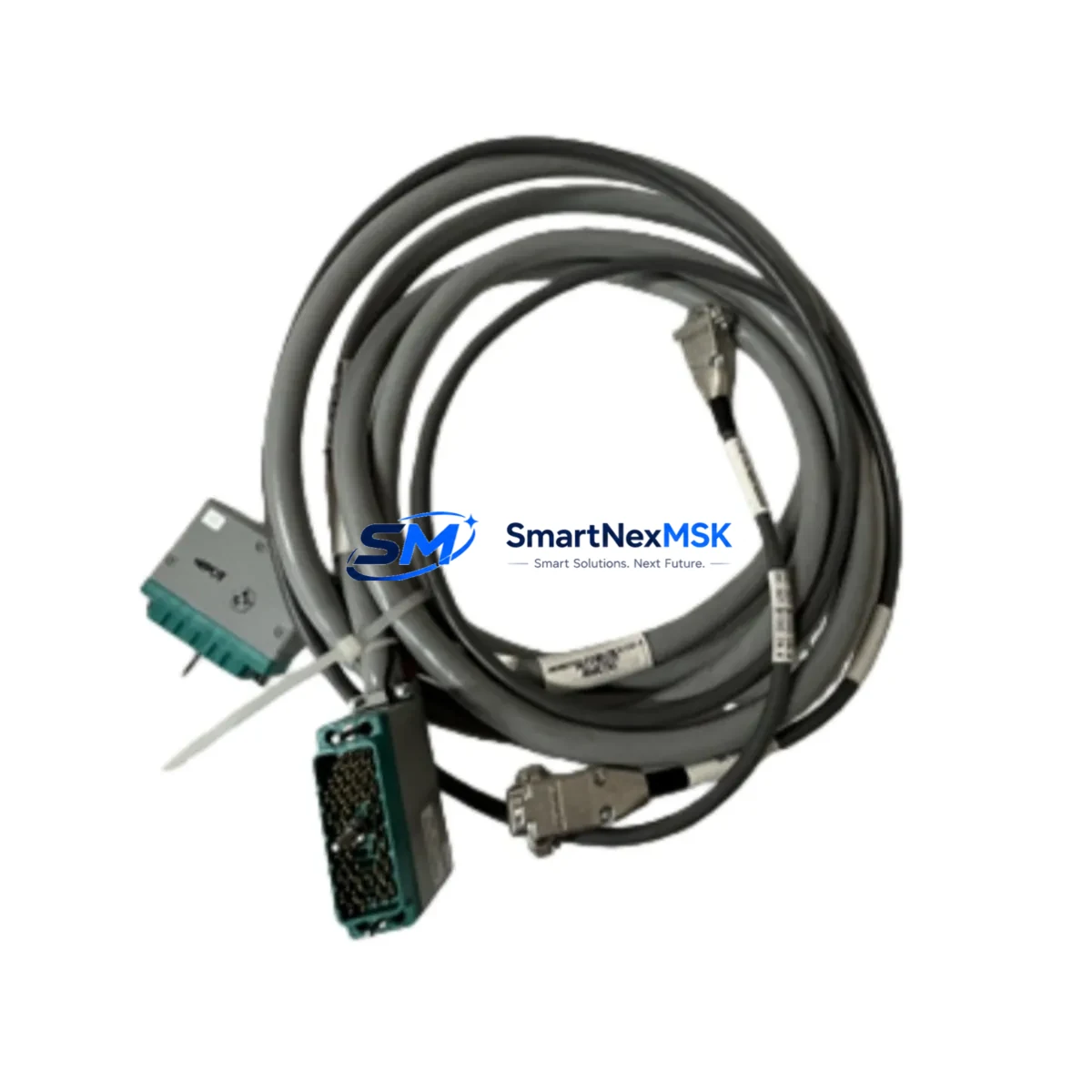

Foxboro 4000188-310 Maintenance-Ready Spare for I/A Series Automation
The Foxboro 4000188-310 is an original FT4 Fieldbus communication cable engineered for the Foxboro I/A Series Distributed Control System (DCS). In process-critical environments — refining, petrochemical, power generation, and advanced manufacturing — a failed fieldbus cable can cascade into full loop shutdown, triggering unplanned downtime that costs far more than the component itself. Stocking the 4000188-310 as a verified spare ensures your maintenance team can execute a rapid, like-for-like replacement without waiting on lead times or risking compatibility issues with non-original substitutes.
This cable is designed to carry FOUNDATION Fieldbus H1 signals between field devices and the I/A Series FBM (Field Bus Module) marshalling infrastructure. Its shielded construction, impedance characteristics, and connector termination are factory-matched to Foxboro’s FT4 Fieldbus segment specifications, ensuring signal integrity across multi-drop topologies. Maintenance engineers working on legacy I/A Series installations — particularly Series 200, 51, and CP60 controller environments — will find the 4000188-310 indispensable for both scheduled cable replacement and emergency fault isolation.
From a procurement standpoint, sourcing an original Foxboro 4000188-310 through a verified industrial spare parts supplier eliminates the risk of counterfeit or out-of-spec cables that can introduce ground loops, signal attenuation, or intermittent faults that are notoriously difficult to diagnose. Every unit shipped by SMARTNEXMSK undergoes pre-shipment electrical continuity and insulation resistance testing, and is covered by a 12-month warranty against manufacturing defects.
Spare Maintenance Table
| Parameter | Specification |
|---|---|
| Part Number | 4000188-310 |
| Brand | Foxboro (Schneider Electric) |
| Series | I/A Series DCS |
| Cable Type | FT4 FOUNDATION Fieldbus H1 Communication Cable |
| Signal Standard | FOUNDATION Fieldbus H1 (31.25 kbit/s) |
| Connector Type | Factory-terminated, DCS marshalling compatible |
| Shielding | Overall foil + drain wire, low-capacitance construction |
| Compatible Modules | Foxboro FBM (Field Bus Module), I/A Series CP60, Series 51/200 |
| Application Environment | Industrial process control, DCS marshalling cabinets, field junction boxes |
| Operating Temperature | -20°C to +70°C (typical industrial cable rating) |
| Origin | USA (Original Foxboro / Schneider Electric) |
| Pre-shipment Test | Continuity, insulation resistance, visual inspection |
| Warranty | 12 Months |
| Condition | New / Surplus New (Original) |
Maintenance Planning for Continuous Operation
When a 4000188-310 fieldbus cable is flagged during a control cabinet inspection or loop diagnostic, experienced maintenance engineers know that the cable itself is rarely the only component under stress. A thorough site assessment should extend to the adjacent FBM module — such as the Foxboro FBM207 or FBM237 — which terminates the H1 segment and may show degraded communication statistics if the cable has been intermittently faulted. The Foxboro P0916SA or equivalent FBM power supply module should be checked for output voltage stability, as fieldbus segments are sensitive to supply ripple.
At the field junction box level, inspect the Foxboro FJB (Field Junction Box) terminal blocks and segment terminators. A missing or failed active fieldbus terminator — such as the Foxboro MTL Fieldbus Terminator — can cause reflections that mimic cable faults. If the segment hosts HART-capable devices alongside fieldbus instruments, verify that the Foxboro HART Multiplexer or associated signal conditioner is not introducing impedance anomalies.
For cabinet-level inspection, check the Foxboro I/A Series CP60 Controller module’s communication health indicators and event logs. Pair the cable replacement with a review of the Foxboro FPS (Field Power Supply) unit feeding the segment — a marginal power supply will stress the new cable immediately after installation. Additionally, inspect the Foxboro ZCP270 or CP270 Controller if the installation is a hybrid I/A Series / Foxboro Evo environment, as cross-platform fieldbus segments require careful impedance matching.
For planned maintenance windows, consider replacing the 4000188-310 alongside any aging Foxboro FBM termination assemblies and verifying the integrity of the marshalling panel’s Foxboro TB (Terminal Block) assemblies. Proactive replacement of these interconnected components during a single maintenance window minimizes future unplanned outages and reduces cumulative labor costs.
Site Replacement Workflow
Step 1 — Isolation & Documentation: Before disconnecting the 4000188-310, capture the current fieldbus segment topology from the DCS engineering workstation (Foxboro AIM*AT or I/A Series System Manager). Record device addresses, segment load, and any active alarms on the affected loop.
Step 2 — De-energize & Disconnect: Follow site LOTO (Lockout/Tagout) procedures. Disconnect the cable at both the FBM marshalling connector and the field junction box. Label both ends before removal to prevent cross-connection errors during reinstallation.
Step 3 — Inspect & Compare: Visually inspect the removed 4000188-310 for insulation damage, connector pin corrosion, or shield continuity failure. Compare the replacement unit’s part number label and connector pinout against the original before installation.
Step 4 — Install & Terminate: Route the new cable following the original cable path. Secure with appropriate cable ties and maintain separation from high-voltage power cables. Reconnect at both ends, ensuring correct polarity on the H1 segment (+ and − conductors).
Step 5 — Energize & Verify: Re-energize the fieldbus segment and monitor the FBM communication statistics from the DCS workstation. Confirm all field devices on the segment return to normal communication status. Document the replacement in the site maintenance log with date, technician ID, and new part serial number.
This workflow supports a target downtime of under 60 minutes for a single-segment cable replacement in a well-prepared maintenance environment, preserving system compatibility and avoiding the configuration changes that non-original cable substitutions sometimes require.
Spare Parts Support FAQ
Q1: Is the 4000188-310 still available as a new original part, or only as surplus?
SMARTNEXMSK stocks both new original and surplus-new (unused, original packaging) units of the 4000188-310. All units are sourced from authorized channels or verified surplus inventories and are tested before shipment. The 12-month warranty applies equally to both stock categories.
Q2: How do I confirm compatibility with my specific I/A Series DCS revision?
The 4000188-310 is compatible across I/A Series generations including Series 51, Series 200, and CP60-based systems using FOUNDATION Fieldbus H1 FBM modules. If your installation uses a non-standard segment length or a custom termination scheme, contact our technical team with your FBM model number and segment drawing for confirmation before ordering.
Q3: What pre-shipment testing is performed on each unit?
Each 4000188-310 undergoes electrical continuity testing on all conductors, insulation resistance measurement between conductors and shield, and visual inspection of connectors and cable jacket. A test report is available upon request for quality-critical installations.
Q4: What is the lead time and what does the 12-month warranty cover?
In-stock units typically ship within 1–3 business days. The 12-month warranty covers manufacturing defects, connector failure, and insulation breakdown under normal operating conditions. It does not cover damage from incorrect installation, over-voltage events, or mechanical abuse. Warranty claims are processed with return shipping support and priority replacement dispatch.
