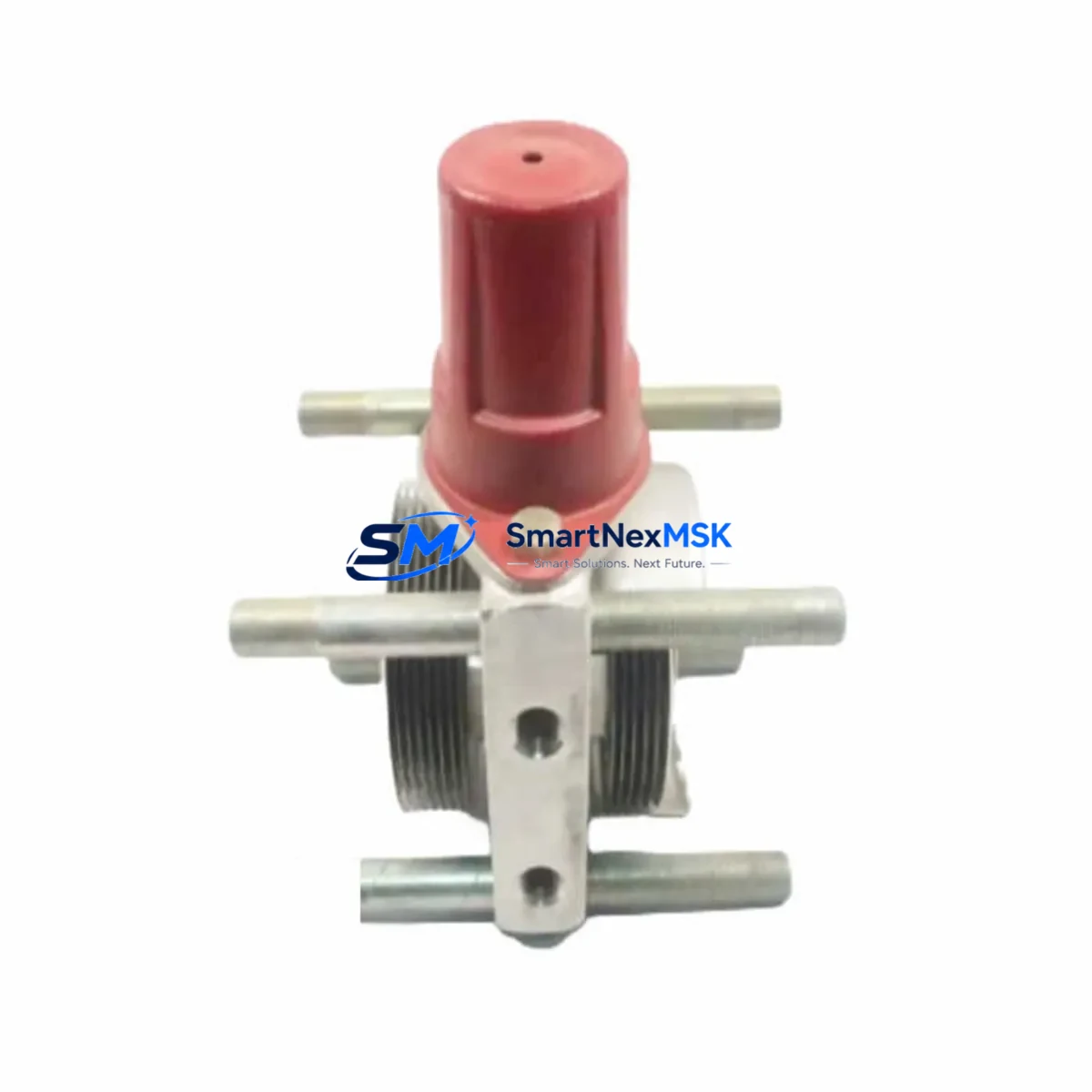

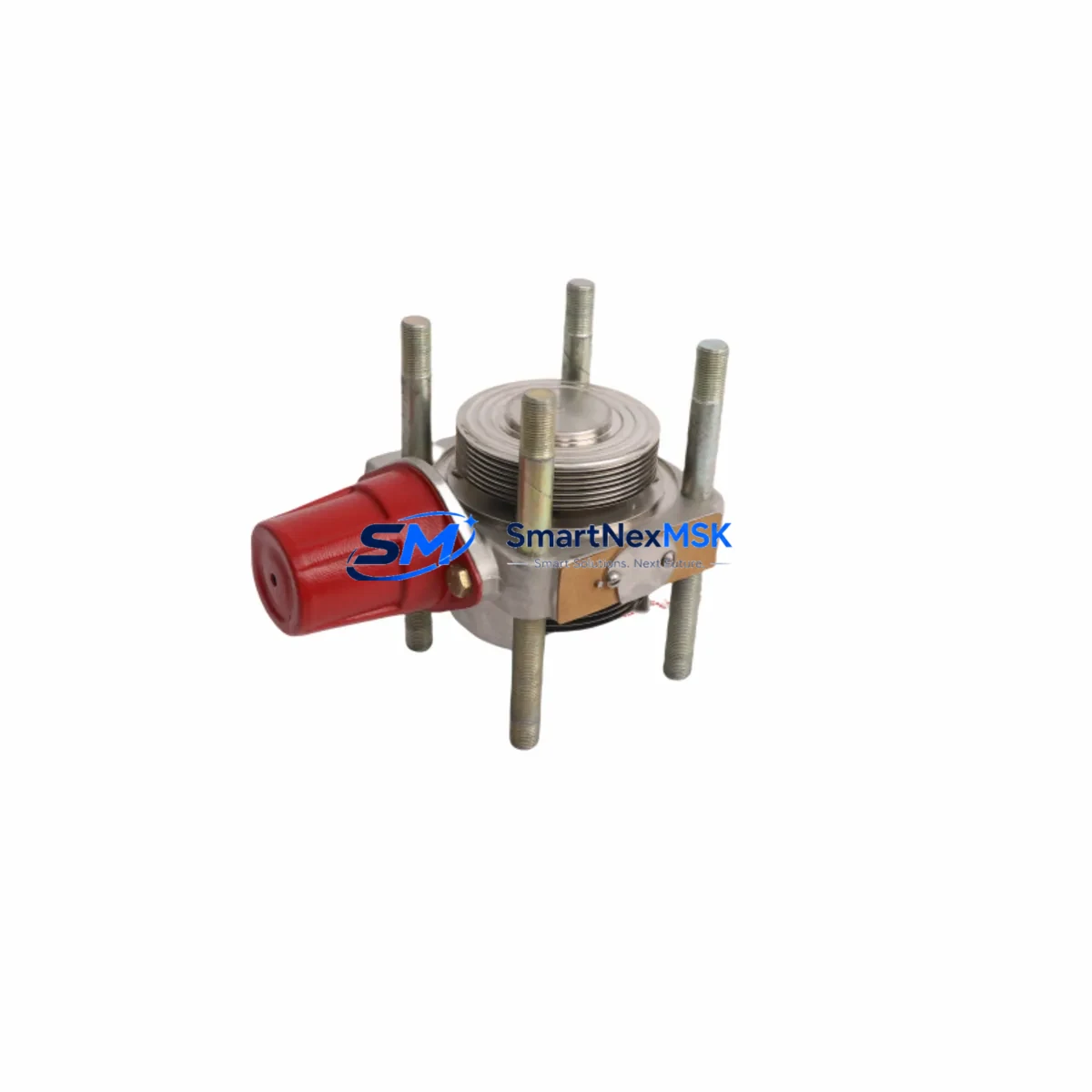

FOXBORO D0128QJ Safety-Enhanced Differential Pressure Module

FOXBORO D0128QJ Safety-Enhanced Differential Pressure Module for Harsh Industrial Control Sites

The FOXBORO D0128QJ is a ruggedized differential pressure measurement module engineered for continuous, safety-critical operation in the most demanding industrial environments. Designed as a core component within the FOXBORO I/A Series Distributed Control System (DCS), the D0128QJ delivers high-accuracy differential pressure sensing with robust immunity to electrical interference, process upsets, and harsh ambient conditions — making it a trusted choice for engineers responsible for control loop integrity, safety interlock reliability, and uninterrupted plant operation.

In high-stakes industrial facilities — including petrochemical complexes, power generation plants, metallurgical smelters, water treatment stations, and continuous mining operations — control loop failures caused by signal drift, sensor degradation, or module malfunction can trigger costly unplanned shutdowns, safety system activations, or regulatory non-compliance events. The D0128QJ addresses these risks directly through its precision diaphragm sensing assembly, stable analog output, and sealed enclosure design that resists moisture ingress, corrosive atmospheres, and vibration-induced measurement errors.

Sourced from verified supply channels, each D0128QJ unit undergoes pre-shipment functional testing to confirm output linearity, zero-point stability, and signal integrity before dispatch. Units are supplied with a 12-month warranty covering manufacturing defects and functional performance, supporting both planned maintenance cycles and emergency spare-part replacement scenarios.

Safety Reliability Table

Control Cabinet Protection Strategy

In a well-engineered industrial control cabinet, the FOXBORO D0128QJ differential pressure module operates as part of a layered protection architecture. Its stable 4–20 mA output feeds directly into the FOXBORO FCP270 Field Control Processor, which executes the control strategy and communicates process values to the operator workstation via the FOXBORO AW70 Application Workstation. This tight integration within the I/A Series platform eliminates signal conversion losses and reduces the risk of communication anomalies that can cause spurious control actions in critical loops.

To protect the D0128QJ and surrounding modules from power-line disturbances, the control cabinet should incorporate a dedicated FOXBORO I/A Series Power Supply Module (PSM) with redundant feed capability. Surge events and voltage transients — common in heavy industrial environments near large motor drives, arc furnaces, or high-voltage switchgear — can corrupt analog signal baselines and cause module resets. Pairing the D0128QJ with a FOXBORO CP60 Control Processor in a redundant configuration further ensures that a single module fault does not interrupt the control loop, maintaining process continuity during maintenance or unexpected failures.

For installations in hazardous classified areas (Zone 1 or Zone 2 per IEC 60079), the D0128QJ is typically deployed alongside FOXBORO Zener Barrier Assemblies or galvanic isolators to limit energy transfer into the hazardous zone, protecting both personnel and equipment. In high-vibration environments such as compressor skids or pump stations, the module’s sealed housing works in conjunction with vibration-dampening DIN rail mounting hardware to prevent connector fatigue and intermittent signal loss.

Communication integrity across the I/A Series fieldbus is maintained by the FOXBORO FBM (Field Bus Module) family, which handles I/O marshalling between field instruments and the control processor. When the D0128QJ is part of a safety instrumented function (SIF), it is often paired with a FOXBORO SCD5200 Safety Controller or equivalent SIL-rated logic solver to ensure that the safety loop meets IEC 61511 functional safety requirements. Proper grounding of the cabinet, use of shielded signal cables, and installation of FOXBORO I/A Series Termination Assemblies (FTA) complete the protection strategy, minimizing ground loops and common-mode noise that could otherwise degrade measurement accuracy.

Critical Industrial Safety Applications

Petrochemical & Refinery Operations: In crude distillation units, hydrotreaters, and catalytic crackers, differential pressure measurement is essential for column level inference, filter differential monitoring, and heat exchanger fouling detection. The D0128QJ provides the measurement stability required to maintain safe operating envelopes and trigger protective actions before process excursions escalate to safety system interventions.

Power Generation: Steam turbine control systems rely on accurate differential pressure measurement for steam flow calculation, condenser vacuum monitoring, and lube oil filter condition assessment. The D0128QJ’s resistance to high-temperature ambient conditions and electrical noise from large generators makes it well-suited for turbine hall control cabinets where measurement reliability directly impacts unit availability and grid stability.

Mining & Mineral Processing: Slurry pipelines, flotation cells, and thickener underflow circuits present aggressive process conditions including abrasive media, high vibration, and wide temperature swings. The D0128QJ’s ruggedized construction supports reliable differential pressure measurement in these environments, reducing the frequency of unplanned instrument replacements that disrupt continuous production.

Water & Wastewater Treatment: Municipal and industrial water treatment facilities use differential pressure measurement for filter bed monitoring, pump performance assessment, and flow metering. The D0128QJ’s long-term zero stability ensures that filter replacement decisions are based on accurate data rather than instrument drift, optimizing chemical usage and energy consumption.

Metallurgy & Steel Production: Blast furnace top pressure control, converter gas recovery systems, and rolling mill hydraulic circuits all depend on reliable differential pressure measurement. The D0128QJ’s compatibility with the FOXBORO I/A Series DCS — widely deployed in integrated steel mills — allows seamless integration into existing control architectures without requiring additional signal conditioning hardware.

Safety and Quality FAQ

Q1: What warranty coverage is provided with the FOXBORO D0128QJ?
Each D0128QJ unit is supplied with a 12-month warranty covering manufacturing defects and functional performance failures under normal operating conditions. Warranty claims are supported by our technical team, and replacement units can be dispatched from stock to minimize site downtime.

Q2: How is the D0128QJ tested before shipment?
Every unit undergoes a comprehensive pre-shipment functional test protocol that verifies output signal linearity across the measurement range, zero-point stability, and signal integrity under simulated load conditions. Test records are available upon request for quality assurance documentation purposes.

Q3: Is the D0128QJ compatible with existing FOXBORO I/A Series DCS installations?
Yes. The D0128QJ is a native I/A Series component and is fully compatible with FOXBORO FCP270, CP60, and legacy I/A Series control processors. No additional signal conditioning or protocol conversion is required for direct integration into existing I/A Series control cabinets.

Q4: Can long-term supply and spare-part support be arranged for the D0128QJ?
We maintain standing inventory of the D0128QJ and related I/A Series components to support both planned maintenance schedules and emergency replacement requirements. Long-term supply agreements and priority allocation arrangements are available for facilities with critical spare-part management programs. Contact our sales team to discuss your specific inventory and lead-time requirements.
