FOXBORO FBM203 P0914SV Maintenance-Ready Spare I/A Series

FOXBORO FBM203 P0914SV Maintenance-Ready Spare for I/A Series Automation

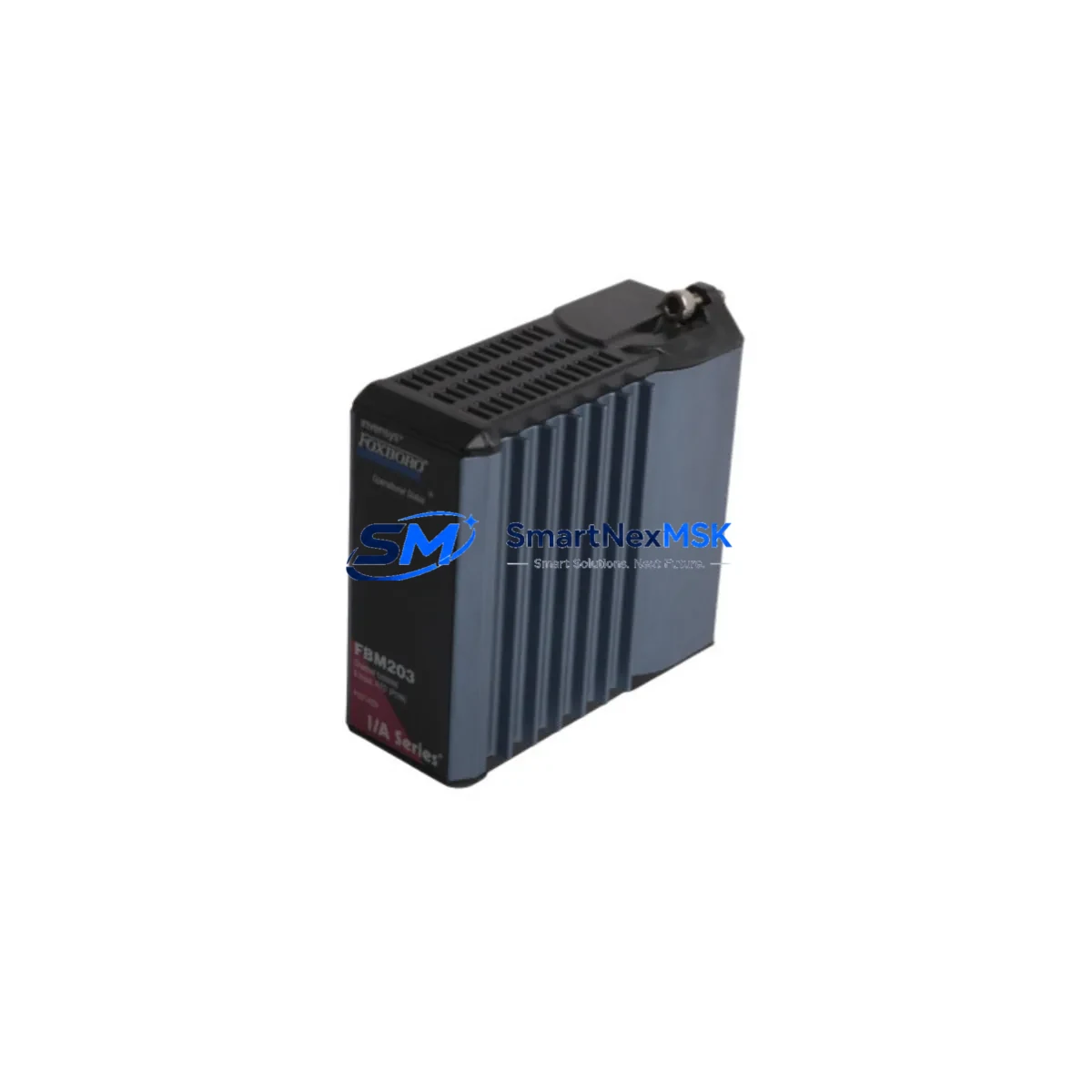

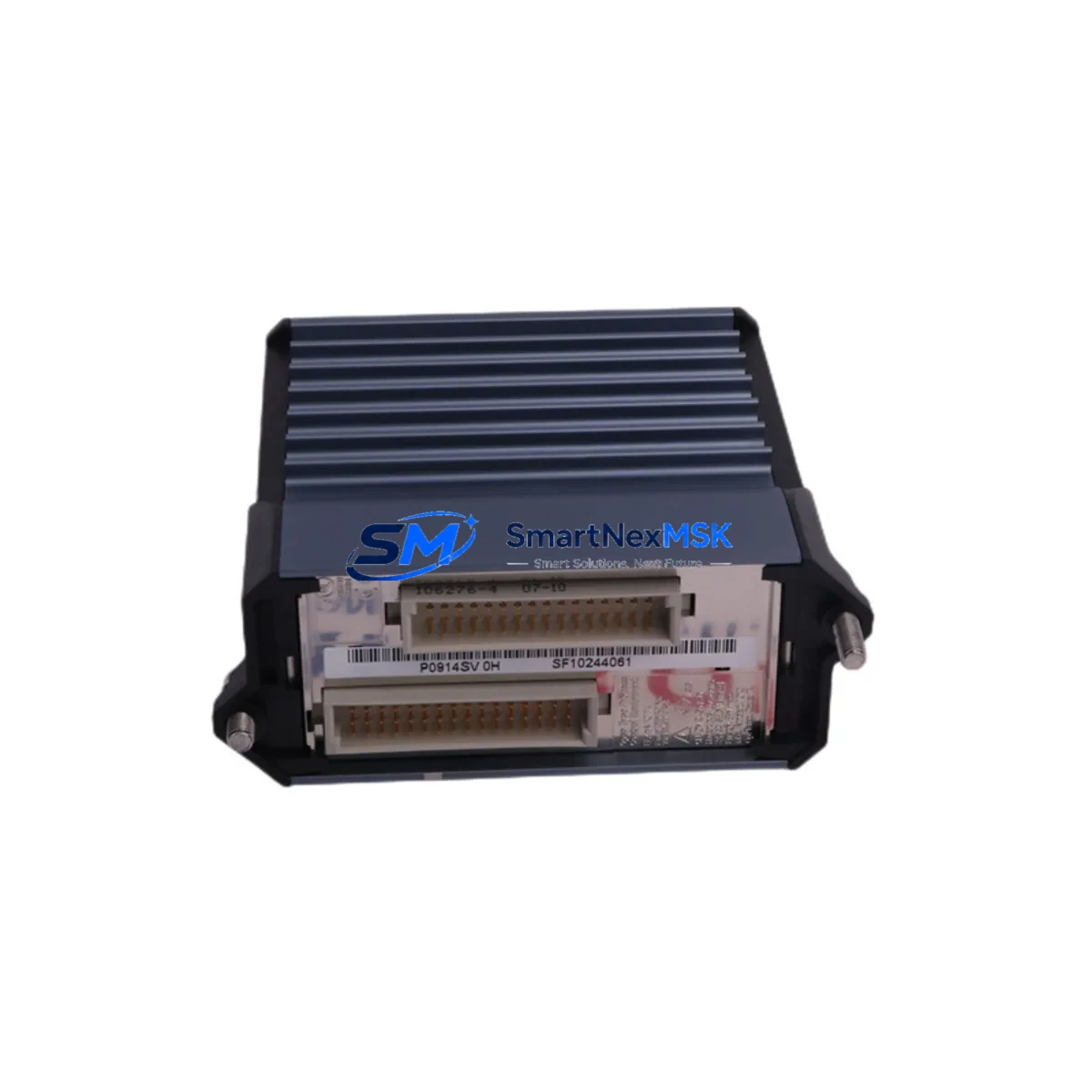

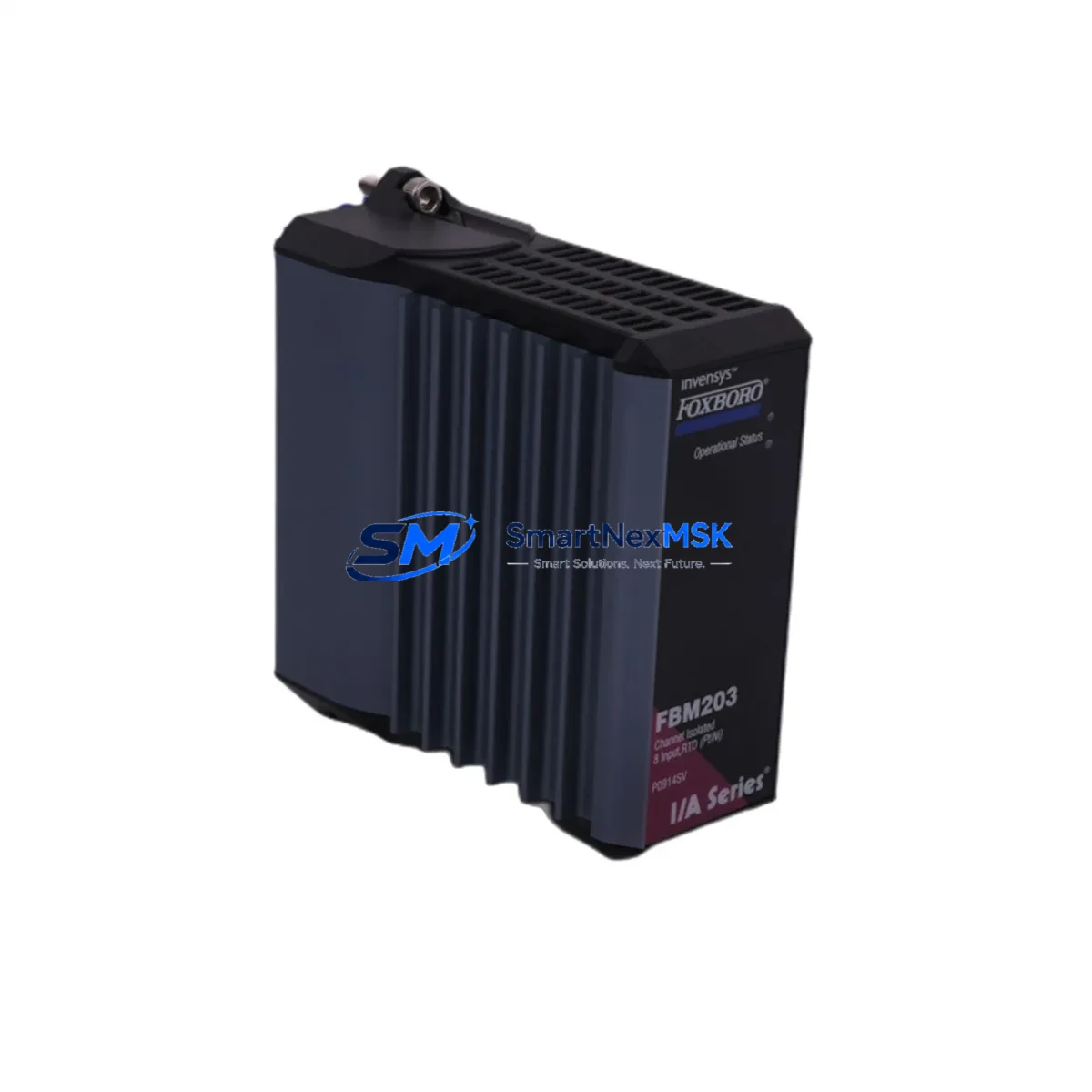

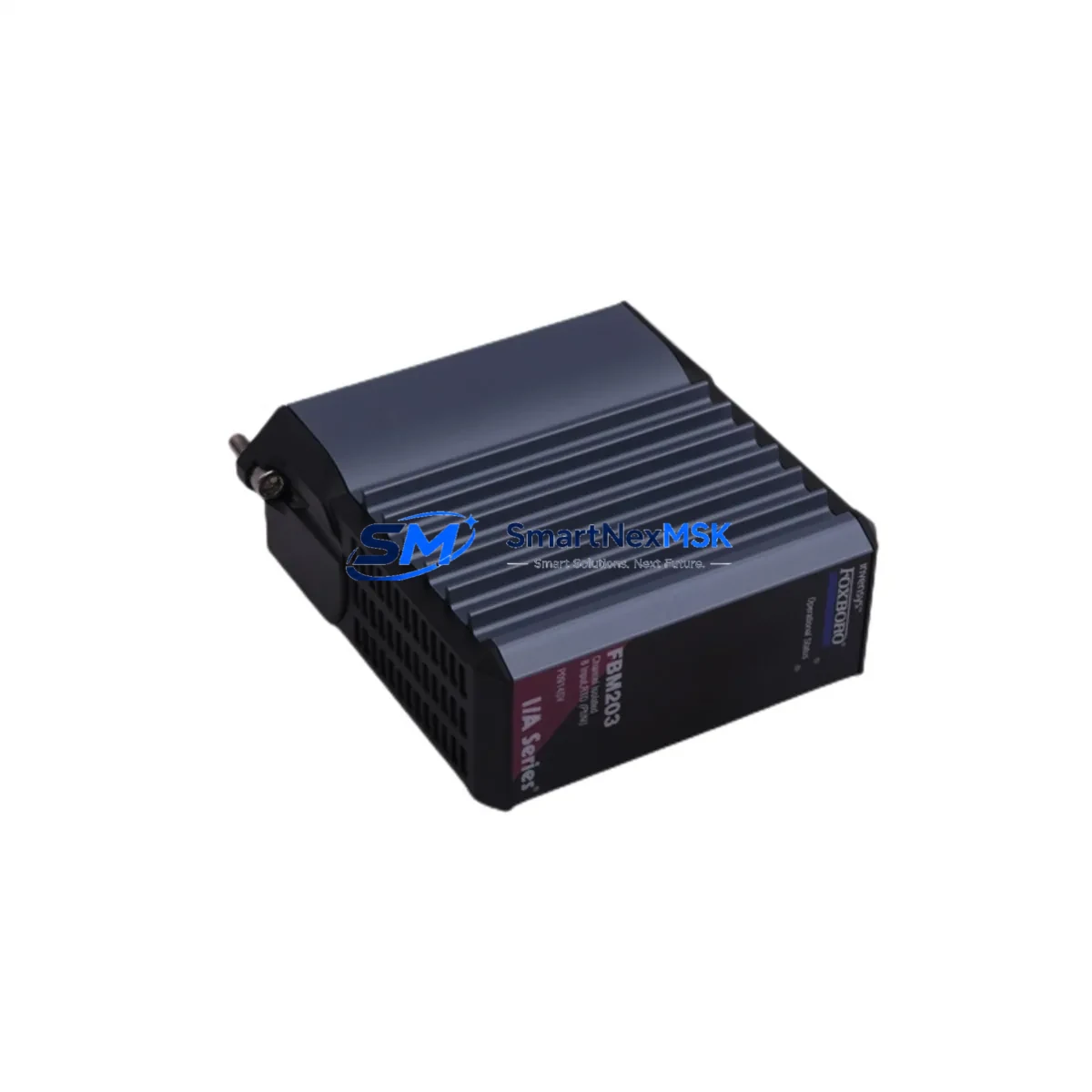

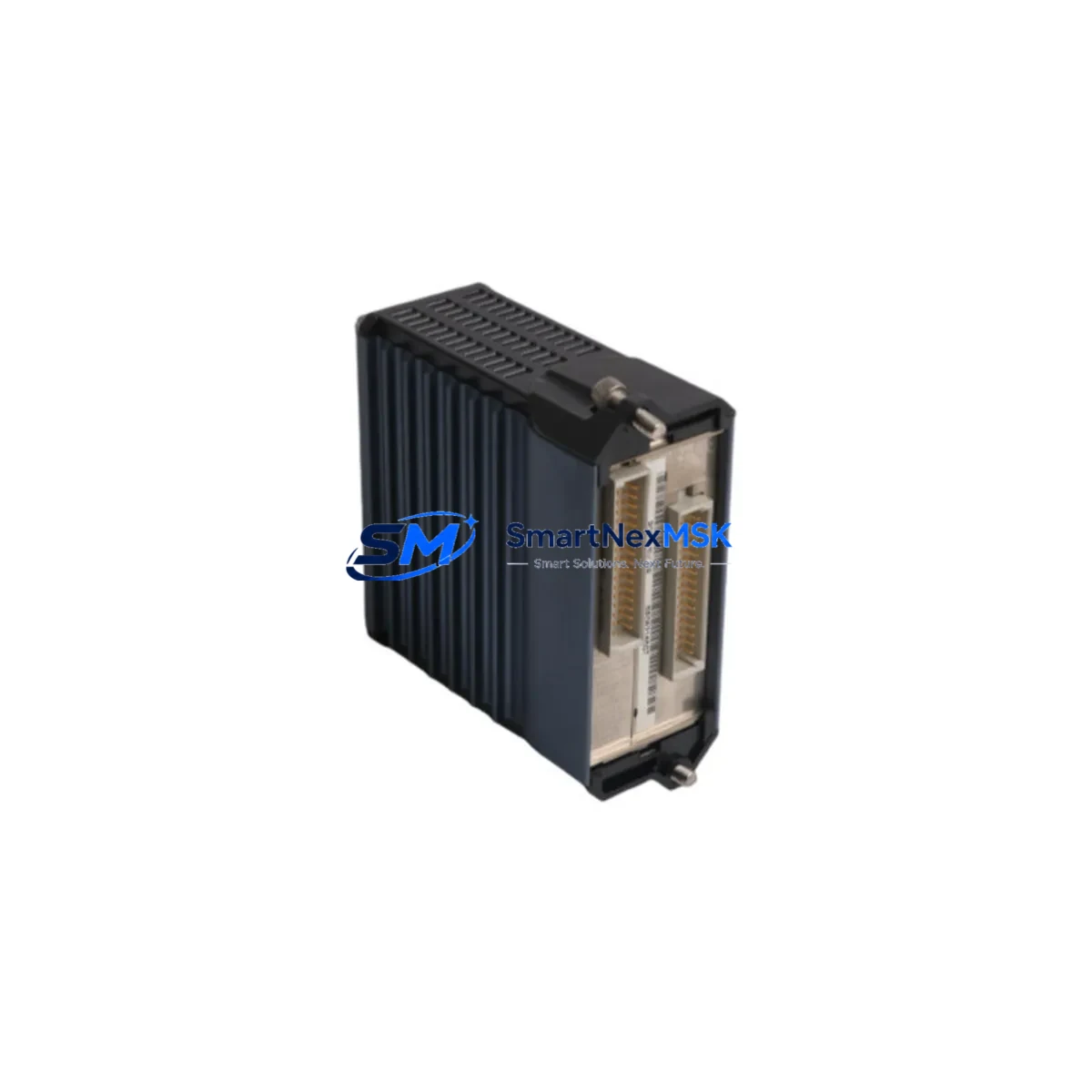

The FOXBORO FBM203 P0914SV is an original 8-channel isolated RTD input module designed for the Foxboro I/A Series Distributed Control System (DCS). As a critical field bus module (FBM) in process automation environments — including oil & gas, chemical, power generation, and pulp & paper — this module handles precision temperature measurement from RTD sensors across multiple process loops. When this module fails or degrades, the consequences extend beyond a single loop: entire process trains can go offline, triggering unplanned shutdowns and costly production losses.

Sourced as an original spare, the FBM203 P0914SV is tested prior to shipment and backed by a 12-month warranty, giving maintenance engineers and procurement teams the confidence to stock it as a ready-to-deploy replacement. Whether you are managing a planned turnaround, responding to an emergency fault, or building a resilient spare parts inventory for aging I/A Series infrastructure, this module ships promptly to minimize your downtime window.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a maintenance or reliability engineer identifies a fault on the FBM203 P0914SV, the replacement workflow rarely ends with the module itself. A thorough site inspection should cover the entire signal chain and power distribution path to prevent repeat failures and ensure the replacement module operates within specification from day one.

Begin with the FBM enclosure baseplate and backplane connectors — corrosion, bent pins, or loose seating are common root causes of module faults that are misdiagnosed as module failures. Inspect the Nodebus termination resistors and Nodebus cables connecting the FBM enclosure to the I/A Series workstation or controller; a degraded Nodebus segment can cause intermittent communication errors that appear as module faults in the DCS alarm log.

On the power side, verify the 24 VDC power supply module feeding the FBM enclosure — voltage sag or ripple will cause RTD measurement drift and module resets. If the enclosure uses a redundant power feed, test both supply paths independently. Check the field terminal assemblies (FTAs) associated with this FBM, particularly the RTD wiring terminations: loose or oxidized connections on the FTA introduce resistance errors that corrupt temperature readings before the signal even reaches the FBM203.

For the RTD field wiring itself, inspect the shielded twisted-pair cables running from the field junction boxes to the FTA. Damaged insulation, ground loops, or missing shield terminations are frequent causes of noise on RTD channels. If the process area uses signal isolators or RTD transmitters upstream of the FBM, verify their calibration and output range match the FBM203 input configuration.

In control cabinets housing I/A Series infrastructure, also inspect fuse blocks and circuit protection for the FBM power rails, DIN rail terminal blocks for continuity and torque, and any surge protection devices on field signal entries. For sites running extended I/A Series installations, the CP60 or CP30 controller modules and associated Nodebus interface cards should be included in the periodic inspection cycle alongside FBM replacements — a controller nearing end-of-life will generate false FBM fault alarms that waste maintenance resources.

Stocking the FBM203 P0914SV alongside complementary spares — such as the FBM201 (analog input), FBM204 (thermocouple input), and FBM207 (analog output) — creates a balanced FBM spare kit that covers the most common I/A Series field I/O failure modes without over-investing in single-module redundancy.

Site Replacement Workflow

Step 1 — Fault Confirmation: Use the I/A Series System Manager or AIM historian to confirm the FBM203 fault code. Distinguish between a hardware fault (module LED status) and a communication fault (Nodebus segment issue) before pulling the module.

Step 2 — Safe Isolation: Place affected control loops in manual mode at the DCS workstation. Notify the process operator and document the loop numbers associated with the 8 RTD channels on this FBM. Do not remove the module under live Nodebus traffic without proper isolation — this can cause a Nodebus segment reset affecting adjacent FBMs.

Step 3 — Module Removal: Release the FBM203 from the baseplate locking mechanism. Note the slot address — the replacement module must be installed in the same physical slot to retain its configured Nodebus address without requiring a full re-download.

Step 4 — Replacement Installation: Insert the new FBM203 P0914SV into the same slot. The I/A Series DCS will automatically recognize the module and download its configuration from the controller database, provided the slot address and module type match. Verify the module LED sequence indicates successful initialization.

Step 5 — Loop Verification: Return each RTD loop to automatic mode one at a time. Verify process variable readings against field reference thermometers or portable RTD calibrators. Check DCS alarm logs for any residual fault codes on the Nodebus segment.

Step 6 — Documentation: Record the replacement in the site CMMS (Computerized Maintenance Management System), including the old module serial number, fault code, replacement date, and post-replacement verification results. Update the spare parts inventory to trigger reorder of the consumed FBM203 unit.

Spare Parts Support FAQ

Q1: Is the FBM203 P0914SV compatible with all I/A Series DCS generations?
The FBM203 P0914SV is designed for the Foxboro I/A Series DCS platform and is compatible with standard FBM enclosures and Nodebus infrastructure used across multiple I/A Series generations. Compatibility with specific controller revisions or software versions should be verified against your site’s I/A Series system documentation or confirmed with your DCS support team prior to installation.

Q2: How is the module tested before shipment?
Each FBM203 P0914SV unit undergoes functional verification prior to dispatch, including power-on self-test and communication interface checks. Units are inspected for physical condition, connector integrity, and firmware version. A 12-month warranty covers defects in materials and workmanship from the date of shipment.

Q3: Can this module replace an older FBM203 variant with a different suffix?
The P0914SV suffix designates a specific hardware revision of the FBM203. In many cases, later revisions are backward-compatible with earlier baseplate slots and Nodebus configurations, but suffix-to-suffix compatibility should be confirmed against the Foxboro I/A Series hardware compatibility matrix for your specific system revision. Contact our technical team with your existing module suffix for a compatibility assessment before ordering.

Q4: What is the recommended spare parts stocking strategy for I/A Series FBMs?
For critical process applications, a minimum of one spare FBM per module type per DCS cabinet is recommended. For high-density RTD measurement applications — such as heat exchanger trains or fired heater tube skin temperature monitoring — stocking two FBM203 units per site is advisable. Pairing the FBM203 with spares for the FBM204 (thermocouple input) and FBM201 (analog input) covers the majority of I/A Series field I/O failure scenarios and supports a rapid-response maintenance posture without excessive inventory carrying costs.
