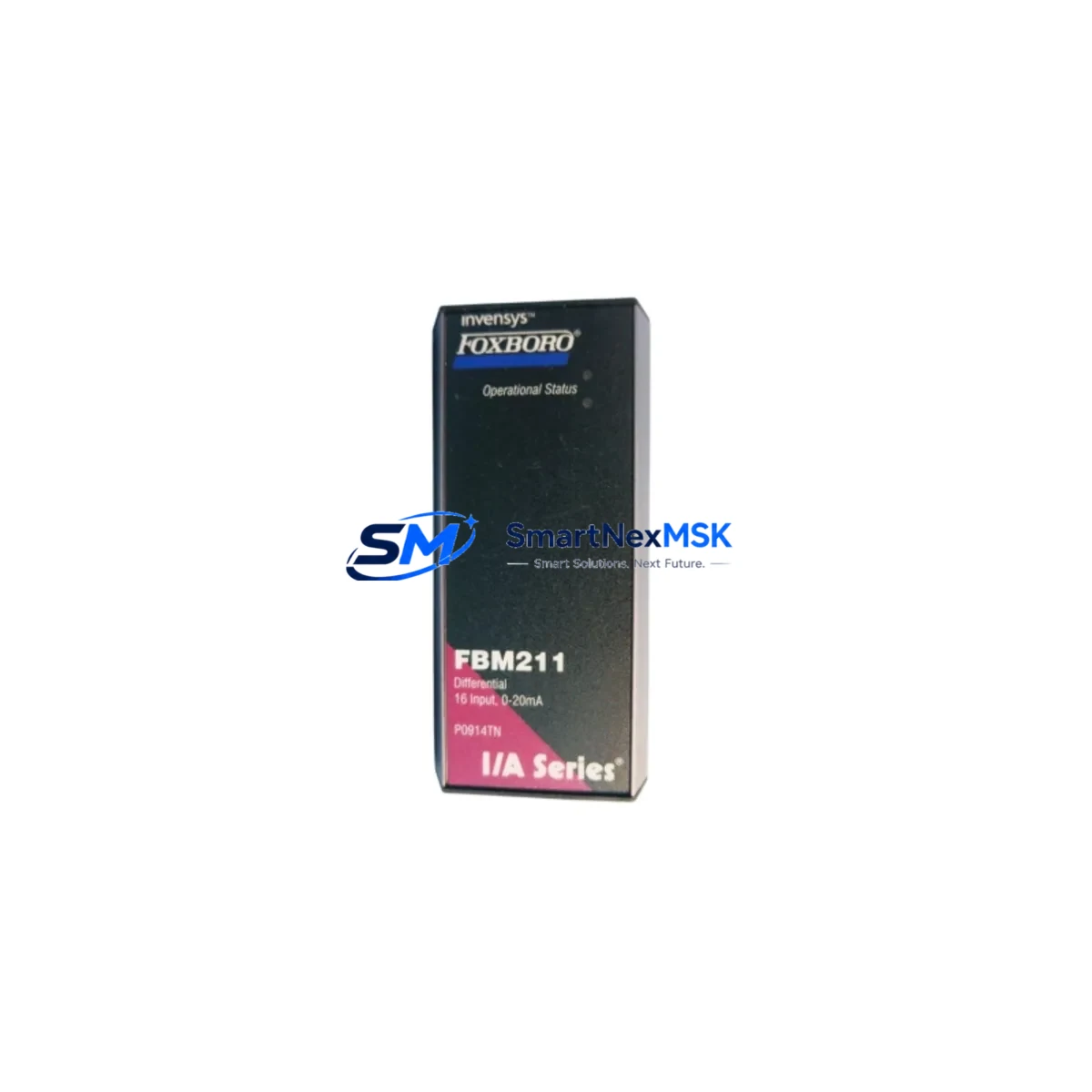

Foxboro FBM211-P0914TN Retrofit-Ready Analog Input for IA Series Control Systems
The Foxboro FBM211-P0914TN is a 16-channel differential analog input module engineered for the Foxboro IA Series Distributed Control System (DCS). As legacy Foxboro I/A Series installations approach end-of-life or require capacity expansion, the FBM211-P0914TN serves as a proven, drop-in retrofit solution that preserves existing control logic, field wiring, and HMI configurations while delivering reliable signal acquisition for process-critical applications in oil & gas, chemical, power generation, and pulp & paper industries.
SMARTNEXMSK maintains verified stock of the FBM211-P0914TN with full functional testing prior to shipment. Each unit undergoes bench-level I/O verification, communication link validation, and backplane interface checks before dispatch. A 12-month warranty is included on every unit, covering manufacturing defects and module-level failures under normal operating conditions.
Upgrade Compatibility Table
| Parameter | FBM211-P0914TN Specification | Retrofit Notes |
|---|---|---|
| Module Type | 16-Ch Differential Analog Input | Direct replacement for FBM211 variants in IA Series racks |
| Signal Range | 4–20 mA / 1–5 V (configurable) | Verify field transmitter output type before swap |
| Backplane Interface | Foxboro IA Series FBM Baseplate | Compatible with CP60, CP270, CP40B controller baseplates |
| Communication Protocol | Nodebus / Fieldbus (FOUNDATION) | Confirm Nodebus segment address; no re-addressing required for like-for-like swap |
| Power Consumption | Supplied via backplane (no external PSU) | Verify rack power budget; check FPS (Field Power Supply) capacity if adding modules |
| Terminal Wiring | Screw-terminal field termination assembly (FTA) | Retain existing FTA; no re-wiring required for direct replacement |
| Module Address | Set via ICC (Integrated Control Configurator) | Assign same letterbug as removed module to preserve ICC database integrity |
| HMI Compatibility | FoxView, FoxDraw, Wonderware, iFIX | No HMI screen changes required for like-for-like replacement |
| Replacement Scope | FBM211, FBM211A, P0914TN variants | Cross-reference P0914TN part number before ordering |
| Warranty | 12-Month Warranty | Covers module-level defects; includes pre-shipment functional test report |
Retrofit Planning for Existing Automation Systems
Replacing or expanding analog input capacity in a Foxboro IA Series system requires careful pre-engineering to avoid unplanned downtime. The FBM211-P0914TN slots into the same FBM baseplate position as the original module, but engineers should complete a full compatibility audit before the maintenance window opens.
Power Budget Verification: Before installing additional FBM211-P0914TN modules in an existing rack, confirm the available power headroom on the rack’s Field Power Supply (FPS). Foxboro FPS units such as the P0922VW power supply module have defined current limits per rack segment. Adding analog input modules without verifying the power budget can cause intermittent module faults or rack resets. If the existing FPS is at capacity, a supplemental power module or rack expansion using a Foxboro FBM Baseplate Extension may be required.
Terminal and FTA Wiring: The FBM211-P0914TN uses a dedicated Field Termination Assembly (FTA) that connects field instrument cables to the module via a pre-wired harness. In most retrofit scenarios, the existing FTA remains in place and only the FBM module is swapped. Engineers should inspect FTA terminal screws for corrosion and verify shield grounding continuity before re-energizing. If the FTA itself is damaged or obsolete, a replacement Foxboro FTA termination assembly compatible with the FBM211 footprint must be sourced concurrently.
Backplane and Rack Compatibility: The FBM211-P0914TN is designed for Foxboro IA Series FBM baseplates. Installations using older Foxboro SPEC 200 or Fox1 racks are not directly compatible and require a full rack migration to the IA Series platform. For sites running mixed IA Series generations, confirm the baseplate revision supports the FBM211 module generation. The CP270 controller and CP60 controller are the most common host controllers encountered in active IA Series installations and are fully compatible with the FBM211-P0914TN.
Communication and Nodebus Configuration: The FBM211-P0914TN communicates over the Foxboro Nodebus. During replacement, the letterbug (module address) must be set to match the removed module’s ICC database entry. Failure to assign the correct letterbug will cause the CP270 or CP40B controller to report a module mismatch alarm and suspend I/O scanning for that channel group. No changes to the ICC control database or compound/block structure are required for a like-for-like swap.
Program and Logic Compatibility: Control strategies built in the Foxboro ICC using CALCA, PID, DEVCTL, or MEALC blocks referencing FBM211 channel parameters remain fully valid after module replacement. Engineers should export a current ICC database backup before the swap and verify block parameter integrity post-installation using the Foxboro AIM*AT diagnostic tool or equivalent. If the site is migrating from an older FBM04 or FBM14 analog input module to the FBM211-P0914TN, a channel re-mapping exercise in ICC will be required to align signal scaling and engineering unit conversion.
HMI and Display Validation: Sites running FoxView or third-party SCADA platforms such as Wonderware InTouch or iFIX connected to the Foxboro IA Series via OPC DA/UA will not require HMI display changes for a like-for-like FBM211 replacement. Process variable tags, alarm limits, and trend historian links remain intact. For sites upgrading from a different FBM type, verify that the OPC server tag database reflects the new module’s channel count and signal type.
Downtime Control During System Migration
Minimizing production downtime during an FBM211-P0914TN swap requires a structured hot-swap or cold-swap procedure depending on the site’s safety classification and process criticality.
Pre-Swap Preparation: Before the maintenance window, place all affected PID loops in manual mode at the CP270 or CP60 controller level. Document current process variable readings, output values, and alarm states. Export the ICC compound database and create a timestamped backup. Confirm that the replacement FBM211-P0914TN has been bench-tested and that the letterbug is pre-configured to match the outgoing module.
Module Swap Sequence: Power down the affected rack segment if a cold swap is required, or follow Foxboro’s hot-swap procedure if the baseplate supports live insertion. Remove the failed or obsolete FBM211 module, inspect the backplane connector for damage, and seat the replacement unit firmly. The CP270 controller will automatically detect the new module and resume I/O scanning within seconds of recognition. Verify the module status LED sequence: a steady green indicates normal operation; a flashing amber indicates a configuration mismatch requiring letterbug verification.
Post-Swap Verification: After module insertion, use the Foxboro AIM*AT or Process Operations Display to confirm all 16 analog input channels are reading correctly. Return PID loops to automatic mode sequentially, monitoring process response for each loop. Document the completed swap in the site’s maintenance management system and retain the pre-shipment test report supplied with the FBM211-P0914TN for audit purposes.
Spare Parts Strategy: To further reduce future downtime risk, sites should maintain at least one spare FBM211-P0914TN in the local instrument store. SMARTNEXMSK can supply multiple units from verified stock with short lead times, supporting both emergency replacement and planned maintenance programs.
Retrofit Support FAQ
Q1: Is the FBM211-P0914TN a direct replacement for all FBM211 variants?
The P0914TN part number designates the standard 16-channel differential analog input configuration for the Foxboro IA Series. It is a direct replacement for FBM211 and FBM211A modules installed in compatible IA Series baseplates. Always cross-reference the full part number on the module nameplate before ordering to confirm the variant match.
Q2: What pre-shipment testing is performed on each unit?
Every FBM211-P0914TN shipped by SMARTNEXMSK undergoes functional I/O channel verification, backplane connector inspection, communication link validation, and power-on self-test confirmation. A test report is available upon request. All units are covered by a 12-month warranty from the date of shipment.
Q3: Do I need to re-wire the field termination assembly when replacing the FBM211?
For a like-for-like FBM211-P0914TN replacement, the existing FTA remains in place and no field re-wiring is required. The FBM module disconnects from the FTA via the backplane harness. Only if the FTA itself is damaged or incompatible will additional wiring work be necessary.
Q4: Can the FBM211-P0914TN be used in a system running FOUNDATION Fieldbus instruments?
The FBM211-P0914TN is a conventional analog input module (4–20 mA / 1–5 V) and does not natively support FOUNDATION Fieldbus H1 device communication. For FOUNDATION Fieldbus integration within the Foxboro IA Series, a dedicated Fieldbus Interface Module (FIM) such as the Foxboro FBM220 or FBM221 is required. The FBM211-P0914TN is best suited for conventional 4–20 mA transmitter inputs in process measurement loops.
