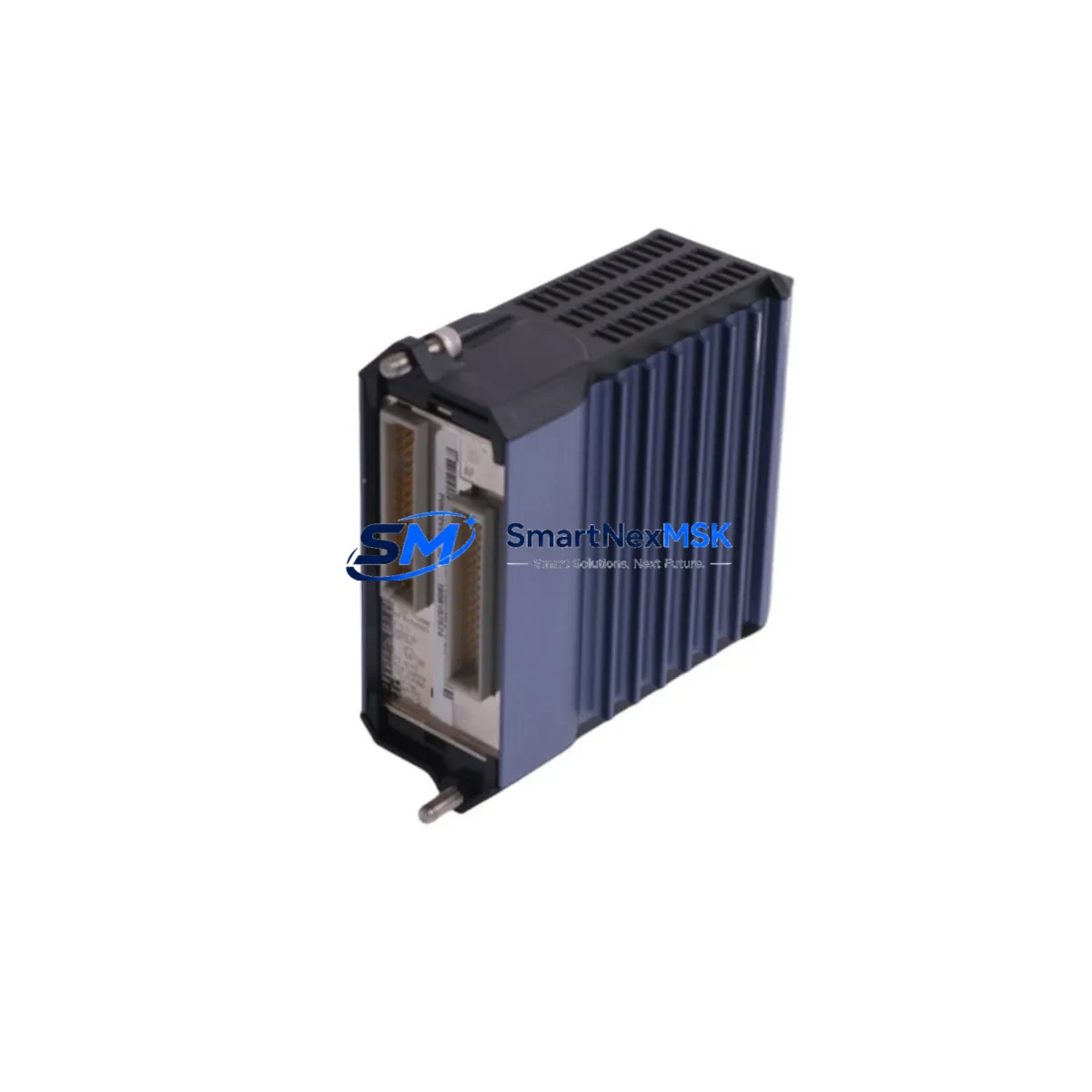

The Foxboro FBM228 P0922QS is an original Foundation Fieldbus H1 I/O module from the FBM Series (Fieldbus Module Series), designed for use in Foxboro I/A Series and Foxboro Evo DCS platforms. As a maintenance-ready spare, this module supports rapid field replacement to minimize unplanned downtime in continuous process environments including oil & gas, petrochemical, power generation, and chemical manufacturing. Each unit is sourced as an original Foxboro component, inspected prior to dispatch, and backed by a 12-month warranty.

For maintenance engineers managing aging DCS infrastructure, the FBM228 P0922QS represents a critical line item in any spare parts strategy. Foundation Fieldbus H1 I/O modules are among the most failure-sensitive components in a distributed control architecture — their failure can isolate entire field device segments, triggering process shutdowns. Keeping a verified spare on the shelf is the most effective insurance against extended outages.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the FBM228 P0922QS in a live DCS cabinet, a disciplined maintenance engineer will not stop at the module itself. The Foundation Fieldbus H1 architecture involves a tightly coupled chain of components — a fault in any one of them can mimic or compound an FBM228 failure. The following components should be inspected or tested as part of the same maintenance window:

• Fieldbus Power Supply (FPS) Module — The FPS module powering the H1 segment must be verified for correct output voltage (typically 24–32 VDC on the segment). A degraded FPS is a common root cause of intermittent FBM228 communication faults. Foxboro FPS modules such as the P0926GU or equivalent should be on the spare parts list alongside the FBM228.
• FBM Baseplate / Backplane — Inspect the baseplate connector pins for corrosion or mechanical damage. A faulty backplane connection can cause the replacement FBM228 to report the same fault as the failed unit.
• Fieldbus Segment Terminator — Each FF-H1 segment requires exactly two terminators. Verify that both are present and functional. Missing or double-terminated segments cause signal reflection and communication errors that can be misdiagnosed as module failure.
• FF-H1 Field Device Wiring and Junction Boxes — Inspect segment trunk cables and spur connections for insulation breakdown, moisture ingress, or loose terminals. Segment impedance should be measured before commissioning the replacement FBM228.
• I/A Series Control Processor (CP) — Confirm that the CP module (e.g., CP60 or CP270) has re-established communication with the new FBM228 after replacement. A CP firmware mismatch can prevent module recognition.
• FBM Enclosure Power Distribution — Check the 24 VDC bus fuses and terminal blocks within the FBM enclosure. Blown fuses on the power rail are a frequent secondary finding during FBM228 replacement events.
• Intrinsic Safety Barriers or Galvanic Isolators — If the H1 segment connects to hazardous area field devices via IS barriers (e.g., Pepperl+Fuchs or MTL signal isolators), inspect these for thermal damage or parameter drift, as they directly affect segment signal quality.
• DCS Configuration Backup — Before removing the FBM228, ensure the current I/A Series database configuration is backed up. Re-download the module configuration from the CP after installing the replacement to restore all block parameters.
• Fiber Optic or Ethernet Communication Modules — In larger I/A Series cabinets, verify that associated FBM207 or FBM214 communication modules remain online during the swap to avoid cascading alarms on adjacent control loops.
• HMI Alarm Acknowledgment — Coordinate with the control room operator to suppress or acknowledge FF-H1 segment alarms on the Foxboro Evo or SCADA HMI during replacement to prevent spurious interlock activation.

Procurement engineers should note that the FBM228 P0922QS has a long lead time from OEM channels due to the legacy status of the I/A Series platform. Maintaining at least one verified spare per active H1 segment is the recommended inventory posture for facilities with more than 10 FF-H1 segments in service.

Site Replacement Workflow

The FBM228 P0922QS is a hot-swap-capable module within the Foxboro I/A Series architecture, but field replacement should follow a structured procedure to avoid process disruption:

1. Pre-replacement verification: Confirm the fault is isolated to the FBM228 by checking CP diagnostic displays and FF-H1 segment status in the DCS. Rule out FPS failure and wiring faults before pulling the module.
2. Configuration export: Export the current FBM228 block configuration from the I/A Series Integrated Control Configurator (ICC) or equivalent tool. This ensures all function block parameters, device tags, and scaling values are preserved for re-download.
3. Module removal: With the segment in a safe state (field devices in manual or hold), remove the FBM228 from the baseplate. Inspect the backplane connector for damage before inserting the replacement P0922QS unit.
4. Replacement insertion and recognition: Insert the new FBM228 P0922QS. The CP should auto-detect the module within 30–60 seconds. If recognition fails, perform a CP soft reset and re-check baseplate seating.
5. Configuration download: Re-download the saved block configuration to the new module. Verify all FF-H1 field devices re-establish communication and that process values are within expected range before returning loops to automatic control.
6. Post-replacement documentation: Record the replacement in the site maintenance log, including the old module serial number, replacement date, and post-swap test results. Update the spare parts inventory to trigger reorder of a replacement FBM228 P0922QS.

This workflow is compatible with both planned maintenance windows and emergency unplanned replacement scenarios. The FBM228 P0922QS supplied by SMARTNEXMSK is tested and configured-ready, reducing commissioning time on site.

Spare Parts Support FAQ

Q1: Is the FBM228 P0922QS compatible with both Foxboro I/A Series and Foxboro Evo DCS platforms?
Yes. The FBM228 P0922QS is compatible with Foxboro I/A Series DCS and is also supported in Foxboro Evo environments that retain the I/A Series FBM backplane architecture. Compatibility should be confirmed against your specific CP firmware version and system configuration before installation.

Q2: What is the warranty coverage and how is it validated?
All FBM228 P0922QS units supplied by SMARTNEXMSK carry a 12-month warranty from the date of shipment. Each unit undergoes functional testing prior to dispatch. Warranty claims are supported by our technical team with replacement or repair at no additional cost within the warranty period.

Q3: How quickly can the FBM228 P0922QS be shipped for emergency breakdown situations?
We maintain stock of the FBM228 P0922QS for priority dispatch. Emergency orders are processed same-day where stock is confirmed. Contact our sales team at sales@smartnexmsk.com or +86 18259474341 to confirm availability and arrange expedited freight.

Q4: Can the FBM228 P0922QS replace older or discontinued Foxboro FBM228 variants?
The P0922QS is the current production part number for the FBM228 module. It is designed as a direct replacement for earlier FBM228 variants used in I/A Series installations. Minor firmware differences between module generations are resolved through the standard CP configuration download procedure. Our technical team can advise on cross-compatibility for specific legacy system configurations.
