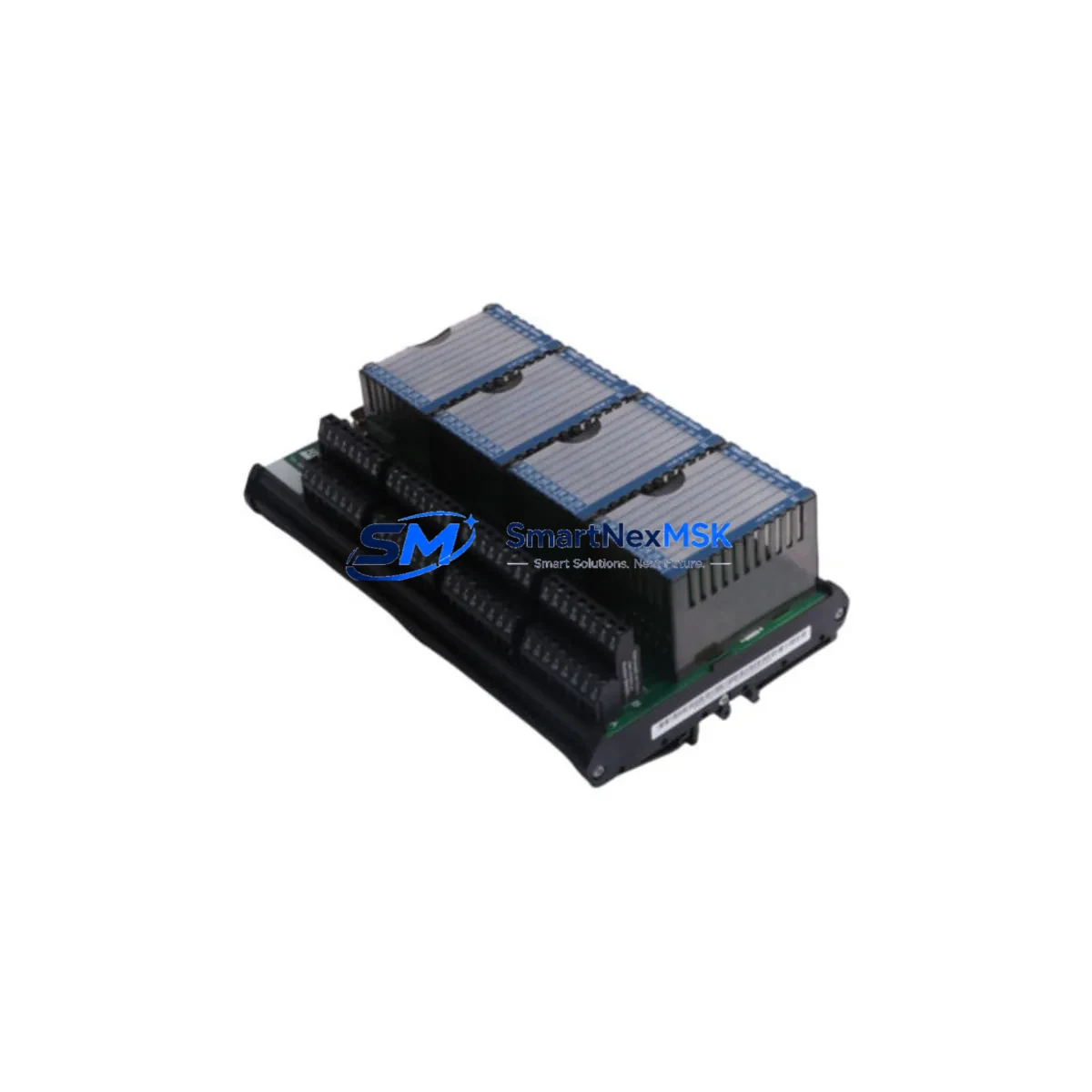

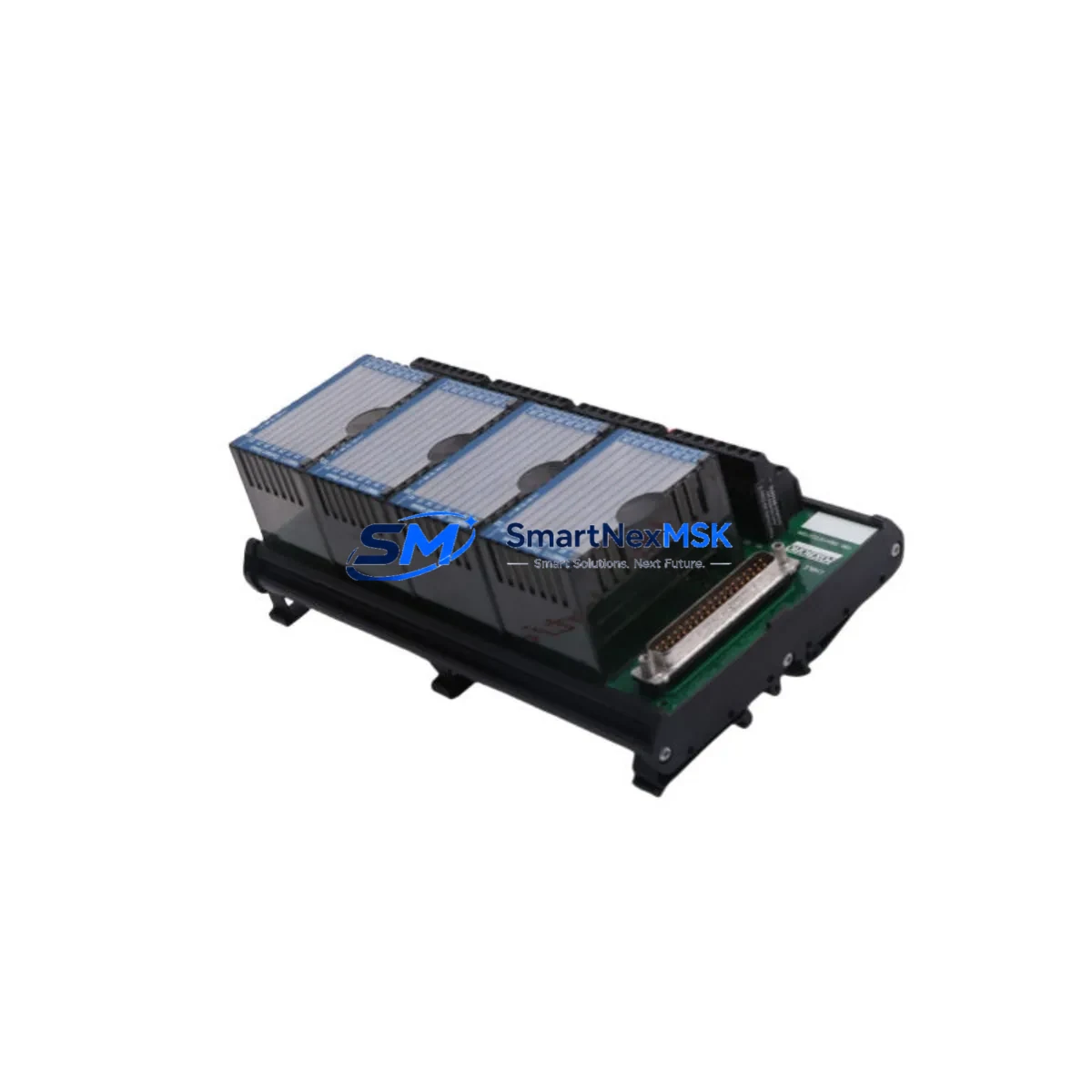

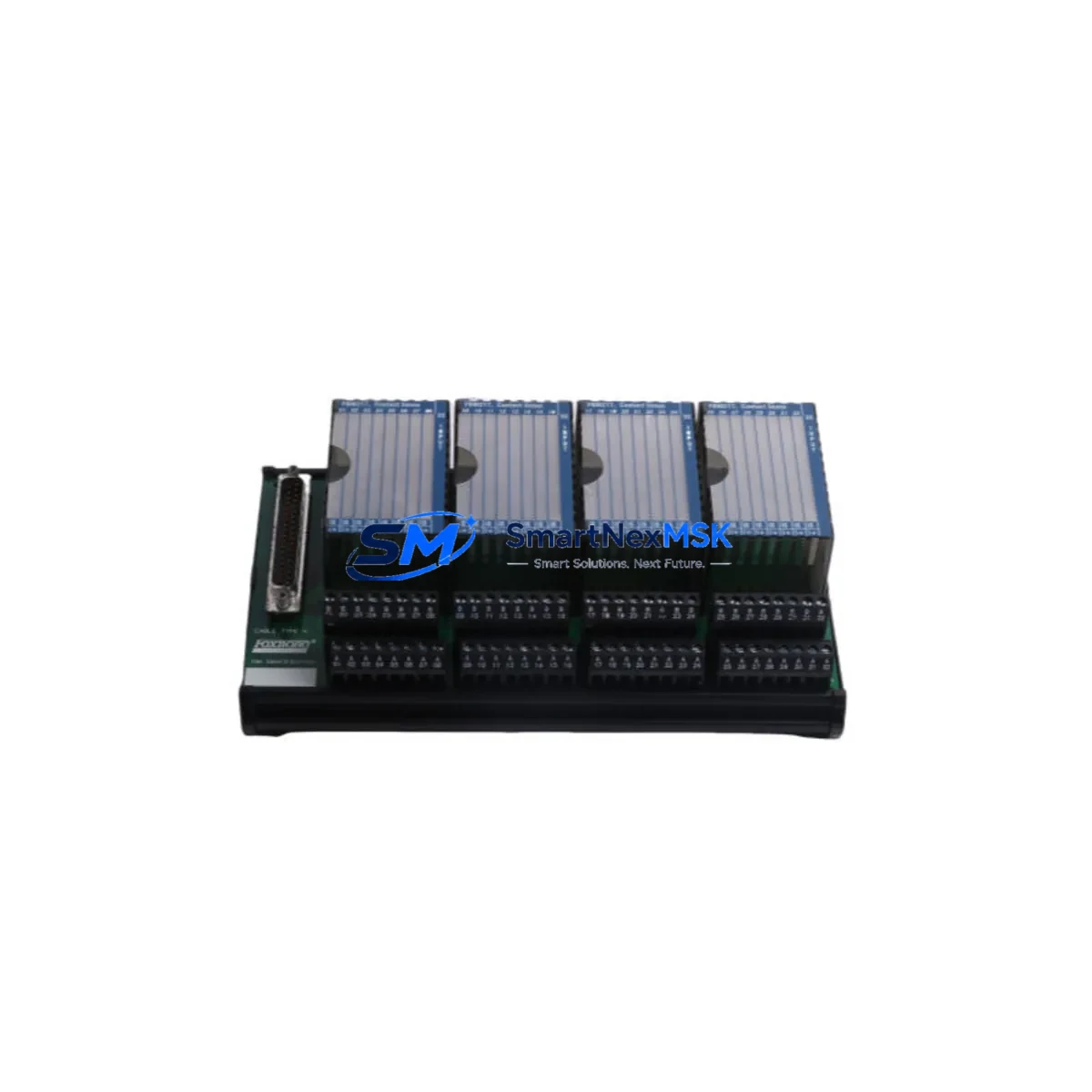

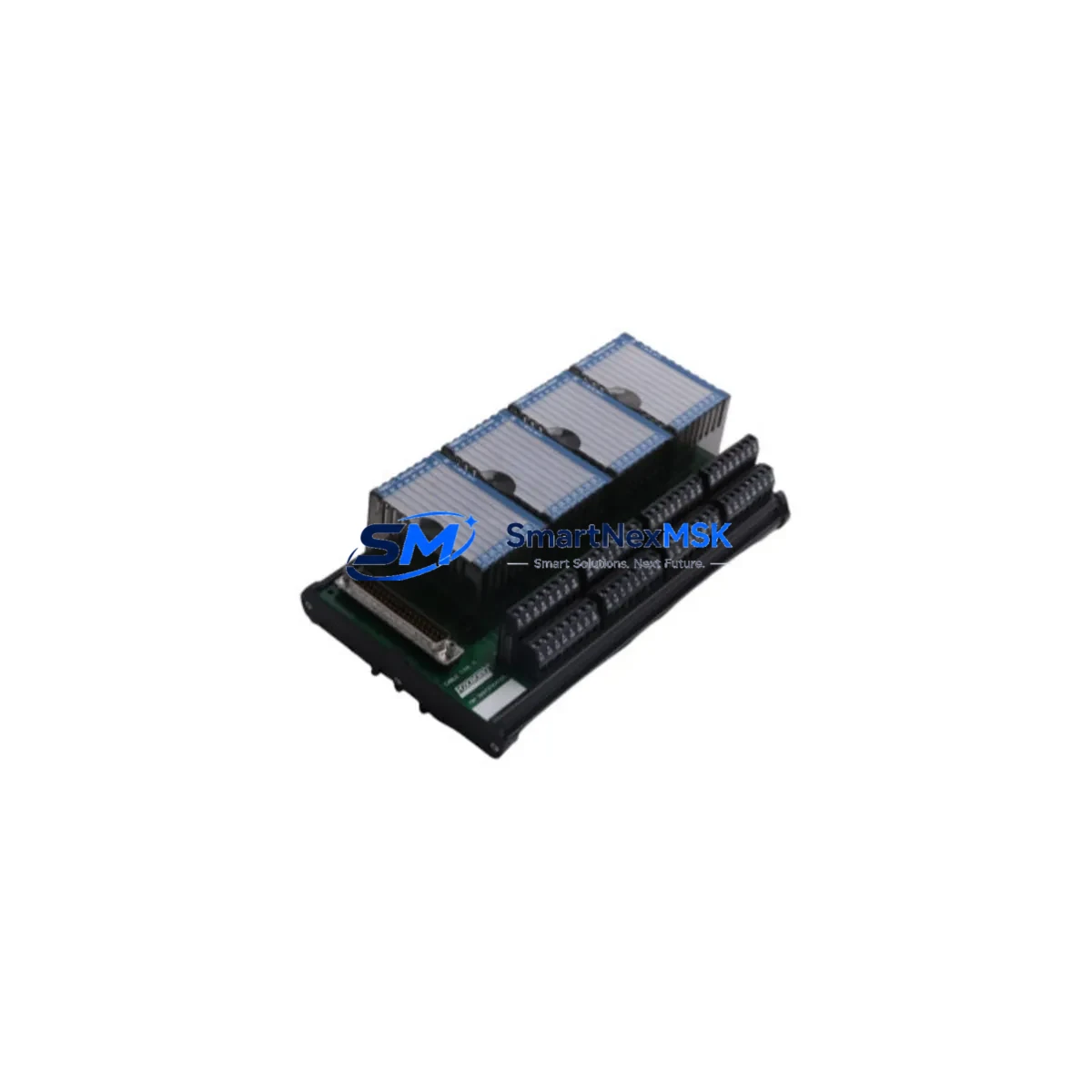

The Foxboro P0916PW0C is a Field Wiring Termination Assembly designed for use within the Foxboro I/A Series Distributed Control System (DCS) — one of the most widely deployed process automation platforms in refining, petrochemical, power generation, and continuous manufacturing environments. As a critical interface component between field instrumentation and the I/A Series I/O subsystem, the P0916PW0C provides the structured wiring termination points that connect field signals to the control system’s input/output modules. When this assembly fails or degrades, the result is signal loss, erratic process readings, or complete I/O channel dropout — all of which carry significant unplanned downtime risk.

Sourced as an original spare and fully tested prior to shipment, this unit is stocked to support maintenance engineers and procurement teams who require fast, reliable replacement without the lead times associated with OEM ordering channels. Each unit ships with a 12-month warranty and is verified for compatibility with the Foxboro I/A Series architecture.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a P0916PW0C termination assembly is identified for replacement during a planned shutdown or emergency callout, experienced maintenance engineers know that the termination assembly itself is rarely the only component that warrants attention. A thorough inspection of the surrounding I/O infrastructure is essential to prevent repeat failures and ensure the control loop is fully restored to specification.

Begin by verifying the associated Foxboro FBM (Field Bus Module) — the I/O module that the termination assembly feeds. FBM modules such as the FBM201, FBM202, FBM207, or FBM237 (depending on signal type) should be checked for LED fault indicators, communication errors on the Nodebus or Fieldbus, and any logged alarms in the DCS historian. A degraded termination assembly can mask underlying FBM faults, so both components should be evaluated together.

Next, inspect the I/A Series power supply modules that feed the I/O enclosure. Foxboro CP60 or CP10 power conditioners and their associated redundant power supply units should be checked for output voltage stability, since voltage sag or ripple can cause intermittent signal errors that mimic termination assembly faults. While the cabinet is open, verify the Foxboro FPS (Field Power Supply) feeding the field instruments connected to this termination point.

The field wiring itself — particularly shielded twisted-pair signal cables and their shield grounding at the termination assembly — should be inspected for insulation breakdown, moisture ingress, and correct shield termination. Improper shield grounding at the P0916PW0C is a common source of 50/60 Hz noise on analog channels. If the loop includes a signal isolator or signal conditioner (such as a Foxboro or third-party DIN-rail isolator), verify its output range and zero/span calibration.

For discrete I/O channels, check any associated interposing relays or solid-state relay modules in the marshalling cabinet. Relay contact wear is a frequent co-failure with termination assembly degradation, particularly in high-cycle applications. Terminal blocks and ferrules adjacent to the P0916PW0C should be inspected for looseness, oxidation, and correct labeling — a full re-torque of the terminal strip is recommended as part of any termination assembly replacement procedure.

If the I/A Series node communicates via Nodebus or Fieldbus communication modules, verify that the replacement of the termination assembly has not introduced any address conflicts or communication timeouts. In systems using HART-enabled FBMs, confirm that HART pass-through is functioning correctly after reconnection. Finally, if the control loop feeds an Foxboro HMI workstation or operator console, verify that the process variable is displaying correctly and that no stale or frozen values remain in the historian after the replacement is complete.

Site Replacement Workflow

Step 1 — Isolation and permit: Obtain a work permit and isolate the affected I/O channel at the DCS. Place the associated control loop in manual mode at the operator station to prevent process upsets during the replacement.

Step 2 — Documentation: Photograph the existing wiring layout and record all terminal assignments before disconnecting any field wires. Cross-reference against the as-built loop drawing and the I/A Series I/O assignment database.

Step 3 — Field wire disconnection: Loosen and label each field wire at the P0916PW0C terminal block. Use a calibrated torque screwdriver to avoid terminal damage. Bag and tag any ferrules removed during the process.

Step 4 — Assembly removal and replacement: Remove the P0916PW0C from its mounting position within the termination enclosure. Install the replacement unit, verifying correct orientation and secure mechanical seating. Reconnect field wires per the documented terminal assignments, applying correct torque to each terminal screw.

Step 5 — Loop verification: Apply field power and verify signal continuity from the field instrument through the new termination assembly to the FBM. Use a loop calibrator to inject a known 4–20 mA signal and confirm correct reading at the DCS operator station. Check for any active alarms or diagnostic messages on the associated FBM.

Step 6 — Return to service: Return the control loop to automatic mode, monitor for stability over a minimum of 15 minutes, and document the replacement in the plant maintenance management system (CMMS). Update the spare parts inventory to reflect consumption of the P0916PW0C unit.

This workflow is applicable whether the P0916PW0C is replacing a failed unit on an emergency basis or being proactively swapped during a planned turnaround. Stocking at least one spare P0916PW0C per I/A Series node cluster is recommended for facilities with uptime-critical process loops.

Spare Parts Support FAQ

Q1: Is this P0916PW0C an original Foxboro part or a third-party replacement?
This is an original Foxboro P0916PW0C Field Wiring Termination Assembly — not a clone or aftermarket substitute. Each unit is sourced through established industrial supply channels, inspected, and tested before shipment to ensure it meets the original Foxboro specification for I/A Series compatibility.

Q2: What is the warranty coverage and what does it include?
All P0916PW0C units ship with a 12-month warranty from the date of shipment. The warranty covers manufacturing defects and functional failures under normal operating conditions. Units that fail within the warranty period are eligible for replacement or refund, subject to inspection. The warranty does not cover damage resulting from incorrect installation, overvoltage, or physical mishandling.

Q3: How do I confirm compatibility with my specific I/A Series configuration before ordering?
The P0916PW0C is designed for use within the Foxboro I/A Series termination architecture. To confirm compatibility with your specific FBM type, enclosure model, and I/O assignment, share your system configuration details or loop drawing with our technical team prior to ordering. We can cross-reference the part number against your I/A Series hardware revision to confirm a direct fit.

Q4: Can you support ongoing spare parts requirements for aging I/A Series systems?
Yes. We specialize in long-term spare parts support for legacy DCS platforms including the Foxboro I/A Series. Whether you need a single emergency replacement or a structured annual spare parts agreement covering multiple P0916PW0C units alongside associated FBM modules, power supplies, and communication components, we can provide a tailored supply plan to support your maintenance strategy and reduce obsolescence risk.
