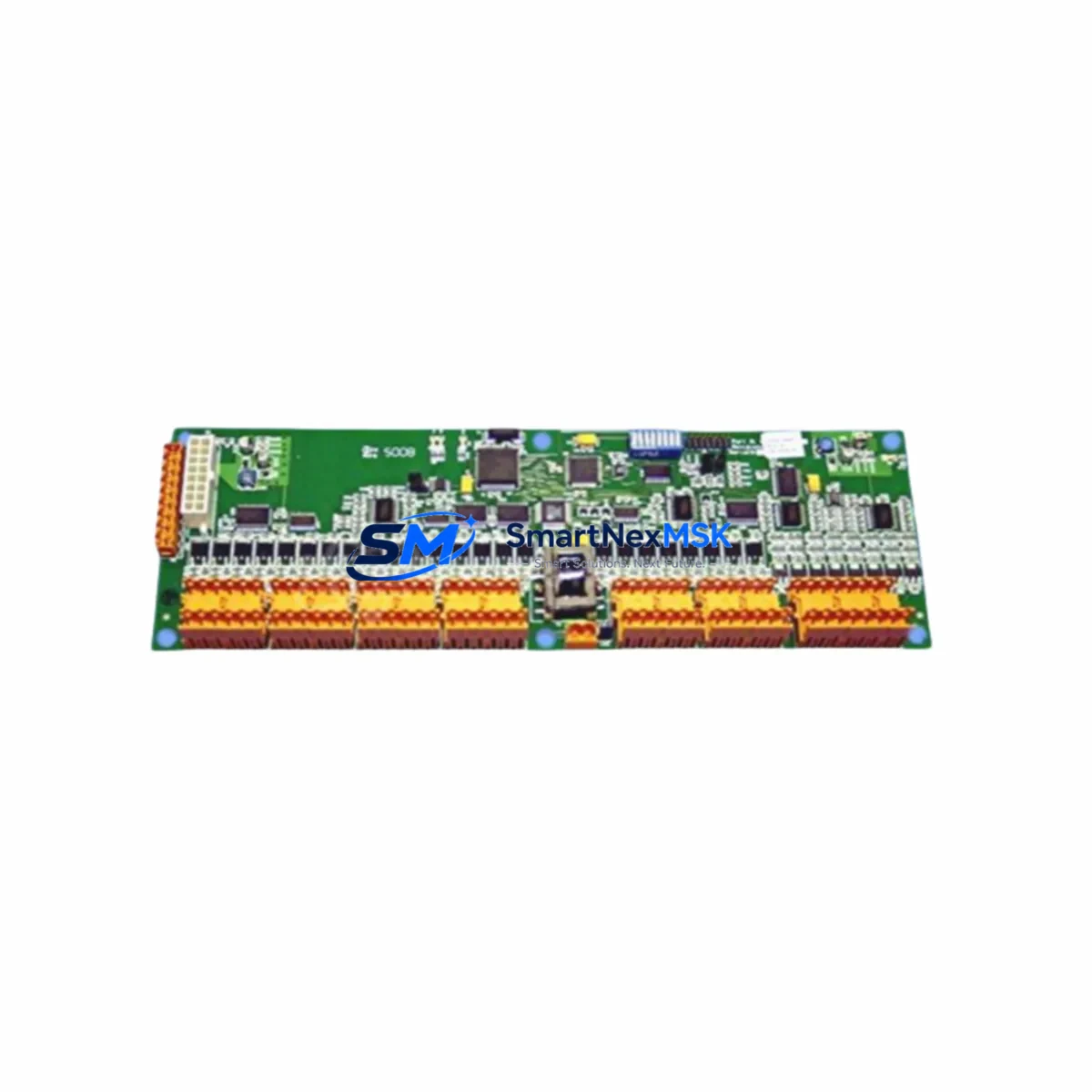

Industrial refrigeration systems running on the FRICK YORK Quantum HD Series depend on precise analog signal processing to maintain compressor control, capacity staging, and safety interlock integrity. The FRICK YORK 640D0190H01 is the original analog control board engineered for this platform — a mission-critical spare that maintenance engineers and procurement teams should keep on the shelf to eliminate unplanned downtime in cold storage, food processing, chemical, and industrial HVAC facilities.

When a Quantum HD compressor package trips on a control fault or analog signal anomaly, the 640D0190H01 is typically the first board to inspect. Its failure modes — including erratic capacity control, loss of suction/discharge pressure feedback, or unresponsive slide valve positioning — can cascade into full system shutdown within minutes. Having a tested, ready-to-install spare on hand is the difference between a 30-minute board swap and a multi-day production halt.

This unit is sourced as an original spare, not a third-party reproduction. Each board is inspected and function-tested prior to shipment, backed by a 12-month warranty covering manufacturing defects and operational failure under normal service conditions.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the 640D0190H01 analog control board is rarely an isolated task. In a Quantum HD compressor panel, the analog board interfaces directly with the Quantum HD digital I/O board (typically the 640D0191H01 or equivalent), which handles discrete input/output signals for safety relays, solenoid valve commands, and motor starter interlocks. Both boards should be inspected simultaneously during any planned maintenance window — a degraded digital I/O board can mask or mimic analog faults, leading to misdiagnosis.

The Quantum HD power supply module is the upstream source for the 24 VDC rail that feeds the analog board. If the 640D0190H01 fails prematurely or repeatedly, the power module’s output voltage and ripple should be measured before installing the replacement. An out-of-tolerance power supply will damage a new board within weeks.

Downstream of the analog board, the slide valve position transducer and suction/discharge pressure transmitters (4–20 mA type) are the most common sources of signal errors that appear as analog board faults. These transmitters should be zero-checked and span-verified during the same maintenance event. Similarly, the oil pressure differential transmitter feeds into the analog input chain and is a frequent source of nuisance trips in aging Quantum HD systems.

For facilities running multiple Quantum HD compressor packages, the Quantum HD communications module (RS-485 / Modbus RTU interface board) should be included in the inspection checklist. Loss of communication between the compressor controller and the plant SCADA or BMS is often traced to a degraded comms board rather than the analog board itself — but both are typically replaced together during a major overhaul.

Control panel wiring integrity is equally important. The terminal blocks on the analog signal wiring (particularly the 4–20 mA loops) should be torque-checked and inspected for corrosion, especially in ammonia refrigeration environments where terminal oxidation is accelerated. Loose or corroded terminals on the analog input wiring are a leading cause of intermittent signal faults that are incorrectly attributed to board failure.

Finally, for facilities managing long-term system life extension on Quantum HD platforms, maintaining a minimum spare inventory of the 640D0190H01 analog board, the digital I/O board, the power supply module, and at least one set of pressure transmitters provides a complete first-response kit capable of resolving the majority of compressor control faults without waiting for parts procurement.

Site Replacement Workflow

Step 1 — Isolation and Lockout/Tagout: De-energize the Quantum HD control panel per site LOTO procedures. Confirm zero energy state on the 24 VDC control rail and the main power feed before opening the panel.

Step 2 — Document Existing Configuration: Photograph the existing board orientation, wiring harness routing, and any DIP switch or jumper settings on the 640D0190H01 before removal. The Quantum HD analog board may carry site-specific calibration jumpers that must be replicated on the replacement unit.

Step 3 — Remove the Faulty Board: Disconnect the analog signal wiring harness connectors in sequence. Label each connector if not already marked. Remove the board from the backplane or DIN rail mounting. Inspect the backplane connector pins for damage or corrosion.

Step 4 — Inspect and Prepare the Replacement: Verify the replacement 640D0190H01 part number matches exactly. Set DIP switches and jumpers to match the documented configuration. Inspect the board for any transit damage before installation.

Step 5 — Install and Reconnect: Seat the replacement board firmly on the backplane. Reconnect all analog signal harness connectors in sequence. Torque terminal block screws to specification. Restore power and verify the 24 VDC rail is within tolerance before powering the board.

Step 6 — Functional Verification: Power up the Quantum HD controller and navigate to the analog I/O diagnostic screen. Verify all pressure, temperature, and position inputs are reading within expected ranges. Perform a capacity control test cycle to confirm slide valve response. Log the replacement in the site maintenance record.

This workflow minimizes re-work risk and ensures system compatibility is confirmed before returning the compressor to service — reducing total downtime to under two hours for a prepared maintenance team.

Spare Parts Support FAQ

Q1: Is the 640D0190H01 a direct drop-in replacement for all Quantum HD variants?
The 640D0190H01 is the standard analog control board for the FRICK YORK Quantum HD compressor control platform. Compatibility should be confirmed against the specific Quantum HD panel revision and software version installed at your site. Contact our technical team with your panel serial number for confirmation before ordering if you are unsure of your exact variant.

Q2: What is included in the 12-month warranty?
The warranty covers manufacturing defects and operational failure under normal service conditions for 12 months from the date of shipment. It does not cover damage resulting from incorrect installation, overvoltage, physical impact, or use outside the specified operating environment. Warranty claims are processed with return shipment of the defective unit for inspection.

Q3: How is the board tested before shipment?
Each 640D0190H01 unit undergoes functional inspection and electrical testing prior to dispatch. This includes verification of analog input/output signal integrity, power rail acceptance, and connector integrity. A test report is available on request for critical spare applications.

Q4: What is your recommended spare inventory strategy for Quantum HD systems?
For facilities with two or more Quantum HD compressor packages, we recommend maintaining at least one 640D0190H01 analog board as a live spare. For single-compressor critical systems, a spare board should be held on-site at all times given the lead time risk during peak demand periods. Pairing the analog board spare with a power supply module and a set of pressure transmitters provides a comprehensive first-response inventory that covers the majority of Quantum HD control faults.
