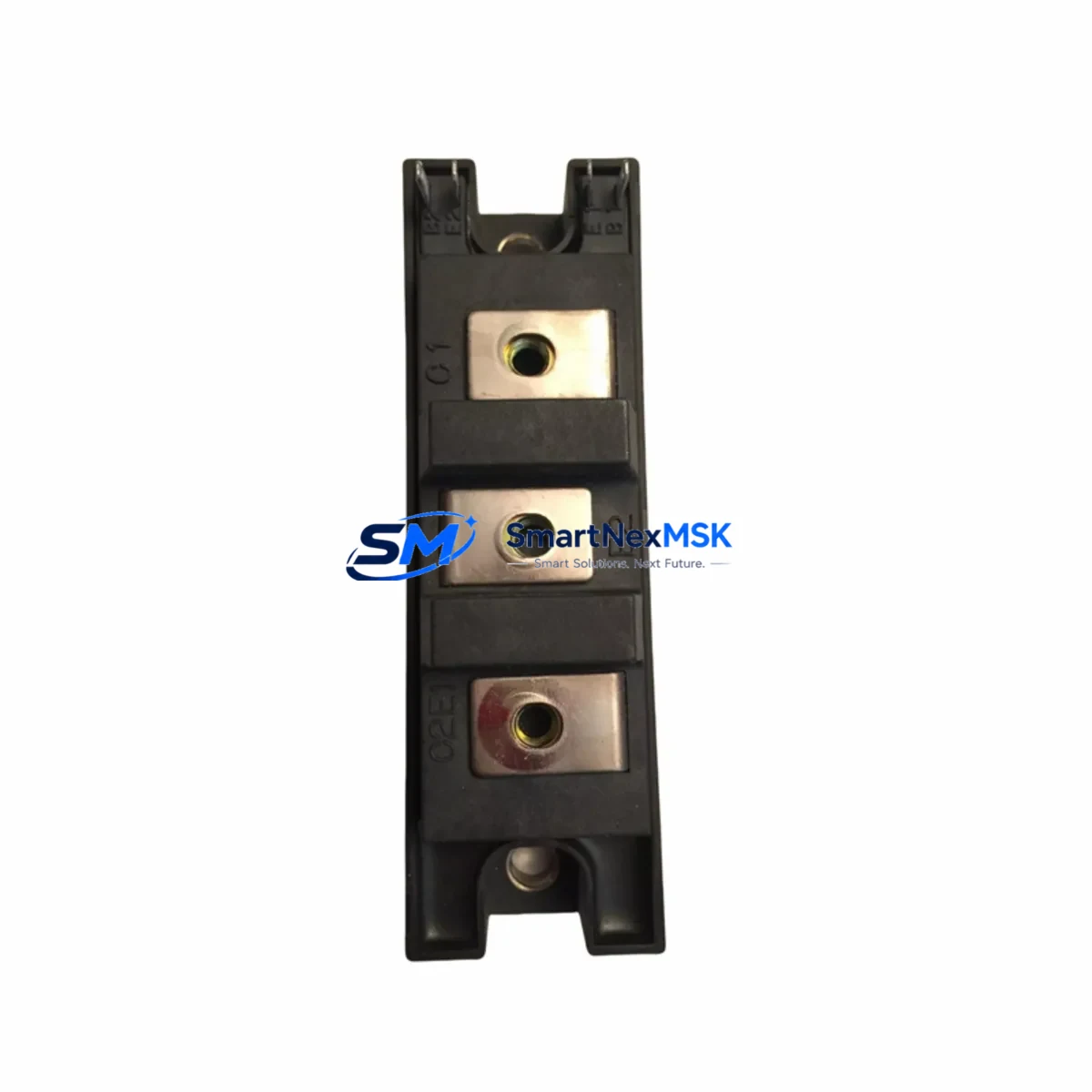

Fuji Electric 2DI75Z-120 Safety-Enhanced IGBT Power Module

Fuji Electric 2DI75Z-120: Safety-Enhanced IGBT Power Module for Harsh Industrial Control

The Fuji Electric 2DI75Z-120 is a dual IGBT half-bridge power module from Fuji Electric’s rugged Z-Series platform, engineered specifically for continuous, high-reliability operation in demanding industrial environments. Rated at 75A / 1200V, this module delivers the switching precision and thermal resilience required in critical control loops where unplanned downtime carries serious operational and safety consequences.

In high-load industrial applications — including variable frequency drives (VFDs), servo amplifiers, UPS systems, and regenerative braking circuits — the integrity of the power switching stage is foundational to overall system safety. The 2DI75Z-120 addresses this directly through its low-inductance package design, optimized gate charge characteristics, and robust isolation between the control and power stages. These features collectively reduce the risk of control interruption, signal drift under load transients, and module misoperation caused by voltage overshoot or electromagnetic interference.

Industrial sites operating under continuous production schedules — petrochemical plants, steel mills, mining operations, port crane systems, and water treatment facilities — cannot tolerate intermittent power module failures. The 2DI75Z-120’s Z-Series construction incorporates enhanced passivation layers and a reinforced ceramic substrate that maintains dielectric integrity even under sustained thermal cycling, high-humidity exposure, and vibration loads typical of heavy industrial enclosures.

Safety Reliability Table

Control Cabinet Protection Strategy

A reliable control cabinet in a heavy industrial environment is only as safe as its weakest power switching component. The Fuji Electric 2DI75Z-120 is typically deployed alongside a coordinated set of protection and conditioning components that together form a robust, fault-tolerant power conversion stage.

In a well-engineered drive cabinet, the 2DI75Z-120 operates in conjunction with a Fuji Electric 6MBI75U4-120 or similar six-pack IGBT module on the rectifier stage, ensuring matched switching characteristics and consistent thermal loading across the bridge. Gate drive circuits — such as those based on the Fuji Electric EXB841 or EXB840 hybrid gate driver ICs — provide the isolated, high-current gate pulses necessary to switch the 2DI75Z-120 cleanly at industrial frequencies, while also offering short-circuit protection and desaturation detection to prevent catastrophic module failure during fault conditions.

On the DC bus, film capacitor banks (typically 1000–3300µF, 1200V class) buffer voltage ripple and absorb switching transients that would otherwise stress the module’s collector-emitter junction. Upstream, AC line reactors and EMC input filters suppress conducted interference from the grid, reducing the risk of nuisance tripping or gate signal corruption in sensitive control loops. For installations in areas with frequent lightning strikes or utility switching events, surge protection devices (SPDs) rated to IEC 61643-11 Class II are installed at the cabinet entry point to clamp transient overvoltages before they reach the IGBT stage.

Thermal management is equally critical. The 2DI75Z-120 is mounted on a precision-machined aluminum heat sink with thermal interface material (TIM) applied to the module’s baseplate, and paired with a forced-air cooling fan or liquid cooling plate in high-duty-cycle applications. A NTC thermistor or dedicated temperature monitoring module tracks heat sink temperature in real time, feeding back to the drive controller to trigger derating or shutdown before thermal limits are exceeded. In safety-critical interlocking circuits, a Fuji Electric FR-A800 series drive or equivalent provides the supervisory control layer, integrating fault logging, safe torque off (STO) functionality, and communication via PROFIBUS or Modbus RTU to the plant DCS.

For spare parts management, maintaining a buffer stock of the 2DI75Z-120 alongside compatible gate resistors, snubber capacitors, and thermal pads ensures that field replacement can be completed within a single maintenance window, minimizing production loss during unplanned outages.

Critical Industrial Safety Applications

The Fuji Electric 2DI75Z-120 is specified across a broad range of safety-sensitive industrial sectors where power conversion reliability directly impacts personnel safety, environmental compliance, and production continuity.

In petrochemical and refinery operations, the module is used in variable speed pump and compressor drives operating in Zone 2 classified areas. Here, any control interruption risks process upsets, pressure excursions, or flare system activation. The 2DI75Z-120’s stable switching behavior under high ambient temperatures (up to 50°C in enclosed cabinets) and its resistance to conducted EMI from large motor starts make it a preferred choice for these environments.

In electric power generation and transmission facilities — including coal, gas, and hydroelectric plants — the module supports excitation control systems, auxiliary drive systems, and reactive power compensation (STATCOM) units. Reliable IGBT switching is essential to maintaining grid synchronization and preventing voltage instability events that could cascade into wider outages.

In mining and mineral processing, the 2DI75Z-120 is deployed in conveyor belt drives, hoist systems, and crusher motor controls where continuous operation under heavy mechanical loads and high dust concentrations demands a power module with proven long-term reliability. Unexpected drive trips in a mine hoist circuit are not merely a production issue — they are a safety event.

In water and wastewater treatment plants, the module drives submersible pump VFDs and aeration blower systems that must operate 24/7 with minimal intervention. Its compatibility with standard Fuji Electric drive platforms simplifies spare parts standardization across multi-site utility operations.

In metallurgical and steel production facilities, the 2DI75Z-120 supports rolling mill drives, ladle crane hoists, and induction heating power supplies where high peak currents and rapid load changes are routine. Its 75A continuous rating with short-circuit withstand capability provides the headroom needed to survive transient overloads without nuisance tripping.

In port and logistics automation — container cranes, automated stacking cranes, and ship-to-shore equipment — the module’s regenerative braking compatibility allows kinetic energy recovery during lowering cycles, reducing energy consumption while maintaining precise load control in safety-critical lifting operations.

Safety and Quality FAQ

Q1: What warranty does the Fuji Electric 2DI75Z-120 carry, and what does it cover?
Every 2DI75Z-120 supplied by SMARTNEXMSK carries a 12-month warranty covering manufacturing defects, premature electrical failure under normal operating conditions, and parameter deviation from the published datasheet. Warranty claims are supported with replacement or credit, and our technical team provides root-cause guidance to help prevent recurrence in your application.

Q2: How is each module tested before shipment?
All units undergo pre-shipment functional verification including isolation voltage testing (2500V AC, 1 minute), gate-emitter threshold check, and visual inspection for package integrity. Modules that do not meet Fuji Electric’s published electrical parameters are quarantined and not shipped. A test record is available upon request for critical applications.

Q3: Is the 2DI75Z-120 compatible with existing Fuji Electric drive platforms and third-party inverters?
Yes. The 2DI75Z-120 is a direct form-fit-function replacement for the original Fuji Electric Z-Series module in compatible drive platforms. It is also widely used in third-party inverter designs that specify a 75A / 1200V dual half-bridge IGBT module with the standard Z-Series footprint. Always verify gate drive voltage, switching frequency, and thermal interface requirements against your specific application before installation.

Q4: Can SMARTNEXMSK support long-term and repeat supply of the 2DI75Z-120 for ongoing maintenance programs?
Yes. We maintain standing inventory of the 2DI75Z-120 and can support scheduled procurement programs, blanket orders, and emergency same-day dispatch for critical plant maintenance requirements. Contact our sales team to discuss volume pricing, lead time commitments, and consignment stock arrangements tailored to your maintenance strategy.
