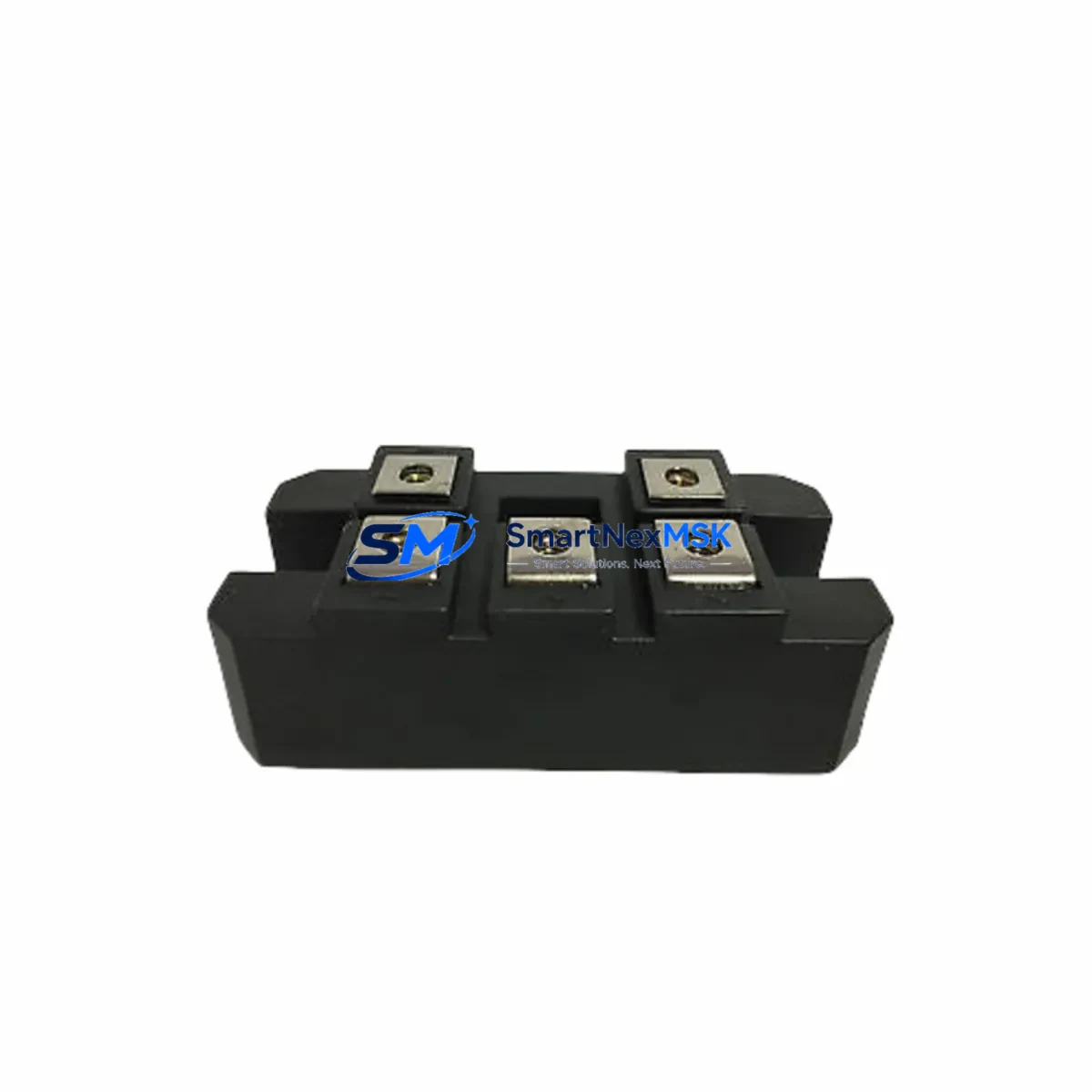

FUJI Electric 6RI50E-060 Safety-Enhanced Rectifier Bridge Module

FUJI Electric 6RI50E-060: Safety-Enhanced Rectifier Bridge Module for Harsh Industrial Control Sites

The FUJI Electric 6RI50E-060 is a three-phase rectifier bridge module rated at 50A / 600V, engineered for continuous, uninterrupted operation in demanding industrial power conversion and motor drive applications. Designed to meet the rigorous requirements of heavy industrial environments — including petrochemical plants, metallurgical facilities, mining operations, port cranes, and continuous-process manufacturing lines — this module delivers the electrical safety and long-term field reliability that mission-critical control systems demand.

In high-load DC bus architectures and variable-frequency drive (VFD) front-end circuits, the integrity of the rectifier stage is the first line of defense against power quality degradation. The 6RI50E-060 provides a robust, low-impedance rectification path that suppresses voltage ripple, limits reverse recovery transients, and maintains stable DC output even under asymmetric three-phase input conditions. Its compact, press-fit package ensures reliable thermal contact with the heatsink, reducing junction temperature rise and extending service life in sealed or poorly ventilated control cabinets.

Safety Reliability Table

Control Cabinet Protection Strategy

In a well-engineered industrial control cabinet, the 6RI50E-060 rectifier bridge module does not operate in isolation — it is one node in a coordinated protection architecture. On the AC input side, a properly rated FUJI Electric BW-series molded-case circuit breaker (MCCB) provides upstream overcurrent and short-circuit protection, ensuring that a downstream fault does not propagate back to the supply transformer or bus bar. Surge events from switching loads or lightning coupling are absorbed by a metal oxide varistor (MOV) surge protection device installed across each phase-to-neutral pair, clamping transient overvoltages before they reach the rectifier junctions.

The DC output of the 6RI50E-060 feeds into a smoothing capacitor bank — typically a bank of electrolytic DC bus capacitors rated at 450 V DC or higher — which filters residual ripple and provides holdup energy during brief input interruptions. In VFD applications, the rectified DC bus then powers an IGBT inverter stage; modules such as the FUJI Electric 6MBI series IGBT module (e.g., 6MBI50FA-060 or 6MBI75FA-060) are commonly paired with the 6RI50E-060 in the same drive chassis, sharing the same DC bus rail and thermal management system.

Gate drive integrity for the downstream IGBT stage depends on a stable, isolated auxiliary power supply. A FUJI Electric FRN-series gate drive power supply board or equivalent isolated DC/DC converter module ensures that control signals remain clean and free from common-mode noise injected by the power stage switching. In safety-critical interlocking circuits — such as emergency stop (E-stop) loops or safety relay chains — a PILZ PNOZ or Omron G9SA safety relay module monitors the drive enable signal and can de-energize the contactor upstream of the rectifier within the required response time.

Thermal management is equally critical. The 6RI50E-060 must be mounted on a heatsink with sufficient thermal mass and, in high-ambient installations, forced-air cooling via a cabinet cooling fan unit or a Rittal TopTherm heat exchanger. A PT100 or NTC thermistor temperature sensor mounted on the heatsink base, wired back to the PLC analog input module (such as a FUJI Electric MICREX-SX NP1AX series analog input card), enables real-time thermal monitoring and predictive shutdown before junction temperatures reach critical thresholds. Communication health of the broader control system is maintained through a FUJI Electric NP1L-RS4 RS-485 communication module or equivalent fieldbus interface, ensuring that fault diagnostics from the drive and PLC are continuously logged and accessible to the SCADA layer.

Critical Industrial Safety Applications

Petrochemical & Refinery Plants: In hazardous-area motor control centers (MCCs) driving compressor motors, pump drives, and agitator VFDs, the 6RI50E-060 provides the rectifier stage reliability needed to sustain continuous 24/7 operation. Any rectifier failure in this environment risks unplanned process shutdown, product loss, and potential safety incidents. Stocking verified replacement modules on-site is standard practice for Tier 1 petrochemical operators.

Electric Power Generation & Substation Auxiliary Systems: Excitation systems for synchronous generators and battery charger rectifiers in substation DC systems rely on high-reliability rectifier bridges. The 6RI50E-060’s 600 V blocking voltage and 50 A continuous rating make it suitable for 48 V and 110 V DC battery charger front-end stages, where rectifier failure can compromise substation protection relay power supplies.

Mining & Mineral Processing: Belt conveyor drives, hoist drives, and crusher motor VFDs in underground and open-cut mining operations subject power electronics to extreme vibration, dust ingress, and wide ambient temperature swings. The robust press-pack construction of the 6RI50E-060 withstands mechanical shock and maintains reliable electrical contact under these conditions.

Water & Wastewater Treatment: Pump station VFDs controlling submersible pumps and blower motors in water treatment facilities require rectifier modules that can operate reliably in high-humidity environments with minimal maintenance access. The 6RI50E-060’s proven field reliability reduces the risk of unplanned pump outages that could compromise water supply or effluent compliance.

Metallurgy & Steel Mills: Rolling mill main drives, ladle crane hoists, and continuous casting machine drives impose severe cyclic load demands on rectifier bridges. The high surge current rating (IFSM 500 A) of the 6RI50E-060 provides the transient withstand capability needed to survive motor inrush and regenerative braking events without junction damage.

Port & Container Handling Equipment: Ship-to-shore crane drives and rubber-tyred gantry (RTG) crane VFDs operate in salt-air coastal environments with high humidity and corrosive atmospheres. Maintaining a verified spare inventory of 6RI50E-060 modules at port maintenance depots minimizes crane downtime and protects cargo handling throughput.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover, and how is a warranty claim processed?
The 12-month warranty covers manufacturing defects in materials and workmanship from the date of shipment. If a module fails under normal operating conditions within the warranty period, we will arrange replacement or repair at no charge. Claims are initiated by contacting sales@smartnexmsk.com with the order reference, failure description, and photographic evidence. Modules must not have been subjected to overvoltage, reverse polarity, or improper mounting.

Q2: What pre-shipment testing is performed on each 6RI50E-060 module?
Every unit undergoes full electrical verification prior to dispatch: forward voltage drop (VF) measurement at rated current, reverse leakage current (IR) test at VRRM, and dielectric isolation test (2500 V RMS, base-to-terminal). Only modules that pass all three tests are released for shipment. Test records are retained and can be provided upon request for quality-critical applications.

Q3: Is the 6RI50E-060 compatible with third-party VFD and servo drive brands, or only FUJI Electric drives?
The 6RI50E-060 is a standard three-phase rectifier bridge module with industry-standard pin and mounting dimensions. It is compatible with FUJI Electric FRENIC series drives as well as many third-party VFD platforms from Siemens, ABB, Yaskawa, and Mitsubishi that use equivalent rectifier bridge configurations. Always verify the mechanical footprint, current rating, and voltage class against the OEM service manual before substitution.

Q4: Can long-term supply continuity be guaranteed for ongoing maintenance programs?
Yes. We maintain dedicated stock of the 6RI50E-060 and related FUJI Electric power modules to support planned maintenance schedules and emergency breakdown requirements. For customers with large installed bases, we offer reserved stock arrangements and priority dispatch agreements. Contact sales@smartnexmsk.com to discuss a supply framework agreement tailored to your maintenance program.
