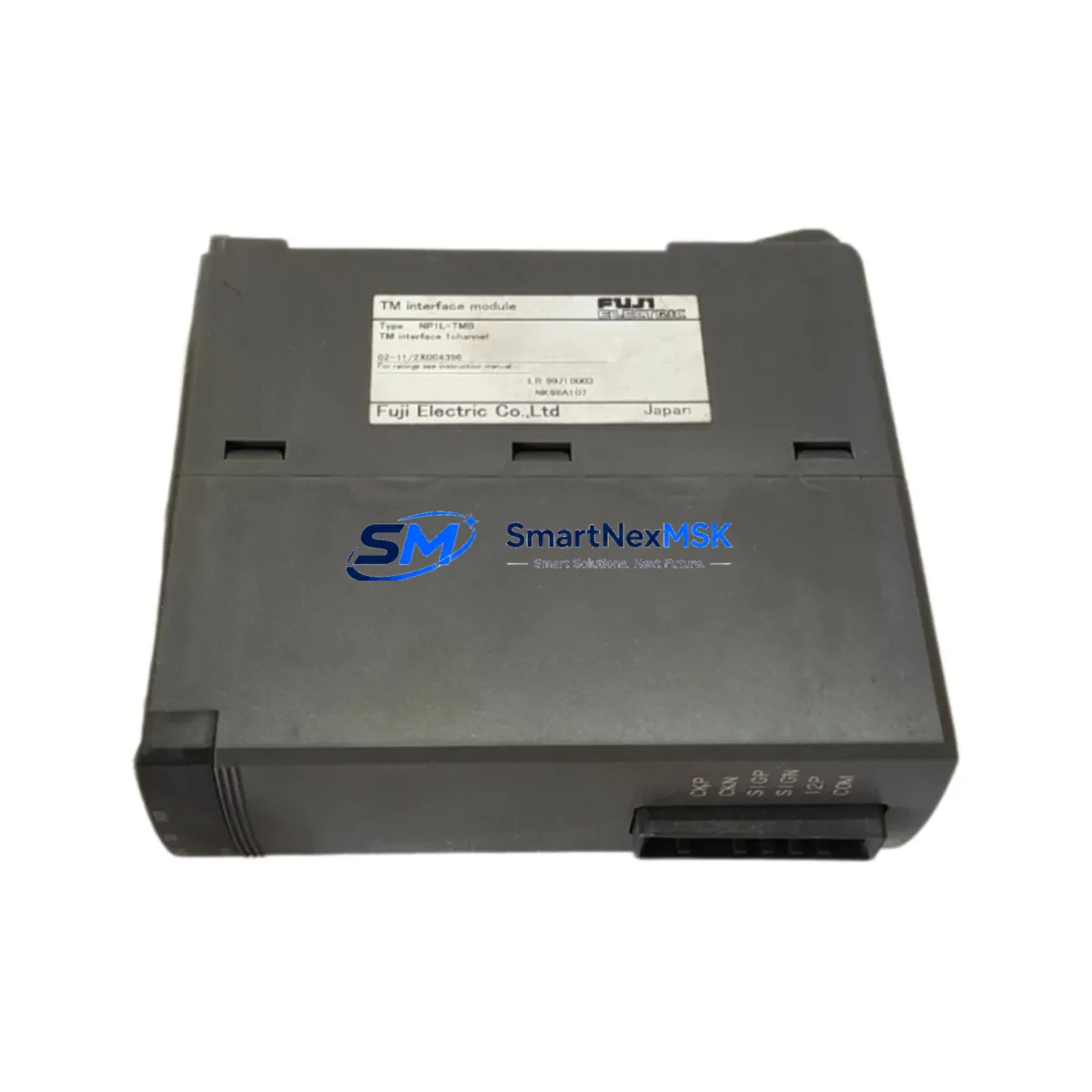

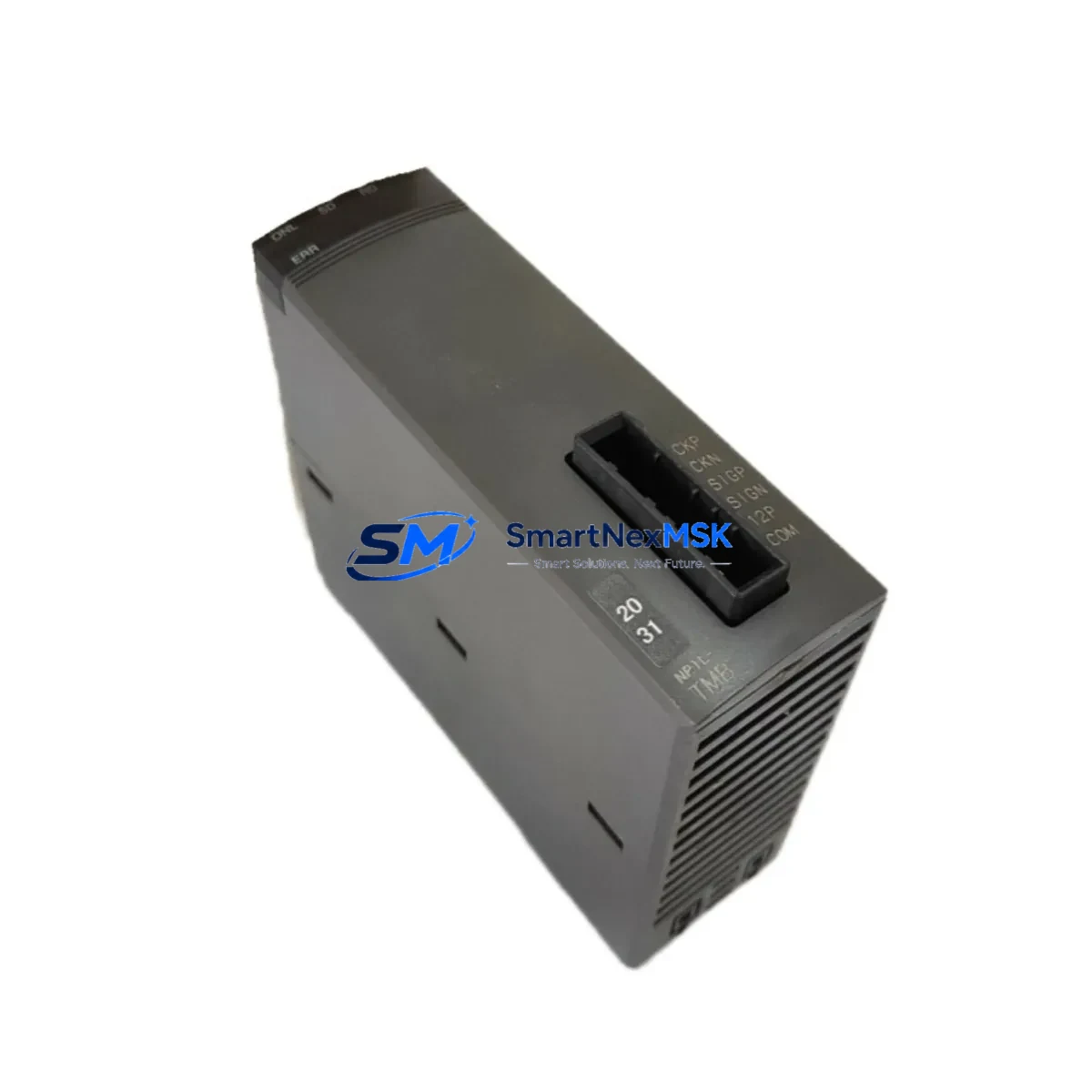

Fuji Electric NP1L-TMB Safety-Enhanced Operator Interface Module

Fuji Electric NP1L-TMB Safety-Enhanced Operator Interface Module: Reliable Control in Harsh Industrial Sites

The Fuji Electric NP1L-TMB is a ruggedized operator interface module engineered for the MICREX-NX PLC platform, purpose-built to deliver uninterrupted human-machine interaction in high-load, high-interference industrial environments. Whether deployed in continuous process manufacturing, heavy-duty control cabinets, or safety-critical interlock circuits, the NP1L-TMB provides the stable, noise-immune communication backbone that modern industrial operations demand.

In environments where electromagnetic interference, power fluctuations, and thermal stress are constant threats, the NP1L-TMB’s robust hardware design ensures that operator commands are transmitted accurately and without latency. Its EMI-shielded architecture minimizes signal drift between the operator terminal and the CPU module, reducing the risk of spurious outputs or missed interlock triggers that could compromise personnel safety or production continuity.

The module integrates seamlessly within the MICREX-NX rack system alongside companion components such as the NP1L-RS4 serial communication module and the NP1L-ET1 Ethernet interface unit, forming a cohesive communication architecture that supports both local panel operations and remote supervisory control. When paired with the NP1PS-24A dedicated power supply unit, the NP1L-TMB benefits from clean, regulated DC power that eliminates voltage sag-induced module resets — a common cause of unplanned downtime in high-demand production lines.

For control cabinet designers working with safety-rated architectures, the NP1L-TMB supports integration with NP1L-DI32 digital input modules and NP1L-DO32T transistor output modules, enabling comprehensive I/O monitoring directly from the operator interface layer. This tight coupling between the interface module and field I/O reduces diagnostic latency, allowing maintenance personnel to identify and respond to fault conditions before they escalate into process shutdowns.

In applications involving surge-prone environments — such as substations, arc furnace control rooms, or variable-frequency drive enclosures — the NP1L-TMB’s transient protection characteristics help maintain communication integrity even when adjacent equipment generates high-energy electrical transients. Complementary surge protection devices and the NP1L-MC16 motion control interface can be co-located in the same cabinet without signal degradation, preserving the integrity of the overall control loop.

The module’s compact DIN-rail-compatible form factor simplifies installation in space-constrained control panels, while its wide operating temperature range accommodates deployment in outdoor switchgear enclosures, foundry control rooms, and offshore platform automation cabinets where ambient conditions routinely exceed standard commercial equipment ratings. When used alongside the NP1L-AD4 analog input module for process variable monitoring, operators gain a unified interface for both discrete safety signals and continuous process data — a critical capability in chemical dosing, water treatment, and energy management applications.

SMARTNEXMSK maintains verified stock of the NP1L-TMB with full pre-shipment functional testing performed on every unit. Each module undergoes communication handshake verification, power-on self-test confirmation, and visual inspection before dispatch. A 12-month warranty covers all units against manufacturing defects and premature failure under normal operating conditions, providing procurement teams and maintenance planners with the confidence needed for long-term spare parts strategies.

Safety Reliability Table

Control Cabinet Protection Strategy

A robust industrial control cabinet built around the MICREX-NX platform requires more than a single high-quality module — it demands a coordinated ecosystem of protection, communication, and power management components working in concert. The NP1L-TMB serves as the operator-facing anchor of this ecosystem, but its reliability is amplified when the surrounding cabinet architecture is equally hardened.

Starting at the power layer, the NP1PS-24A power supply module provides stable 24 VDC bus power with built-in overvoltage and short-circuit protection, ensuring that voltage transients from motor starts or capacitor bank switching do not propagate into the logic and communication layers. Upstream of the PSU, line-side surge protective devices rated to IEC 61643-11 should be installed to clamp lightning-induced surges before they reach the cabinet internals.

At the I/O layer, the NP1L-DI32 32-channel digital input module handles field device status signals — limit switches, pressure switches, and safety relay contacts — while the NP1L-DO32T transistor output module drives actuators and pilot devices with fast, solid-state switching that eliminates contact bounce and arc erosion common in relay-based output stages. For analog process variables such as temperature, flow, and pressure, the NP1L-AD4 analog input module provides 4-channel, high-resolution signal acquisition with common-mode noise rejection suited to long cable runs in electrically noisy plant environments.

Communication integrity is maintained through the NP1L-RS4 RS-485/RS-422 serial module for legacy field device connectivity and the NP1L-ET1 Ethernet module for SCADA integration and remote diagnostics. In safety interlock applications, the NP1L-MC16 motion interface coordinates with servo drives and frequency inverters, ensuring that emergency stop commands propagated through the NP1L-TMB operator interface reach the motion layer within the required response time. Together, these components form a layered cabinet protection strategy that addresses power quality, signal integrity, I/O reliability, and communication redundancy simultaneously.

Critical Industrial Safety Applications

The Fuji Electric NP1L-TMB finds its most demanding deployments in industries where control system failure carries direct safety and financial consequences.

In petrochemical and refinery operations, the module is integrated into emergency shutdown (ESD) panel interfaces where operators must acknowledge alarms and initiate controlled shutdowns without communication delay. The NP1L-TMB’s noise immunity ensures that high-voltage switching events in adjacent motor control centers do not corrupt the operator command stream during critical process transitions.

In electric power generation and substation automation, the module supports operator interface functions within protection relay panels and transformer control cubicles, where it must coexist with high-frequency switching transients from power electronics and maintain reliable communication with the MICREX-NX CPU under continuous 24/7 operating conditions.

In mining and mineral processing, the NP1L-TMB is deployed in crusher control stations, conveyor management panels, and ventilation safety systems where dust ingress, vibration, and wide temperature swings are routine. Its robust construction and wide thermal operating range make it a preferred choice for above-ground and underground automation cabinets alike.

In water and wastewater treatment, the module provides the operator interface layer for pump station control, chemical dosing systems, and UV disinfection panels, where uninterrupted operation is mandated by public health regulations and where control system failures can result in regulatory non-compliance and service disruptions.

In metallurgy and steel production, the NP1L-TMB operates within rolling mill control cabinets and furnace management systems, where it must withstand intense electromagnetic fields generated by induction heating equipment and large DC drives while maintaining accurate operator feedback and command execution.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover for the NP1L-TMB?
The 12-month warranty covers all manufacturing defects, component failures, and premature functional degradation under normal operating conditions. If a unit fails within the warranty period due to a verified manufacturing issue, SMARTNEXMSK will provide a replacement or full refund. The warranty period begins from the date of shipment confirmation.

Q2: What pre-shipment testing is performed on each NP1L-TMB unit?
Every NP1L-TMB unit undergoes a structured pre-shipment inspection that includes power-on self-test (POST) verification, communication handshake testing with a MICREX-NX base unit, visual inspection for physical damage, and connector integrity checks. Units that do not pass all test criteria are quarantined and not dispatched.

Q3: Is the NP1L-TMB compatible with all MICREX-NX base unit configurations?
The NP1L-TMB is designed for the Fuji Electric MICREX-NX modular PLC platform and is compatible with standard MICREX-NX base units and expansion racks. Compatibility with specific CPU revisions or firmware versions should be confirmed against the Fuji Electric MICREX-NX system configuration manual. SMARTNEXMSK technical support can assist with compatibility verification prior to purchase.

Q4: Can SMARTNEXMSK support long-term supply and replacement needs for the NP1L-TMB?
Yes. SMARTNEXMSK maintains ongoing inventory of the NP1L-TMB and related MICREX-NX components to support planned maintenance programs, emergency replacements, and capital project procurement. For customers requiring guaranteed stock reservation or scheduled delivery programs, please contact our sales team to discuss supply agreements tailored to your operational requirements.
