FUJI Electric NP2L-RP1 Spare for NP2L Series Automation

FUJI Electric NP2L-RP1 Maintenance-Ready Spare for NP2L Series Automation

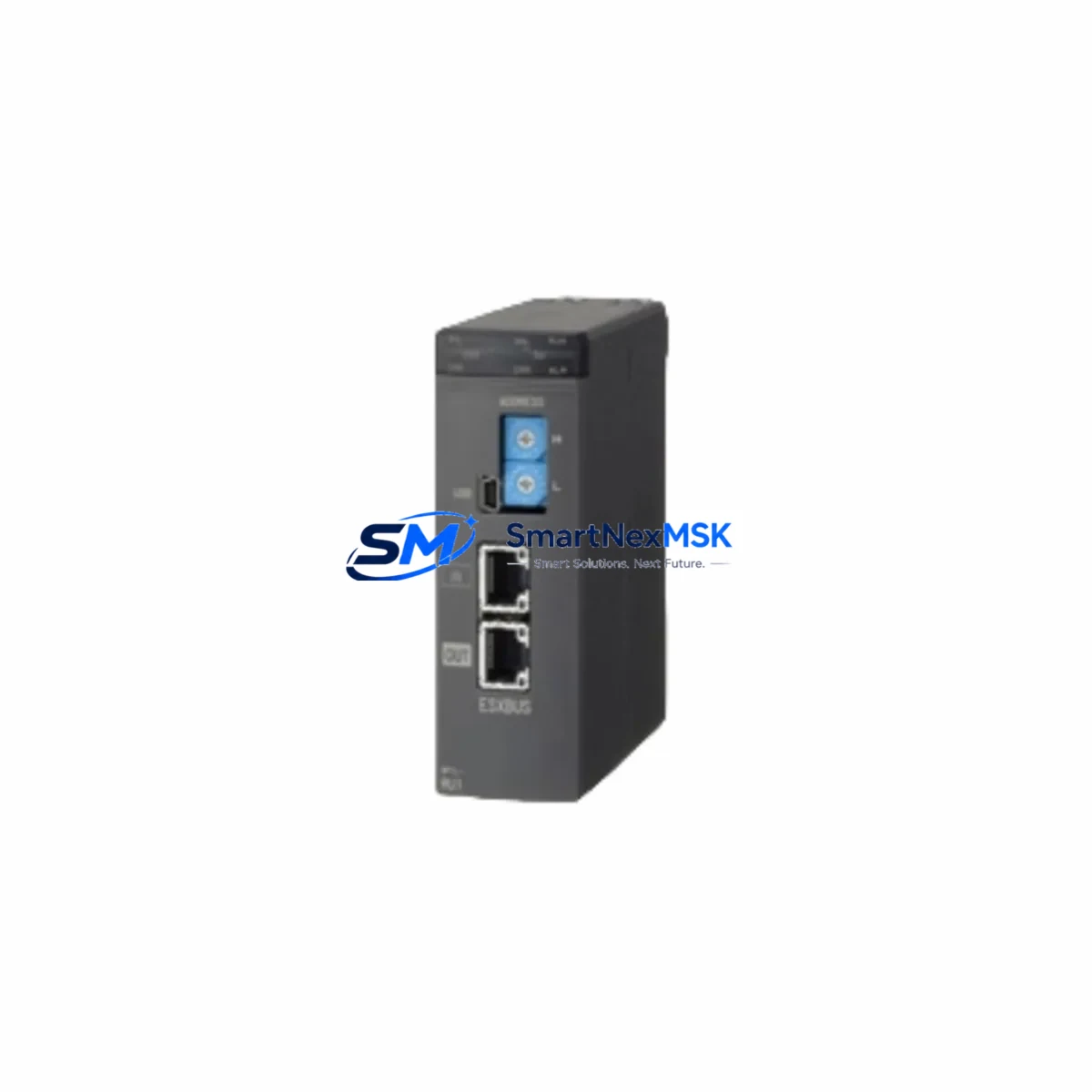

The FUJI Electric NP2L-RP1 is a bus repeater unit designed for the NP2L Series programmable logic controller platform. In industrial automation environments where continuous operation is non-negotiable, maintaining a verified spare of the NP2L-RP1 is a fundamental element of any proactive maintenance strategy. Bus repeater failures are among the most disruptive events in a distributed PLC architecture — they silently degrade signal integrity across the I/O bus before triggering hard faults, often causing cascading alarms that are difficult to isolate without a known-good replacement on hand.

This listing provides a maintenance-ready, original FUJI Electric NP2L-RP1 unit, sourced, inspected, and dispatched with a 12-month warranty. Each unit undergoes pre-shipment functional verification to ensure it meets OEM electrical and communication specifications before leaving our facility. Whether you are managing a planned shutdown, responding to an unscheduled fault, or building out your control cabinet spare parts inventory, the NP2L-RP1 is available for immediate dispatch.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a bus repeater unit such as the NP2L-RP1 is flagged for replacement during a scheduled inspection or emergency fault response, experienced maintenance engineers know that the bus repeater is rarely the only component that warrants attention. A thorough site assessment should include the following associated components within the same control cabinet and PLC segment:

Begin with the NP2L Series CPU module — if the bus repeater has been operating in a degraded state, the CPU may have logged communication timeout errors or experienced watchdog resets. Verify the CPU event log and confirm firmware version compatibility with the replacement RP1 unit. Next, inspect the NP2L-series I/O modules connected downstream of the repeater; bus signal degradation can cause intermittent read errors on digital input modules and erratic output behavior on relay output modules, both of which may have been misattributed to field device faults.

The 24VDC power supply module feeding the NP2L rack should be load-tested during the same maintenance window. An undersized or aging power supply is a common root cause of bus instability that resurfaces after a repeater replacement. Check the backplane or base unit for physical damage, oxidized bus connectors, or cracked PCB traces — these are often overlooked during rapid fault recovery but will cause repeat failures if left unaddressed.

For systems with extended I/O drops, verify the communication cables and connectors between rack segments. Shielding integrity, connector seating, and cable routing away from high-voltage conductors are all critical to sustained bus performance. If the NP2L system interfaces with a supervisory layer, inspect the RS-485 or Ethernet communication module for link errors and confirm that the repeater replacement has not altered the network node addressing.

In facilities running legacy FUJI Electric systems alongside newer automation infrastructure, it is also advisable to audit the terminal blocks and wiring ferrules on I/O circuits connected to the affected segment. Loose terminations are frequently disturbed during emergency maintenance and can introduce ground faults or signal noise that complicate post-repair commissioning. Finally, if the control cabinet includes signal isolators or surge protection modules on analog I/O channels, verify their status — bus faults caused by external transients can damage these protective components simultaneously.

Stocking a secondary NP2L-RP1 alongside a spare CPU module and at least one representative I/O module from each type in use (digital input, digital output, analog input) is the minimum recommended spare parts posture for any facility where NP2L-based control is on the critical path.

Site Replacement Workflow

Replacing the NP2L-RP1 in a live industrial environment requires a structured approach to minimize downtime and avoid secondary faults. Before beginning, confirm that the replacement unit’s hardware revision is compatible with the installed NP2L Series base unit and that the system’s I/O configuration has been backed up to the programming device.

Power down the affected rack segment following your site’s lockout/tagout procedure. Remove the faulty NP2L-RP1 by releasing the module locking mechanism and sliding it clear of the backplane connector. Inspect the backplane connector pins for damage or contamination before seating the replacement unit. Once the new NP2L-RP1 is installed and secured, restore power and observe the module status indicators during the initialization sequence — the repeater should achieve a normal run state within the PLC’s startup cycle without requiring parameter reconfiguration, as bus repeater units in the NP2L Series are typically auto-configured by the CPU.

Perform a full I/O scan verification from the programming terminal to confirm that all downstream modules are communicating correctly. Document the replacement in your maintenance management system, including the date, unit serial number, and any observations about the failed module’s physical condition. This record supports warranty claims and informs future spare parts planning cycles.

For facilities managing end-of-life FUJI Electric NP2L systems, the NP2L-RP1 remains available through our long-term supply channel. We maintain stock specifically to support legacy system life extension programs, where the cost of a controlled spare parts strategy is a fraction of the cost of a full system migration.

Spare Parts Support FAQ

Q: Is this NP2L-RP1 unit compatible with all NP2L Series base units and rack configurations?
A: The NP2L-RP1 is designed for the FUJI Electric NP2L Series PLC platform. Compatibility depends on your specific rack generation and backplane revision. We recommend confirming your base unit model number and system configuration at the time of inquiry so we can verify compatibility before shipment.

Q: What does the 12-month warranty cover, and how is it claimed?
A: The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions from the date of shipment. Each unit is functionally tested prior to dispatch. To initiate a warranty claim, contact us with your order reference, a description of the fault, and any relevant diagnostic data from your PLC system.

Q: How quickly can the NP2L-RP1 be shipped for emergency maintenance situations?
A: In-stock units are dispatched within 1–3 business days. For urgent requirements, please contact us directly to confirm current stock availability and expedited shipping options. We support emergency spare parts requests for unscheduled downtime recovery.

Q: Can you supply multiple NP2L-RP1 units for a planned spare parts inventory build?
A: Yes. We support both single-unit emergency orders and bulk spare parts procurement for inventory programs. Long-term supply agreements are available for facilities managing multiple NP2L-based systems or planning extended maintenance contracts.
