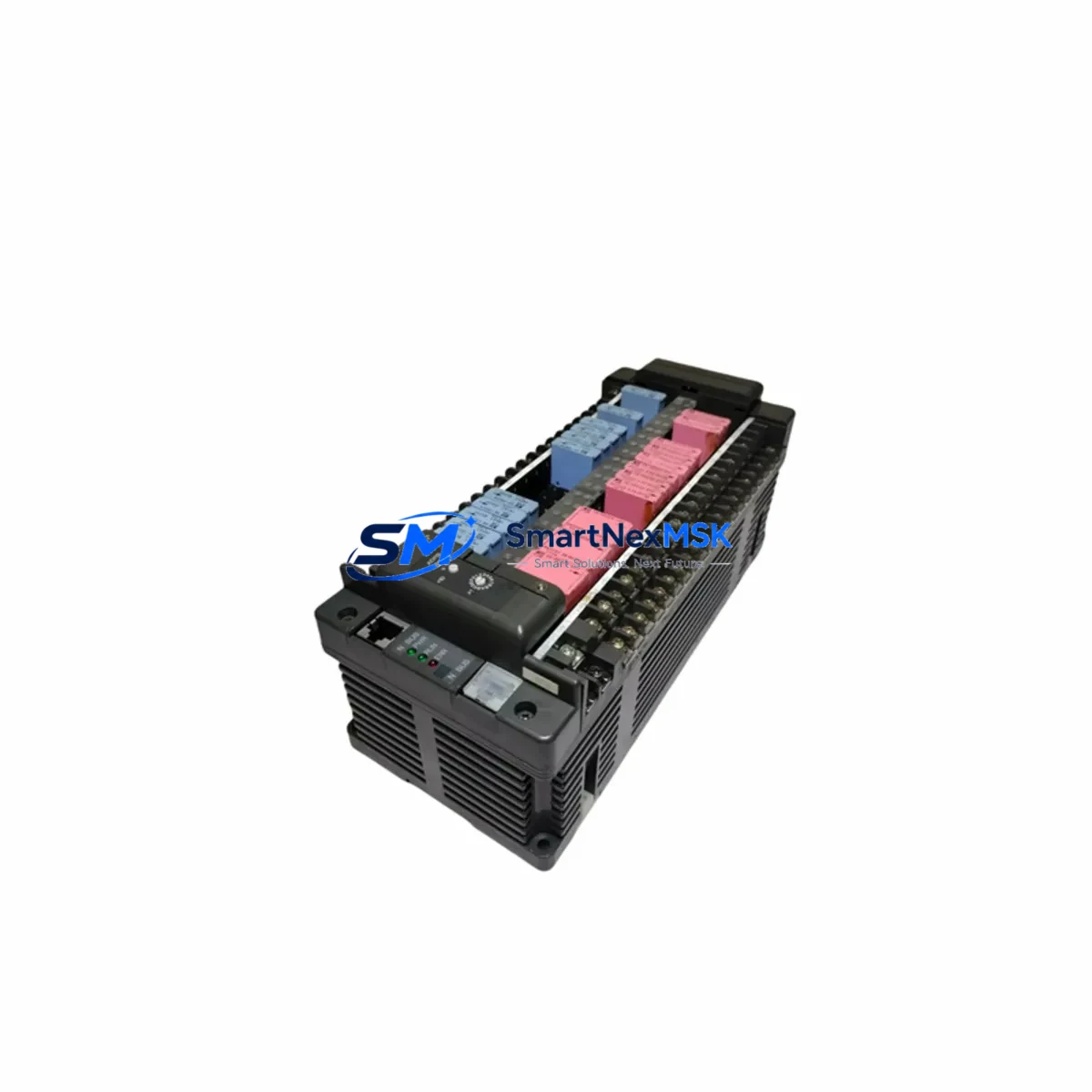

FUJI NB1W40X-01 Retrofit-Ready I/O Expansion for NB1 Series Control Systems
The FUJI Electric NB1W40X-01 is a compact, high-density I/O expansion unit engineered for seamless integration into FUJI NB1 Series programmable logic controller platforms. As legacy NB1-based control systems approach end-of-life and original spare parts become increasingly scarce, the NB1W40X-01 serves as the definitive retrofit solution — enabling plant engineers and system integrators to extend operational life, restore full I/O capacity, and modernize aging control cabinets without replacing the entire PLC architecture.
Whether you are managing a planned upgrade cycle or responding to an unplanned module failure, the NB1W40X-01 is stocked and ready for immediate dispatch from our Xiamen warehouse, backed by a 12-month warranty and pre-shipment functional testing on every unit.
Upgrade Compatibility Table
| Parameter | NB1W40X-01 Specification | Retrofit Notes |
|---|---|---|
| Compatible Platform | FUJI NB1 Series PLC | Direct backplane mount; no adapter required |
| I/O Points | 40-point mixed I/O expansion | Verify I/O address mapping in existing ladder program |
| Backplane Interface | NB1 Series expansion bus connector | Confirm slot position and module address assignment |
| Power Consumption | Supplied via NB1 backplane bus | Verify remaining power budget on NB1W-PS power supply module |
| Terminal Wiring | Screw-terminal block, standard pitch | Existing field wiring is directly reusable; no re-termination needed |
| Communication Compatibility | NB1 internal bus (non-networked expansion) | No protocol migration required; transparent to MICREX-NB CPU |
| Replacement Target | Discontinued NB1W40X-01 OEM units | Functionally equivalent; same firmware recognition |
| Commissioning Requirement | Module address DIP switch setting | Match original module address; no program modification required |
| Warranty | 12 Months | Covers manufacturing defects; includes pre-shipment functional test report |
Retrofit Planning for Existing Automation Systems
A successful NB1W40X-01 retrofit begins well before the module arrives on-site. Engineers should start by auditing the existing FUJI NB1 Series control cabinet to document the current rack configuration, including the NB1W-CPU central processing unit, the NB1W-PS power supply module, and any installed NB1W16X or NB1W32X I/O expansion units already occupying backplane slots. Understanding the total power draw across all installed modules is critical — the NB1W-PS has a defined output capacity, and adding the NB1W40X-01 requires confirming that sufficient headroom remains.
Terminal block wiring should be photographed and documented before any module is removed. The NB1W40X-01 uses the same screw-terminal pitch as its predecessors, meaning existing field cables — including sensor commons, 24 VDC input lines, and relay output circuits — can be reconnected directly without modification. This significantly reduces wiring labor and eliminates the risk of mis-termination during hot-swap scenarios.
For systems that also incorporate FUJI MICREX-NB programming software, engineers should export and archive the current PLC program prior to any hardware change. The NB1W40X-01 is recognized by the MICREX-NB CPU without requiring program edits, provided the module address DIP switches are set to match the original slot assignment. If the control system also includes an NB1W-SX serial communication module for RS-232C or RS-485 links to SCADA or HMI panels — such as a FUJI UG Series HMI — those communication links remain unaffected by the I/O expansion replacement.
In multi-rack configurations where a NB1W-EX expansion cable connects a remote I/O rack to the main CPU rack, the NB1W40X-01 can be installed in either the local or remote rack without changes to the expansion cable or rack termination resistors. Engineers should also verify that any NB1W-AD analog input modules or NB1W-DA analog output modules in adjacent slots are not affected by the module address reassignment during installation.
Before powering up the retrofitted system, a continuity check on all terminal connections and a visual inspection of the backplane connector seating are strongly recommended. Our team provides a pre-shipment functional test report with every NB1W40X-01 unit, confirming I/O point integrity and backplane communication prior to dispatch.
Downtime Control During System Migration
Minimizing production downtime during an NB1W40X-01 replacement is achievable with disciplined pre-planning. The recommended approach is to prepare the replacement module off-line: set the module address DIP switches to match the original configuration, verify the terminal block layout against the wiring diagram, and confirm the unit powers on correctly in a bench test environment before bringing it to the production floor.
During the actual swap, the existing PLC program stored in the NB1W-CPU battery-backed RAM is preserved throughout the module exchange — provided the CPU power is maintained or the program has been backed up to a programming cable-connected laptop running MICREX-NB. The I/O expansion slot can be swapped while the CPU is in STOP mode, which eliminates the need for a full system cold-start and protects all retentive data registers, timer presets, and counter values.
Once the NB1W40X-01 is seated and the terminal block is reconnected, the CPU can be returned to RUN mode. Field I/O should be verified point-by-point using the MICREX-NB online monitor function before releasing the line back to production. For systems with HMI panels displaying real-time I/O status, the HMI screen data requires no modification — the I/O addresses remain identical to the original module mapping.
For critical continuous-process applications where even a brief STOP mode is unacceptable, our technical team can advise on warm-standby strategies using a secondary NB1W-CPU and synchronized program transfer. Total planned downtime for a standard NB1W40X-01 swap in a well-prepared environment is typically under 30 minutes.
Retrofit Support FAQ
Q1: Is the NB1W40X-01 a direct drop-in replacement for the original discontinued unit?
Yes. The NB1W40X-01 is functionally equivalent to the original OEM part. It uses the same backplane connector, identical terminal block pitch, and is recognized by the FUJI MICREX-NB CPU without any program modification, provided the module address DIP switches are configured to match the original slot assignment.
Q2: What wiring changes are required during installation?
No wiring changes are required. The NB1W40X-01 retains the same screw-terminal layout and signal assignments as the original module. Existing field cables can be reconnected directly. We recommend photographing the original wiring before removal as a reference during reinstallation.
Q3: How is compatibility with the existing PLC program verified?
The NB1W40X-01 is transparent to the NB1W-CPU at the program level. I/O addresses assigned to the original module are preserved. After installation, use the MICREX-NB online monitor to perform a point-by-point I/O verification before returning the system to RUN mode. No program upload or modification is needed.
Q4: What does the 12-month warranty cover, and is a test report included?
Every NB1W40X-01 unit shipped by SMARTNEXMSK includes a pre-shipment functional test report confirming backplane communication integrity and I/O point operation. The 12-month warranty covers all manufacturing defects from the date of receipt. Units showing defects within the warranty period are replaced or repaired at no charge, with priority dispatch to minimize your system downtime.
