FUJI SA510062-02 Safety-Enhanced Control Board Module

FUJI SA510062-02 Safety-Enhanced Control Board Module: Reliable Control in Harsh Industrial Sites

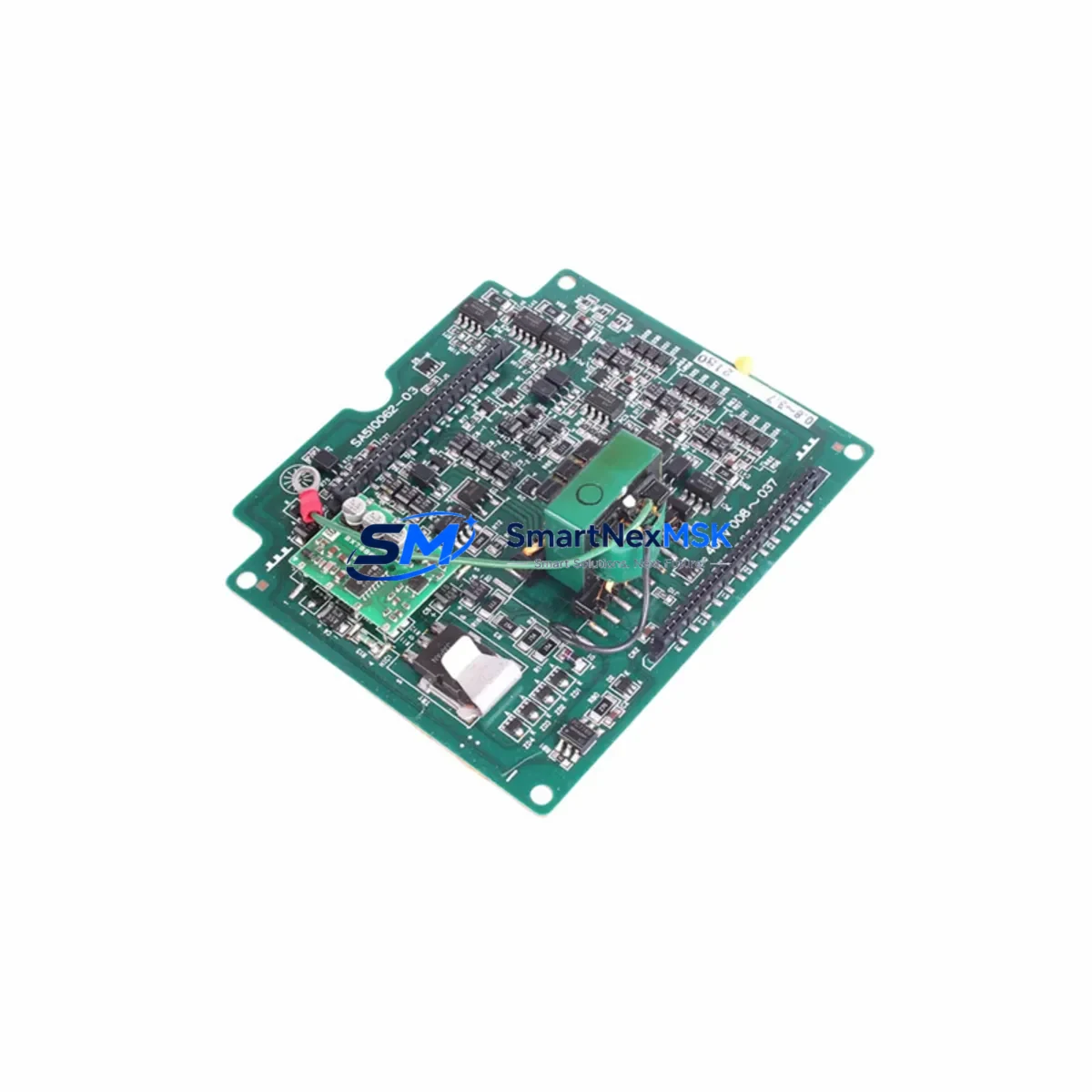

The FUJI SA510062-02 is a ruggedized circuit board module engineered for the FUJI FRENIC series variable frequency drive platform, purpose-built to sustain safe, uninterrupted control in the most demanding industrial environments. Whether deployed inside a high-density control cabinet on a petrochemical processing line, integrated into a critical interlock loop at a power generation facility, or serving as the primary drive control interface in a continuous mining or metallurgical operation, the SA510062-02 delivers the signal integrity, thermal resilience, and electrical robustness that safety-critical automation demands.

Industrial sites operating under continuous production schedules cannot afford control interruptions caused by module failure. The SA510062-02 addresses this directly: its multilayer PCB construction and conformal coating provide effective resistance against moisture ingress, airborne particulates, and corrosive atmospheres — conditions routinely encountered in water treatment plants, port logistics facilities, and heavy manufacturing halls. The board’s onboard filtering architecture suppresses high-frequency EMI generated by adjacent inverter switching stages, preventing signal drift that could otherwise trigger nuisance trips or, worse, undetected control errors in safety-relevant loops.

Safety Reliability Table

Control Cabinet Protection Strategy

A robust control cabinet protection strategy for FRENIC-series drive systems begins with the SA510062-02 as the central control intelligence, but its reliability is inseparable from the quality of the surrounding protection architecture. In high-load applications — such as large-capacity motor drives in steel rolling mills or cement kiln lines — the control board must coexist with significant electrical noise generated by IGBT switching in the FUJI FRENIC-Multi or FRENIC-Mega power stage assemblies. Proper cabinet design pairs the SA510062-02 with dedicated EMC input filters and line reactors installed upstream of the drive, attenuating voltage spikes before they reach the control circuitry.

On the power supply side, a 24 VDC regulated SMPS module with adequate hold-up time ensures the SA510062-02 continues to operate correctly through brief mains disturbances — a common occurrence in facilities sharing bus infrastructure with large induction furnaces or arc welders. Surge protection devices (SPDs) installed at the cabinet entry point, combined with proper equipotential bonding of the drive chassis and motor cable shields, form the first line of defense against transient overvoltages that could otherwise corrupt the board’s non-volatile parameter memory or damage its analog input conditioning circuits.

For installations where the FRENIC drive interfaces with a Programmable Logic Controller — such as a FUJI MICREX-SX series PLC or a third-party safety PLC — the communication link between the PLC I/O module and the SA510062-02’s control terminals must be routed in shielded twisted-pair cable, segregated from power wiring. Where fieldbus communication is used (RS-485 Modbus RTU or FUJI’s proprietary option card interface), proper termination resistors and bus isolators prevent ground loop currents from introducing bit errors that could cause the drive to misinterpret speed references or fault reset commands. Pairing the SA510062-02 with a FUJI OPC-G1-RY relay output option card or a compatible digital I/O expansion module further extends the safety interlock capability of the overall drive system.

In critical interlock applications — emergency stop circuits, fire and gas system-triggered drive shutdowns, or overspeed protection loops — the SA510062-02’s fast fault response and deterministic control cycle ensure that safety commands are executed within the drive’s rated reaction time. Complementing this with a FUJI braking resistor unit and a dynamic braking module on the DC bus provides controlled deceleration during emergency stops, preventing mechanical shock to connected equipment and reducing the risk of process upsets in continuous production lines.

Critical Industrial Safety Applications

Petrochemical & Refinery: In hazardous area control rooms and motor control centers serving pump and compressor drives, the SA510062-02 sustains reliable speed regulation under continuous duty cycles. Its resistance to chemical vapors and humidity makes it suitable for drives installed in partially classified zones where standard boards would degrade prematurely. Stable control board operation directly reduces the risk of unplanned pump trips that could compromise process containment integrity.

Power Generation & Utilities: Auxiliary drive systems in thermal and hydroelectric power plants — cooling water pumps, induced draft fans, boiler feed auxiliaries — depend on uninterrupted VFD control. The SA510062-02’s immunity to the high electromagnetic background noise typical of generator halls and switchgear rooms ensures that speed references and fault signals are processed accurately, supporting both operational efficiency and grid stability compliance.

Mining & Mineral Processing: Underground and surface mining operations subject drive control boards to extreme vibration, dust ingress, and wide temperature swings. The SA510062-02’s conformal coating and robust component selection address these stressors directly, supporting reliable operation of conveyor drives, crusher motor controls, and ventilation fan systems where a control board failure could trigger a site-wide production halt.

Water & Wastewater Treatment: Municipal and industrial water treatment facilities operate pump and blower drives around the clock. The SA510062-02 supports continuous, low-maintenance operation in high-humidity pump houses, where condensation and airborne chlorine compounds are persistent threats to unprotected electronics. Reliable control board function is essential to maintaining flow rates, pressure targets, and dosing accuracy within regulatory limits.

Metallurgy & Steel: Rolling mill and electric arc furnace auxiliary drives operate in environments with intense electromagnetic interference from high-current bus bars and induction heating equipment. The SA510062-02’s EMI filtering capability and stable analog signal conditioning maintain precise speed and torque control under these conditions, supporting product quality consistency and reducing scrap rates attributable to drive instability.

Port & Heavy Logistics: Crane hoist and gantry drive systems in port terminals demand fast, repeatable control response and high reliability under variable load conditions. The SA510062-02 supports the FRENIC drive’s dynamic braking and regenerative control functions, enabling safe load handling and reducing mechanical wear on hoisting equipment through smooth acceleration and deceleration profiles.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover for the SA510062-02?
The 12-month warranty covers all manufacturing defects and functional failures under normal operating conditions. If the module fails to perform its specified control functions within the warranty period, we provide a replacement or full refund. Warranty claims are processed promptly with minimal documentation requirements to minimize your downtime.

Q2: How is the SA510062-02 tested before shipment?
Every SA510062-02 unit undergoes a 100% functional test and burn-in inspection prior to dispatch. Testing verifies control signal processing, power rail integrity, communication interface function, and thermal performance under load. Units that do not meet OEM specifications are quarantined and not shipped. A test report is available upon request for quality-critical procurement processes.

Q3: Is the SA510062-02 a direct OEM-compatible replacement for existing FRENIC-series drives?
Yes. The SA510062-02 is an OEM-specification replacement board for compatible FUJI FRENIC-series variable frequency drives. It is a plug-compatible substitute that requires no parameter re-engineering or mechanical modification. Compatibility should be confirmed against your specific drive model and firmware revision; our technical team can assist with cross-referencing if required.

Q4: Can you guarantee long-term supply and replacement support for the SA510062-02?
We maintain dedicated safety stock of the SA510062-02 and key FUJI FRENIC-series control components to support long-term maintenance programs and emergency replacement requirements. For facilities operating legacy FRENIC drives where OEM supply has been discontinued or lead times are extended, we offer a reliable alternative supply channel with consistent quality standards and documented traceability.
