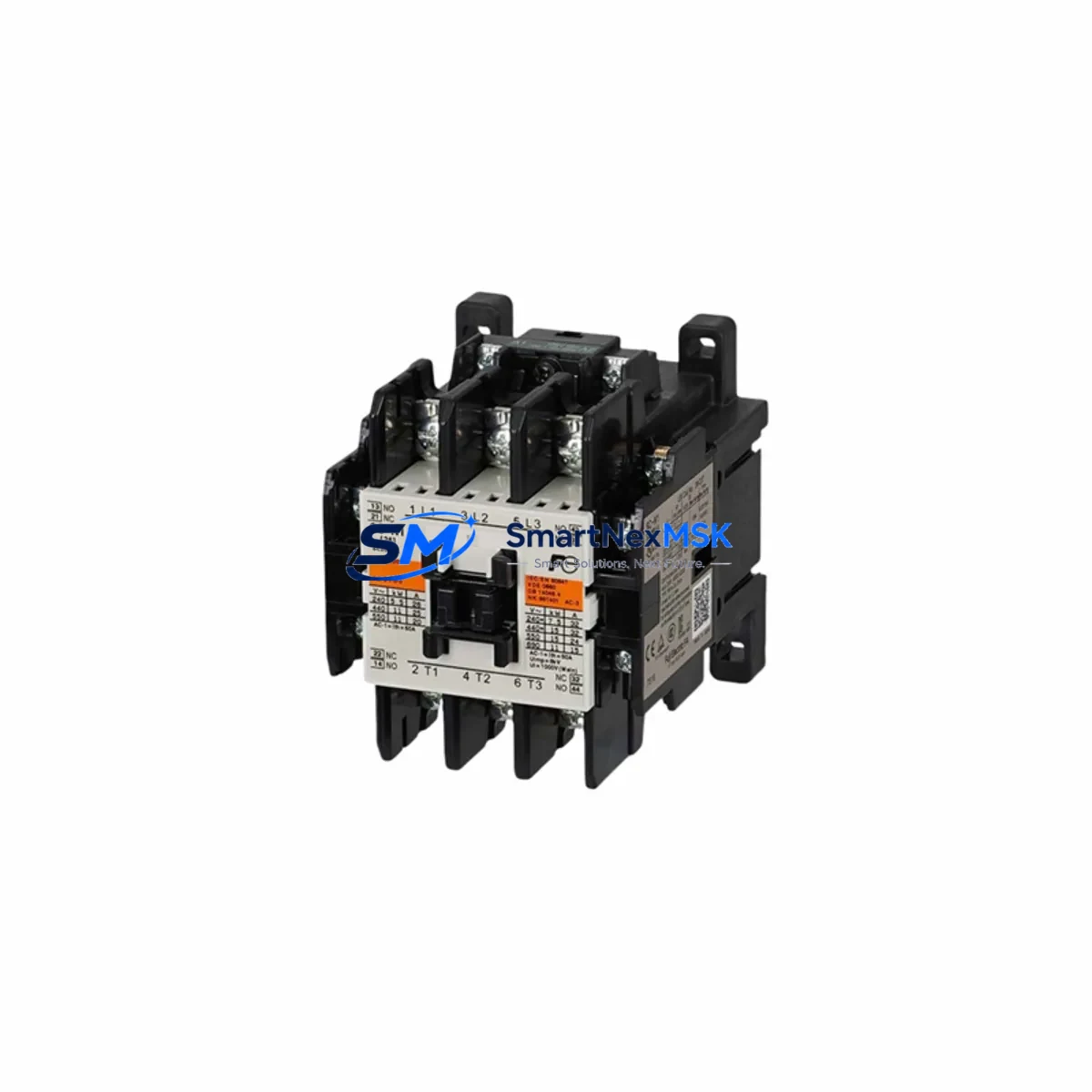

The FUJI SC-1N is a 9A AC3-rated magnetic contactor from FUJI Electric’s SC Series — one of the most widely deployed motor control components in industrial automation panels across Asia-Pacific and global manufacturing facilities. For maintenance engineers managing aging control systems, motor control centers (MCCs), or distributed automation cabinets, stocking the SC-1N as a verified spare is a fundamental risk-reduction strategy. Unplanned contactor failure is among the leading causes of motor circuit downtime; having a tested, original replacement on-site can reduce mean time to repair (MTTR) from hours to minutes.

This listing supplies the FUJI SC-1N as an original, maintenance-ready spare part — inspected, function-tested, and shipped with a 12-month warranty. Each unit is verified for coil continuity, contact resistance, and mechanical operation before dispatch, ensuring it is ready for immediate installation upon arrival.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a FUJI SC-1N contactor fails or reaches end-of-life, a thorough maintenance response goes beyond simply swapping the contactor. Experienced maintenance engineers treat contactor replacement as a trigger for a broader circuit health check — because associated components in the same motor control loop are often subject to the same thermal and electrical stress cycles.

Begin by inspecting the FUJI TK-1N or TK-2N thermal overload relay mounted directly below or adjacent to the SC-1N. Overload relays in the same circuit accumulate trip history and may have degraded bimetallic elements even if they have not recently tripped. If the SC-1N failed due to overload or welded contacts, the overload relay should be replaced simultaneously. Next, check the FUJI BF-1N auxiliary contact block — these snap-on accessories are frequently overlooked during contactor replacement and can cause intermittent control circuit faults if their contacts are worn.

Inspect the control power supply feeding the contactor coil circuit. A 24V DC SMPS or 220V AC control transformer with marginal output voltage can cause coil chatter, accelerated contact wear, and premature contactor failure. Verify coil supply voltage is within ±10% of rated value under load. If the panel uses a FUJI BW-series molded case circuit breaker (MCCB) as the upstream protective device, confirm its trip characteristics and contact condition — a weakened MCCB may fail to interrupt fault current cleanly, exposing the contactor to repeated high-current stress.

For panels with multiple SC-1N contactors in reversing or star-delta starter configurations, inspect the mechanical interlock assembly between contactor pairs. Worn interlock pins or springs can allow simultaneous energization, causing phase-to-phase faults. Check all terminal blocks and wiring lugs on the contactor’s main terminals — loose connections cause localized heating, accelerated contact erosion, and insulation degradation on the connected cables.

If the SC-1N is part of a PLC-controlled motor circuit, verify the PLC output module driving the contactor coil. Solid-state output modules (transistor or triac type) can be damaged by inductive kickback if the coil suppression circuit (RC snubber or freewheeling diode) has failed. Inspect the surge suppressor or RC snubber fitted across the coil terminals — these are consumable components that should be replaced whenever the contactor is replaced. In systems using FUJI MICREX-SX or MICREX-F series PLCs, also verify the output card’s channel status via the PLC diagnostic interface before returning the circuit to service.

Finally, review the control circuit fusing — typically a 2A or 4A glass or ceramic fuse in the coil supply line. A blown or weakened fuse can cause intermittent coil dropout under normal operating conditions. Document the replacement in the panel’s maintenance log and update the spare parts inventory to replenish the SC-1N stock, ensuring at least one verified spare remains available for the next maintenance cycle.

Site Replacement Workflow

Step 1 — Isolation & Lockout/Tagout: De-energize the motor circuit at the upstream MCCB or disconnect switch. Apply LOTO per site safety procedures. Verify absence of voltage on all three main terminals of the SC-1N using a calibrated voltage tester.

Step 2 — Documentation: Photograph the existing wiring arrangement, terminal labeling, and auxiliary contact connections before removal. Note the coil voltage marking on the existing contactor to confirm the replacement unit’s coil voltage matches.

Step 3 — Removal: Disconnect main power cables (L1/L2/L3 and T1/T2/T3) and control wiring from auxiliary contacts and coil terminals. Remove the contactor from the DIN rail or panel mounting by releasing the mounting clip or unscrewing the fixing screws.

Step 4 — Inspection & Cleaning: Clean the mounting area. Inspect the DIN rail for deformation. Check adjacent components (overload relay, auxiliary contact block, surge suppressor) and replace as required.

Step 5 — Installation of FUJI SC-1N Spare: Mount the new SC-1N onto the DIN rail or panel. Reconnect main power cables and control wiring per the documented arrangement. Torque main terminals to the manufacturer’s specified value (typically 2.5–4 Nm for this frame size).

Step 6 — Functional Test: Re-energize the control circuit only. Manually energize the contactor coil via the control circuit and verify main contact closure using a continuity tester. Check auxiliary contact operation. Then re-energize the main circuit and perform a no-load motor run test before returning to full production load.

Step 7 — Documentation & Inventory Update: Record the replacement date, unit serial number, and test results in the maintenance management system. Reorder a replacement SC-1N spare to maintain minimum stock levels.

Spare Parts Support FAQ

Q1: Is this SC-1N a genuine FUJI Electric original part or an aftermarket equivalent?
This is an original FUJI Electric SC-1N magnetic contactor sourced through authorized industrial supply channels. Each unit carries FUJI Electric’s original part markings and is not an aftermarket or third-party equivalent. Compatibility with existing SC Series motor control circuits is direct and requires no modification.

Q2: What is the warranty coverage and what does it include?
All SC-1N units supplied through this listing carry a 12-month warranty from the date of shipment. The warranty covers manufacturing defects, coil failure under normal operating conditions, and contact assembly defects. It does not cover damage resulting from incorrect installation, overvoltage, or operation outside rated parameters. Warranty claims are supported with replacement or refund at our discretion.

Q3: How do I verify compatibility before installation if my existing contactor label is damaged?
Compatibility can be confirmed by cross-referencing the motor starter’s rated current (AC3 duty), coil voltage, and auxiliary contact configuration against the SC-1N datasheet. The SC-1N is rated 9A AC3 and is dimensionally and electrically interchangeable with other SC-1N units regardless of production date. If you require assistance with compatibility verification, contact our technical support team with your panel drawing or motor nameplate data.

Q4: Can you supply multiple SC-1N units for a planned maintenance shutdown or annual overhaul?
Yes. We support bulk spare parts orders for planned shutdowns, annual overhauls, and strategic inventory stocking programs. Volume pricing is available for orders of 5 units or more. All units in a bulk order are batch-tested and shipped together with individual test records. Lead time for standard quantities is typically 3–7 business days; expedited shipment is available for urgent maintenance requirements.
