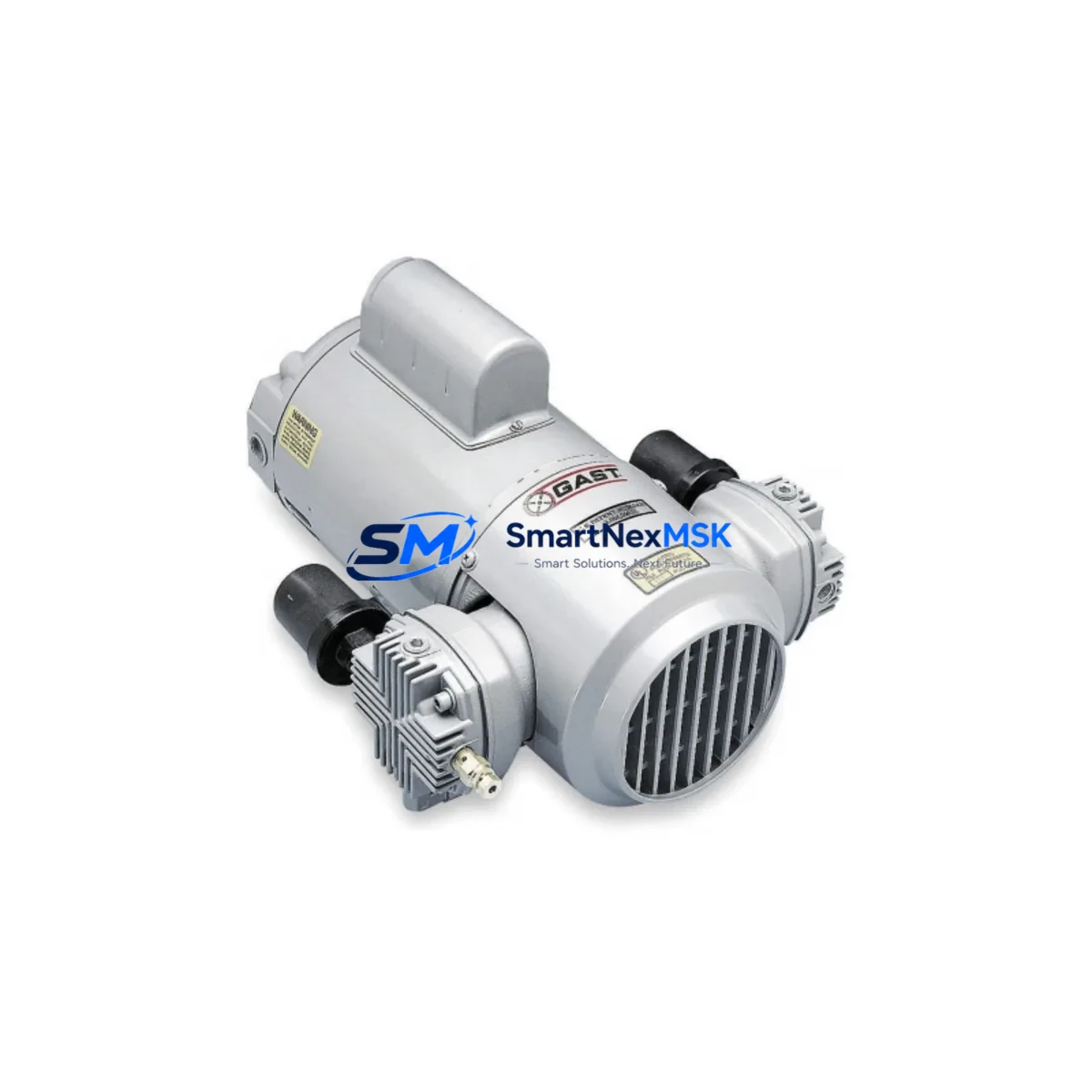

GAST 4LCB-10-M450X Retrofit-Ready Oil-Less Compressor/Vacuum Pump for 4LCB Series Control Systems
The GAST 4LCB-10-M450X is a precision-engineered, oil-less piston compressor and vacuum pump designed as a retrofit-ready replacement for legacy 4LCB Series installations. Whether you are modernizing an aging pneumatic control cabinet, replacing a discontinued compressor unit in a process automation line, or restoring pressure/vacuum functionality to a critical production system, the 4LCB-10-M450X delivers verified drop-in compatibility with minimal downtime and no structural modification to the existing enclosure.
Sourced directly from authorized supply channels and pre-tested prior to shipment, every unit is backed by a 12-month warranty covering manufacturing defects and performance deviations. SMARTNEXMSK maintains in-stock inventory to support urgent retrofit and emergency replacement requirements across industrial, medical, laboratory, and process automation environments.
Upgrade Compatibility Table
| Parameter | 4LCB-10-M450X Specification | Retrofit Notes |
|---|---|---|
| Series Compatibility | GAST 4LCB Series | Direct replacement for 4LCB-10 frame variants |
| Pump Type | Oil-Less Piston | No lubrication system modification required |
| Motor Frame | M450X | Verify mounting bolt pattern against existing bracket |
| Voltage / Phase | Confirm nameplate (typically 115V or 230V, 1-phase) | Match to existing panel wiring; check overload relay setting |
| Port Configuration | Standard NPT inlet/outlet | Confirm port size before connecting existing pneumatic lines |
| Communication | N/A (mechanical unit) | Pressure switch and relay wiring must be verified |
| Mounting | Foot-mount / flange options | Check existing base plate dimensions |
| Replacement Recommendation | Suitable for direct swap of discontinued 4LCB-10 units | No firmware or program changes required |
| Commissioning Focus | Pressure setpoint, thermal overload, inlet filter | Test under load before returning system to production |
| Warranty | 12 Months | Covers manufacturing defects and performance deviations |
Retrofit Planning for Existing Automation Systems
Integrating the GAST 4LCB-10-M450X into an existing control system requires a structured approach to ensure continuity of pneumatic and vacuum functions without disrupting adjacent automation components. In a typical industrial control cabinet retrofit, the compressor unit interfaces with a pressure switch (commonly a Honeywell or Condor MDR series), a motor starter or contactor block, and a thermal overload relay — all of which must be verified for compatibility with the M450X motor frame’s current draw and starting characteristics.
For systems where the 4LCB-10-M450X supports vacuum generation in a PLC-controlled process line, engineers should confirm that the vacuum sensor or transducer connected to the Siemens S7-300 or Allen-Bradley MicroLogix 1100 analog input module is calibrated to the new unit’s vacuum curve. If the original compressor was wired through a terminal block assembly such as a Phoenix Contact PTFIX or Weidmüller WDU series, the existing terminal layout can typically be reused without rewiring, provided the motor lead gauge matches.
In applications where the 4LCB-10-M450X replaces a unit mounted on a DIN rail sub-panel alongside a Schneider Electric Zelio Logic smart relay or an Omron CP1E compact PLC, the control logic governing start/stop sequences, pressure thresholds, and fault outputs should be reviewed and re-validated after installation. If the system uses a Modbus RTU communication link to report compressor status to a SCADA or HMI panel — such as a Weintek MT8000 or Proface GP4000 series — the register map and polling interval should be confirmed unchanged after the swap.
Where the 4LCB-10-M450X is installed in a multi-zone pneumatic system sharing a common manifold with solenoid valve banks (e.g., SMC SY series or Festo MPA series), the system pressure regulator and check valve upstream of the manifold should be inspected and replaced if worn. Inlet filtration using a coalescing filter element appropriate for oil-less piston compressors is strongly recommended to protect downstream instrumentation and valve seats.
For retrofit projects involving older Mitsubishi MELSEC FX3U or FX5U series PLCs monitoring compressor run-time via a digital input module, the existing wiring from the pressure switch auxiliary contact to the PLC input terminal can be retained. However, the I/O address assignment in the ladder program should be verified against the current project file before restarting the system.
Downtime Control During System Migration
Minimizing production downtime during a compressor retrofit requires pre-staging the replacement unit, verifying all mechanical and electrical interfaces before shutdown, and following a structured commissioning sequence. For the GAST 4LCB-10-M450X, the recommended approach is to perform a bench test of the unit — confirming free-run current, pressure build-up rate, and vacuum depth — before the scheduled maintenance window begins.
During the swap, the original PLC program logic governing the compressor start/stop sequence, fault detection, and pressure interlock should be preserved without modification. If the system uses a safety relay module (such as a Pilz PNOZ or Sick safety controller) to monitor compressor status as part of a machine safety circuit, the safety function must be re-validated after installation per the applicable machinery directive or local safety standard.
To protect control continuity, it is advisable to place the PLC in manual or maintenance mode during the physical swap, preventing automatic restart commands from reaching the new unit before commissioning checks are complete. Once the 4LCB-10-M450X is mechanically secured, electrically connected, and the inlet filter and pressure switch are confirmed in position, a supervised test run under partial load should be performed before returning the system to automatic operation. All test results, including measured current draw, achieved pressure/vacuum levels, and thermal overload relay trip point, should be documented for the maintenance record.
SMARTNEXMSK ships the 4LCB-10-M450X with a pre-shipment test report confirming operational parameters, supporting rapid acceptance testing on-site and reducing the risk of extended downtime due to unit defects.
Retrofit Support FAQ
Q1: Is the GAST 4LCB-10-M450X a direct drop-in replacement for my existing 4LCB-10 unit?
In most 4LCB Series installations, the 4LCB-10-M450X is a direct mechanical and electrical replacement. You should verify the mounting bolt pattern, port sizes, motor voltage, and phase configuration against your existing installation before ordering. Our technical team can assist with compatibility confirmation based on your nameplate data.
Q2: What commissioning steps are required after installation?
After mechanical installation and electrical connection, verify the pressure switch setpoint, confirm the thermal overload relay is set to the motor’s full-load current, check the inlet filter is clean and correctly seated, and perform a supervised test run. If the compressor feeds a PLC-monitored process, validate all analog and digital I/O signals before returning to automatic mode.
Q3: Can I reuse my existing terminal wiring and pneumatic connections?
In most cases, yes. The 4LCB-10-M450X uses standard NPT port sizes and conventional motor terminal connections. If your existing wiring uses a terminal block assembly, the lead connections can typically be transferred directly. Confirm wire gauge compatibility with the M450X motor specifications before energizing.
Q4: What does the 12-month warranty cover, and how is it supported?
The 12-month warranty covers manufacturing defects and verified performance deviations from published specifications. Each unit is tested prior to shipment and ships with a test report. In the event of a warranty claim, SMARTNEXMSK provides replacement unit dispatch or technical support coordination. Contact sales@smartnexmsk.com or +86 18259474341 to initiate a warranty case.
