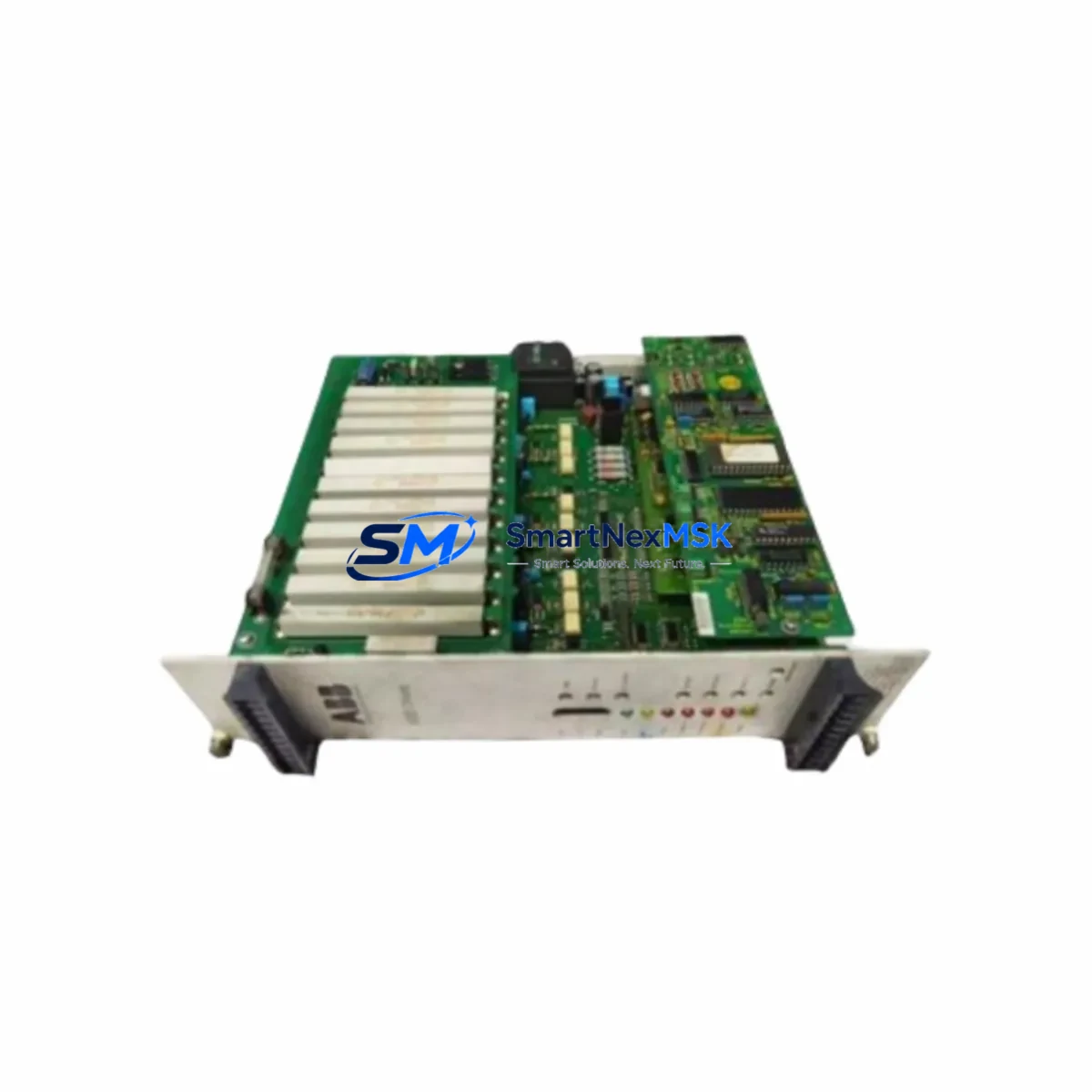

GAT 543020R0001 Retrofit-Ready Servo Control Board

GAT 543020R0001 Retrofit-Ready Servo Control Board: Compatible Upgrade for Legacy Servo Control Systems

The GAT 543020R0001 is a retrofit-ready servo control board engineered to serve as a direct replacement for discontinued and end-of-life servo drive control modules in legacy automation lines. Whether your facility is managing an aging servo axis, recovering from an unexpected board failure, or executing a planned control cabinet upgrade, the GAT 543020R0001 delivers the electrical compatibility, signal integrity, and mechanical form factor required for a smooth, low-risk migration. With verified compatibility across the GAT Servo Series platform and a 12-month warranty backed by pre-shipment functional testing, this board is the preferred choice for maintenance engineers and system integrators working under tight downtime constraints.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful retrofit of the GAT 543020R0001 begins well before the board arrives on site. Engineers should start by auditing the existing servo drive assembly to confirm the backplane slot configuration, bus bar alignment, and control power wiring. In many GAT Servo Series installations, the servo control board shares a common 24 VDC rail with the I/O expansion modules and the drive’s internal logic supply — confirming that the power supply module (PSU) has sufficient residual capacity to support the replacement board is a critical first step that is frequently overlooked.

Terminal block wiring on the GAT 543020R0001 follows the same pin-out convention as the original board, which means that in the majority of retrofit cases, the existing field wiring — including encoder feedback cables, motor thermistor leads, and digital I/O connections — can be transferred directly without modification. However, engineers should photograph and document all wiring before disconnection, particularly on installations where the original wiring labels have faded or been removed.

For systems where the servo axis communicates with a PLC over a fieldbus — such as a PROFIBUS-DP network, a CANopen motion bus, or an EtherCAT ring — the node address and baud rate settings stored on the original board must be noted and replicated on the replacement. In EtherCAT topologies, the network topology file (ENI) may need to be re-validated after the board swap, especially if the drive’s ESI (EtherCAT Slave Information) file version differs between the old and new board revisions.

Where the servo axis is coordinated by a motion controller or CNC controller, the axis parameters — including position loop gain, velocity loop gain, acceleration/deceleration ramps, and electronic gear ratio — should be exported from the original drive before removal using the manufacturer’s PC commissioning software or the drive keypad. These parameters can then be imported or manually re-entered into the GAT 543020R0001 after installation, significantly reducing commissioning time and ensuring that the machine’s motion profile is preserved without re-tuning from scratch.

In control cabinet upgrades where multiple servo axes are being modernized simultaneously, it is common to also replace the servo drive’s braking resistor module, the DC bus capacitor bank, and the gate driver board alongside the control board. Addressing these wear components as part of a single planned outage — rather than reactively — reduces the risk of secondary failures in the months following the retrofit. Similarly, if the installation includes a regenerative power unit shared across multiple drives, its capacity rating should be re-verified against the updated drive configuration.

For facilities running older HMI panels connected to the servo system via RS-232 or RS-485 serial links, the communication parameters (baud rate, parity, stop bits, and station address) configured on the original board must be matched exactly on the GAT 543020R0001. In most cases, the HMI screen layout and variable mapping require no changes, as the register addresses used by the servo drive remain consistent across board revisions within the same product family.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary operational concern in any servo board replacement project. The GAT 543020R0001 is designed to support a structured, time-controlled swap procedure that can typically be completed within a single planned maintenance window — often under four hours for a single-axis replacement when preparation work has been completed in advance.

The recommended approach is to perform all preparatory steps — parameter backup, wiring documentation, spare parts staging, and commissioning software setup — during normal production hours, so that the physical board swap and recommissioning can be executed during a scheduled downtime window with minimal pressure. Before powering down the drive, confirm that the PLC program has been backed up and that the servo axis is in a safe, de-energized state with all safety interlocks engaged.

After installing the GAT 543020R0001, restore the axis parameters from the backup file, verify the encoder feedback signal quality using the drive’s diagnostic display or commissioning software, and perform a low-speed test run before returning the axis to full production speed. If the system uses a safety module or safe torque-off (STO) circuit, verify that the STO input signals are correctly wired and that the safety function is operational before releasing the axis to automatic mode.

For multi-axis systems, it is advisable to replace and commission one axis at a time, returning each axis to verified operation before proceeding to the next. This staged approach preserves production continuity on unaffected axes and allows the commissioning team to identify and resolve any axis-specific issues without cascading impact across the entire machine.

Retrofit Support FAQ

Q1: Is the GAT 543020R0001 a direct drop-in replacement for the original servo control board in my GAT Servo Series drive?
A: In the majority of GAT Servo Series applications, yes. The GAT 543020R0001 retains the same backplane connector layout, terminal block pin-out, and control power requirements as the original board. However, we recommend confirming the drive chassis model and firmware version before ordering to ensure full compatibility, particularly for early-generation drives that may use a different board revision.

Q2: Do I need to re-tune the servo axis after replacing the control board?
A: If the original axis parameters are backed up and restored correctly, full re-tuning is generally not required. A verification test run at reduced speed is recommended to confirm that the position loop, velocity loop, and torque limit settings are operating as expected. Minor gain adjustments may be needed if the mechanical load characteristics have changed since the original commissioning.

Q3: What communication protocols does the GAT 543020R0001 support, and will it work with my existing fieldbus network?
A: The GAT 543020R0001 supports the communication interfaces standard to the GAT Servo Series platform, including RS-485 serial, CANopen, and EtherCAT. For installations using PROFIBUS-DP or other fieldbus protocols via an optional communication card, verify that the communication option card from the original drive is compatible with the replacement board before installation.

Q4: What does the 12-month warranty cover, and is pre-shipment testing performed?
A: Every GAT 543020R0001 unit undergoes a full functional test prior to dispatch, covering power-on verification, I/O signal integrity, and communication interface validation. The 12-month warranty covers manufacturing defects and component failures under normal operating conditions. Warranty claims are supported directly — contact sales@smartnexmsk.com with your order reference and a description of the fault for rapid resolution.
