GE DA512 Retrofit-Ready Thickness Probe for Measurement Series

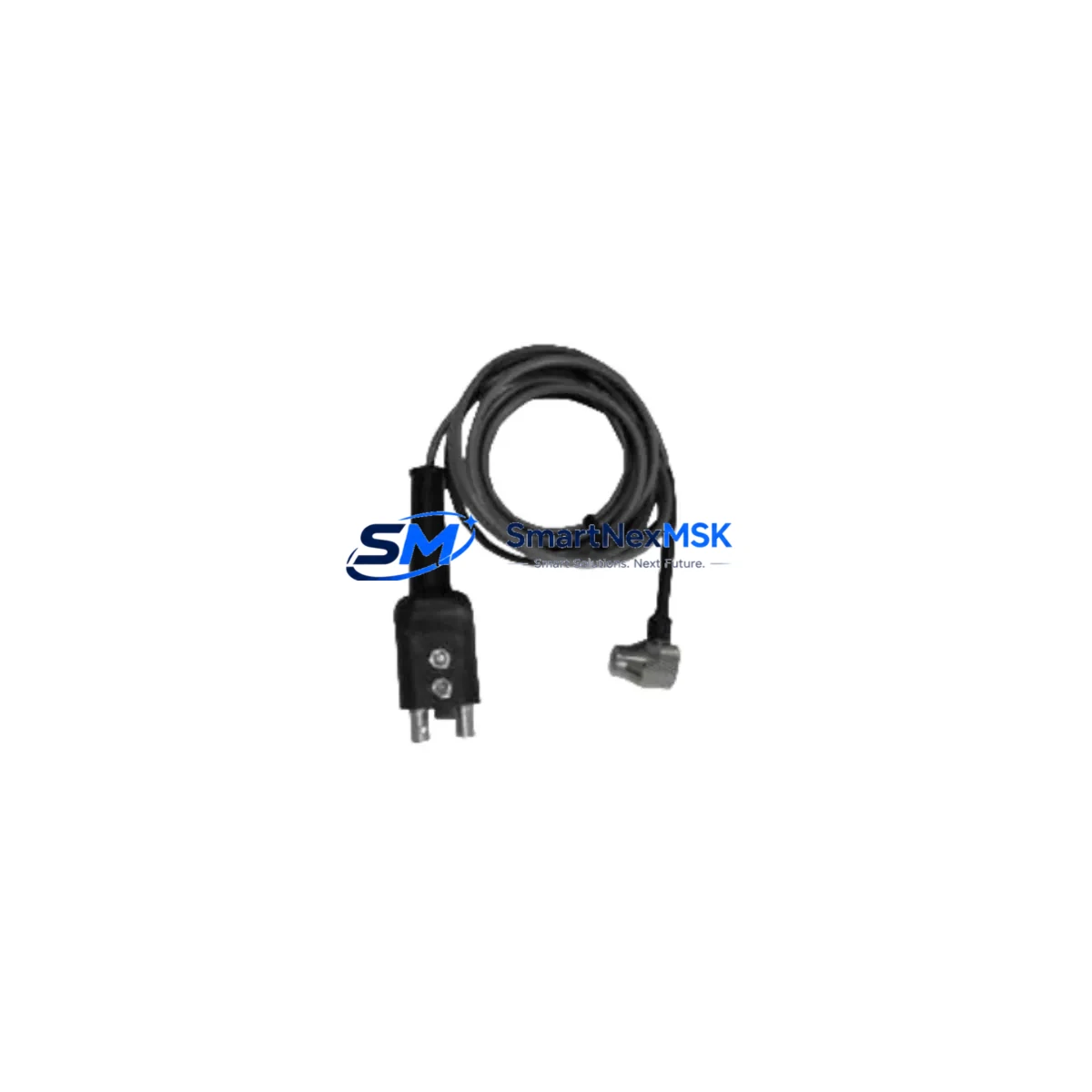

GE DA512 Retrofit-Ready Dual-Element Thickness Probe for Measurement Series Control Systems

The GE DA512 is a dual-element ultrasonic thickness probe engineered for precision wall-thickness measurement in demanding industrial environments. As legacy NDT inspection systems age and OEM support for discontinued models becomes scarce, the DA512 serves as a verified retrofit-ready replacement for Measurement Series ultrasonic flaw detectors and thickness gauges. Whether you are upgrading a corrosion monitoring station, replacing a worn transducer on a portable gauge, or migrating from an end-of-life inspection platform, the DA512 delivers the signal integrity and connector compatibility required for a smooth, low-downtime transition.

Designed and manufactured by GE Inspection Technologies — now operating under the Waygate Technologies brand — the DA512 features a dual-element (pitch-catch) configuration that excels in measuring heavily corroded surfaces, rough castings, and high-temperature materials where single-element probes lose accuracy. The probe operates at a nominal frequency suited for steel, stainless steel, aluminum, and composite substrates, making it a versatile asset across petrochemical, power generation, shipbuilding, and pressure vessel inspection workflows.

When planning a retrofit or replacement, engineers must confirm several critical parameters before swapping the transducer. First, verify the connector type: the DA512 uses a dual-coaxial LEMO 00 interface, which is directly compatible with the GE DMS Go+, GE DMS 2, and GE Mentor UT thickness gauge families. If your existing gauge uses a BNC or Microdot connector, a passive adapter cable — such as the GE MHZ5-4 adapter — is required and should be sourced alongside the probe to avoid field delays. Second, confirm the cable length: the standard DA512 ships with a 1-metre cable, but 2-metre and 3-metre extensions are available for confined-space or elevated-platform applications. Third, review the delay line and zero calibration procedure in your gauge’s firmware, as dual-element probes require a two-point calibration on a certified step-wedge reference block before field deployment.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful DA512 retrofit begins well before the probe arrives on site. Start by auditing your existing inspection station: document the gauge model (for example, a GE DMS Go+ or an older GE 26MG thickness gauge), the current probe model, the calibration block material and thickness range, and the data-logging software in use — typically GE’s GageView Pro or a third-party CMMS integration. If your station uses a GE USM 36 or GE USM 100 flaw detector in thickness mode, confirm that the instrument’s pulser-receiver settings are compatible with a dual-element transducer before ordering.

For corrosion monitoring rigs that use automated scanning frames, check the probe holder dimensions. The DA512 body diameter is compatible with most standard spring-loaded probe holders, but if your scanner was originally fitted for a GE Alpha series single-element probe, a custom adapter shoe may be needed. Procurement teams should also consider ordering a spare GE MHZ5-4 adapter cable and a replacement delay line (GE DL series) as part of the retrofit kit, since these consumable components are frequently the first to fail in high-cycle scanning environments.

Data continuity is another key concern. If your inspection records are stored in GE’s Mentor Create software or exported to a plant-wide asset integrity platform, verify that the new probe’s calibration constants are correctly entered before the first production scan. Mismatched velocity or zero-offset values will produce systematic thickness errors that may not be immediately obvious during a visual review of the data. A pre-deployment functional test on a certified reference block — ideally the same block used for the original calibration — is the most reliable way to confirm that the DA512 is performing within specification before it enters service.

Teams managing multi-point corrosion monitoring grids should also review their GE Mentor EM eddy-current modules and GE Phasor XS phased-array units to ensure that the DA512 retrofit does not disrupt adjacent inspection channels sharing the same data-acquisition rack. In most cases, the DA512 operates on a fully independent coaxial channel and will not interfere with other transducers, but physical cable routing and connector labelling should be updated in the station’s wiring diagram to reflect the new configuration.

Downtime Control During System Migration

Minimising unplanned downtime during a probe replacement is a primary concern for plant maintenance teams. The DA512 is designed for rapid field swap: no firmware update is required on compatible GE gauges, and the two-point calibration procedure typically takes less than five minutes when a certified reference block is available on site. To further reduce exposure, we recommend the following migration sequence:

First, perform the calibration and functional verification on a bench or in a safe area before taking the gauge to the inspection point. Second, retain the old probe until the DA512 has been confirmed in service — do not discard the legacy transducer until at least one full inspection cycle has been completed with the new probe and the results have been reviewed against historical baseline data. Third, update your gauge’s probe memory slot (available on GE DMS Go+ and DMS 2 models) with the DA512’s calibration file so that future operators can recall the correct settings without repeating the full calibration procedure. Fourth, document the swap in your CMMS with the probe serial number, calibration date, reference block ID, and the name of the technician who performed the verification — this record is essential for audit compliance in regulated industries such as oil and gas, nuclear, and aerospace.

For plants running continuous or semi-continuous inspection schedules, a pre-positioned spare DA512 in the site stores — alongside a spare GE MHZ5-4 adapter and a delay line — provides the fastest possible recovery path if the primary probe is damaged during operation. Our standard lead time for the DA512 is 3–7 business days from confirmed order, and expedited shipping is available for urgent breakdown situations.

Retrofit Support FAQ

Q1: Is the GE DA512 a direct drop-in replacement for the DA501 and DA508?
Yes. The DA512 shares the same dual-LEMO 00 connector interface and body diameter as the DA501 and DA508, making it a direct mechanical and electrical replacement on all GE Measurement Series thickness gauges that support dual-element probes. No wiring modification or adapter is required when replacing these specific models.

Q2: Do I need to recalibrate my gauge after installing the DA512?
Yes, always. Each probe has unique acoustic characteristics, and the gauge’s zero offset and sound velocity settings must be re-established after every probe swap. Use a certified two-step or multi-step reference block in the material being inspected. On GE DMS Go+ and DMS 2 gauges, save the new calibration to a dedicated probe memory slot to streamline future deployments.

Q3: What is included in the 12-month warranty, and how do I make a claim?
The DA512 carries a 12-month warranty covering manufacturing defects in materials and workmanship from the date of shipment. The warranty does not cover wear caused by abrasive surfaces, mechanical impact, or operation outside the specified temperature range. To initiate a warranty claim, contact sales@smartnexmsk.com with your order number, probe serial number, and a description of the fault. We will arrange inspection and, where applicable, replacement or repair at no charge.

Q4: Has the DA512 been tested before shipment?
Yes. Every DA512 unit undergoes a functional output test prior to dispatch. Test records are available on request. Units are shipped in protective foam packaging to prevent transit damage. If you receive a unit that appears damaged in transit, please photograph the packaging and contact us within 48 hours of receipt so we can arrange a replacement under our shipping damage policy.
