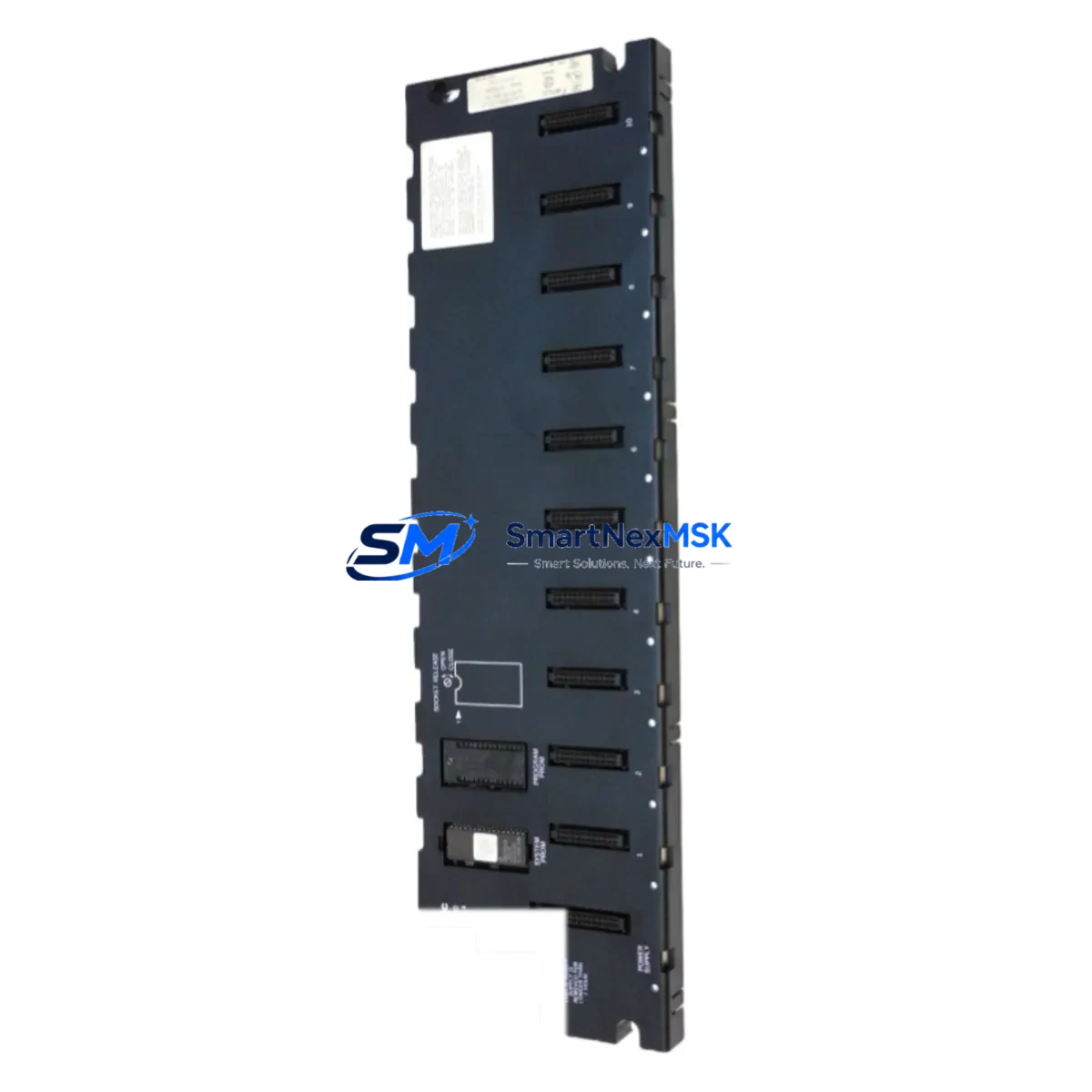

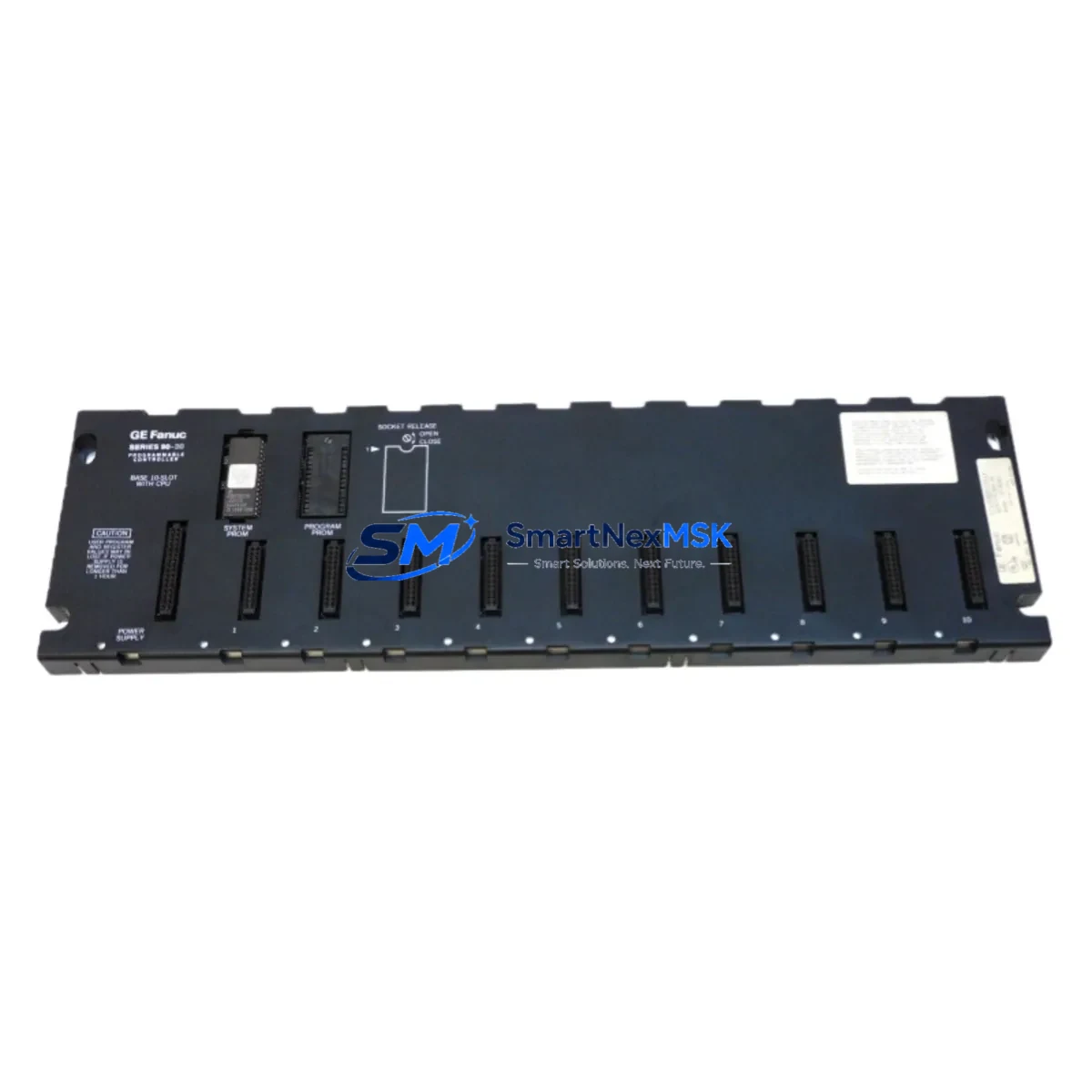

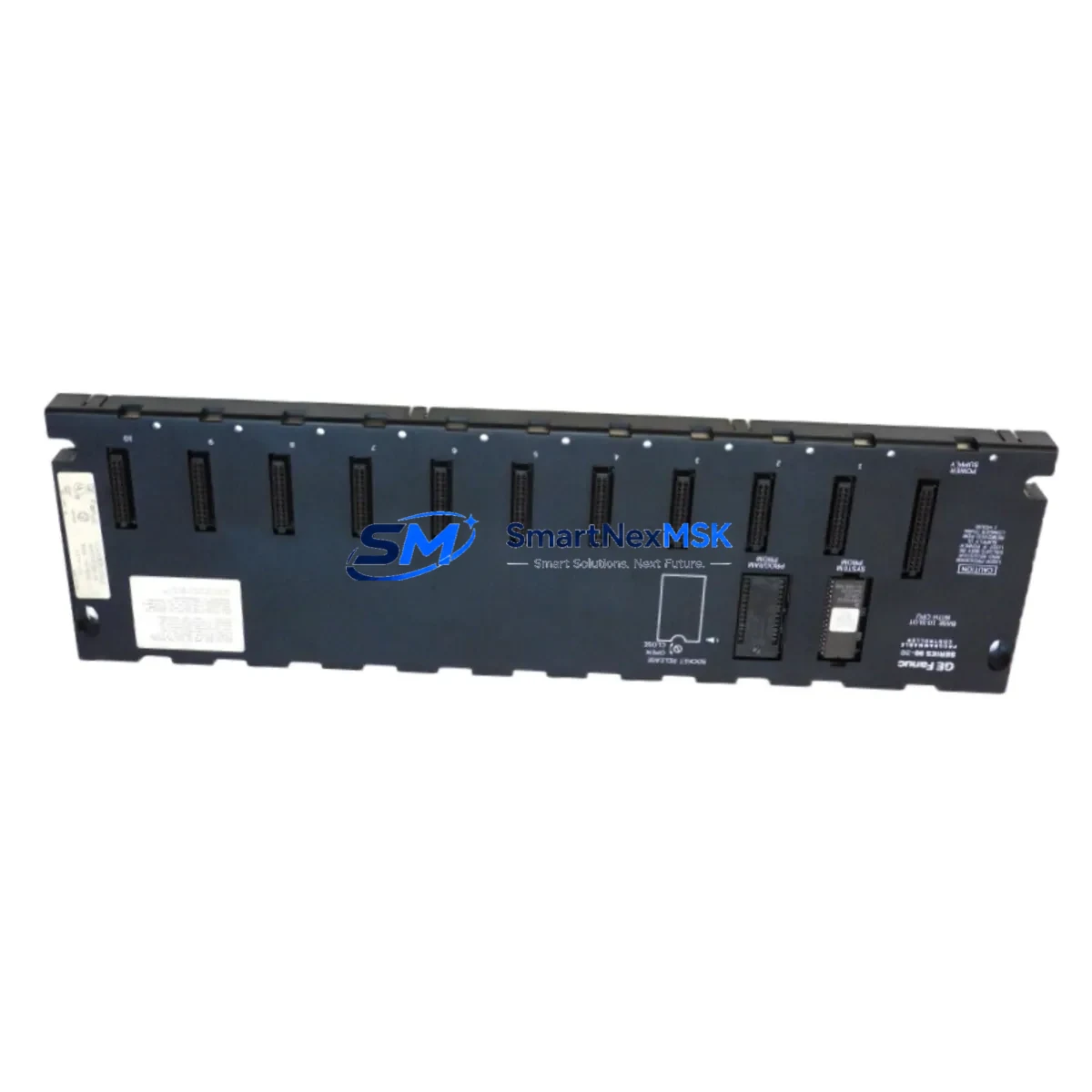

GE Fanuc IC693CPU321 Safety-Enhanced CPU for Harsh Industrial Sites

GE Fanuc IC693CPU321 Safety-Enhanced CPU for Harsh Industrial Sites

The GE Fanuc IC693CPU321 is a high-reliability Series 90-30 CPU module engineered for continuous, uninterrupted operation in the most demanding industrial environments. Designed to anchor safety-critical control loops, this module delivers deterministic scan-cycle performance even under extreme electrical noise, voltage fluctuation, and thermal stress — conditions routinely encountered in petrochemical plants, power generation facilities, mining operations, water treatment stations, metallurgical mills, port logistics systems, and continuous-process manufacturing lines.

Where control interruption carries real safety and financial consequences, the IC693CPU321 provides the processing backbone that keeps field devices, interlocks, and emergency shutdown sequences executing on schedule. Its robust architecture suppresses the effects of signal drift, power transients, and communication anomalies that routinely destabilize lesser controllers, making it a preferred replacement and upgrade CPU across legacy Series 90-30 racks still in active service worldwide.

Safety Reliability Table

Control Cabinet Protection Strategy

Deploying the IC693CPU321 as the central processing unit of a Series 90-30 rack demands a coordinated cabinet protection strategy. The CPU relies on a stable, conditioned DC bus supplied by the IC693PWR321 or IC693PWR330 power supply modules; these units incorporate internal filtering that attenuates high-frequency conducted noise before it reaches the CPU backplane, directly reducing the risk of spurious watchdog faults and module resets during load switching events.

On the I/O side, discrete input modules such as the IC693MDL645 (24 VDC 16-point input) and output modules like the IC693MDL740 (relay output) provide the field interface layer. Proper selection of these modules — matched to field voltage levels and load types — prevents back-EMF and inductive kick from propagating into the CPU scan cycle. For analog process variables, the IC693ALG221 analog input module delivers 4–20 mA signal conditioning with hardware filtering, protecting the CPU from signal drift caused by long cable runs in electrically noisy environments.

Communication integrity is maintained through the IC693CMM321 communications coprocessor, which offloads serial and network traffic from the CPU, ensuring that high-volume SCADA polling or HMI data requests do not degrade the deterministic scan time required for safety interlock logic. Where Ethernet connectivity is required, the IC693CMM311 Ethernet Interface Module provides TCP/IP connectivity while isolating the CPU from network-layer anomalies.

For applications requiring redundant control or hot-standby configurations, the IC693CPU321 can be paired with a IC693CPU374 (enhanced CPU with built-in Ethernet) in a mixed-rack architecture, allowing a phased upgrade path without full system replacement. Surge and transient protection at the cabinet entry point — using DIN-rail mounted surge protective devices rated to IEC 61000-4-5 Level 3 — further shields the entire rack assembly, including the CPU, from lightning-induced surges and switching transients on power and signal lines.

Critical Industrial Safety Applications

Petrochemical & Refinery Plants: The IC693CPU321 is widely deployed in burner management systems (BMS) and emergency shutdown (ESD) panels where IEC 61511 functional safety requirements demand a CPU with a proven, deterministic scan cycle and comprehensive fault diagnostics. Its ability to maintain program execution through brief power dips — supported by the onboard battery-backed RAM — prevents nuisance trips that could trigger unplanned flaring or process upsets.

Power Generation & Substation Control: In coal-fired, hydroelectric, and gas turbine facilities, the IC693CPU321 manages auxiliary control sequences including cooling water systems, lube oil circuits, and generator excitation interlocks. The module’s EMI immunity is critical in substations where high-voltage switching generates intense electromagnetic transients that can corrupt lesser controllers.

Mining & Mineral Processing: Conveyor belt control, crusher sequencing, and ventilation fan management in underground and open-pit mining operations demand a CPU that tolerates vibration, dust ingress (when properly enclosed), and wide temperature swings. The IC693CPU321’s industrial-grade construction and configurable watchdog timer make it a reliable choice for these high-availability applications.

Water & Wastewater Treatment: Municipal and industrial water treatment facilities use the IC693CPU321 to control pump stations, chemical dosing systems, and UV disinfection sequences. Continuous 24/7 operation requirements align with the module’s low power consumption and long mean-time-between-failure (MTBF) characteristics.

Metallurgy & Steel Mills: Rolling mill drive sequencing, furnace temperature control, and ladle transfer automation expose control hardware to intense radiated EMI from large variable-frequency drives (VFDs) and arc furnaces. The IC693CPU321’s RFI immunity and robust backplane design maintain control loop integrity in these environments.

Port & Logistics Automation: Container crane PLC systems and automated guided vehicle (AGV) dispatch controllers benefit from the IC693CPU321’s fast scan time and reliable serial communication, ensuring precise load positioning and collision avoidance interlock response.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover?
The 12-month warranty covers all manufacturing defects and functional failures under normal operating conditions. If the IC693CPU321 fails to perform its specified functions within the warranty period, we provide a replacement unit or full refund. Warranty claims are processed within 3 business days of receiving the returned module.

Q2: What pre-shipment testing is performed on each IC693CPU321?
Every unit undergoes a multi-point functional verification before dispatch: power-on self-test (POST) completion, program memory read/write integrity check, communication port loopback test, and LED indicator verification. Units that fail any test point are quarantined and not shipped. A test report is available upon request.

Q3: Is the IC693CPU321 compatible with existing Series 90-30 racks and I/O modules?
Yes. The IC693CPU321 is fully backward-compatible with all standard Series 90-30 5-slot and 10-slot baseplate assemblies (IC693CHS391, IC693CHS397, IC693CHS398) and the complete range of Series 90-30 discrete, analog, and specialty I/O modules. No hardware modification is required for drop-in replacement of earlier CPU variants such as the IC693CPU311 or IC693CPU313.

Q4: Can long-term supply and spare parts support be guaranteed?
We maintain dedicated stock of IC693CPU321 modules and associated Series 90-30 components to support ongoing maintenance and emergency replacement needs. Our inventory is replenished on a rolling basis, and we offer priority allocation for customers with documented maintenance contracts or critical infrastructure requirements. Contact our team to discuss long-term supply agreements.
