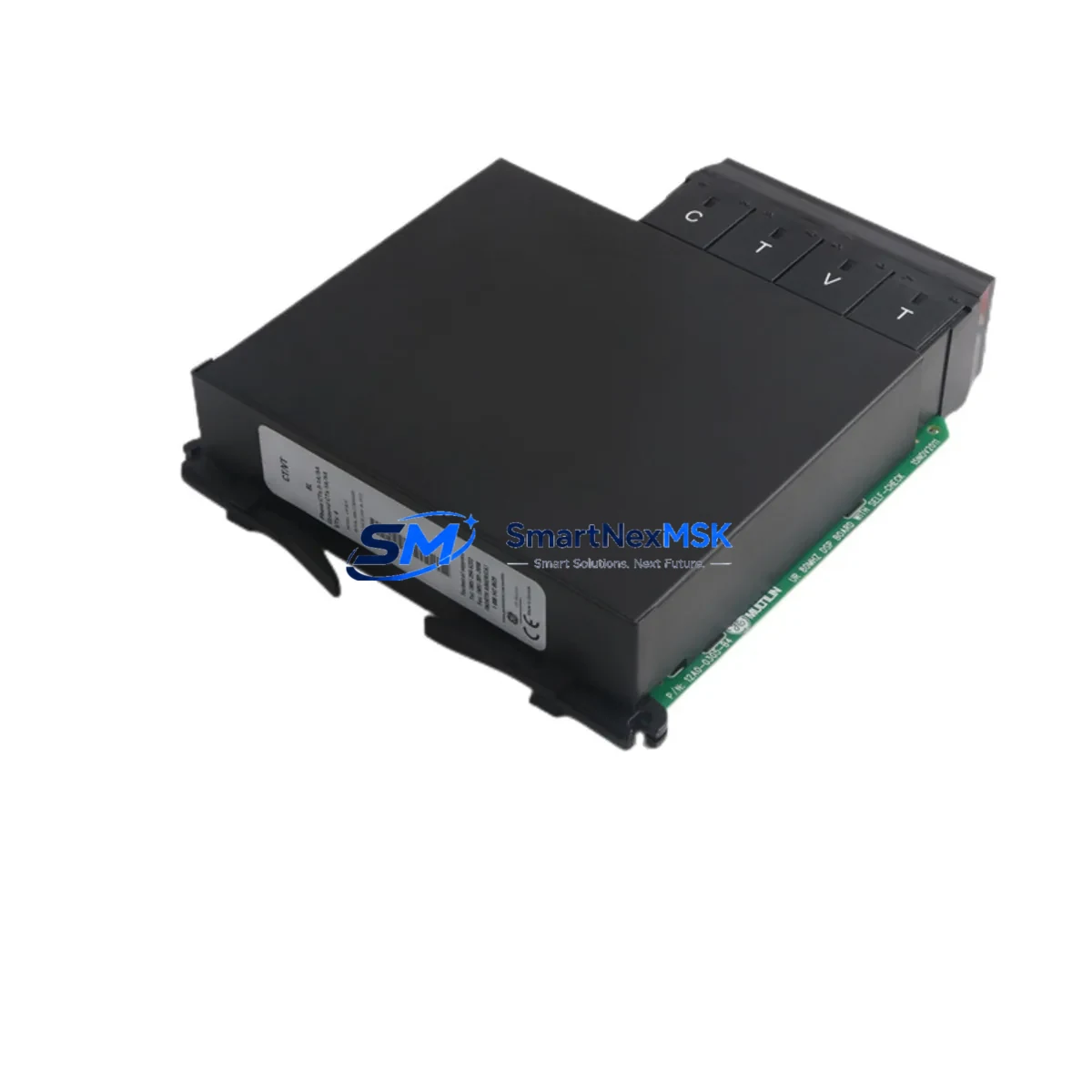

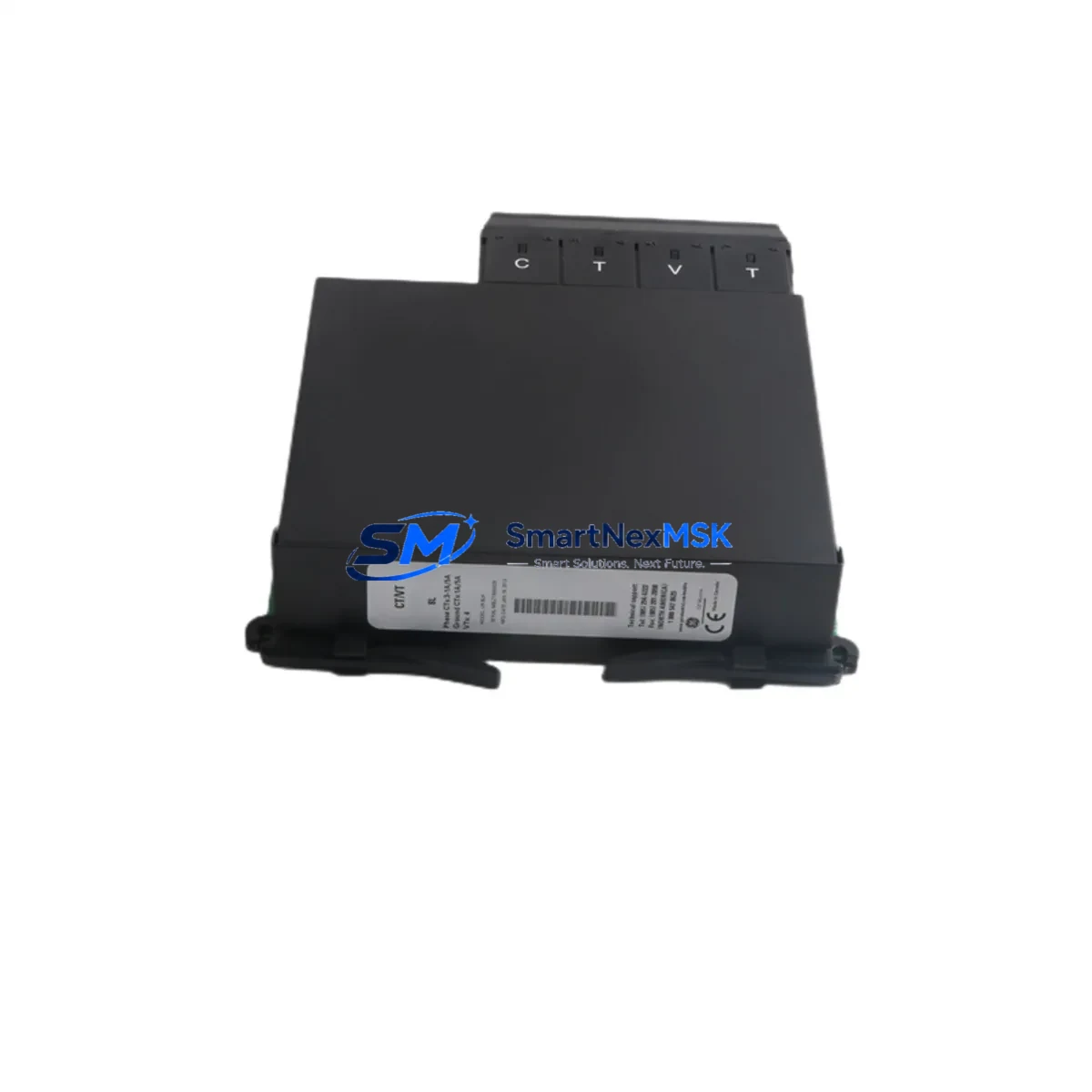

GE Grid Solutions UR 8LH Safety-Enhanced Voltage Input Module

GE Grid Solutions UR 8LH Safety-Enhanced Voltage Input Module for Harsh Industrial Sites

The GE Grid Solutions UR 8LH is a ruggedized voltage transformer input module engineered for the GE UR Series Universal Relay platform — one of the most widely deployed protection relay architectures in critical power infrastructure worldwide. Designed to operate reliably in high-interference, high-load, and continuous-production environments, the UR 8LH delivers stable, accurate voltage signal acquisition even under the most demanding field conditions, including substations, petrochemical switchgear rooms, mining power distribution centers, and heavy metallurgical control cabinets.

In modern industrial protection systems, voltage transformer input accuracy is foundational to the integrity of every downstream protection function. Signal drift, electromagnetic interference, and power supply fluctuations at the input stage can cascade into relay misoperation, nuisance tripping, or — more critically — failure to trip during a genuine fault. The UR 8LH addresses these risks through precision analog front-end design, robust isolation architecture, and full compatibility with the UR Series backplane, ensuring that voltage measurements feeding into overcurrent, distance, differential, and bus protection functions remain accurate and stable throughout the relay’s operational life.

When deployed alongside the GE UR 8AI analog input module and the GE UR 8DO digital output module, the UR 8LH forms a complete I/O layer capable of handling both voltage and current signal acquisition while simultaneously driving trip coils, alarm relays, and interlock outputs. This modular architecture is central to the UR Series’ strength: each slot in the UR chassis accepts purpose-built modules, allowing engineers to configure protection schemes precisely matched to the application — whether that is a GE UR-series D60 Line Distance Relay, a GE T60 Transformer Protection Relay, or a GE B90 Bus Differential Relay.

In high-voltage substations and power plant auxiliary systems, the UR 8LH works in concert with the GE UR CPU module and GE UR communications module (supporting IEC 61850 GOOSE messaging and DNP3 protocols) to deliver end-to-end protection and control integration. The module’s voltage inputs are rated for standard VT secondary outputs (typically 57.7 V or 110 V line-to-neutral), with wide input range tolerance that accommodates VT tap variations and transient overvoltage conditions common in industrial bus systems. This tolerance is critical in environments where surge protection devices (SPDs) and transient voltage suppressors are installed at the panel level but cannot fully eliminate all conducted disturbances reaching the relay chassis.

For continuous manufacturing and process industries — including water treatment, pulp and paper, and port crane power systems — the UR 8LH supports uninterrupted monitoring of feeder and motor bus voltages, enabling fast detection of undervoltage, overvoltage, and voltage unbalance conditions that could damage motors, drives, or process equipment. When integrated with a GE UR 8DI digital input module for status monitoring and a GE UR power supply module providing stable 24 VDC or 125 VDC auxiliary power, the complete UR chassis assembly delivers a self-contained, highly reliable protection and control node suitable for unmanned or remote substations.

Every UR 8LH module supplied by SMARTNEXMSK undergoes pre-shipment functional verification, including input channel continuity checks, isolation resistance testing, and firmware compatibility confirmation against the target UR chassis firmware version. Modules are shipped in anti-static packaging with full traceability documentation. Stock is maintained to support both planned maintenance replacements and emergency spare requirements, with same-day dispatch available for in-stock units. All modules carry a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions.

Safety Reliability Table

Control Cabinet Protection Strategy

A robust protection relay cabinet built around the GE UR Series platform requires careful coordination of every module slot to eliminate single points of failure. The UR 8LH voltage input module anchors the analog acquisition layer, but its reliability is only as strong as the surrounding system architecture. In a well-engineered control cabinet, the UR 8LH operates alongside the GE UR 8CT current transformer input module, which handles the current signal acquisition side of differential and overcurrent protection elements. Together, these two analog input modules feed the GE UR CPU module, which executes the protection logic in real time.

Power supply integrity is equally critical. The GE UR power supply module — available in 24–48 VDC, 125 VDC, and 250 VDC variants — provides regulated, filtered auxiliary power to the entire chassis, isolating the relay electronics from the noise and transients present on substation DC bus systems. In installations where DC bus quality is poor or where battery charger switching noise is a concern, adding a DC/DC isolation converter upstream of the UR power supply input further reduces the risk of power-induced relay misoperation.

For communications and SCADA integration, the GE UR communications module supports IEC 61850, DNP3, Modbus, and direct fiber-optic inter-relay communication (IRC) for high-speed differential protection schemes. In substations where multiple UR relays are networked, the communications module enables GOOSE-based intertripping and interlocking, reducing dependence on hardwired control cables that are susceptible to induced voltages in high-EMI environments. The GE UR 8DI digital input module complements this by capturing breaker status, disconnect switch positions, and external interlock signals, feeding them into the relay’s programmable logic for scheme-level automation.

At the output stage, the GE UR 8DO digital output module drives trip coils, close coils, alarm annunciators, and lockout relays. Output contact ratings are selected to match the coil burden of the specific circuit breaker — a critical detail in high-voltage applications where undersized output contacts can fail to deliver reliable trip energy under degraded battery conditions. Pairing the UR 8LH with a properly rated UR 8DO and a tested lockout relay (86 relay) in the trip circuit creates a complete, auditable protection chain from voltage measurement to breaker operation.

Critical Industrial Safety Applications

Petrochemical and Refinery Power Distribution: In petrochemical plants, the UR 8LH is deployed in medium-voltage switchgear protection panels monitoring feeder and transformer voltages in classified hazardous areas. Accurate voltage measurement is essential for detecting incipient insulation failures and preventing arc flash events in areas where flammable vapors may be present. The module’s robust isolation and surge withstand capability ensure continued operation even during nearby switching events or lightning-induced transients on overhead lines feeding the plant.

Electric Power Transmission Substations: Transmission substations rely on the UR Series platform — with the UR 8LH providing VT input — for line distance protection (D60), transformer differential protection (T60), and bus differential protection (B90). In these applications, voltage measurement accuracy directly affects the reach accuracy of distance protection zones and the stability of differential protection during external faults with CT saturation. The UR 8LH’s precision analog front end maintains measurement integrity under these challenging conditions.

Mining and Mineral Processing: Underground and surface mining operations subject protection relay systems to extreme vibration, dust ingress, and wide temperature swings. The UR 8LH’s ruggedized construction and wide operating temperature range make it suitable for deployment in mine power distribution centers, where reliable voltage monitoring of dragline, crusher, and conveyor motor feeders is critical to preventing production-halting electrical faults.

Water and Wastewater Treatment: Municipal water treatment facilities operate continuously, with pump station and blower motor protection relays required to maintain uptime 24/7. The UR 8LH supports voltage monitoring for motor bus protection schemes, enabling fast detection of voltage sags that could stall pumps and cause process upsets. Integration with SCADA via the UR communications module allows remote monitoring of relay status and alarm conditions without requiring on-site personnel.

Metallurgy and Steel Production: Electric arc furnace (EAF) operations generate severe voltage fluctuations and harmonic distortion on the plant power system. The UR 8LH, with its wide input range tolerance and EMI-resistant design, maintains accurate voltage measurement in these environments, supporting the protection of furnace transformers, bus tie breakers, and reactive power compensation equipment.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover for the UR 8LH?
The 12-month warranty covers all manufacturing defects and functional failures under normal operating conditions, including input channel failures, isolation breakdown, and backplane connector defects. Warranty claims are supported with replacement unit dispatch and return material authorization (RMA) processing. The warranty period begins from the date of shipment.

Q2: What pre-shipment testing is performed on each UR 8LH module?
Each module undergoes input channel continuity and signal integrity verification, isolation resistance testing between input channels and the backplane, and firmware compatibility confirmation against the customer’s specified UR chassis firmware version. Test records are available upon request and accompany the shipment documentation.

Q3: How do I confirm compatibility between the UR 8LH and my existing UR relay chassis?
The UR 8LH is compatible with all GE UR Series relay chassis platforms, including the D60, T60, B90, C60, F60, L90, M60, and G60. Compatibility depends on the chassis firmware version and the relay order code configuration. Please provide your relay model and firmware version when ordering, and our technical team will confirm slot compatibility and any firmware update requirements before shipment.

Q4: Can SMARTNEXMSK support long-term spare parts supply for UR Series modules?
Yes. SMARTNEXMSK maintains ongoing inventory of UR Series modules, including the UR 8LH, UR 8CT, UR 8AI, UR 8DI, UR 8DO, and UR power supply modules, to support both planned maintenance programs and emergency replacement requirements. We can provide multi-unit blanket orders with staggered delivery schedules to support your site’s spare parts management strategy.
