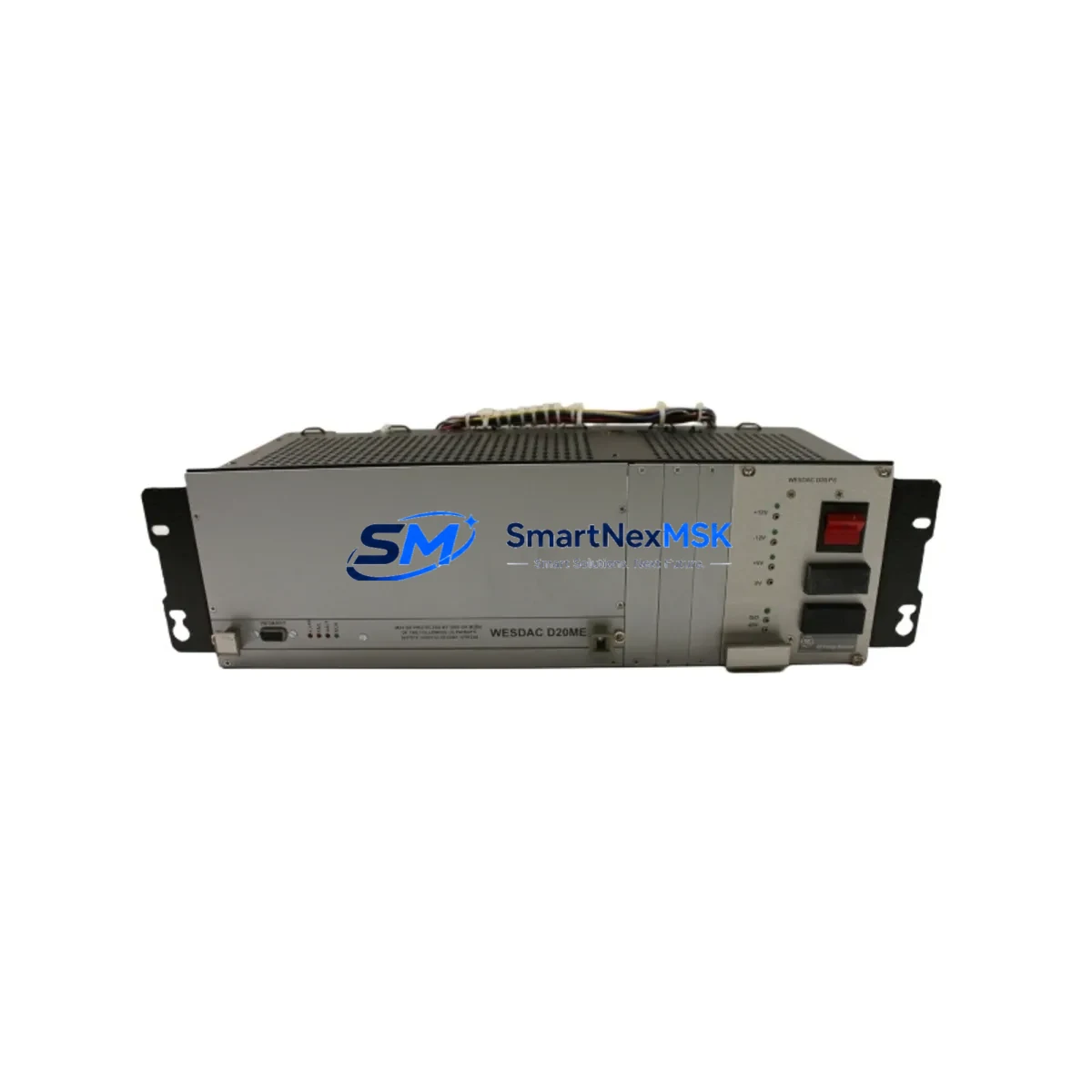

The GE Harris WESDAC-D20ME-820-0468-00 is an original D20 Series RTU (Remote Terminal Unit) Processor Module engineered for substation automation, SCADA systems, and utility-grade control infrastructure. As a maintenance-ready spare, this module is sourced, inspected, and dispatched to support rapid field replacement — minimizing unplanned downtime and protecting the continuity of critical power distribution and industrial control operations.

For maintenance engineers managing aging D20 Series RTU installations, securing a verified spare of the WESDAC-D20ME-820-0468-00 is a foundational step in any preventive maintenance or emergency recovery plan. This processor module governs real-time data acquisition, protocol conversion, and communication between field devices and the SCADA host — making its availability in the spare parts inventory non-negotiable for high-availability substations.

Whether you are executing a scheduled outage window, responding to an unplanned processor fault, or building a strategic buffer stock for a fleet of D20 RTU cabinets, this original GE Harris module ships tested, with full 12-month warranty coverage and documented compatibility confirmation.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the WESDAC-D20ME-820-0468-00 processor module in a D20 RTU cabinet, a thorough maintenance inspection of the surrounding components is essential to prevent repeat failures and ensure full system restoration. Maintenance engineers should treat this replacement as an opportunity for a comprehensive cabinet audit.

Begin by verifying the D20 Series power supply module — processor faults are frequently preceded by voltage instability or ripple on the 24VDC or 48VDC rail. Inspect the D20 backplane for corrosion, loose connectors, or damaged bus traces that could cause intermittent processor resets. Check all I/O modules installed in adjacent slots, including digital input, digital output, and analog input cards, as a failing processor may have masked upstream I/O errors.

Review the communication module responsible for DNP3 or Modbus upstream links to the SCADA master — a processor swap is the ideal time to verify firmware versions and protocol configuration. Inspect terminal blocks and field wiring for loose connections, insulation degradation, or moisture ingress, particularly in outdoor or harsh-environment substation enclosures. If the RTU cabinet includes a signal isolator or surge protection module on analog or digital inputs, verify its integrity, as transient events that damaged the processor may have also stressed these protective components.

For cabinets with integrated relay output modules, test each relay for proper actuation and contact resistance. Confirm that any HMI panel or local operator interface connected to the D20 processor is communicating correctly after the module swap. Where fiber optic or serial communication converters are used for upstream SCADA links, verify signal levels and error counters post-replacement. Finally, review the fuse and circuit protection assembly within the RTU panel — a processor failure caused by a power surge may have blown protection fuses that, if left unreplaced, will cause the new module to fail prematurely.

Stocking a complete D20 Series spare kit — including the WESDAC-D20ME-820-0468-00 processor, a matched power supply module, one or two I/O cards, and a communication module — is the recommended strategy for utilities and industrial operators managing multiple RTU sites.

Site Replacement Workflow

Step 1 — Pre-Replacement Verification: Confirm the failed module part number against the cabinet documentation. Cross-reference the WESDAC-D20ME-820-0468-00 with the site’s as-built drawings and RTU configuration files. Backup the processor configuration if the existing module is still partially functional.

Step 2 — Safe Isolation: Follow site lockout/tagout (LOTO) procedures. De-energize the RTU cabinet using the appropriate isolation point. Verify zero-voltage on the backplane before module removal.

Step 3 — Module Removal and Inspection: Remove the faulty WESDAC-D20ME-820-0468-00 from its backplane slot. Inspect the slot connector for damage. Clean the slot with compressed air if contamination is present.

Step 4 — Spare Installation: Insert the replacement WESDAC-D20ME-820-0468-00 into the correct backplane slot. Secure all retaining fasteners. Reconnect any field wiring or communication cables that were disconnected during removal.

Step 5 — Configuration Restore and Commissioning: Re-energize the cabinet. Load the backed-up processor configuration. Verify DNP3 or Modbus communication with the SCADA master. Confirm all I/O points are scanning correctly and that no alarms are active.

Step 6 — Documentation: Record the replacement in the site maintenance log. Update the spare parts inventory. Schedule the next inspection interval.

This workflow supports a target return-to-service time of under 4 hours for a prepared maintenance team with the spare module on-site — compared to days or weeks if the part must be sourced reactively after a failure.

Spare Parts Support FAQ

Q1: Is the WESDAC-D20ME-820-0468-00 a direct drop-in replacement for the original GE Harris D20 processor?
Yes. This is an original GE Harris module, not a third-party substitute. It is designed for direct installation into D20 Series RTU chassis without firmware modification, provided the backplane and system configuration are compatible with the standard D20ME processor specification. Compatibility confirmation is available prior to shipment upon request.

Q2: What testing is performed before shipment?
Each WESDAC-D20ME-820-0468-00 unit undergoes functional verification prior to dispatch, including power-on testing and communication interface checks. Units are shipped with test documentation. The 12-month warranty covers defects in materials and workmanship from the date of shipment.

Q3: How should this module be stored if purchased as a buffer spare?
Store in a dry, temperature-controlled environment between -20°C and +60°C, away from direct sunlight and electromagnetic interference sources. Keep in the original anti-static packaging. Inspect annually and rotate stock on a first-in, first-out basis to maintain readiness.

Q4: Can you support long-term supply for fleet maintenance programs managing multiple D20 RTU sites?
Yes. Long-term supply agreements and priority stock reservation are available for utilities and industrial operators managing multiple sites. Contact our team to discuss volume requirements, lead times, and consignment stocking options.
