GE IC220MDL753 Safety-Enhanced Digital Output Module

GE IC220MDL753 Safety-Enhanced Digital Output Module: Reliable Control in Harsh Industrial Sites

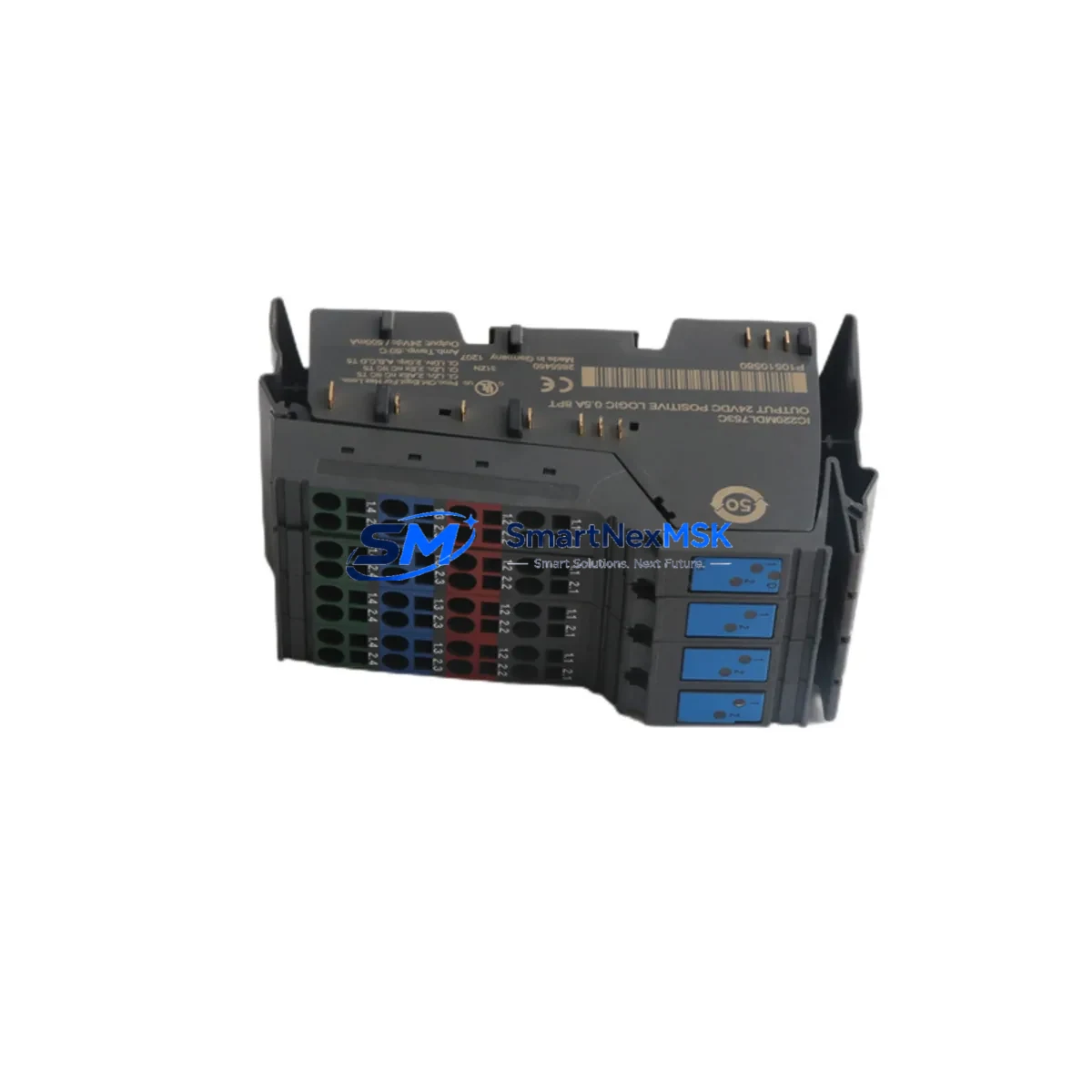

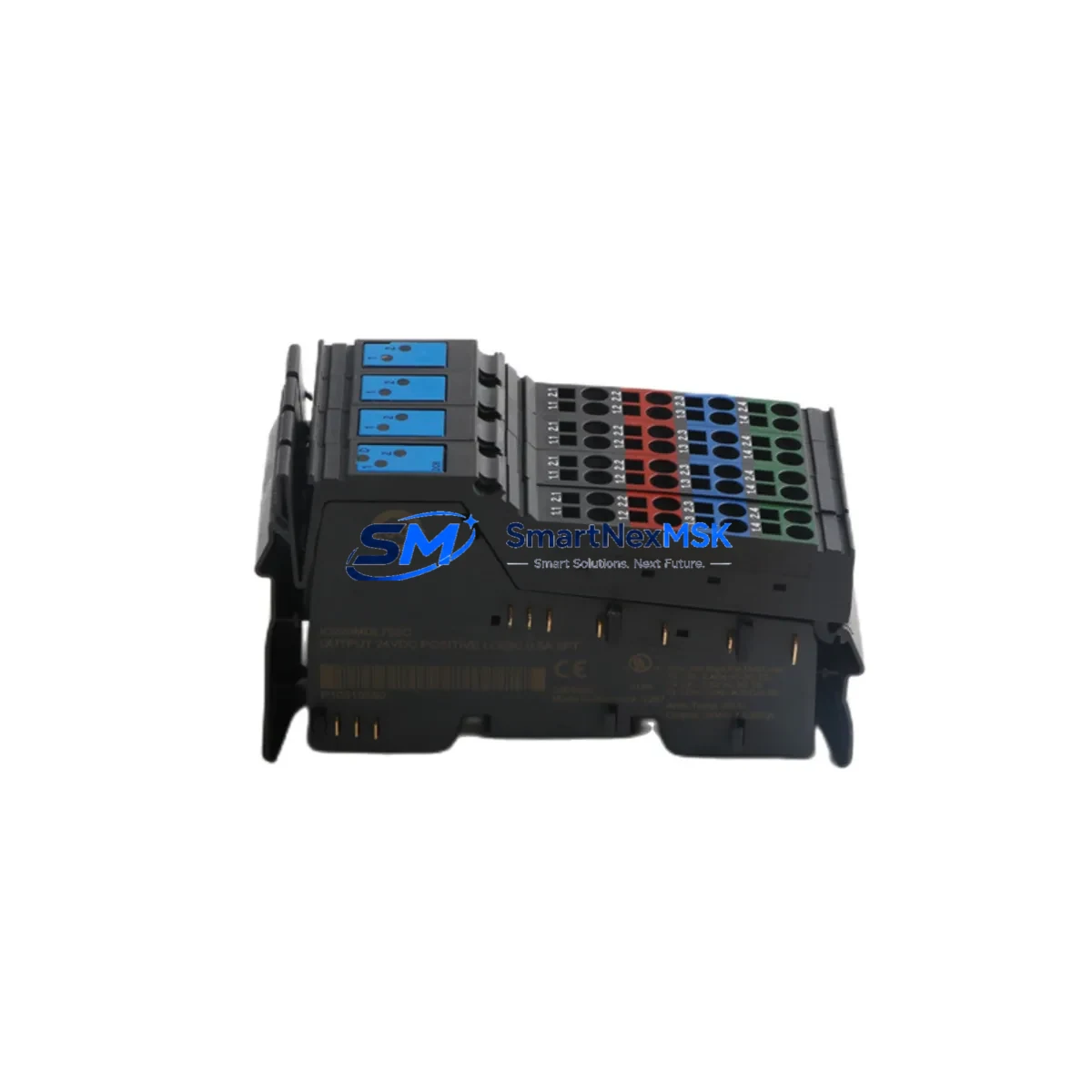

The GE IC220MDL753 is a high-reliability 8-point, 24VDC sourcing digital output module engineered for the GE VersaMax Micro PLC platform. Designed to perform without compromise in high-load, high-interference, and continuous-production environments, this module is a critical component in safety-critical control cabinets, interlock circuits, and field-level automation systems across heavy industry. Whether deployed in petrochemical processing, power generation, mining operations, water treatment, metallurgy, or port logistics, the IC220MDL753 delivers the output switching precision and electrical resilience that industrial safety demands.

In demanding field environments, digital output modules are among the most failure-prone components in a control loop — subject to inductive load kickback, ground faults, EMI from variable frequency drives, and voltage transients from motor starts. The IC220MDL753 addresses these risks through solid-state output switching, optical isolation between field and logic circuits, and robust short-circuit protection on each output channel. These design features directly reduce the risk of module misoperation, spurious output activation, and unplanned process shutdowns — all of which carry serious safety and financial consequences in continuous manufacturing or hazardous-area control systems.

Within a properly configured VersaMax Micro control cabinet, the IC220MDL753 operates alongside the GE IC200PWR002 power supply module, which provides stable 24VDC bus power with surge suppression to protect downstream output channels from voltage spikes. The GE IC220CPU001 CPU module coordinates scan-cycle timing and output refresh, ensuring that the IC220MDL753 responds to logic state changes within deterministic cycle times — a requirement in safety interlock and emergency shutdown (ESD) applications. For installations requiring expanded I/O, the GE IC220MDL740 digital input module is commonly paired with the IC220MDL753 to form a complete discrete I/O subsystem within the same rack.

Signal integrity is a persistent challenge in industrial environments with heavy motor loads, welding equipment, or high-frequency switching devices. The IC220MDL753’s optical isolation architecture prevents ground loops and common-mode noise from propagating into the PLC backplane, protecting the GE IC200ALG260 analog input modules and communication modules sharing the same rack. In installations where the VersaMax Micro system communicates over Profibus-DP or Ethernet/IP, the output module’s EMI shielding ensures that digital output switching does not introduce noise artifacts into the GE IC200PBI001 Profibus interface or Ethernet communication cards — a common source of intermittent faults in poorly designed control cabinets.

For power distribution and surge protection within the control cabinet, the IC220MDL753 is typically installed downstream of a Phoenix Contact TRABTECH or equivalent DIN-rail surge protection device on the 24VDC supply rail. This combination protects the module’s output transistors from lightning-induced transients and switching surges that can degrade output channel performance over time. In safety-rated installations, a Pilz PNOZ or equivalent safety relay module is often used in series with selected IC220MDL753 output channels to provide monitored, dual-channel shutdown capability for Category 3 or PLd safety functions per ISO 13849.

The IC220MDL753 is also well-suited for use in distributed control architectures where VersaMax Micro PLCs serve as remote I/O nodes under a supervisory GE PACSystems RX3i or GE Fanuc Series 90-30 controller. In these topologies, the output module’s deterministic response and low-latency switching are essential for maintaining synchronization between the remote node and the central control system — particularly in applications such as conveyor sequencing, valve actuation, and pump control where output timing directly affects process safety.

Every IC220MDL753 unit supplied by SMARTNEXMSK undergoes pre-shipment functional verification, including output channel continuity testing, isolation resistance measurement, and logic-level response validation. Units are sourced from authorized distribution channels and stored in ESD-controlled environments to prevent latent damage to output transistors and optocoupler components. Each module ships with a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions, with direct technical support available for compatibility verification, installation guidance, and replacement logistics.

Safety Reliability Table

Control Cabinet Protection Strategy

A robust control cabinet built around the IC220MDL753 integrates multiple layers of protection to ensure continuous, safe operation. The GE IC200PWR002 power supply provides regulated 24VDC with built-in surge clamping, forming the first line of defense against power rail disturbances. The GE IC220CPU001 CPU manages deterministic output scheduling, while the GE IC220MDL740 digital input module provides the feedback signals necessary for closed-loop interlock verification — confirming that output commands have been executed correctly before the next control cycle proceeds.

For analog process variables feeding into the same control cabinet, the GE IC200ALG260 analog input module monitors process parameters such as pressure, temperature, and flow rate, with its signal integrity protected by the IC220MDL753’s optical isolation preventing switching noise from corrupting analog readings. Communication integrity is maintained through the GE IC200PBI001 Profibus-DP interface, which connects the VersaMax Micro node to the plant-wide control network without susceptibility to the EMI generated by the output module’s switching transistors.

At the field level, output channels from the IC220MDL753 are routed through Weidmüller or Phoenix Contact terminal blocks with integrated fuse holders, providing per-circuit overcurrent protection and enabling safe, tool-free maintenance without de-energizing the entire cabinet. For safety-rated shutdown circuits, selected output channels are wired through a Pilz PNOZ X or Schmersal SRB safety relay to achieve dual-channel, monitored emergency stop functionality compliant with IEC 62061 and ISO 13849 requirements. Surge protection on the 24VDC supply rail — typically a Phoenix Contact TRABTECH PT 2X2-24DC-ST — protects the IC220MDL753’s output transistors from transient overvoltage events caused by nearby motor switching or lightning coupling.

Critical Industrial Safety Applications

The IC220MDL753 is deployed across a wide range of safety-critical and continuous-process industrial environments. In petrochemical and refinery applications, it controls solenoid valves, motor starters, and alarm annunciators within hazardous-area control panels, where output reliability directly affects process containment and personnel safety. In power generation facilities, it manages auxiliary equipment sequencing and interlock outputs for turbine protection systems, where a spurious output or missed command can trigger costly unplanned outages.

In mining and mineral processing operations, the module drives conveyor belt starters, crusher interlock relays, and ventilation fan controls in environments characterized by heavy vibration, coal dust, and wide temperature swings — conditions that demand the IC220MDL753’s robust optical isolation and solid-state switching. Water and wastewater treatment plants rely on the module for pump sequencing, valve actuation, and chemical dosing control, where continuous 24/7 operation and resistance to humidity and chemical vapors are essential. In metallurgical and steel mill environments, the IC220MDL753 controls cooling water valves, furnace interlock outputs, and rolling mill auxiliary drives, operating reliably despite the intense electromagnetic interference generated by large induction furnaces and high-current bus bars.

Port and logistics automation systems use the IC220MDL753 to control crane interlock outputs, conveyor routing gates, and safety barrier actuators, where deterministic output response and high mean-time-between-failure (MTBF) are critical to throughput and worker safety. In all these applications, SMARTNEXMSK maintains ready stock of IC220MDL753 modules to support rapid spare-parts replacement, minimizing mean-time-to-repair (MTTR) and reducing the risk of extended production downtime due to module failure.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover for the IC220MDL753?
The 12-month warranty covers all manufacturing defects and functional failures under normal operating conditions, including output channel failure, optocoupler degradation, and logic interface faults. Warranty claims are supported with direct technical assessment and priority replacement shipping to minimize site downtime.

Q2: What pre-shipment testing is performed on each IC220MDL753 unit?
Each unit undergoes output channel continuity verification, optical isolation resistance measurement, and logic-level input-to-output response testing before shipment. Units are handled in ESD-controlled environments throughout storage and packaging to prevent latent transistor or optocoupler damage.

Q3: Is the IC220MDL753 compatible with all VersaMax Micro PLC configurations?
Yes. The IC220MDL753 is designed for the GE VersaMax Micro PLC platform and is compatible with standard VersaMax Micro CPU modules and expansion racks. For specific compatibility with non-standard configurations or third-party integration, our technical team can provide pre-purchase verification support.

Q4: Can SMARTNEXMSK guarantee long-term supply and replacement support for the IC220MDL753?
Yes. SMARTNEXMSK maintains dedicated inventory of IC220MDL753 modules and equivalent VersaMax Micro I/O components to support long-term spare-parts programs for installed base maintenance. We provide replacement sourcing, compatibility cross-referencing, and logistics support for both single-unit emergency replacements and bulk procurement for planned maintenance programs.
