GE IC694MDL646 Retrofit-Ready Discrete Output for PACSystems RX3i

GE IC694MDL646 Retrofit-Ready Discrete Output for PACSystems RX3i Control Systems

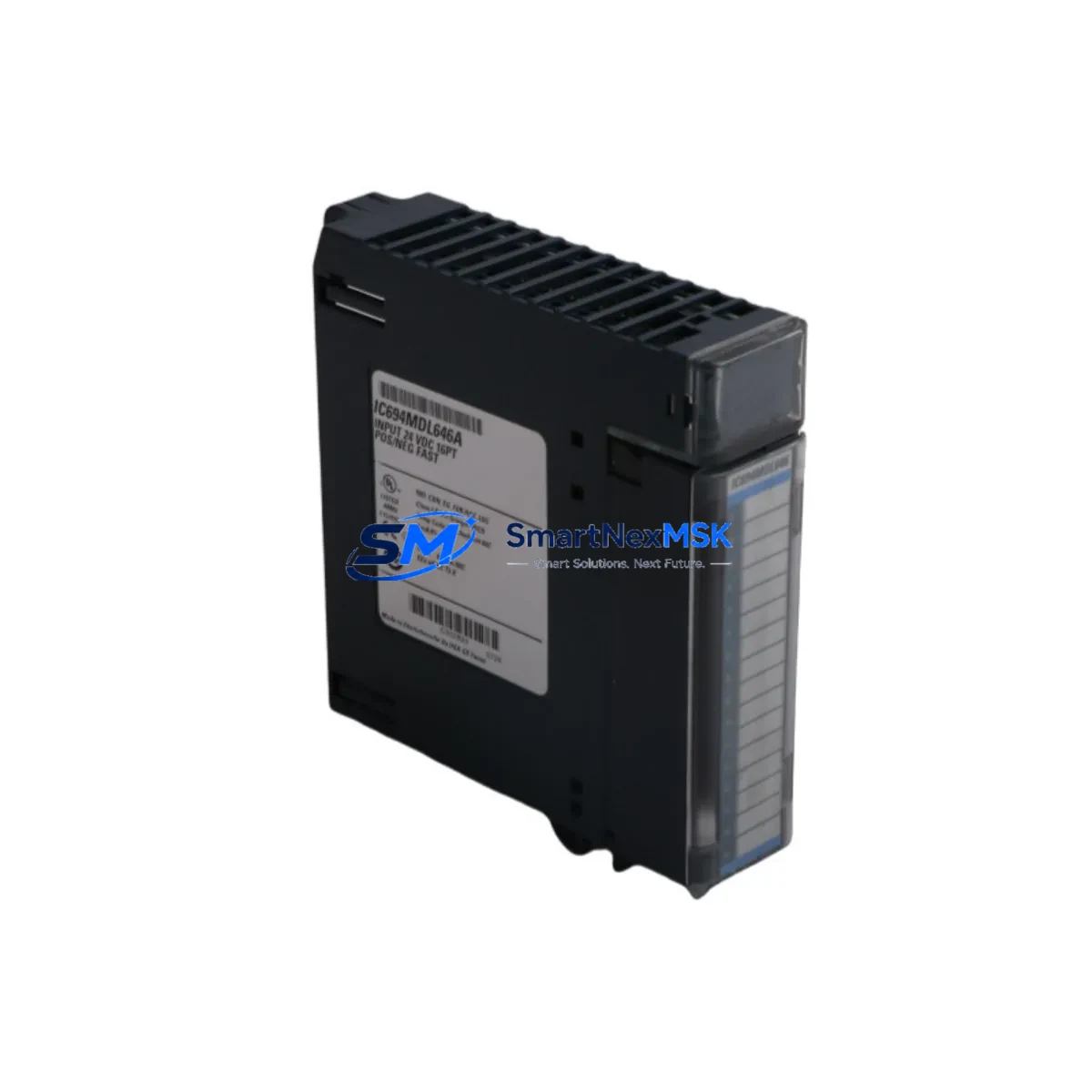

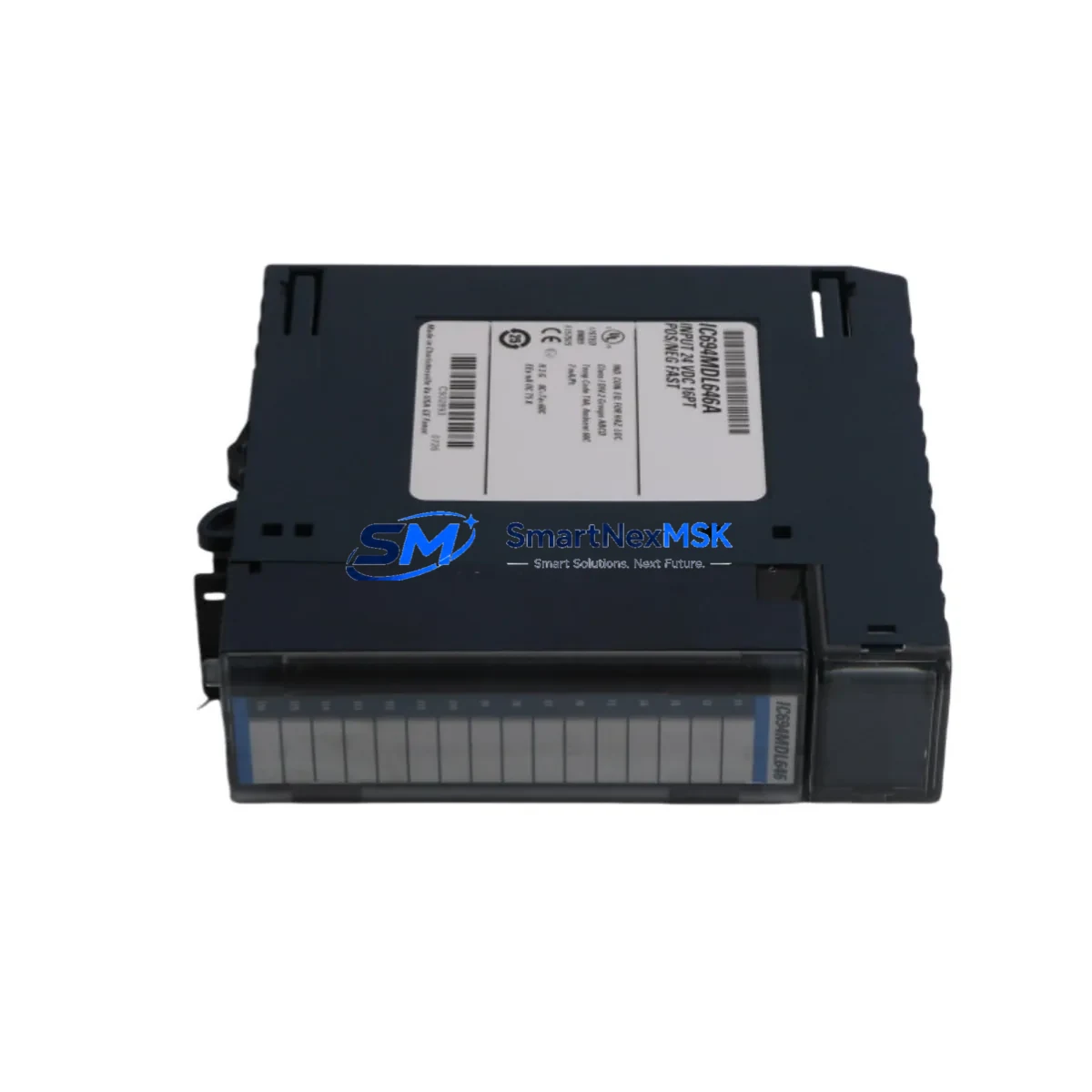

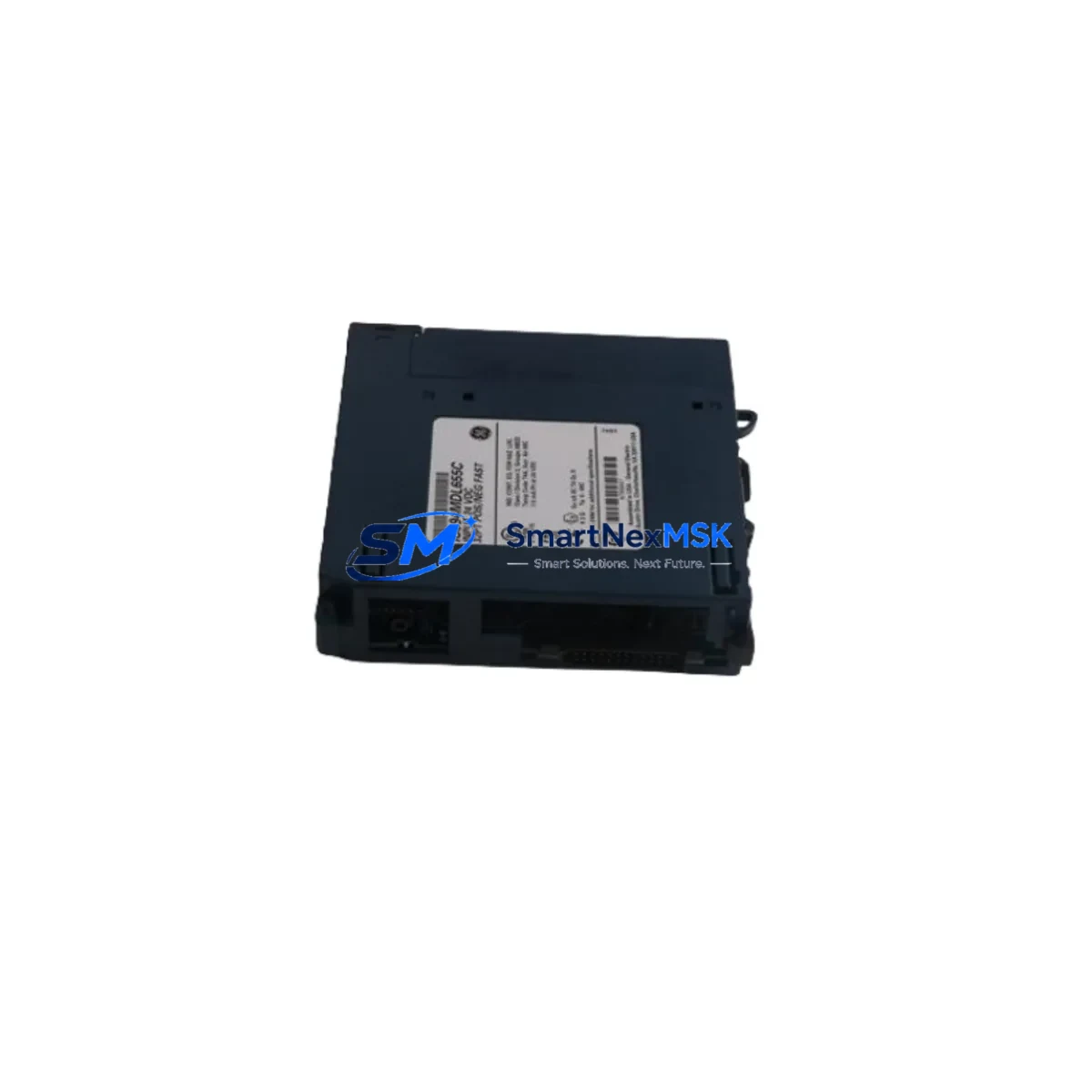

The GE IC694MDL646 is a 16-point, 24VDC sourcing discrete output module engineered for the GE PACSystems RX3i platform. As legacy Series 90-30 and early RX3i installations reach end-of-service milestones, the IC694MDL646 has become one of the most specified retrofit components for control engineers managing aging production lines, upgrading control cabinets, or recovering from discontinued spare-part shortages. This module slots directly into the IC694CHS392 or IC694CHS398 universal backplane, maintaining full compatibility with existing rack wiring, terminal block layouts, and I/O addressing schemes — minimizing re-engineering effort and protecting the original ladder logic investment.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful IC694MDL646 retrofit begins well before the module arrives on-site. Engineers replacing a failed or discontinued IC693MDL646 in a Series 90-30 rack must first confirm whether the target system has already been migrated to an RX3i backplane, or whether a full rack swap — including the IC694CHS392 chassis, IC694PSA140 power supply, and a compatible CPU such as the IC694CPU310 — is part of the project scope. In many brownfield plants, the control cabinet houses a mixed architecture: an RX3i CPU communicating over a legacy backplane segment via the IC694BEM331 bus expansion module, which means the output module’s slot assignment and %Q address block must be re-verified in Proficy Machine Edition before any physical swap takes place.

For sites running distributed I/O over PROFIBUS-DP or DeviceNet, the IC694MDL646 itself does not carry a fieldbus interface — all field communication is managed upstream by the IC695PBM300 PROFIBUS master module or the IC694DNM200 DeviceNet master, both of which remain in service during a discrete output module replacement. This separation of concerns is a key advantage: the output module can be swapped, tested, and returned to service without touching the network configuration or re-downloading the communication parameters stored in the IC695CPU310 or IC695CPU315 controller.

Terminal block wiring is one of the most time-sensitive steps in any output module retrofit. The IC694MDL646 uses a 40-pin removable terminal block that, in most installations, can be unplugged from the failed module and plugged directly into the replacement — provided the field wiring was originally landed on the correct commons and the 24VDC source capacity has been verified against the new module’s 4A-per-group rating. Where the original installation used an IC693MDL646 on a Series 90-30 rack, the terminal block pinout is functionally identical, but the physical connector body differs; a wiring diagram review against the IC694MDL646 installation manual (GFK-1504) is mandatory before transfer.

I/O expansion scenarios — such as adding a second IC694MDL646 to an existing rack to support new conveyor drives or valve manifolds — require a slot availability check on the IC694CHS392 or IC694CHS398 chassis. If all slots are occupied, a secondary rack connected via the IC694BEM331 expansion cable is the standard solution, and the additional %Q addresses must be declared in the hardware configuration before the program download. For analog signal integration alongside discrete outputs, the IC694ALG220 analog input module or IC694ALG390 analog output module can share the same chassis without affecting the IC694MDL646’s performance or addressing. Pre-shipment functional testing of each IC694MDL646 unit, including point-by-point output verification under load, is performed before dispatch to reduce on-site commissioning time and support your incoming inspection process.

Downtime Control During System Migration

Minimizing unplanned downtime during a discrete output module replacement requires a structured hot-swap protocol. For RX3i systems running Proficy Machine Edition, the recommended approach is to place the CPU in RUN-with-I/O-disabled mode, physically swap the IC694MDL646, and restore I/O scan before returning the CPU to full RUN — a sequence that typically takes under five minutes for a trained technician and does not require a program re-download if the hardware configuration was pre-loaded with the replacement module’s slot assignment.

Where a full program re-download is unavoidable — for example, when migrating from a Series 90-30 IC693MDL646 to an RX3i IC694MDL646 as part of a broader platform upgrade — the original ladder logic should be exported from the legacy programming software using the IC690ACC901 programming cable or equivalent USB adapter, reviewed for any Series 90-30-specific instructions, and re-compiled in Proficy Machine Edition before the cutover window. Retaining the original %Q address map and preserving the HMI tag database (whether iFIX, CIMPLICITY, or a third-party OPC-UA server) eliminates the need to remap operator screens, which is often the longest task in a control system migration. A parallel-run period — where both the old and new modules are powered but only one is controlling outputs — is recommended for critical processes such as boiler controls, press safety circuits, or conveyor interlocks.

All IC694MDL646 units supplied by SMARTNEXMSK are pre-tested under simulated load conditions prior to shipment. Each unit ships with a test report confirming point-by-point output continuity, leakage current within specification, and backplane communication handshake — documentation that supports your site acceptance test and reduces the commissioning window to a single loop-check pass. In-stock units are available for same-week dispatch, supporting urgent breakdown recovery and planned maintenance windows alike.

Retrofit Support FAQ

Q1: Is the IC694MDL646 a direct drop-in replacement for the IC693MDL646?
Functionally yes — both are 16-point 24VDC sourcing output modules with identical I/O point counts and similar electrical ratings. However, the IC694MDL646 is designed for the RX3i backplane (IC694CHS392 / IC694CHS398) and is not physically compatible with Series 90-30 IC693 racks without a full chassis migration. If your system is still on a Series 90-30 backplane, contact us to confirm the correct migration path before ordering.

Q2: Do I need to re-download my PLC program after swapping the module?
In most RX3i-to-RX3i same-slot replacements, no program re-download is required. The CPU retains the hardware configuration in flash memory and will recognize the replacement IC694MDL646 automatically on power-up. A re-download is only necessary if the slot assignment has changed or if you are migrating from a Series 90-30 platform. Always verify the %Q address block in Proficy Machine Edition before the swap to avoid I/O mapping conflicts.

Q3: What wiring and terminal checks are required before installation?
Verify that the 24VDC supply feeding the module’s output commons does not exceed the 4A-per-group rating under worst-case simultaneous-on conditions. Confirm that the removable terminal block pinout matches the IC694MDL646 installation manual (GFK-1504). Check that all field device loads are within the 0.5A-per-point specification. For inductive loads such as solenoids and relays, confirm that suppression diodes or snubbers are installed at the load — the IC694MDL646 does not include internal output protection circuitry.

Q4: What does the 12-month warranty cover, and what pre-shipment testing is performed?
Every IC694MDL646 unit supplied by SMARTNEXMSK carries a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. Pre-shipment testing includes point-by-point output activation under resistive load, backplane communication verification, and visual inspection for connector damage. A test report is available upon request and can be included with the shipment documentation to support your incoming inspection records and quality management requirements.
